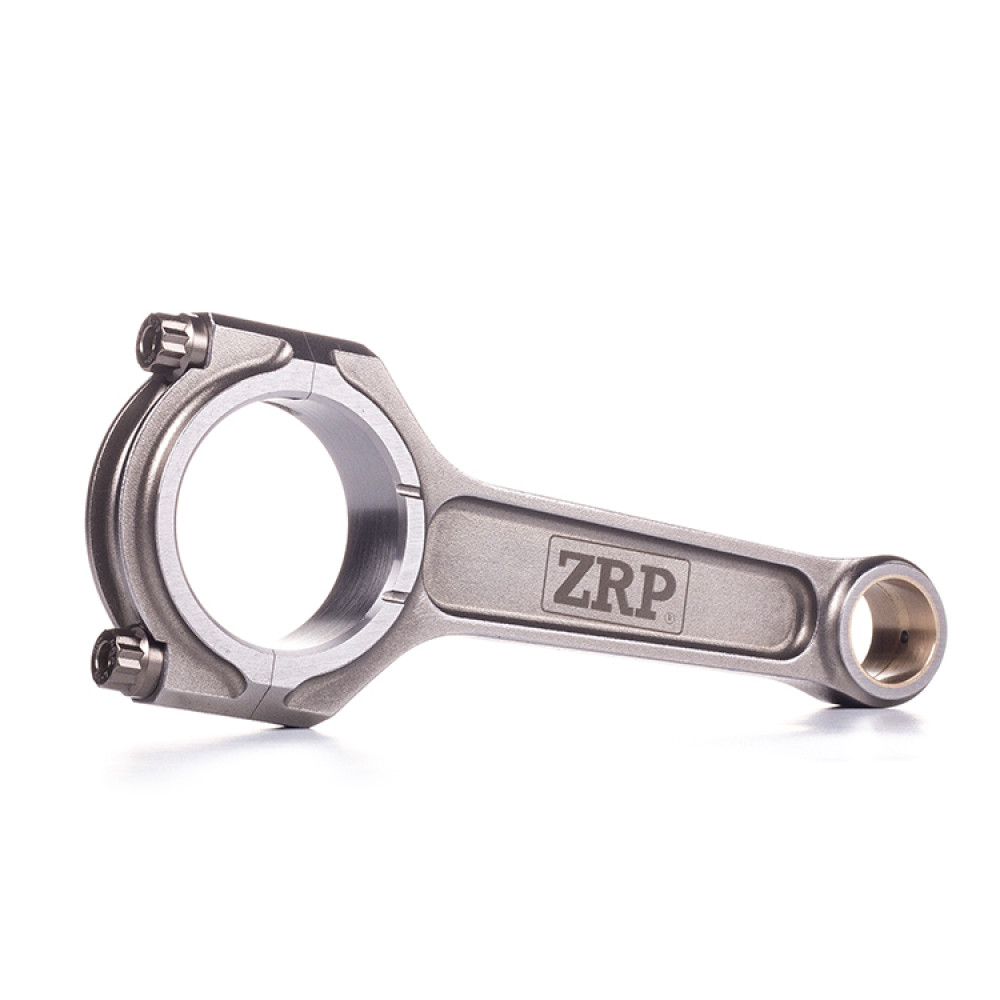

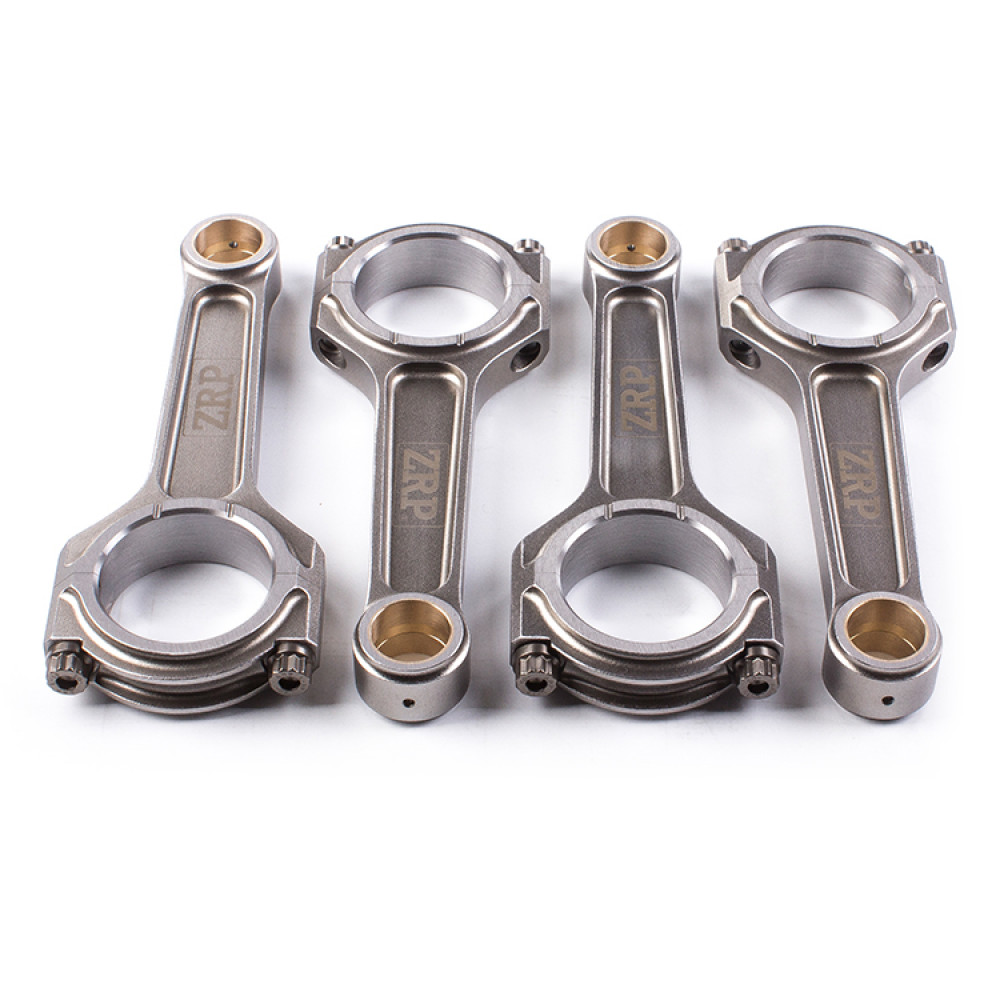

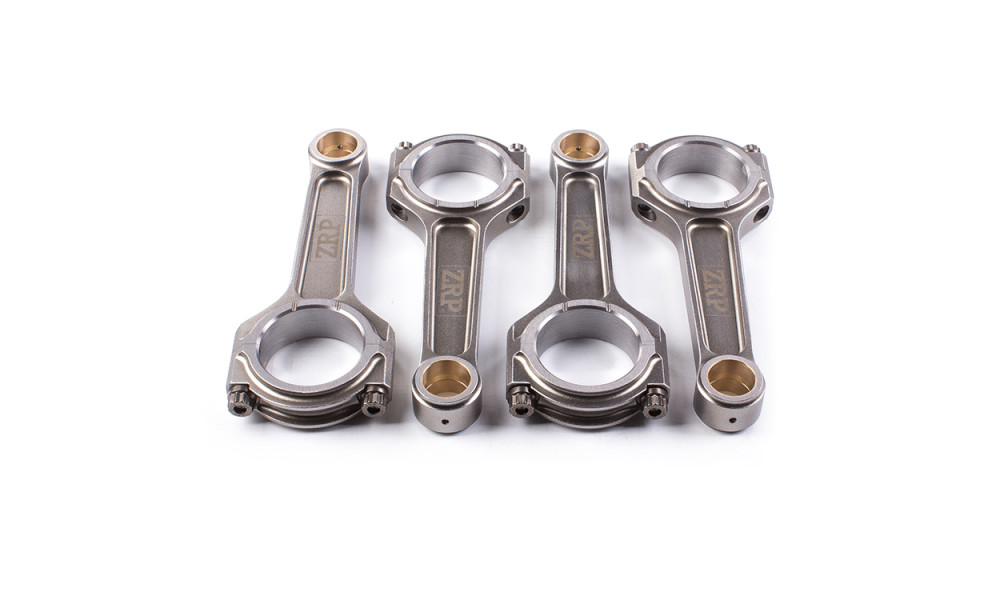

Heavy Duty I-Beam Connecting Rods for Honda S2000 F20C

The I-Beam "Heavy Duty" series connecting rods are designed for high horsepower and boost applications in the Honda S2000 F20C. Constructed from 4340 high tensile steel, these rods offer extreme durability and performance. The "straight cut" pin end enhances durability, suitable only with aftermarket pistons. AMPCO 18 material bushings provide excellent wear and fatigue resistance, featuring a radial groove for oil retention. Shot peening relieves material stress, and multi-stage heat treatment increases rigidity. Tight production tolerances ensure perfect fitment and optimized oil clearances, with controlled bend and twist.

Additional Machining Processes

• Tapered Pin End – Compatible with OEM pistons
• Dowel sleeves for precise fit and reassembly
• Lipped Cap Relief for enhanced big-end integrity
• Grooves in Thrust Face for weight reduction

Technical Features

• I-Beam Shape for added rigidity
• Two-Piece forging for superior strength
• Shot Peening for improved fatigue life
• Magnaflux Inspection ensures material consistency
• Double ribbed caps for additional support
• Multi Stage Heat Treatment for maximum strength and stability
• CNC machining for superior tolerances, precise to 0.0002"
• Center to center maintained under .001" tolerance
• Finite Element Analysis (FEA) for stress analysis
• Optimal balancing for weight-matched sets of ± 1 gram

Each rod includes 3/8 ARP 2000 cap fasteners rated at 220,000 psi, with an optional upgrade to ARP L19 material rated at 260,000 psi. The kit comes with ARP moly and full fitting instructions.
