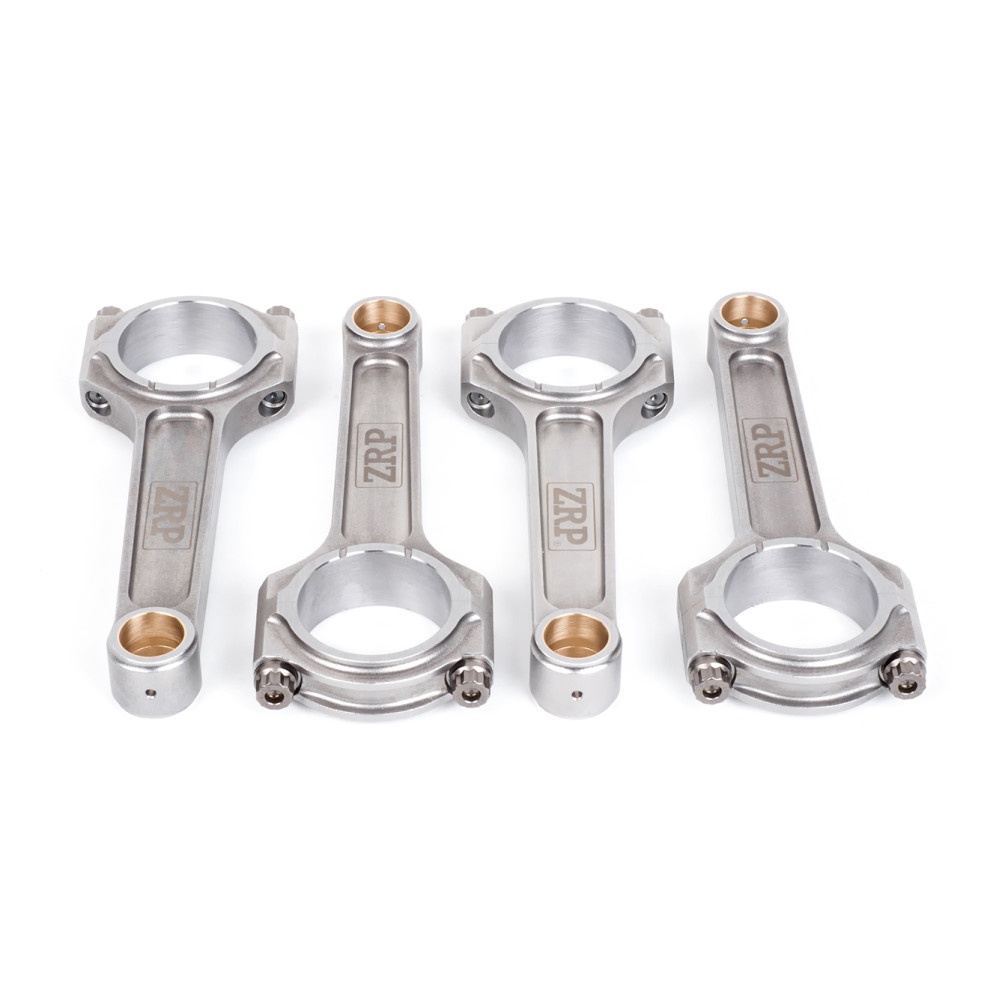

VW 2.0L 16v (ABF) I-Beam Connecting Rods

The I-Beam Connecting rods for VW 2.0L 16v (ABF) are crafted from 4340 high tensile steel, offering high performance, extreme durability, and extra rigidity while maintaining a lightweight design. The bushings, made from AMPCO 18 material, provide excellent resistance to wear and fatigue and feature a radial groove for oil reservoir. These rods are shot peened to relieve stress and undergo multi-stage heat treatment to enhance rigidity. Tight production tolerances ensure perfect fitment and optimized oil clearances, with controlled bend and twist. Each rod includes ARP 2000 cap fasteners rated at 220,000 psi, with an optional upgrade to ARP L19 material.

Additional Machining Processes

• Dowel sleeves for perfect fit and accurate re-assembling
• Lipped Cap Relief for improved big-end integrity at extreme applications
• Grooves in Thrust Face for weight reduction

Technical Features of ZRP Connecting Rods

• Two-Piece forging for great strength
• Shot Peening for improved fatigue life
• Magnaflux Inspection ensures high-quality material consistency
• Double ribbed caps for added support
• Multi Stage Heat Treatment for maximum strength, dimensional stability, and fatigue life
• CNC machining for superior tolerances, precise to 0.0002"
• Center to center maintained under .001" tolerance
• Finite Element Analysis (FEA) for stress analysis of con rods
• Optimal balancing for weight matched sets of ± 1 gram

These rods support a horsepower range of 155HP per cylinder with ARP 2000 fasteners and 175HP with ARP L19 Fasteners.
