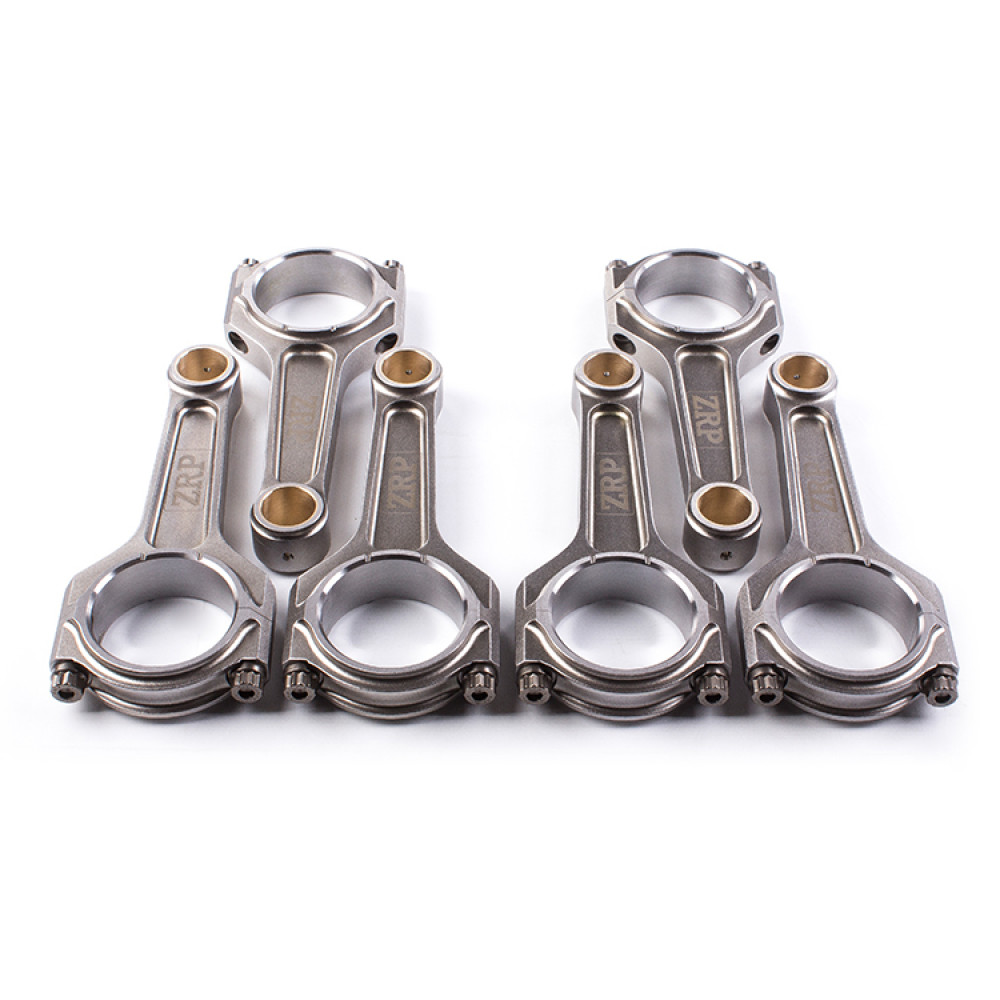

ZRP Pro Series I-Beam Shaped Rods for Toyota Supra 2JZ

ZRP Pro Series I-Beam Shaped rods for the Toyota Supra 2JZ are crafted from high-quality 817M40T steel, known for its excellent machinability and through-hardening properties. With a hardness range of 248/302 HB, these rods are suitable for extreme applications. The 817M40T - EN24T steel can be surface-hardened for enhanced wear resistance through induction or nitriding processing.

The production process ensures tight tolerances for perfect fitment and optimized oil clearances. The bushings are made from AMPCO 18 material, providing excellent resistance to wear and fatigue. Bend and twist are tightly controlled. Each rod includes ARP L19 cap fasteners rated at 260,000 psi, with an optional upgrade to ARP Custom Age 625 material rated at 280,000 psi. The kit is supplied with ARP moly and full fitting instructions.

Additional Machining Processes

• Dowel sleeves for perfect fit and accurate re-assembling
• Lipped Cap Relief for improved big-end integrity at extreme applications
• Grooves in Thrust Face for weight reduction

Technical Features of ZRP Connecting Rods

• Two-Piece forging for great strength
• I-Beam Shape for extra rigidity
• Shot Peening for improved fatigue life
• Magnaflux Inspection ensures high-quality material consistency
• Double ribbed caps for added support
• Multi Stage Heat Treatment for maximum strength, dimensional stability, and fatigue life
• CNC machining for superior tolerances, precise to 0.0002"
• Center to center maintained under .001" tolerance
• Finite Element Analysis (FEA) for stress analysis of con rods
• Optimal balancing for weight matched sets of ± 1 gram
