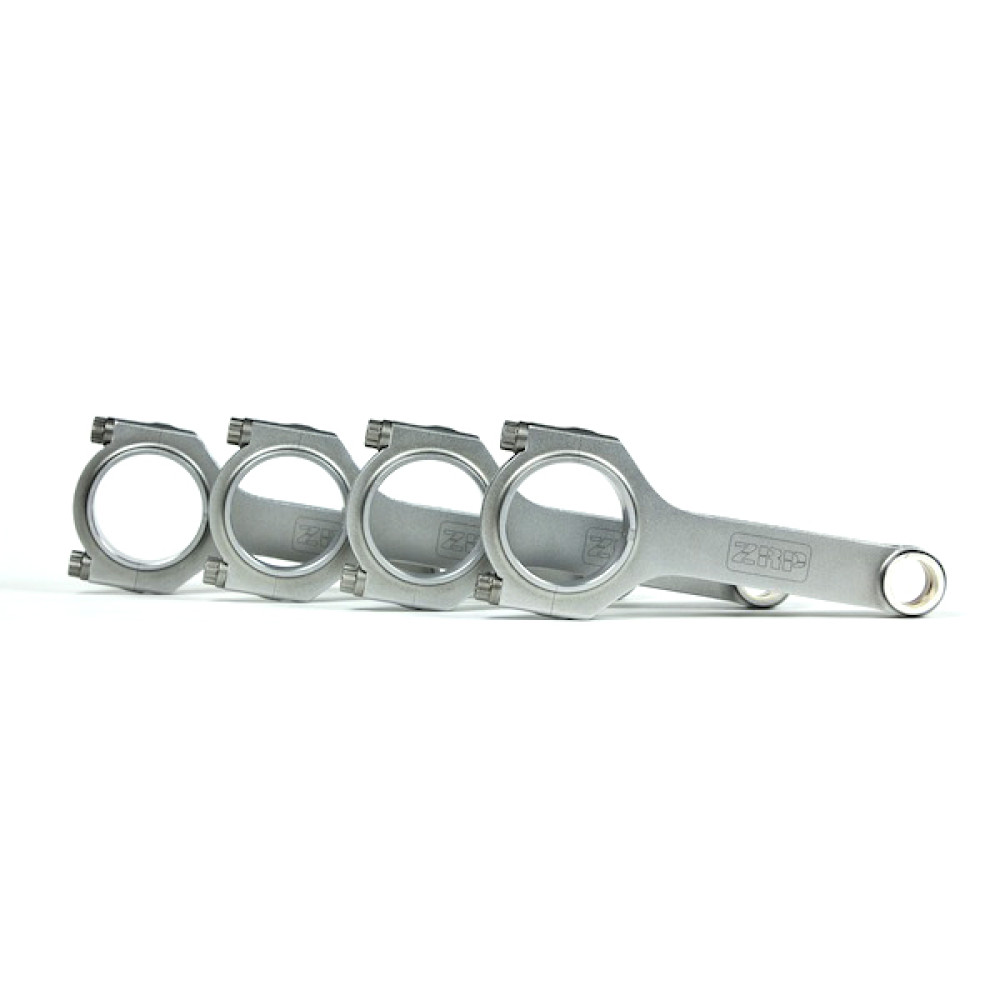

Suzuki 1.6L Liana / Swift M16A H-Beam Connecting Rods

Manufactured from 4340 high tensile steel, these connecting rods are designed for high performance and extreme durability. The bushings are crafted from Aluminum-silicon/bronze material with a radial groove acting as an oil reservoir. Featuring a "Ribbed pin end," these rods minimize pin end distortion under heavy inertial loads while saving excess weight. They are shot peened to relieve stress and undergo multi-stage heat treatment to increase rigidity. The tight tolerances in the production process ensure perfect fitment and optimized oil clearances. Bend and twist are tightly controlled. Each rod includes ARP 2000 cap fasteners rated at 220,000 psi, with an optional upgrade to ARP Custom Age 625 material rated at 280,000 psi. The kit is supplied with ARP moly and full fitting instructions.

Additional Machining Processes

• Dowel sleeves for perfect fit and accurate re-assembling
• Lipped Cap Relief for improved big-end integrity at extreme application
• Grooves in Thrust Face for weight reduction

Technical Features of ZRP Connecting Rods

• Two-Piece forging for great strength
• Aluminum-silicon/bronze bushing with radial groove
• Shot Peening for improved fatigue life
• Magnaflux Inspection guarantees material consistency
• Double ribbed caps for added support
• Multi Stage Heat Treatment for maximum strength, dimensional stability, and fatigue life
• CNC machining for superior tolerances, precise as much as 0.0002"
• Center to center is maintained under .001" tolerance
• Finite Element Analysis (FEA) for stress analysis of con rods
• Optimal balancing for weight matched sets of ± 1 gram
