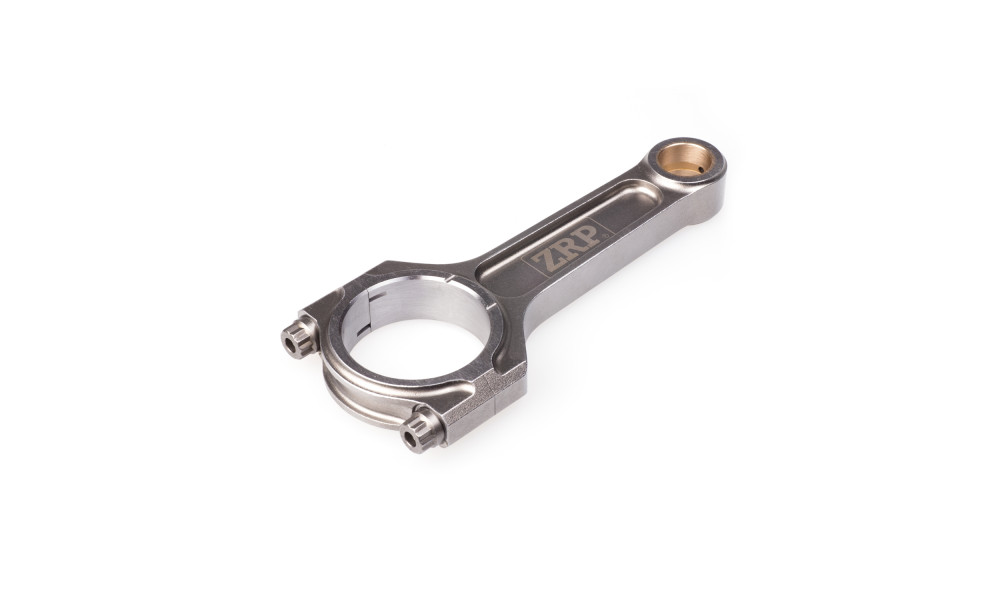

Honda B18C I-Beam Connecting Rods

Crafted from 4340 high tensile steel, these I-Beam connecting rods are engineered for high performance, extreme durability, and enhanced rigidity. The aluminum-silicon/bronze alloy bushings feature a radial groove for an oil reservoir, ensuring optimal lubrication. The rods undergo shot peening to relieve material stress and multi-stage heat treatment to maximize strength and rigidity. Precision manufacturing ensures tight tolerances for perfect fitment and optimized oil clearances, with controlled bend and twist.

Features

• Includes 3/8 ARP 2000 cap fasteners rated at 220,000 psi, with an optional upgrade to ARP L19 material rated at 260,000 psi.
• Supplied with ARP moly and full fitting instructions.

Additional Machining Processes

• Dowel sleeves for perfect fit and accurate re-assembling.
• Lipped cap relief for improved big-end integrity under extreme applications.
• Grooves in thrust face for weight reduction.

Technical Features

• Two-piece forging for exceptional strength.
• Shot peening for improved fatigue life.
• Aluminum-silicon/bronze bushing with radial groove.
• Magnaflux inspection ensures high-quality material consistency.
• Double ribbed caps for added support.
• Multi-stage heat treatment for maximum strength, dimensional stability, and fatigue life.
• CNC machining for superior tolerances, precise to 0.0002".
• Center-to-center maintained under 0.001" tolerance.
• Finite Element Analysis (FEA) for computer-generated stress analysis of con rods.
• Optimal balancing for weight-matched sets of ± 1 gram.
