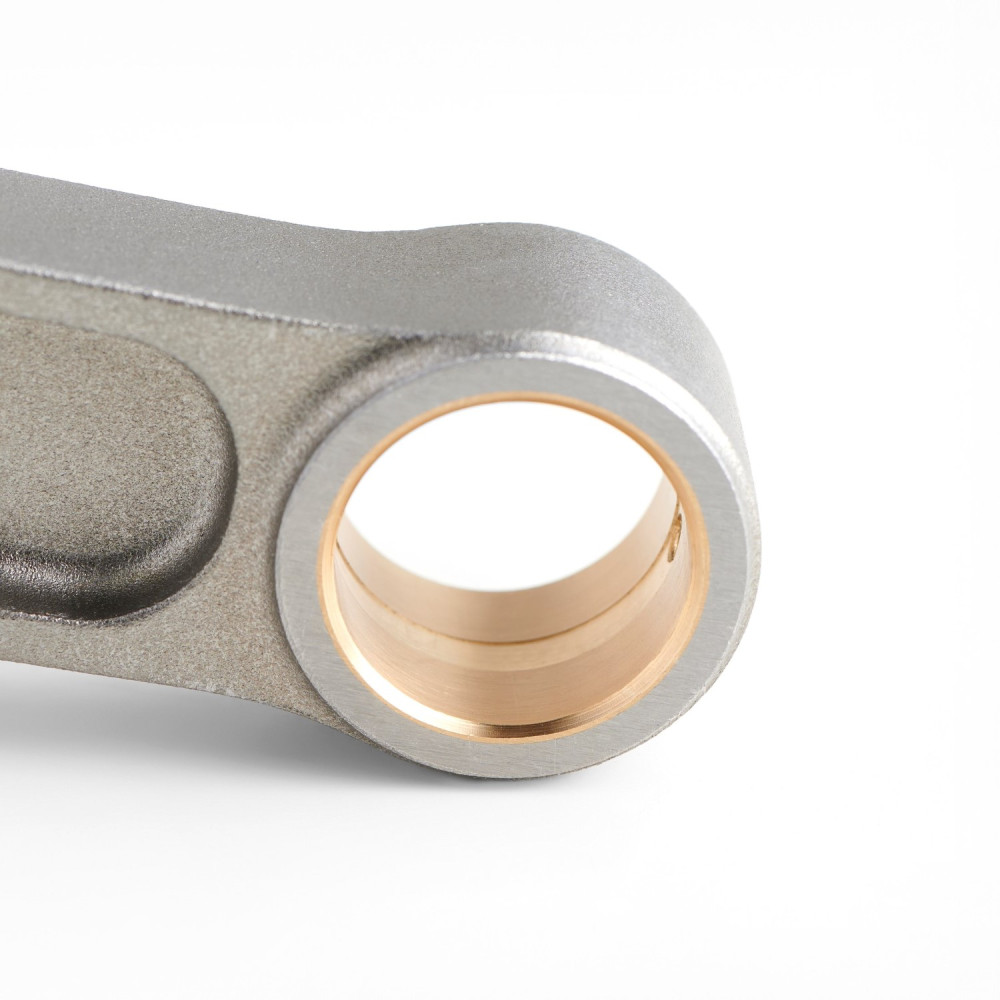

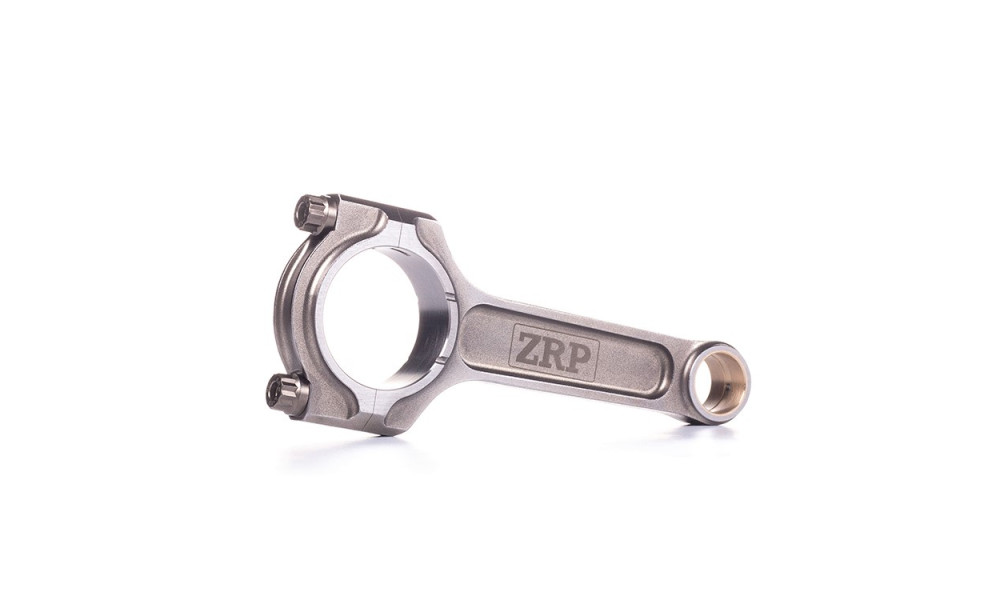

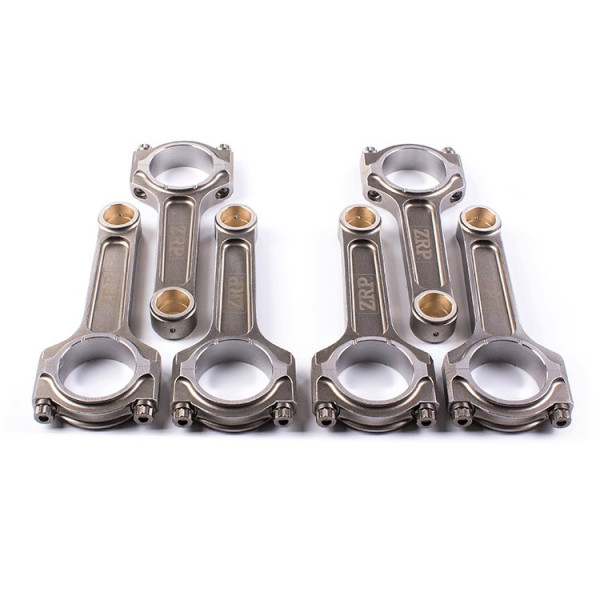

The I-Beam Connecting rods for BMW 2.5L M50/q M52 with Single Vanos are crafted from 4340 high tensile steel, featuring a specially optimized shape for high performance and extreme durability. The bushings are made from AMPCO 18 material, offering excellent resistance to wear and fatigue, and include a radial groove acting as an oil reservoir. These rods are shot peened to relieve stress and undergo multi-stage heat treatment to enhance rigidity. The production process ensures tight tolerances for perfect fitment and optimized oil clearances, with controlled bend and twist. Each rod includes ARP 2000 cap fasteners rated at 220,000 psi, with an optional upgrade to ARP L19 material rated at 260,000 psi. The kit is supplied with ARP moly and full fitting instructions.

Additional Machining Processes

• Dowel sleeves for perfect fit and accurate re-assembling
• Lipped Cap Relief for improved big-end integrity at extreme application
• Grooves in Thrust Face for weight reduction

Technical Features of ZRP Connecting Rods

• I-Beam Shape for extra rigidity
• Two-Piece forging for great strength
• Shot Peening for improved fatigue life
• Magnaflux Inspection ensures high-quality material consistency
• Double ribbed caps for added support
• Multi Stage Heat Treatment for maximum strength, dimensional stability, and fatigue life
• CNC machining for superior tolerances, precise as much as 0.0002"
• Center to center is maintained under .001" tolerance
• Finite Element Analysis (FEA) for stress analysis of con rods
• Optimal balancing for weight matched sets of ± 1 gram
