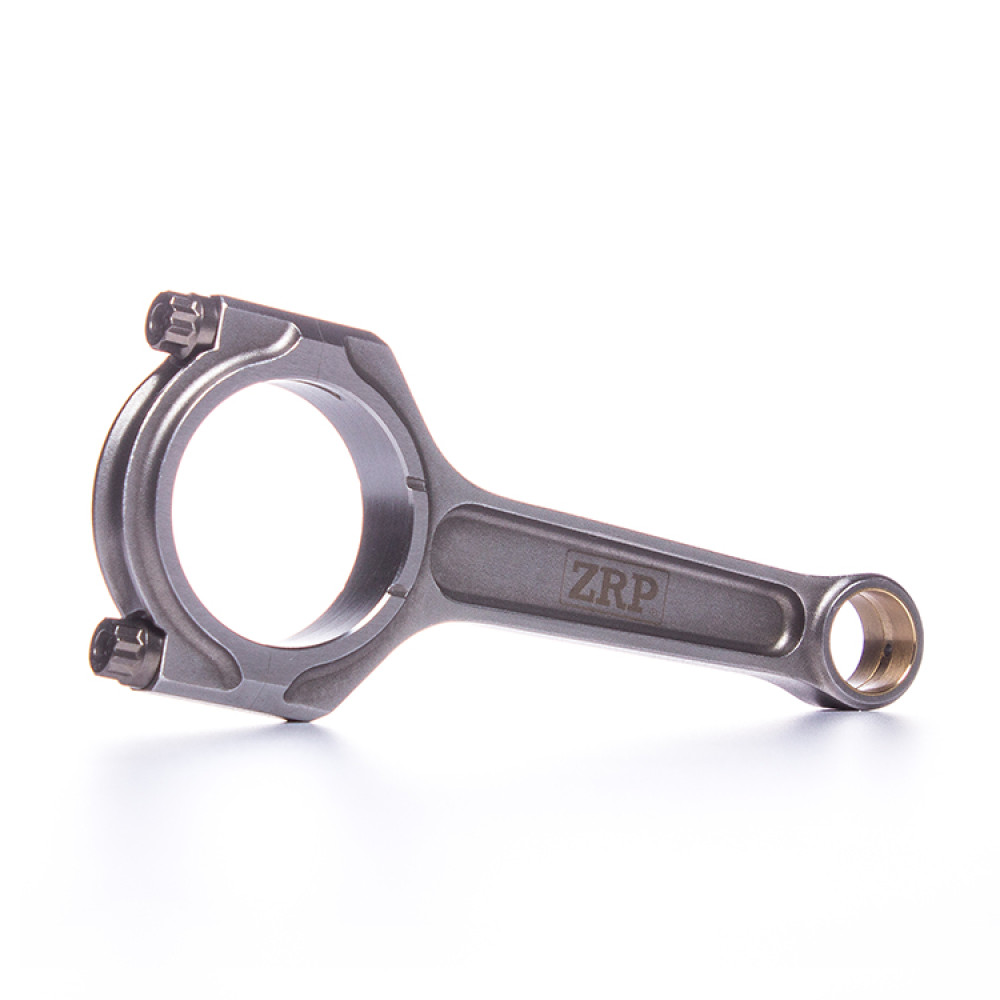

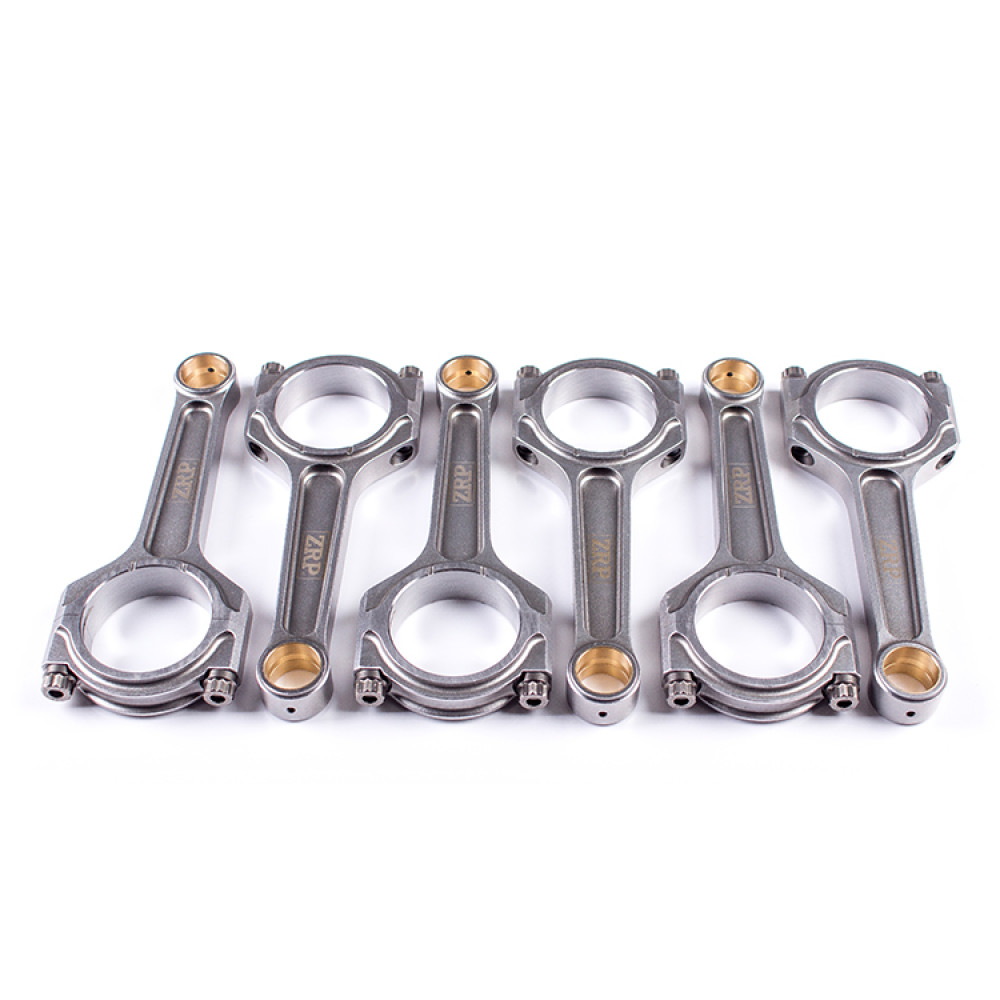

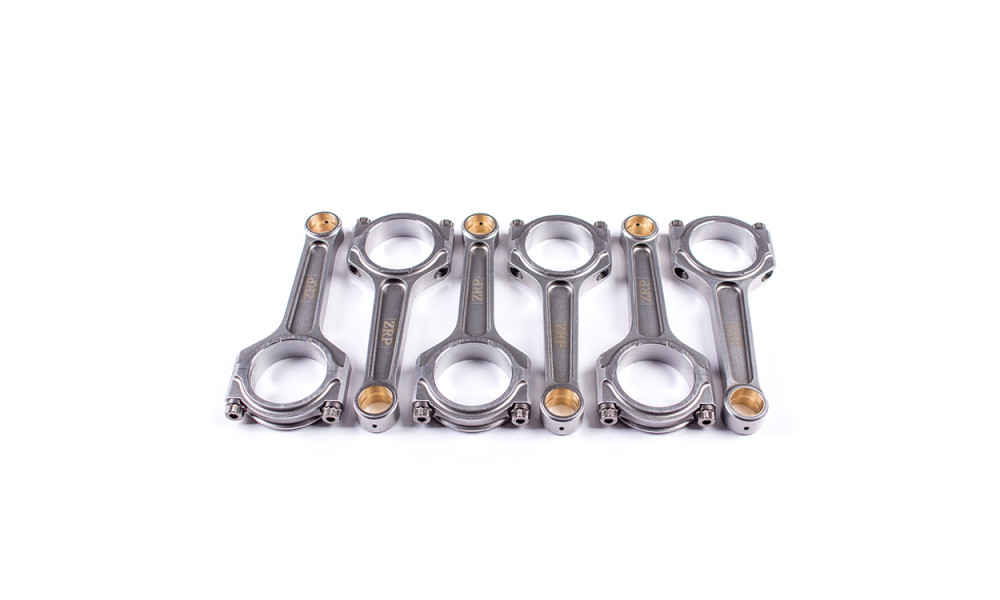

BMW 3.0L N54 I-Beam Connecting Rods

The I-Beam Connecting rods for BMW 3.0L N54 are crafted from 4340 high tensile steel, offering a specially optimized shape for high performance and extreme durability. These rods feature a "straight cut" pin end for increased durability, suitable only for use with aftermarket pistons. The bushings are made from AMPCO 18 material, providing excellent resistance to wear and fatigue, and include a radial groove acting as an oil reservoir. They undergo shot peening to relieve stress and multi-stage heat treatment to enhance rigidity. Tight production tolerances ensure perfect fitment and optimized oil clearances, with bend and twist tightly controlled. Each rod includes ARP 2000 cap fasteners rated at 220,000 psi, with an optional upgrade to ARP L19 material rated at 260,000 psi. The kit is supplied with ARP moly and full fitting instructions.

Additional Machining Processes

• "Straight Cut" Pin End - Suitable for aftermarket pistons
• Dowel sleeves for perfect fit and accurate re-assembling
• Lipped Cap Relief for improved big-end integrity at extreme application
• Grooves in Thrust Face for weight reduction

Technical Features of ZRP Connecting Rods

• I-Beam Shape for extra rigidity
• Two-Piece forging for great strength
• Shot Peening for improved fatigue life
• Magnaflux Inspection ensures high-quality material consistency
• Double ribbed caps for added support
• Multi Stage Heat Treatment for maximum strength, dimensional stability, and fatigue life
• CNC machining for superior tolerances, precise to 0.0002"
• Center to center maintained under .001" tolerance
• Finite Element Analysis (FEA) for stress analysis of con rods
• Optimal balancing for weight matched sets of ± 1 gram

These rods support a horsepower range of 175 HP per cylinder with ARP 2000 fasteners and 200 HP with ARP L19 fasteners.
