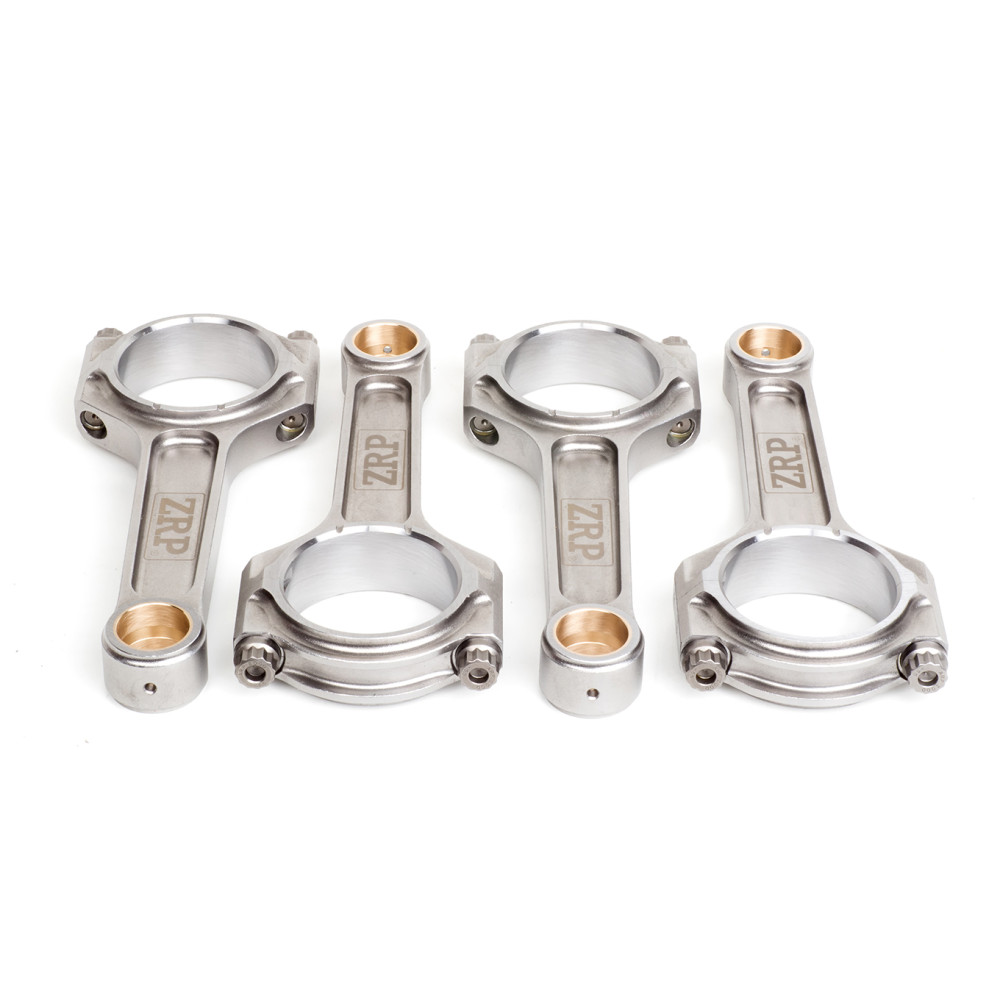

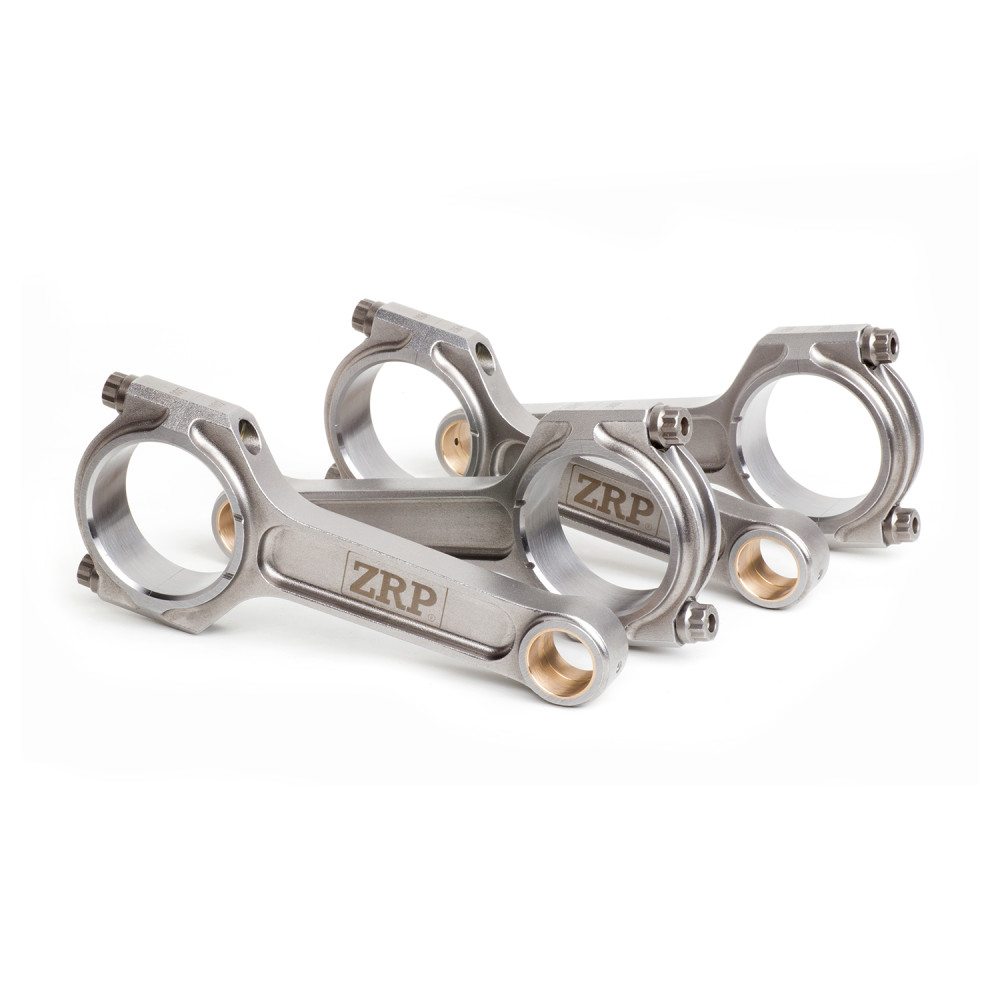

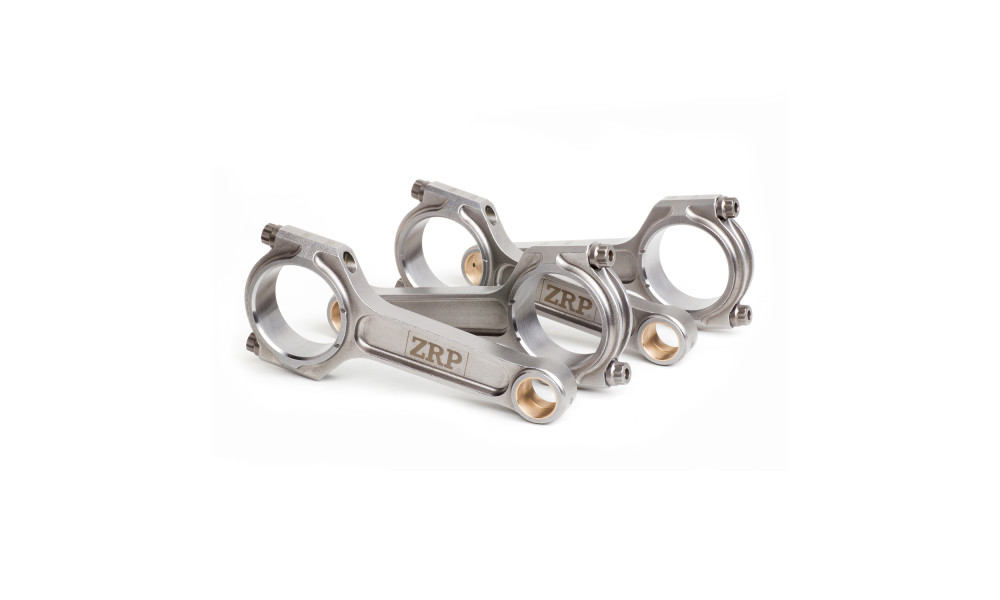

Lancia 2.0L 16v Delta Integrale I-Beam Connecting Rods

The I-Beam Connecting rods for Lancia 2.0L 16v Delta Integrale are crafted from 4340 high tensile steel, ensuring high performance, extreme durability, and extra rigidity. The bushings are made from AMPCO 18 material, offering excellent resistance to wear and fatigue, and feature a radial groove for an oil reservoir. These rods are shot peened to relieve material stress and undergo multi-stage heat treatment to enhance rigidity. Tight production tolerances ensure perfect fitment and optimized oil clearances, with bend and twist tightly controlled. Each rod includes ARP 2000 cap fasteners rated at 220,000 psi, with an optional upgrade to ARP L19 material. The kit comes with ARP moly and full fitting instructions.

Additional Machining Processes

• Dowel sleeves for perfect fit and accurate re-assembling
• Lipped Cap Relief for improved big-end integrity in extreme applications
• Grooves in Thrust Face for weight reduction

Technical Features of ZRP Connecting Rods

• Two-Piece forging for great strength
• Shot Peening for improved fatigue life
• Magnaflux Inspection ensures high-quality material consistency
• Double ribbed caps for added support
• Multi Stage Heat Treatment for maximum strength, dimensional stability, and fatigue life
• CNC machining for superior tolerances, precise to 0.0002"
• Center to center maintained under .001" tolerance
• Finite Element Analysis (FEA) for computer-generated stress analysis of con rods
• Optimal balancing for weight matched sets of ± 1 gram
