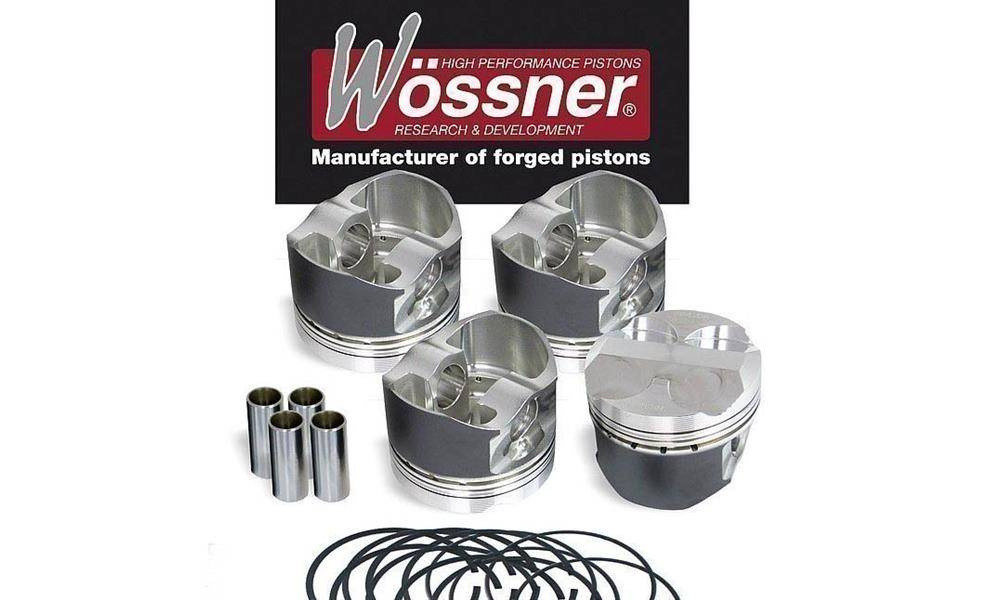

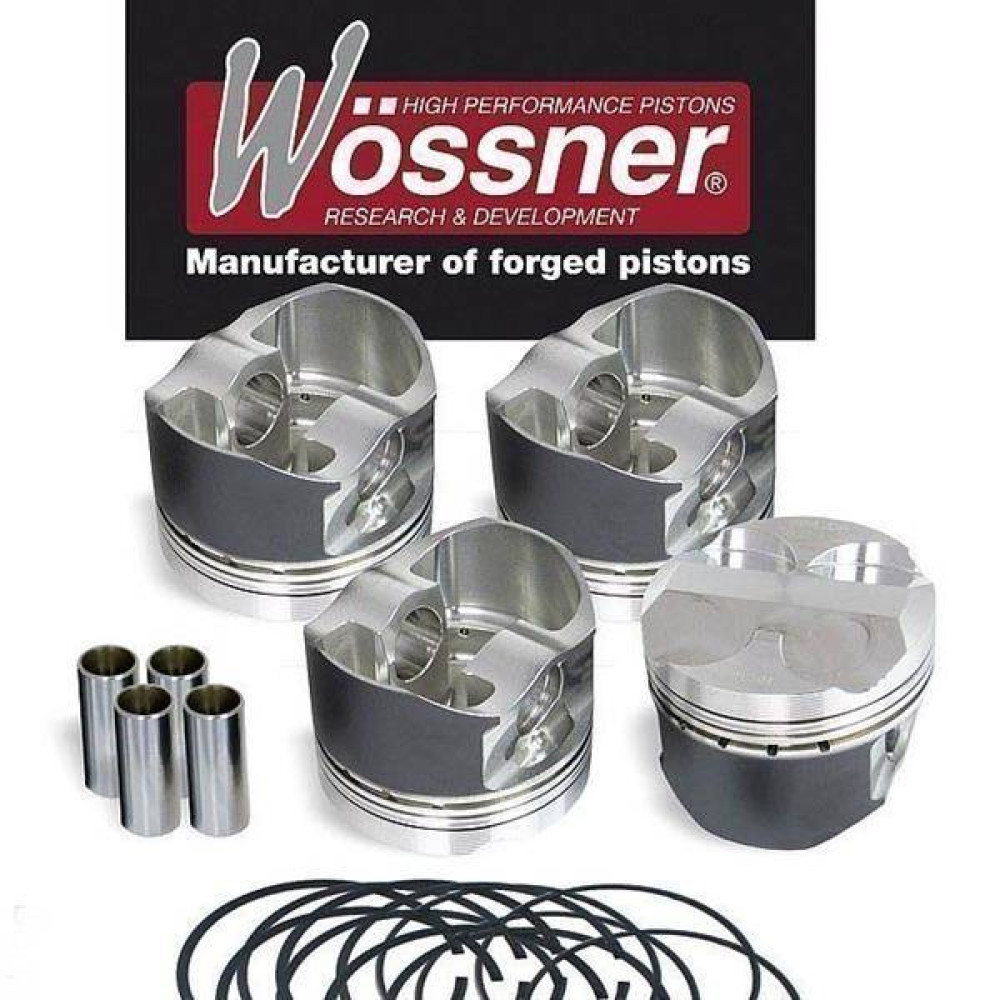

Wossner pistons are made from dedicated forgings produced in-house to give you a light weight piston with superior strength and optimal design.
Being the multivalve piston technology leader, the line features specially designed valve pockets, complex dome and crown shapes, the steel nitride/napier xx rings and optimized skirt profiles.
Most OEM pistons have pin offset to keep the piston quiet. Only Wiseco does this with forged pistons.
Complete with rings, wristpins & locks, and specification sheets.
|
Product detailed specification |
|
|
Bore size |
87,50mm |
|
Stroke |
67,40mm |
|
Wossner compression ratio (CR) |
9,2:1 |
|
Rod Lgth. |
128,52 |
|
Dome volume (CC) |
-4,8 |
|
Comp Ht. |
33,3mm |
|
Pin diameter |
22mm |
|
Fits for |
Fiat Punto / Brava / Scudo / Tempra / Ritmo / Tipo (90-00) 159A3000 |
Vehicle Compatibility
| Brand | Model | Generation / Chassis | Engine |
|---|---|---|---|
| Fiat | BRAVA | 90-00 | 159A3000 |
| Fiat | PUNTO | 90-00 | 159A3000 |
| Fiat | RITMO | 90-00 | 159A3000 |
| Fiat | SCUDO | 90-00 | 159A3000 |
| Fiat | TEMPRA | 90-00 | 159A3000 |
| Fiat | TIPO | 90-00 | 159A3000 |
WOSSNER
Official page: woessner-kolben.de
Wossner Forged Pistons for Fiat Punto Brava Tipo 87.5MM
