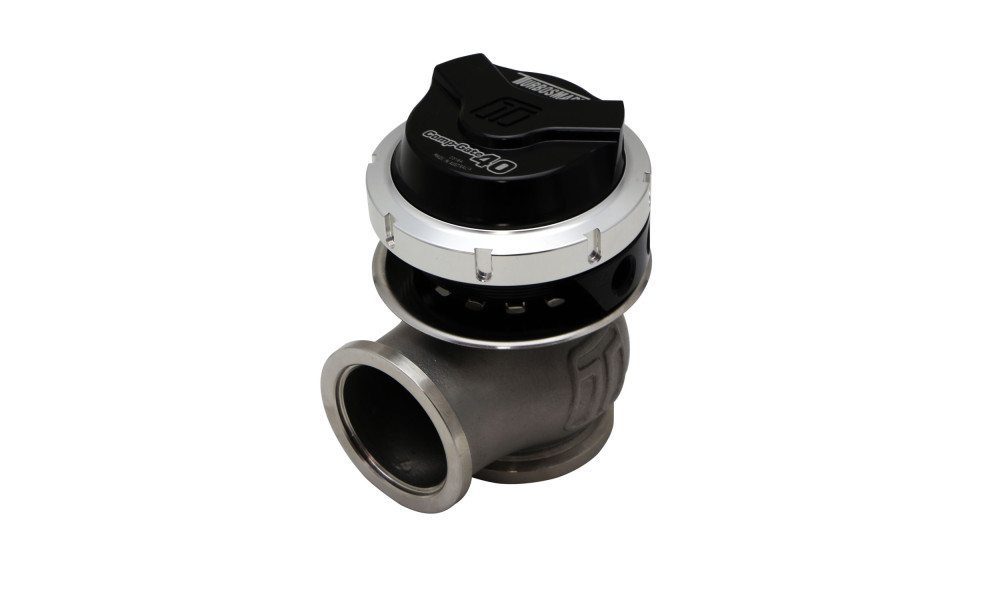

Turbosmart Gen-V WG40 Comp-Gate40 40mm External Wastegate

The Turbosmart Gen-V WG40 Comp-Gate40 is a high-performance, cost-effective 40mm external wastegate designed for serious enthusiasts and motorsport applications. Engineered for maximum reliability and user configurability, this wastegate offers world-class thermal performance, fatigue resistance, and industry-leading flow for precise boost control and long service life.

The Gen-V WG40 is a direct-fit upgrade for all 4th-generation Turbosmart wastegates and is compatible with other 38/40mm V-band wastegate inlets. It features a unique collar-locking system for compact sizing and quick spring changes, a variable actuator cap and base, robust strap-type V-band clamps, liquid-cooling capability, and multiple 1/8” NPT ports for flexible installation. A range of high-temperature springs (3–26 psi) is included for full adjustability.

Motorsport and compressed gas-only versions are available for specific applications. An optional Hall Effect, non-contact position sensor is also offered.

Features

• Direct swap for Turbosmart Gen 4 Comp-Gate 40; inlet matches other 38/40mm V-band wastegates
• 40mm valve size
• High-temperature spring combinations from 3–26 psi included
• 1/8” NPT ports
• V-band clamp mounting system for 1-3/4” OD pipe
• Locking collar for compact size and easy spring changes
• Available in Motorsport and Compressed Gas versions
• Hall Effect, non-contact position sensor option available

Supplied With

• Wastegate unit (pre-assembled with spring as per order)
• SS316 valve seat
• Inlet V-band
• Inlet SS304 weld flange
• Outlet V-band
• Outlet SS304 weld flange
• Collar tool (master/slave)
• 17/7 PH 3, 5, 7, 14 psi spring kit (1x spring installed)
• 4x 1/8” NPT plugs (1x installed)
• 2x 1/8” NPT nipples
• Sticker
• Instruction card
