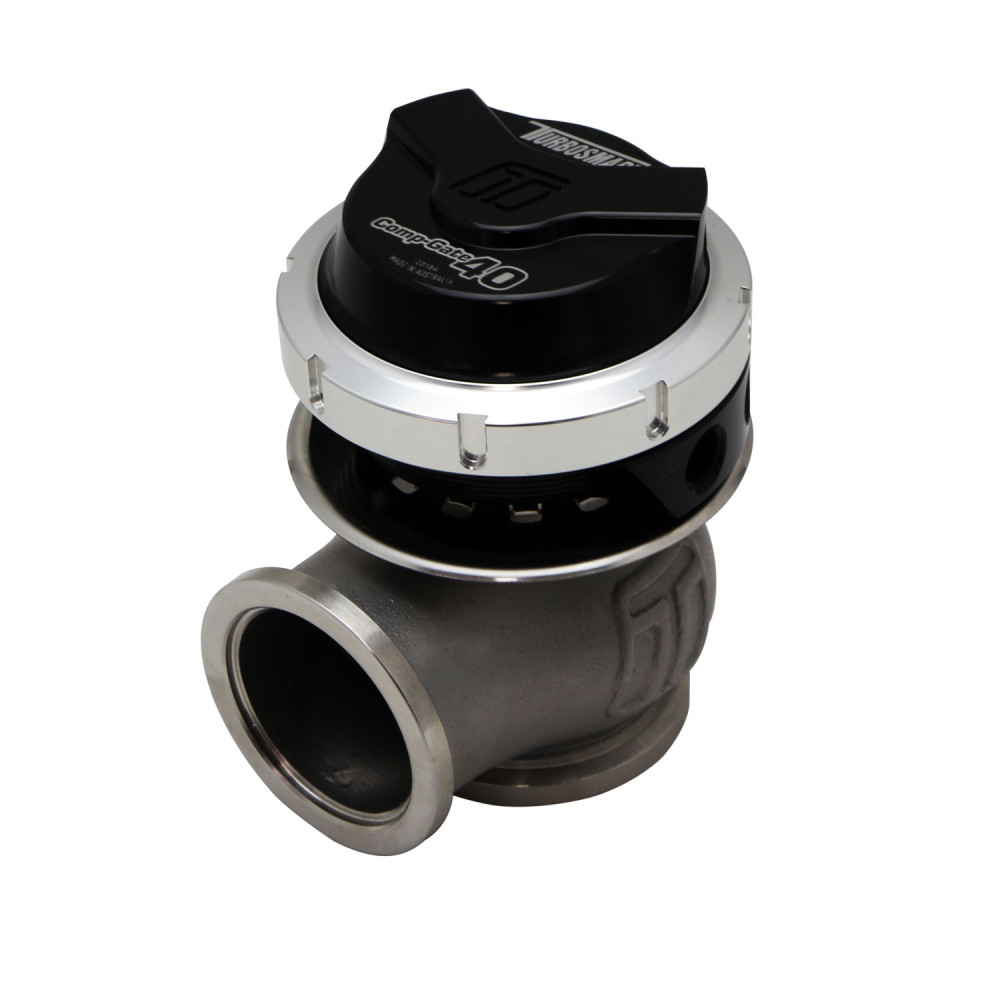

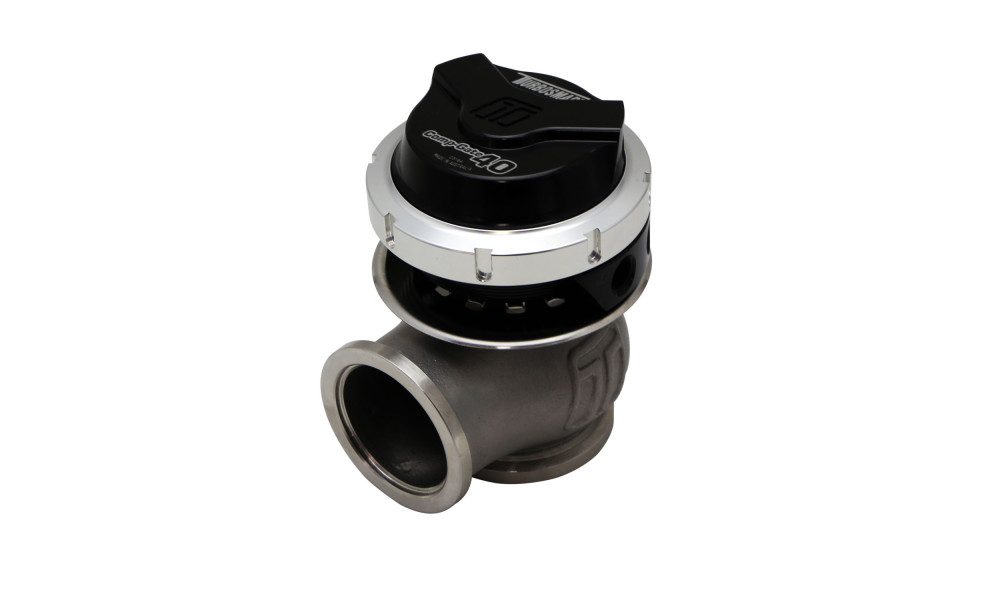

The Turbosmart GenV WG40 CompGate40 External Wastegate is engineered for motorsport applications, offering the highest flow capacity in its class. Designed as a direct fit upgrade for all Gen4 Turbosmart wastegates, it features a unique collar-locking system, variable actuator cap and base, and allows for 360-degree routing of reference hoses for flexible installation. The wastegate body is constructed from high-temperature 347 stainless steel, with a Nitronic 60 valve guide and 17/7 PH stainless steel springs for exceptional thermal performance and fatigue resistance.

CFD-optimized and validated in-house, the GenV WG40 ensures maximum flow and superior thermal management. It comes equipped with strap-type V-band clamps, 1/8″ NPT reference ports, and includes the full range of available springs. Optional features include a wastegate position sensor upgrade, compressed gas (CO2) version, motorsport version with a CFD-driven heat sink design, high-pressure (HP) version supporting up to 50psi, and an electronically actuated (eWG) version. Liquid actuator cooling provision is available for demanding setups.

Available finishes: Black, Blue, Red, Purple, and Sleeper.

Features:

• Class-leading thermal performance
• CFD and bench-validated flow performance
• Exceptional fatigue resistance
• Nitronic 60 valve guide
• High-temp 347 stainless steel body
• 17/7 PH stainless steel springs
• Liquid actuator cooling option
• Strap-type V-band clamps
• 1/8″ NPT reference ports
• Full spring range included

This wastegate is ideal for enthusiasts seeking precise boost control, robust thermal durability, and easy installation in high-performance or motorsport turbocharged applications.
