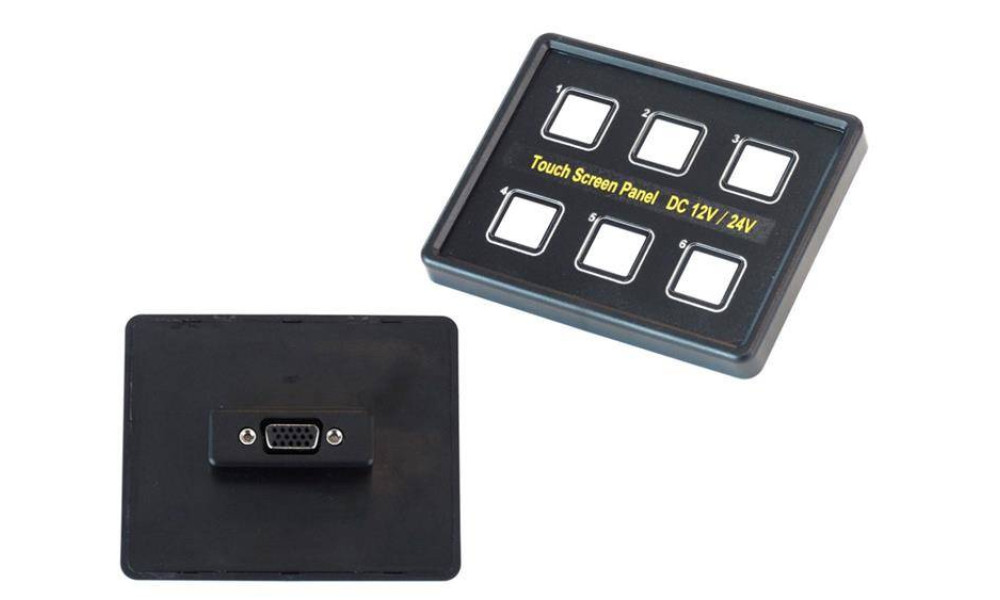

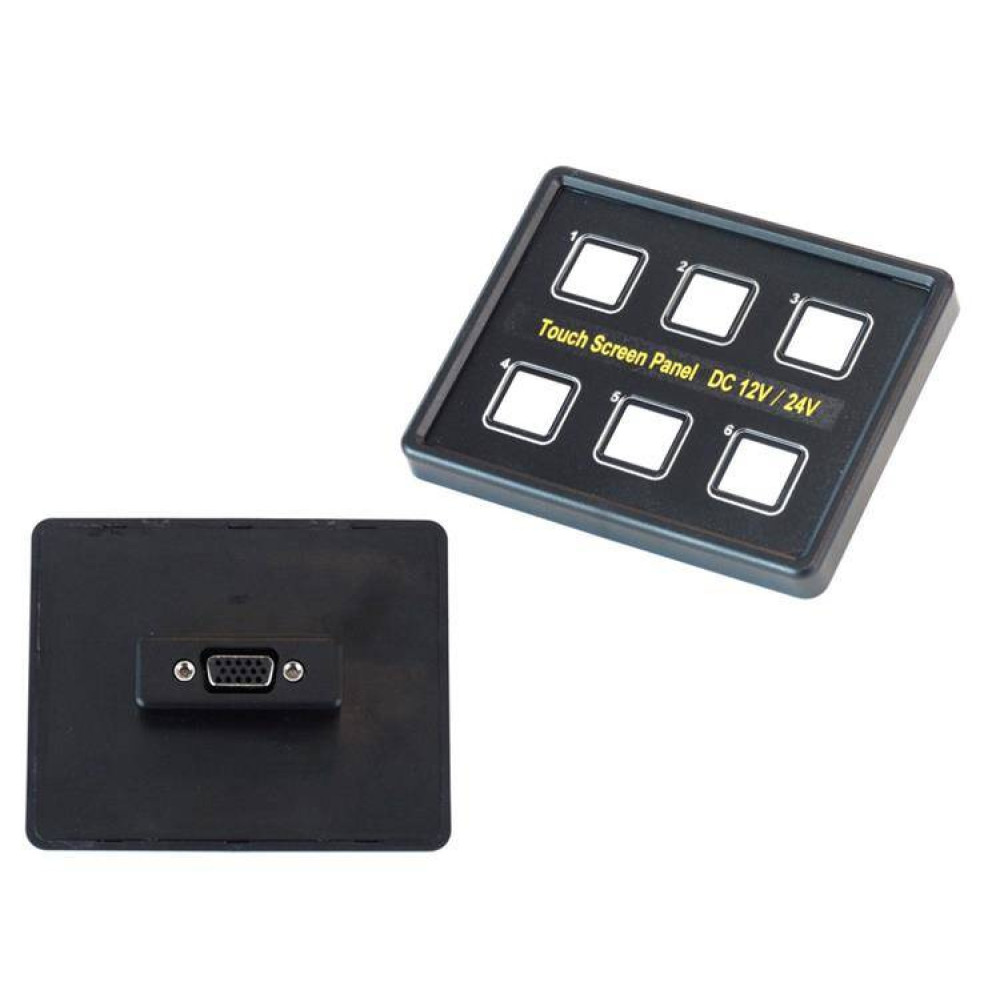

6-Button LED Capacitive Touchpad

For enthusiasts seeking modern, reliable control in their custom automotive projects, this 6-button LED capacitive touchpad delivers precise switching and robust connectivity. Designed for integration with advanced control systems, it’s ideal for those who demand both style and function in their cockpit.

Fitment

• Universal fitment for custom automotive electrical control systems utilizing VGA 15pin connector interface.

Material & Construction

• Features 6 LED capacitive touch buttons
• VGA 15pin connector for secure integration

Technical Specifications

• 6 LED capacitive touch buttons
• VGA 15pin connector

What’s Included

• 6-button LED capacitive touchpad

Installation Notes

• Ensure compatibility with your control system’s VGA 15pin interface before installation. Mount in a location that is easily accessible to the driver for optimal usability.

FAQ

• Q: Does the touchpad require a specific voltage supply?
  A: The touchpad connects via VGA 15pin and is powered through the control box; confirm your control box voltage matches system requirements.
• Q: Are the LED buttons visible in daylight?
  A: The touchpad features LED illumination for clear visibility during both day and night operation.

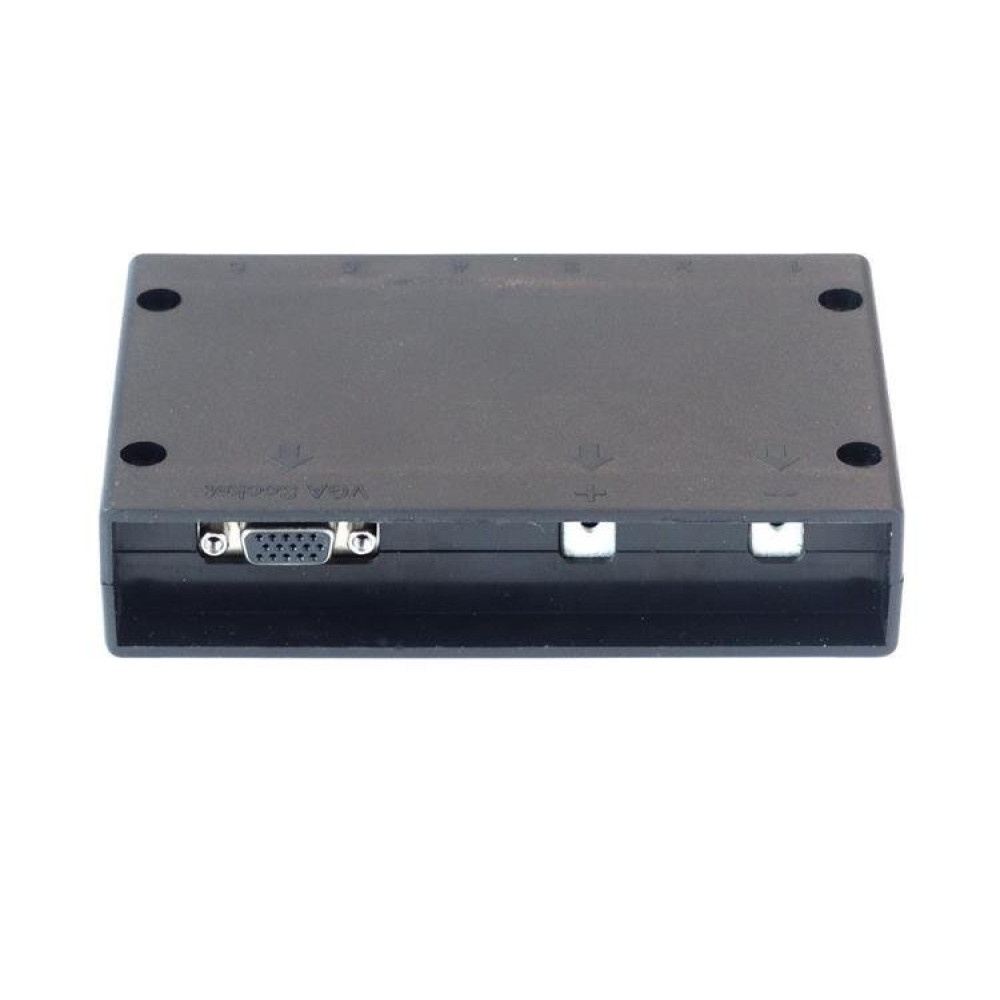

Control Box for 6-Button Touchpad

This control box is built for enthusiasts who need reliable, protected power distribution and control in custom automotive applications. With multiple connectors and robust protection features, it’s engineered for demanding environments and advanced electrical setups.

Fitment

• Compatible with custom automotive electrical systems utilizing VGA 15pin connectors and 12V / 24V DC supply.

Material & Construction

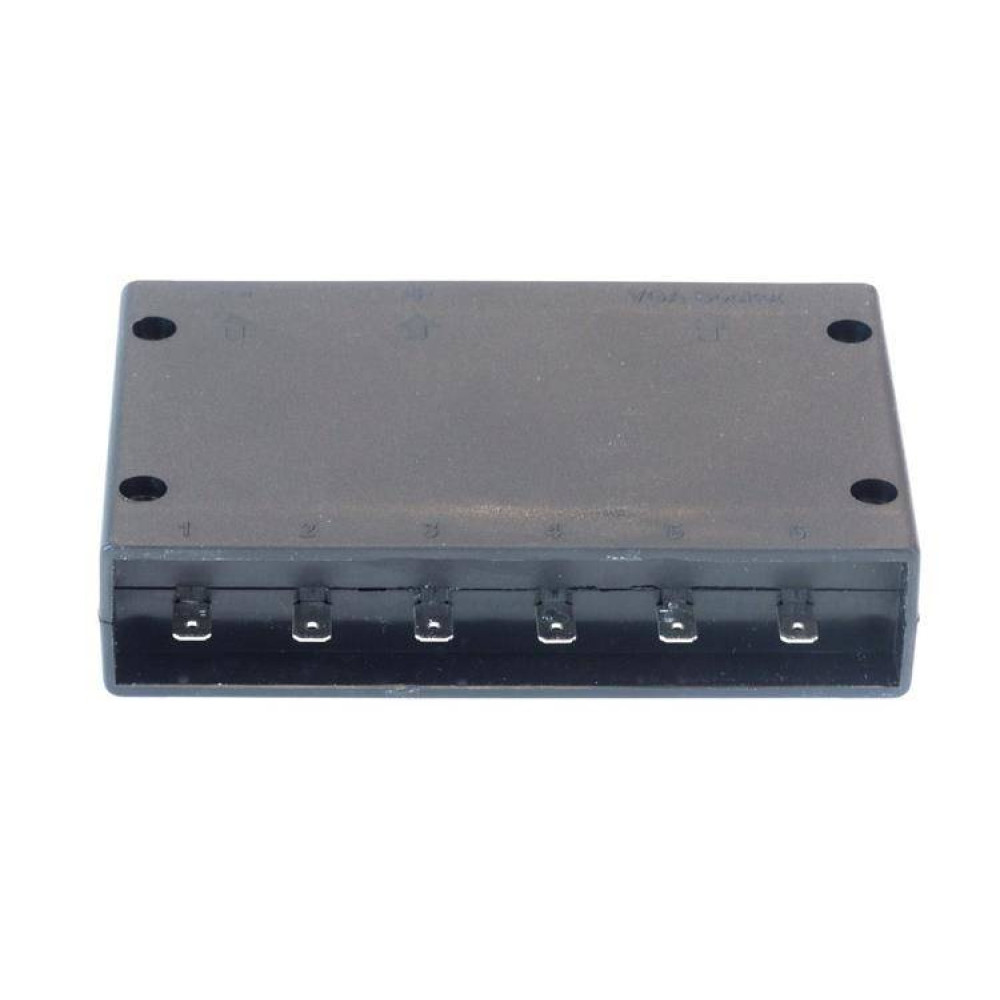

• Equipped with 6 PPTC connectors, 2 power connectors, and VGA 15pin connector
• Integrated reverse polarity, overvoltage, and overload protection

Technical Specifications

• Supply voltage: 12V / 24V DC
• Output voltage / current: 12V / 10A, 24V / 6A DC
• 6 PPTC connectors
• 2 power connectors
• VGA 15pin connector

What’s Included

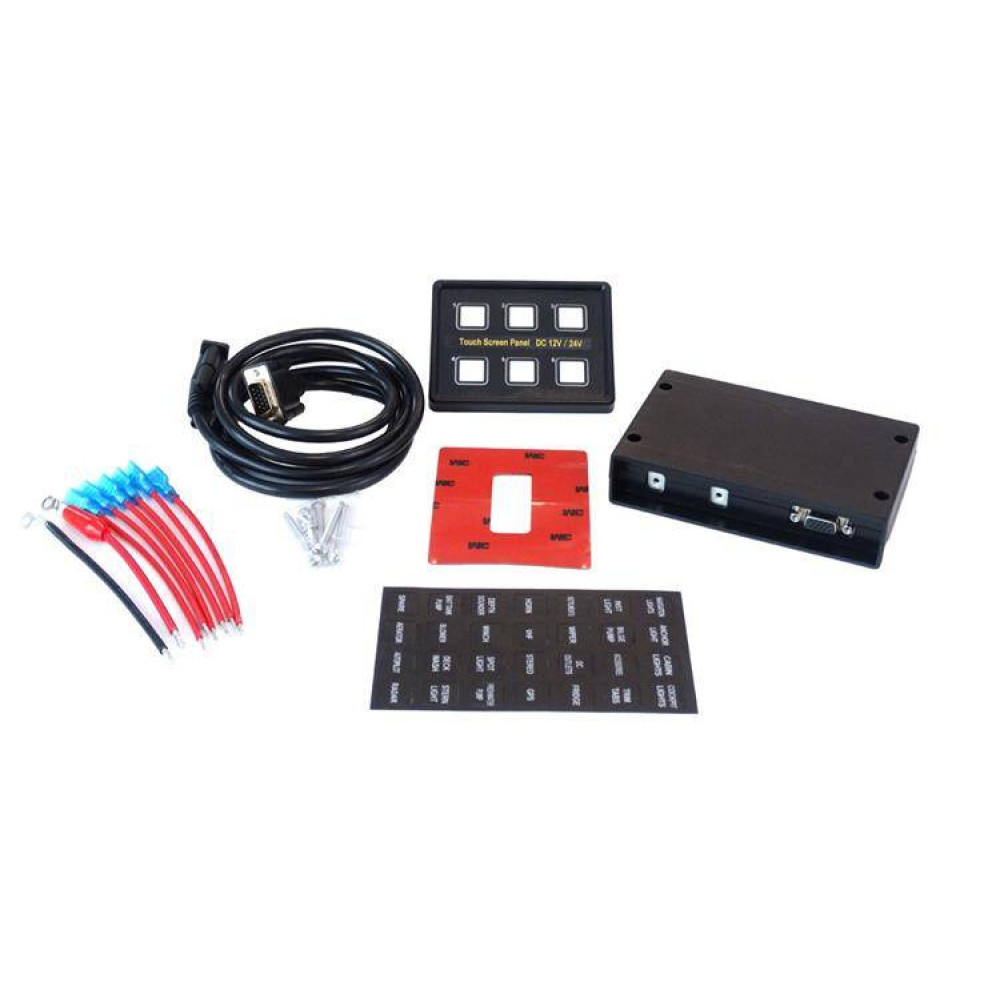

• Control box with 6 PPTC connectors, 2 power connectors, VGA 15pin connector

Installation Notes

• Confirm supply voltage compatibility (12V or 24V DC) before connecting. Mount securely in a dry, accessible location. Double-check all wiring for correct polarity and secure connections to avoid system faults.

FAQ

• Q: Can I use this control box with other touchpads?
  A: It is designed for touchpads utilizing a VGA 15pin connector. Check compatibility before pairing with other devices.
• Q: What protection features are built in?
  A: The control box includes reverse polarity, overvoltage, and overload protection for reliable operation.
• Q: Do I need to supply my own wiring harness?
  A: The control box includes connectors, but custom wiring may be required depending on your application.
