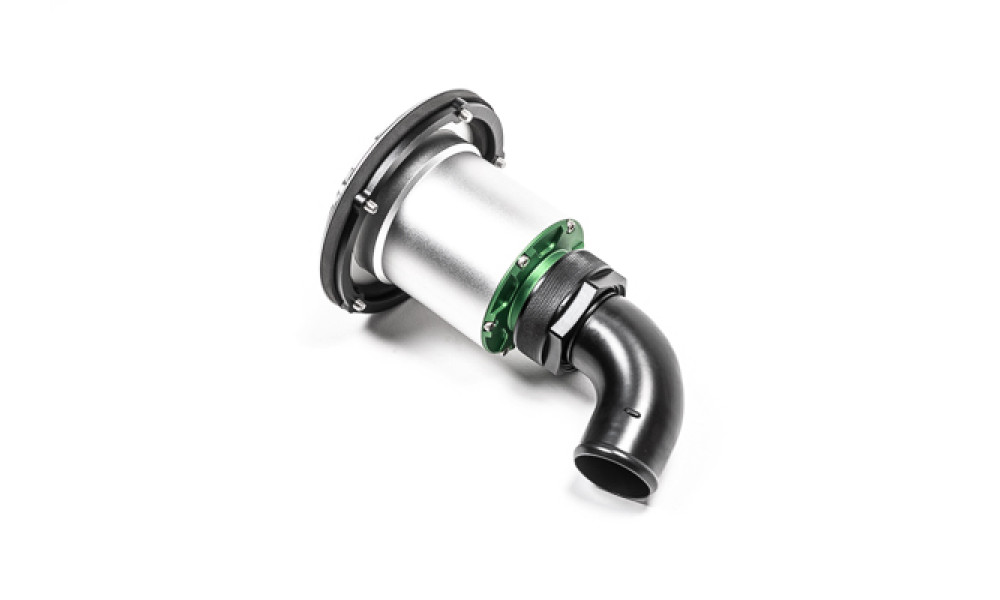

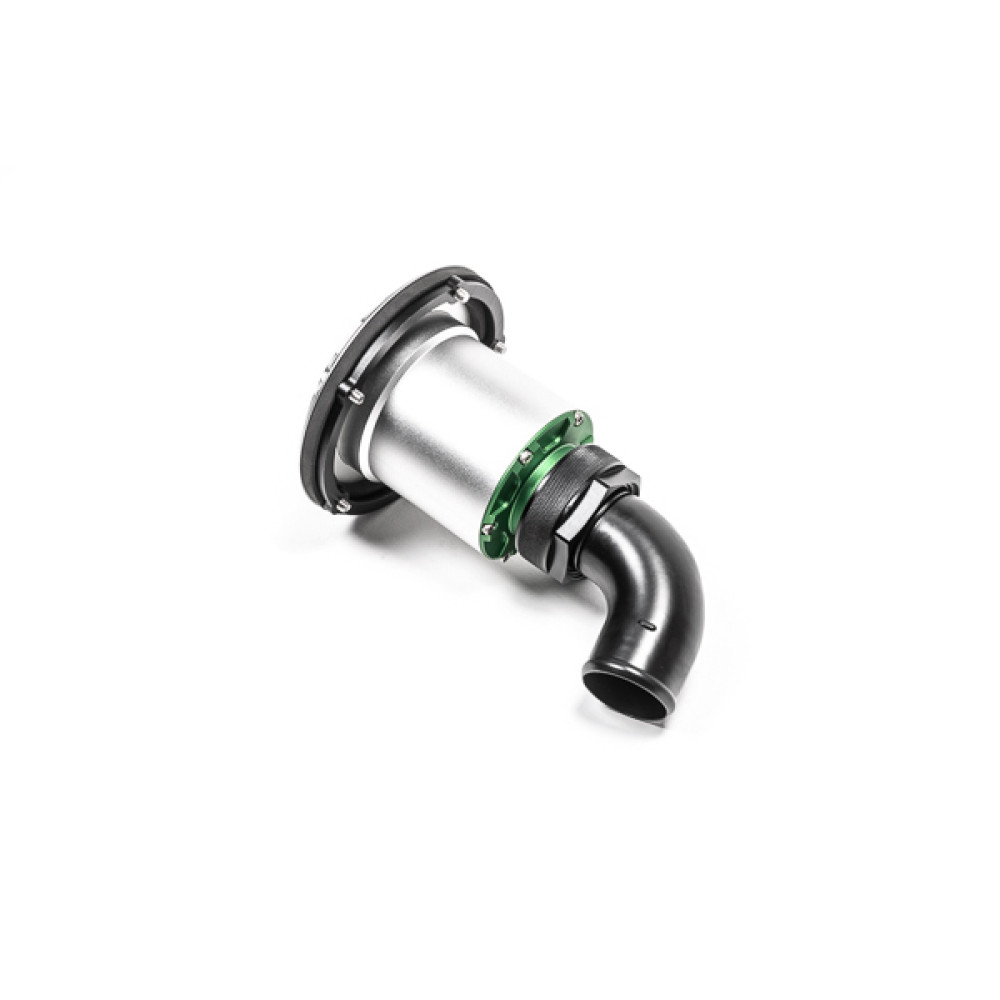

20-1104-V REMOTE MOUNT, VENTED FEMALE DRY BREAK, 1.5IN ELBOW

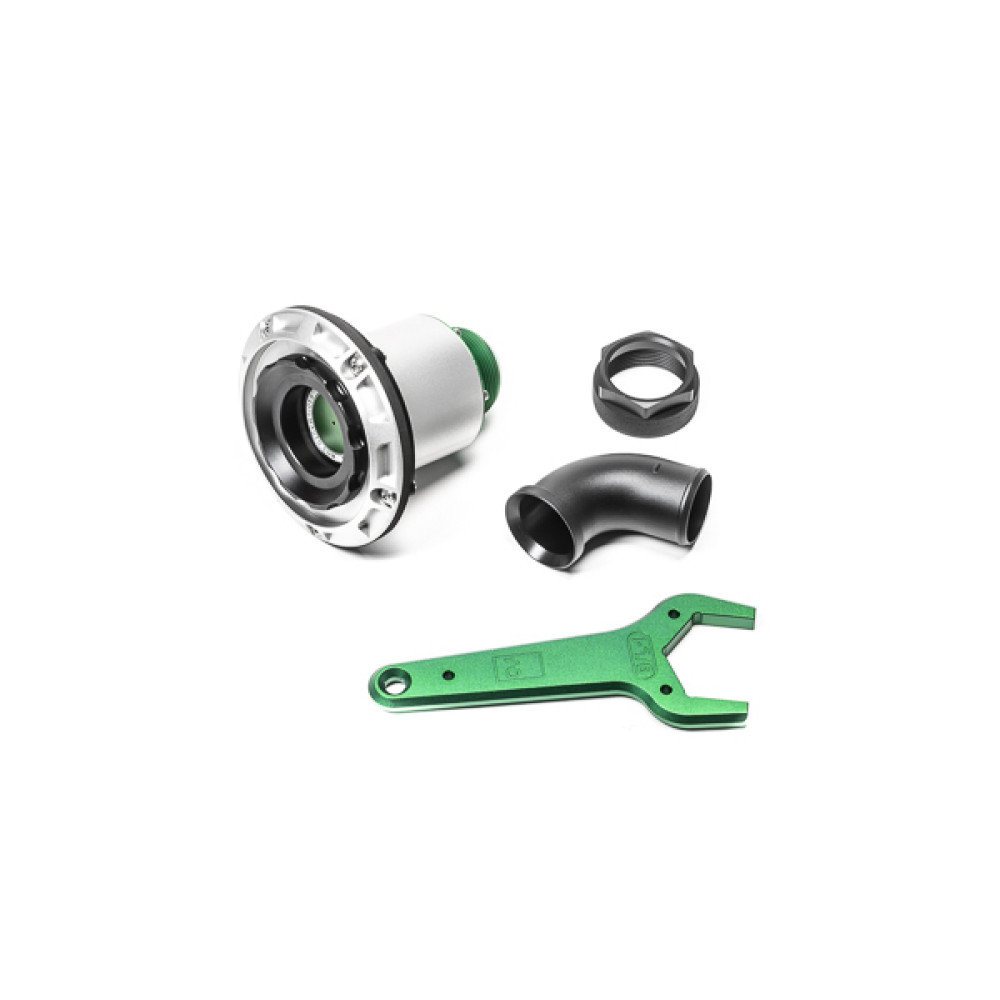

This remote mount is designed for installation on external surfaces such as fenders. It requires a 77mm (3.03") hole for proper fitting. The assembly includes a 1.5in female dry break, a gasket, stainless steel hardware, an aluminum housing, and an aluminum nut ring. Additionally, it comes with an aluminum 1-7/8" wrench and a 75 degree 24AN hose end featuring a 1.5in barb.

The vented fuel cap is equipped with roll-over protection, ensuring safety in the event of vehicle inversion. All components, materials, and seals are compatible with various fuel types, including unleaded and leaded gasoline, diesel, AV gas, methanol, ethanol, E15, E85, and more.

Specifications:

• Filler Hose Requirement: 1.5"
• Flange Outer Diameter: 4.75"
• Bolt Circle Diameter: 4.25" PCD
• Hose End Connection: 24AN
• Hose End Angle: 75 degree
• Mate: 20-0996 (or 20-0496) Dry Break, 1.5in, Male, PRV
