BMW M57 Performance Turbochargers – Stages 2 to 5
Upgrade your BMW M57 engine with precision-engineered turbochargers designed for serious enthusiasts and professional applications. Each turbocharger stage is built to exacting standards, utilizing CNC machining, advanced bearing systems, and flow bench adjustment for maximum reliability and performance. Please select the correct turbocharger for your specific BMW model and intended use.
Specifications
Although the following models share the same engine platform, turbocharger construction differs between variants. Always order according to your vehicle’s exact application.
Stage 2 (HTD2872)
- Upgraded bearing system
- CNC machined compressor housing
- CNC machined turbine housing
- OEM variable geometry nozzle
- Reinforced, larger compressor wheel: 50/72mm, machined from solid
- Bigger turbine wheel: 51/49mm
- Flow bench adjusted
- Balanced on VSR
Power range: up to 400HP

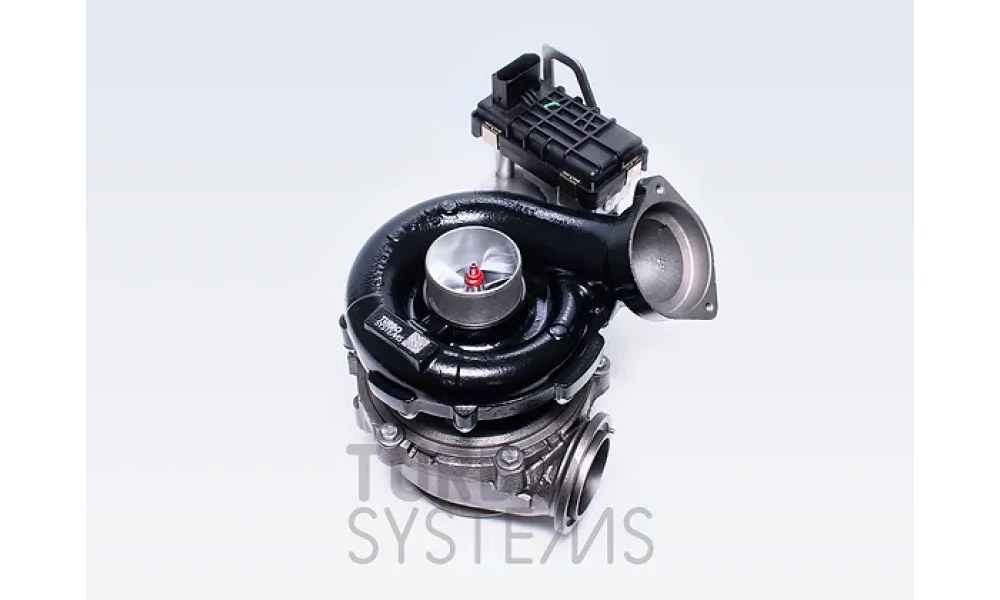

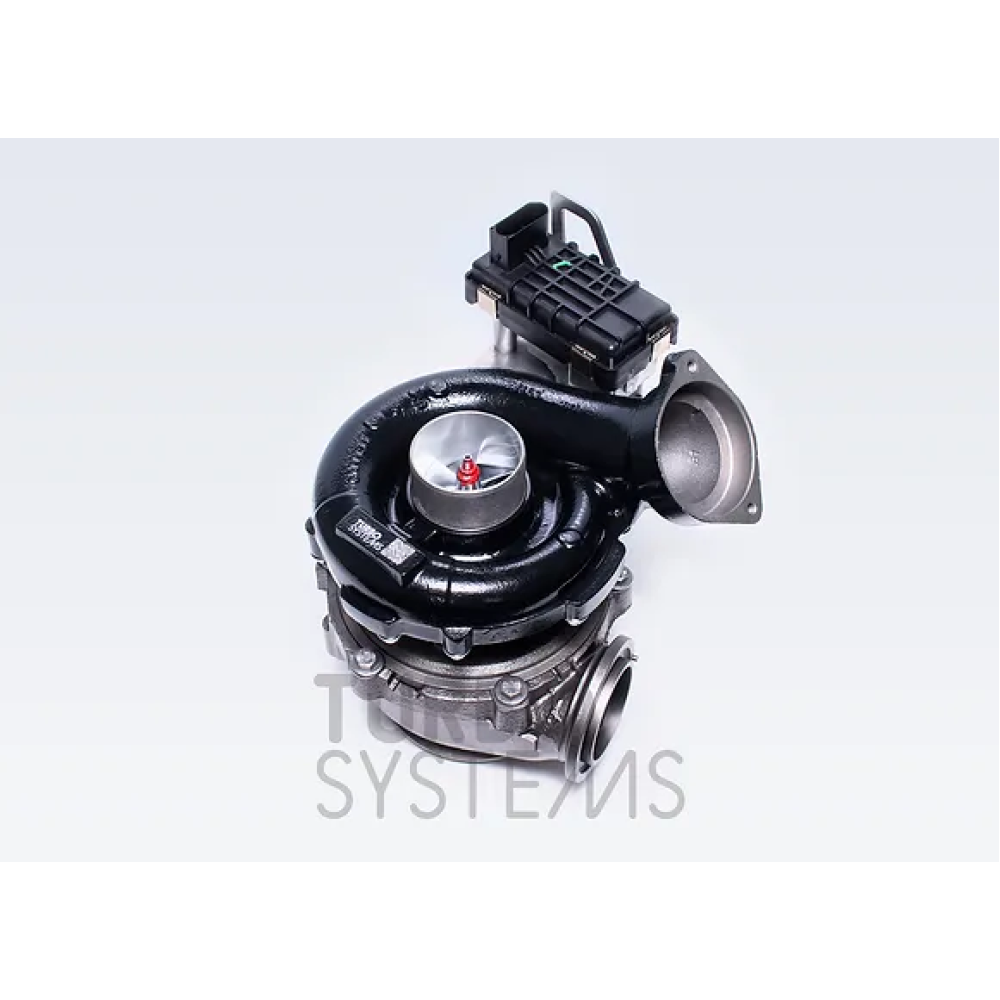

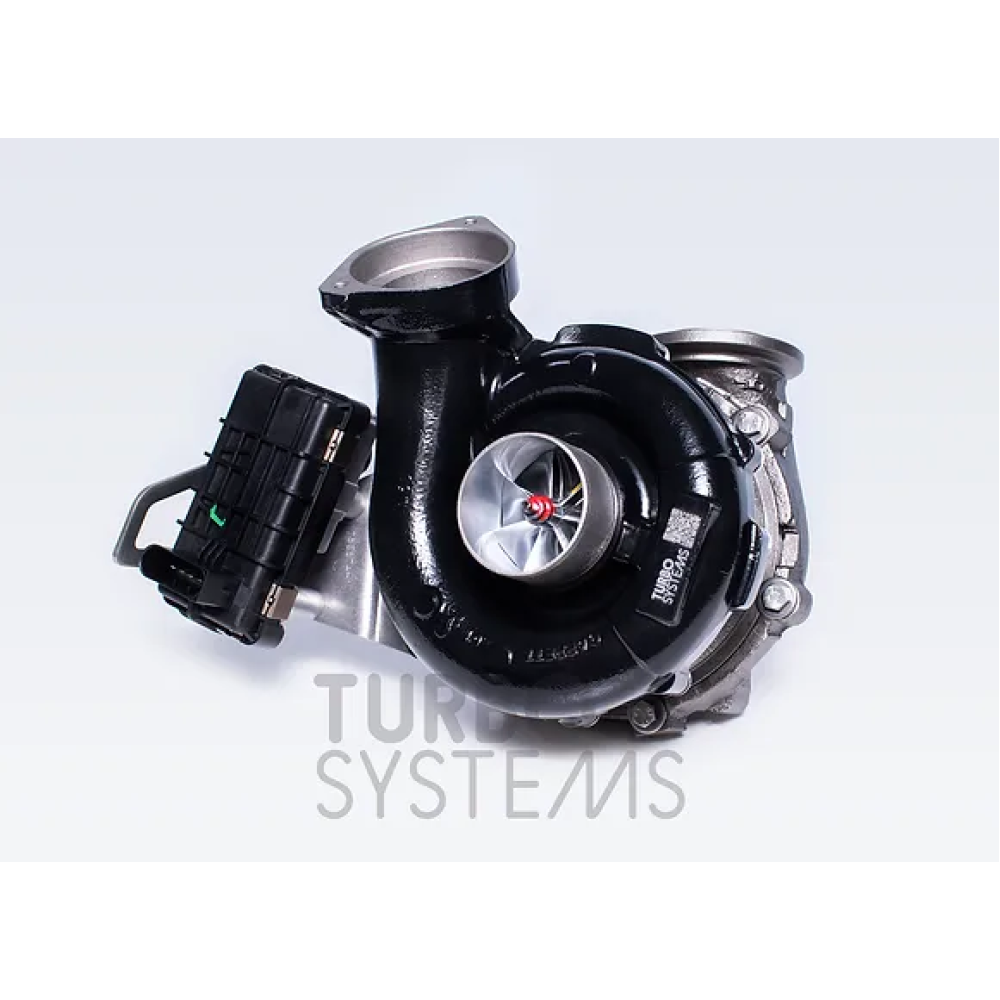

Stage 2 (HTD2872BB)
- Dual ceramic ball bearing
- CNC machined compressor housing
- CNC machined turbine housing
- OEM variable geometry nozzle
- Reinforced, larger compressor wheel: 50/72mm, machined from solid
- Bigger turbine wheel: 51/49mm
- Flow bench adjusted
- Balanced on VSR
Power range: up to 400HP
Stage 3 (HTD3073BB)
- Dual ceramic ball bearing
- CNC machined compressor housing
- CNC machined turbine housing
- Custom variable geometry nozzle
- Reinforced, larger compressor wheel: 54/73mm, machined from solid
- Bigger turbine wheel: 58/54mm
- Flow bench adjusted
- Balanced on VSR
Power range: 420+HP
Stage 4 (HTD3279BB)
- Big dual ceramic ball bearing
- Enlarged shaft (6mm diameter) and turbine wheel
- CNC machined compressor housing
- CNC machined turbine housing
- Custom variable geometry nozzle
- Reinforced, larger compressor wheel: 56/79mm, machined from solid
- High flow design turbine wheel: 58/56mm
- Flow bench adjusted
- Balanced on VSR
Power range: 470+HP
Stage 5 (HTD3379BB)
- Big dual ceramic ball bearing
- Enlarged shaft and wheel diameter: 7mm
- CNC machined compressor housing
- CNC machined turbine housing
- New design custom variable geometry nozzle with 14 blades
- Reinforced, larger compressor wheel: 56/79mm, machined from solid
- High flow design turbine wheel: 62.8/56mm
- Flow bench adjusted
- Balanced on VSR
Power range: 500+HP
Important Notes
- Engine tuning is required after installing any upgraded turbocharger.
- Stage 3-5 turbochargers are intended for professional use only.
- For Stage 3-5, an upgraded intake system, performance downpipe, and custom ECU software are required for optimal results.
Compatibility
BMW E9x (325d / 330d)
- BMW 325d (E90/E91/E92/E93) 2007–2010 – Engine: M57306D3 – 145kW / 197HP – Garrett: 758352-5026S / 758352-x – OEM: 11657796312
- BMW 330d (E90/E91/E92/E93) 2005–2007 – Engine: M57306D3 – 170kW / 231HP – Garrett: 758352-5026S / 758352-x – OEM: 11657796312
- BMW 330xd (E90/E91/E92) 2005–2007 – Engine: M57306D3 – 170kW / 231HP – Garrett: 758352-5026S / 758352-x – OEM: 11657796312
BMW E6x (525d / 530d / 730d)
- BMW 525d (E60/E61) 2005–2007 – Engine: M57N2 – 170kW / 231HP – Garrett: 758351-x – OEM: 657794260
- BMW 525d (E60/E61) 2007–2010 – Engine: M57D30UL – 145kW / 197HP – Garrett: 758351-x – OEM: 657794260
- BMW 525xd (E60/E61) 2005–2007 – Engine: M57N2 – 170kW / 231HP – Garrett: 758351-x – OEM: 657794260
- BMW 525xd (E60/E61) from 2007 – Engine: M57N2 – 173kW / 235HP – Garrett: 758351-x – OEM: 657794260
- BMW 530d (E60/E61) 2005–2007 – Engine: M57N2 – 170kW / 231HP – Garrett: 758351-x – OEM: 657794260
- BMW 530d (E60/E61) from 2007 – Engine: M57N2 – 173kW / 235HP – Garrett: 758351-x – OEM: 657794260
- BMW 530xd (E60/E61) 2005–2007 – Engine: M57N2 – 170kW / 231HP – Garrett: 758351-x – OEM: 657794260
- BMW 530xd (E60/E61) from 2007 – Engine: M57N2 – 173kW / 235HP – Garrett: 758351-x – OEM: 657794260
- BMW 730d (E65/E66) 2005–2007 – Engine: M57N2 – 170kW / 231HP – Garrett: 758351-x – OEM: 657794260
- BMW 730d (E65/E66) from 2007 – Engine: M57N2 – 173kW / 235HP – Garrett: 758351-x – OEM: 657794260
- BMW 730ld (E65/E66) 2005–2007 – Engine: M57N2 – 170kW / 231HP – Garrett: 758351-x – OEM: 657794260
- BMW 730ld (E65/E66) from 2007 – Engine: M57N2 – 173kW / 235HP – Garrett: 758351-x – OEM: 657794260
BMW E7x (3.0d)
- BMW X5 3.0d (E70) from 2007 – Engine: M57306D3 – 173kW / 235HP – Garrett: 765985-x – OEM: 11657796314
- BMW X6 30dx (E71) from 2008 – Engine: M57306D3 – 173kW / 235HP – Garrett: 765985-x – OEM: 11657796314
Vehicle Compatibility
| Brand | Model | Generation / Chassis | Engine |
|---|---|---|---|
| BMW | 325D | E9x, E6x, E60/E61, E65/E66 | M57, M57306D3, M57N2, M57D30UL |
| BMW | 330D | E9x, E6x, E60/E61, E65/E66 | M57, M57306D3, M57N2, M57D30UL |
| BMW | 330XD | E9x, E6x, E60/E61, E65/E66 | M57, M57306D3, M57N2, M57D30UL |
| BMW | 525D | E9x, E6x, E60/E61, E65/E66 | M57, M57306D3, M57N2, M57D30UL |
| BMW | 525XD | E9x, E6x, E60/E61, E65/E66 | M57, M57306D3, M57N2, M57D30UL |
| BMW | 530D | E9x, E6x, E60/E61, E65/E66 | M57, M57306D3, M57N2, M57D30UL |
| BMW | 530XD | E9x, E6x, E60/E61, E65/E66 | M57, M57306D3, M57N2, M57D30UL |
| BMW | 730D | E9x, E6x, E60/E61, E65/E66 | M57, M57306D3, M57N2, M57D30UL |
Turbosystems
Turbosystems: High-Performance Turbocharger Kits for Car Enthusiasts
Unlock the true potential of your vehicle with Turbosystems, the ultimate turbocharger kits designed specifically for car enthusiasts. Our cutting-edge turbo systems enhance your engine's performance, delivering unmatched power and efficiency that will elevate your driving experience.
Key Features and Benefits:
- High-Quality Materials: Crafted from durable, heat-resistant alloys to ensure longevity and reliability under extreme conditions.
- Easy Installation: Our turbocharger kits come with all necessary components and detailed instructions, making installation a breeze for both professionals and DIY enthusiasts.
- Enhanced Performance: Experience significant horsepower and torque gains, transforming your vehicle into a high-performance machine.
- Optimized Airflow: Advanced engineering ensures maximum airflow and minimal lag, providing a responsive driving experience.
- Customizable Options: Choose from a variety of sizes and configurations to perfectly match your vehicle's specifications and performance goals.
With Turbosystems, you can take your car's performance to the next level. Don’t settle for ordinary; experience extraordinary power and efficiency. Upgrade your ride today and feel the difference! Visit our website to explore our range of turbocharger kits and make your purchase now!
Upgrade Turbocharger Stage 2 Ball Bearing TurboSystems for BMW E9x (325d / 330d)
1,270.50€
1,257.80€
Excl. VAT: 1,039.50€
EU Shipping — No Import Taxes
| Brand | Model | Generation | Engine |
|---|---|---|---|
| BMW | 325D | E9x, E6x, E60/E61, E65/E66 | M57, M57306D3, M57N2, M57D30UL |
| BMW | 330D | E9x, E6x, E60/E61, E65/E66 | M57, M57306D3, M57N2, M57D30UL |
| BMW | 330XD | E9x, E6x, E60/E61, E65/E66 | M57, M57306D3, M57N2, M57D30UL |
| BMW | 525D | E9x, E6x, E60/E61, E65/E66 | M57, M57306D3, M57N2, M57D30UL |
| BMW | 525XD | E9x, E6x, E60/E61, E65/E66 | M57, M57306D3, M57N2, M57D30UL |
| BMW | 530D | E9x, E6x, E60/E61, E65/E66 | M57, M57306D3, M57N2, M57D30UL |
| BMW | 530XD | E9x, E6x, E60/E61, E65/E66 | M57, M57306D3, M57N2, M57D30UL |
| BMW | 730D | E9x, E6x, E60/E61, E65/E66 | M57, M57306D3, M57N2, M57D30UL |
