BMW M57 Performance Turbocharger Upgrades
Unlock the true potential of your BMW M57 engine with our range of precision-engineered turbocharger upgrades. Each stage is designed for specific power goals and build requirements. Please select the correct turbocharger for your vehicle—although these models share the same base engine, turbocharger construction differs between applications.
Specifications
Stage 2 (HTD2872)
- Upgraded bearing system
- CNC machined compressor housing
- CNC machined turbine housing
- OEM variable geometry nozzle
- Reinforced, larger solid-machined compressor wheel: 50/72mm
- Bigger turbine wheel: 51/49mm
- Flow bench adjusted
- Balanced on VSR
Power range: up to 400HP
Stage 2 (HTD2872BB)
- Dual ceramic ball bearing
- CNC machined compressor housing
- CNC machined turbine housing
- OEM variable geometry nozzle
- Reinforced, larger solid-machined compressor wheel: 50/72mm
- Bigger turbine wheel: 51/49mm
- Flow bench adjusted
- Balanced on VSR
Power range: up to 400HP
Stage 3 (HTD3073BB)
- Dual ceramic ball bearing
- CNC machined compressor housing
- CNC machined turbine housing
- Custom variable geometry nozzle
- Reinforced, larger solid-machined compressor wheel: 54/73mm
- Bigger turbine wheel: 58/54mm
- Flow bench adjusted
- Balanced on VSR
Power range: 420+HP
Stage 4 (HTD3279BB)
- Big dual ceramic ball bearing
- Enlarged shaft (6mm diameter) and turbine wheel
- CNC machined compressor housing
- CNC machined turbine housing
- Custom variable geometry nozzle
- Reinforced, larger solid-machined compressor wheel: 56/79mm
- High-flow design turbine wheel: 58/56mm
- Flow bench adjusted
- Balanced on VSR
Power range: 470+HP
Stage 5 (HTD3379BB)
- Big dual ceramic ball bearing
- Enlarged shaft and wheel diameter: 7mm
- CNC machined compressor housing
- CNC machined turbine housing
- New design custom variable geometry nozzle with 14 nozzle blades
- Reinforced, larger solid-machined compressor wheel: 56/79mm
- High-flow design turbine wheel: 62.8/56mm
- Flow bench adjusted
- Balanced on VSR
Power range: 500+HP
Important Notes
- Engine tuning is required after installing any upgraded turbocharger.
- Stage 3–5 turbochargers are intended for professional use only.
- Upgraded intake system, performance downpipe, and custom ECU software are required for optimal results with Stage 3–5 turbos.
Vehicle Compatibility
BMW E9x (325d / 330d)
- BMW 325d (E90/E91/E92/E93), 2007–2010, Engine: M57306D3, 145 kW / 197 HP, Garrett: 758352-5026S / 758352-x, OEM: 11657796312
- BMW 330d (E90/E91/E92/E93), 2005–2007, Engine: M57306D3, 170 kW / 231 HP, Garrett: 758352-5026S / 758352-x, OEM: 11657796312
- BMW 330xd (E90/E91/E92), 2005–2007, Engine: M57306D3, 170 kW / 231 HP, Garrett: 758352-5026S / 758352-x, OEM: 11657796312
BMW E6x (525d / 530d / 730d)
- BMW 525d (E60/E61), 2005–2007, Engine: M57N2, 170 kW / 231 HP, Garrett: 758351-x, OEM: 657794260
- BMW 525d (E60/E61), 2007–2010, Engine: M57D30UL, 145 kW / 197 HP, Garrett: 758351-x, OEM: 657794260
- BMW 525xd (E60/E61), 2005–2007, Engine: M57N2, 170 kW / 231 HP, Garrett: 758351-x, OEM: 657794260
- BMW 525xd (E60/E61), from 2007, Engine: M57N2, 173 kW / 235 HP, Garrett: 758351-x, OEM: 657794260
- BMW 530d (E60/E61), 2005–2007, Engine: M57N2, 170 kW / 231 HP, Garrett: 758351-x, OEM: 657794260
- BMW 530d (E60/E61), from 2007, Engine: M57N2, 173 kW / 235 HP, Garrett: 758351-x, OEM: 657794260
- BMW 530xd (E60/E61), 2005–2007, Engine: M57N2, 170 kW / 231 HP, Garrett: 758351-x, OEM: 657794260
- BMW 530xd (E60/E61), from 2007, Engine: M57N2, 173 kW / 235 HP, Garrett: 758351-x, OEM: 657794260
- BMW 730d (E65/E66), 2005–2007, Engine: M57N2, 170 kW / 231 HP, Garrett: 758351-x, OEM: 657794260
- BMW 730d (E65/E66), from 2007, Engine: M57N2, 173 kW / 235 HP, Garrett: 758351-x, OEM: 657794260
- BMW 730ld (E65/E66), 2005–2007, Engine: M57N2, 170 kW / 231 HP, Garrett: 758351-x, OEM: 657794260
- BMW 730ld (E65/E66), from 2007, Engine: M57N2, 173 kW / 235 HP, Garrett: 758351-x, OEM: 657794260
BMW E7x (3.0d)
- BMW X5 3.0d (E70), from 2007, Engine: M57306D3, 173 kW / 235 HP, Garrett: 765985-x, OEM: 11657796314
- BMW X6 30dx (E71), from 2008, Engine: M57306D3, 173 kW / 235 HP, Garrett: 765985-x, OEM: 11657796314
Vehicle Compatibility
| Brand | Model | Generation / Chassis | Engine |
|---|---|---|---|
| BMW | 325D | E9x, E6x, E7x, E90, E91, E92, E93, E60, E61, E65, E66 | M57, M57306D3, M57N2, M57D30UL |
| BMW | 330D | E9x, E6x, E7x, E90, E91, E92, E93, E60, E61, E65, E66 | M57, M57306D3, M57N2, M57D30UL |
| BMW | 330XD | E9x, E6x, E7x, E90, E91, E92, E93, E60, E61, E65, E66 | M57, M57306D3, M57N2, M57D30UL |
| BMW | 525D | E9x, E6x, E7x, E90, E91, E92, E93, E60, E61, E65, E66 | M57, M57306D3, M57N2, M57D30UL |
| BMW | 525XD | E9x, E6x, E7x, E90, E91, E92, E93, E60, E61, E65, E66 | M57, M57306D3, M57N2, M57D30UL |
| BMW | 530D | E9x, E6x, E7x, E90, E91, E92, E93, E60, E61, E65, E66 | M57, M57306D3, M57N2, M57D30UL |
| BMW | 530XD | E9x, E6x, E7x, E90, E91, E92, E93, E60, E61, E65, E66 | M57, M57306D3, M57N2, M57D30UL |
| BMW | 730D | E9x, E6x, E7x, E90, E91, E92, E93, E60, E61, E65, E66 | M57, M57306D3, M57N2, M57D30UL |
| BMW | 730LD | E9x, E6x, E7x, E90, E91, E92, E93, E60, E61, E65, E66 | M57, M57306D3, M57N2, M57D30UL |
| BMW | X5 | E9x, E6x, E7x, E90, E91, E92, E93, E60, E61, E65, E66 | M57, M57306D3, M57N2, M57D30UL |
Turbosystems
Turbosystems: High-Performance Turbocharger Kits for Car Enthusiasts
Unlock the true potential of your vehicle with Turbosystems, the ultimate turbocharger kits designed specifically for car enthusiasts. Our cutting-edge turbo systems enhance your engine's performance, delivering unmatched power and efficiency that will elevate your driving experience.
Key Features and Benefits:
- High-Quality Materials: Crafted from durable, heat-resistant alloys to ensure longevity and reliability under extreme conditions.
- Easy Installation: Our turbocharger kits come with all necessary components and detailed instructions, making installation a breeze for both professionals and DIY enthusiasts.
- Enhanced Performance: Experience significant horsepower and torque gains, transforming your vehicle into a high-performance machine.
- Optimized Airflow: Advanced engineering ensures maximum airflow and minimal lag, providing a responsive driving experience.
- Customizable Options: Choose from a variety of sizes and configurations to perfectly match your vehicle's specifications and performance goals.
With Turbosystems, you can take your car's performance to the next level. Don’t settle for ordinary; experience extraordinary power and efficiency. Upgrade your ride today and feel the difference! Visit our website to explore our range of turbocharger kits and make your purchase now!

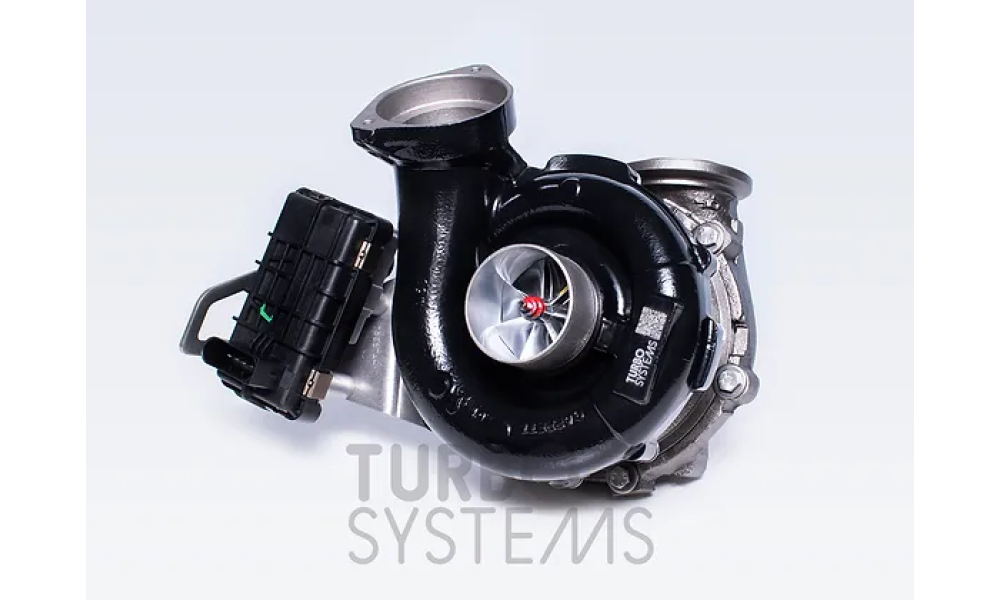

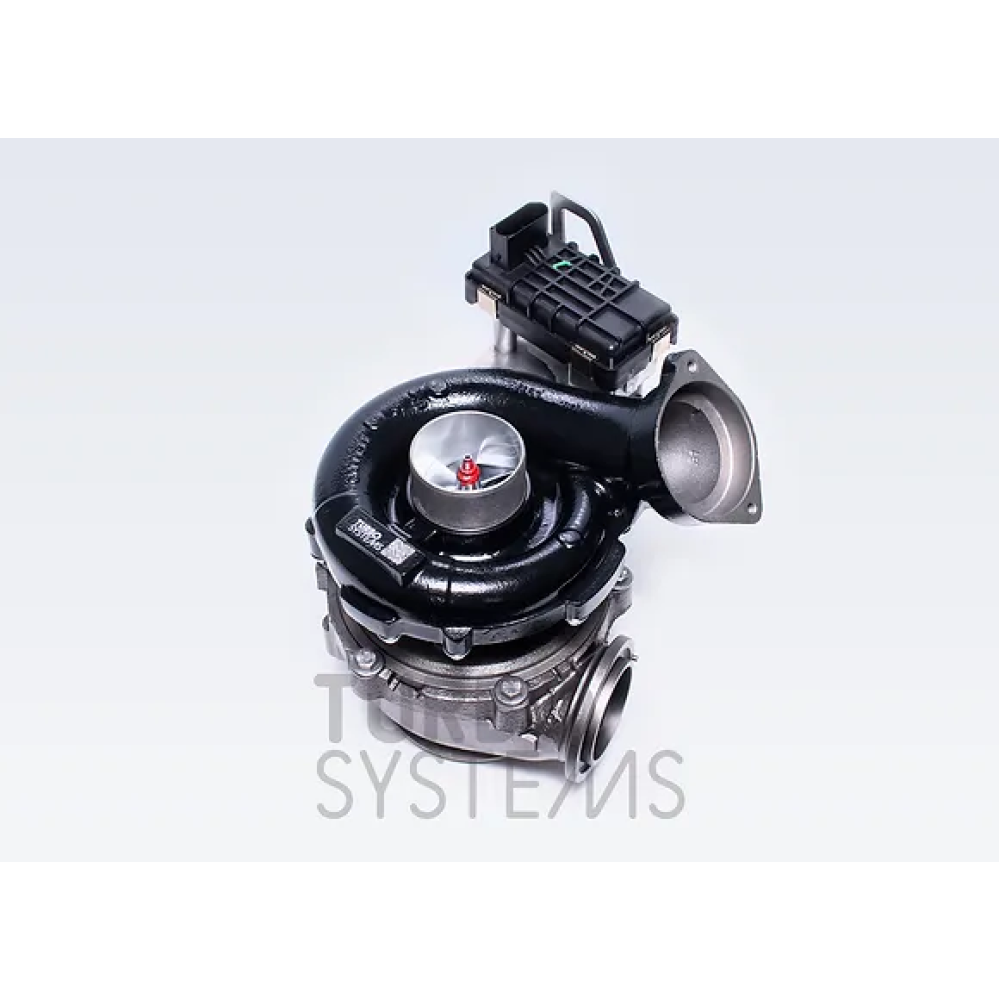

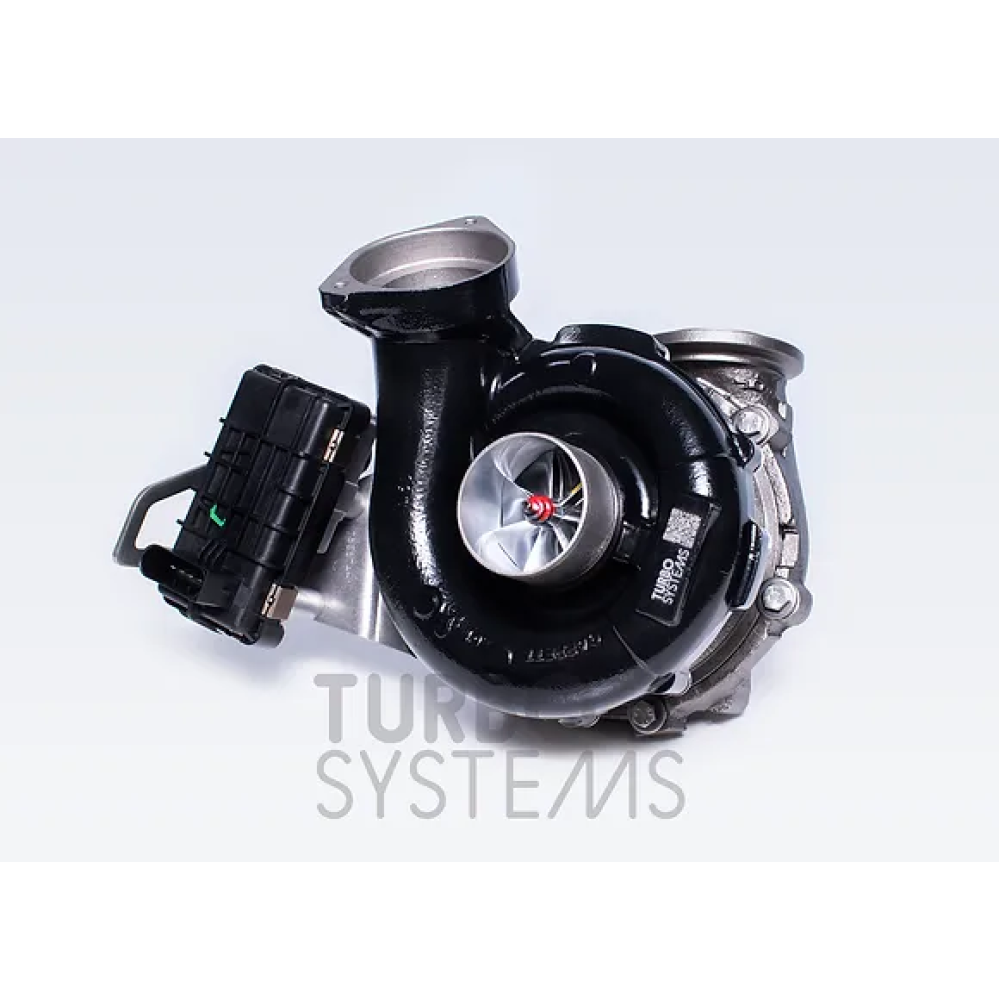

Upgrade Turbocharger Stage 2 Ball Bearing TurboSystems for BMW E7x (3.0d)
1,270.50€
1,257.80€
Excl. VAT: 1,039.50€
EU Shipping — No Import Taxes
| Brand | Model | Generation | Engine |
|---|---|---|---|
| BMW | 325D | E9x, E6x, E7x, E90, E91, E92, E93, E60, E61, E65, E66 | M57, M57306D3, M57N2, M57D30UL |
| BMW | 330D | E9x, E6x, E7x, E90, E91, E92, E93, E60, E61, E65, E66 | M57, M57306D3, M57N2, M57D30UL |
| BMW | 330XD | E9x, E6x, E7x, E90, E91, E92, E93, E60, E61, E65, E66 | M57, M57306D3, M57N2, M57D30UL |
| BMW | 525D | E9x, E6x, E7x, E90, E91, E92, E93, E60, E61, E65, E66 | M57, M57306D3, M57N2, M57D30UL |
| BMW | 525XD | E9x, E6x, E7x, E90, E91, E92, E93, E60, E61, E65, E66 | M57, M57306D3, M57N2, M57D30UL |
| BMW | 530D | E9x, E6x, E7x, E90, E91, E92, E93, E60, E61, E65, E66 | M57, M57306D3, M57N2, M57D30UL |
| BMW | 530XD | E9x, E6x, E7x, E90, E91, E92, E93, E60, E61, E65, E66 | M57, M57306D3, M57N2, M57D30UL |
| BMW | 730D | E9x, E6x, E7x, E90, E91, E92, E93, E60, E61, E65, E66 | M57, M57306D3, M57N2, M57D30UL |
| BMW | 730LD | E9x, E6x, E7x, E90, E91, E92, E93, E60, E61, E65, E66 | M57, M57306D3, M57N2, M57D30UL |
| BMW | X5 | E9x, E6x, E7x, E90, E91, E92, E93, E60, E61, E65, E66 | M57, M57306D3, M57N2, M57D30UL |
