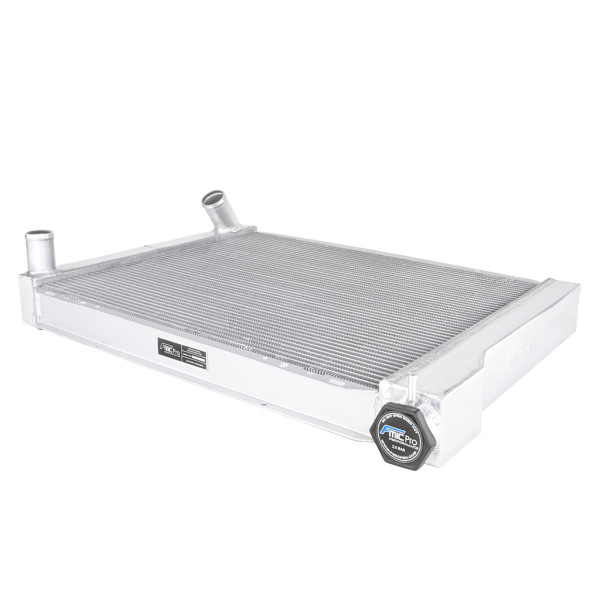

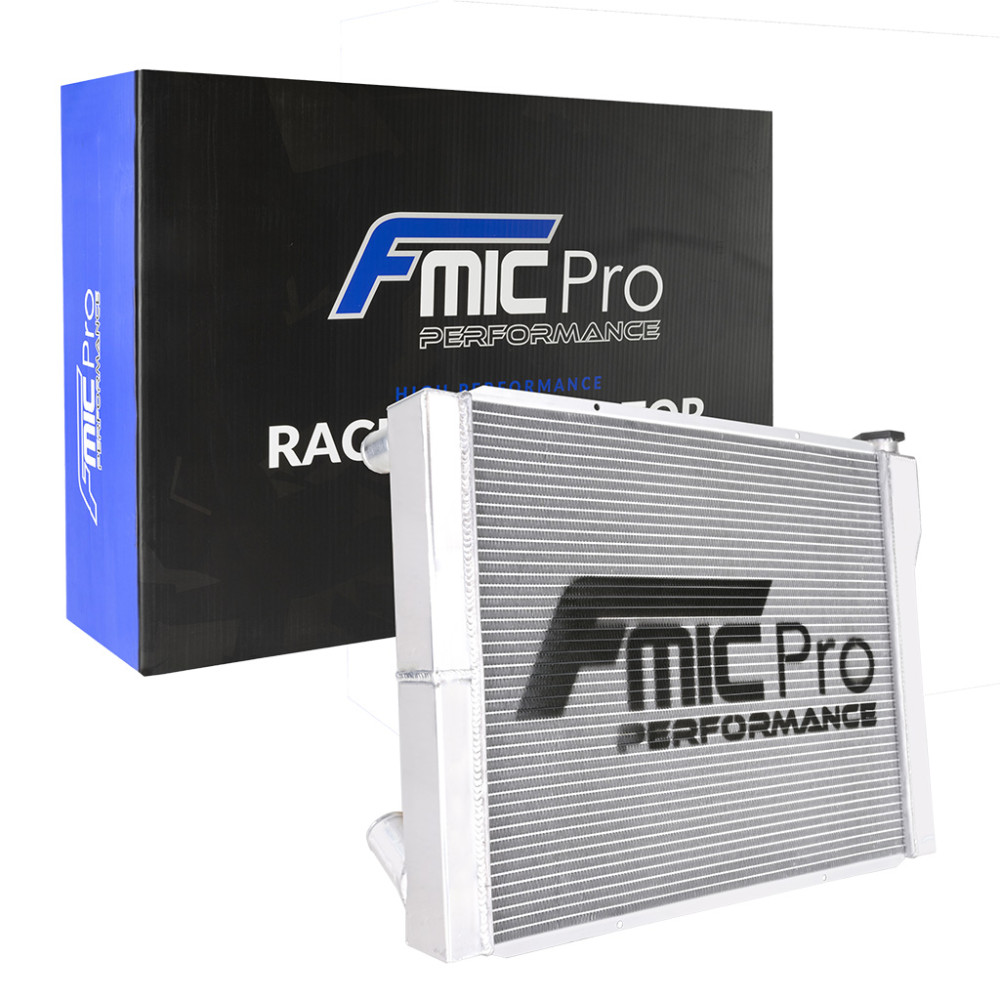

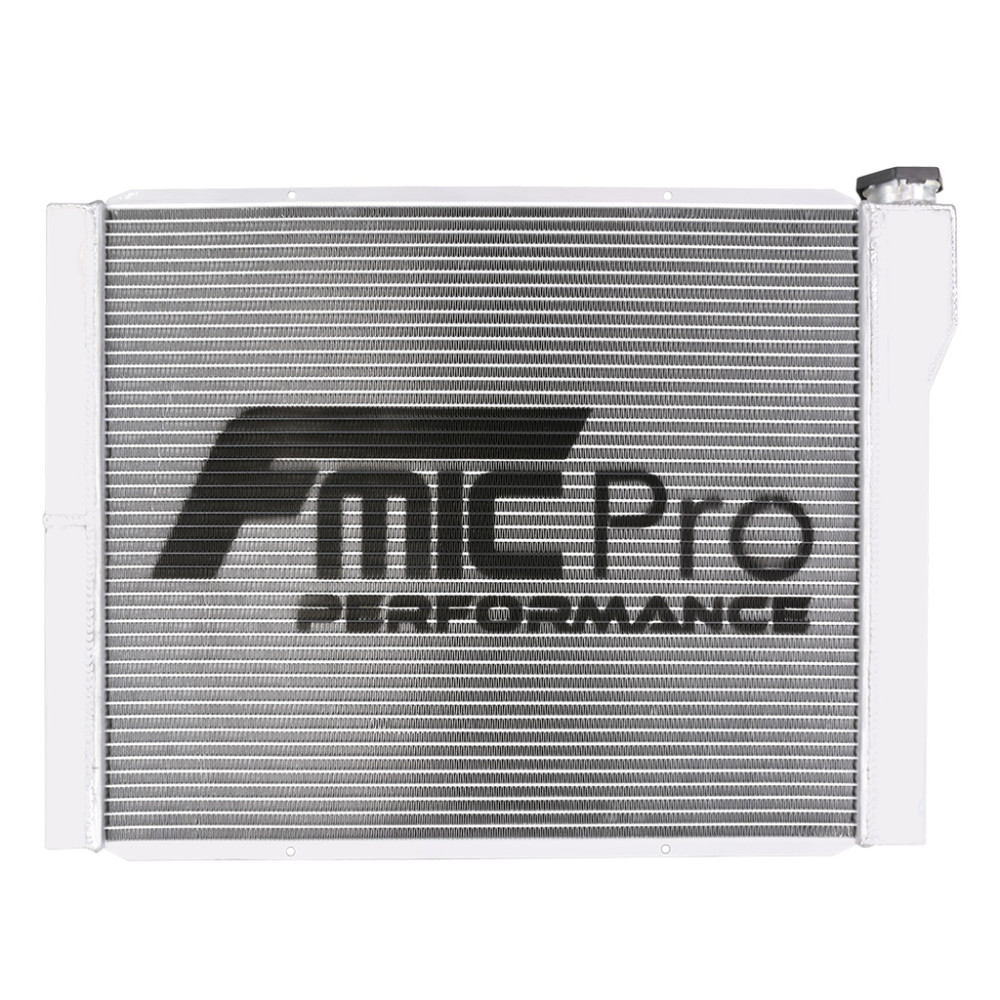

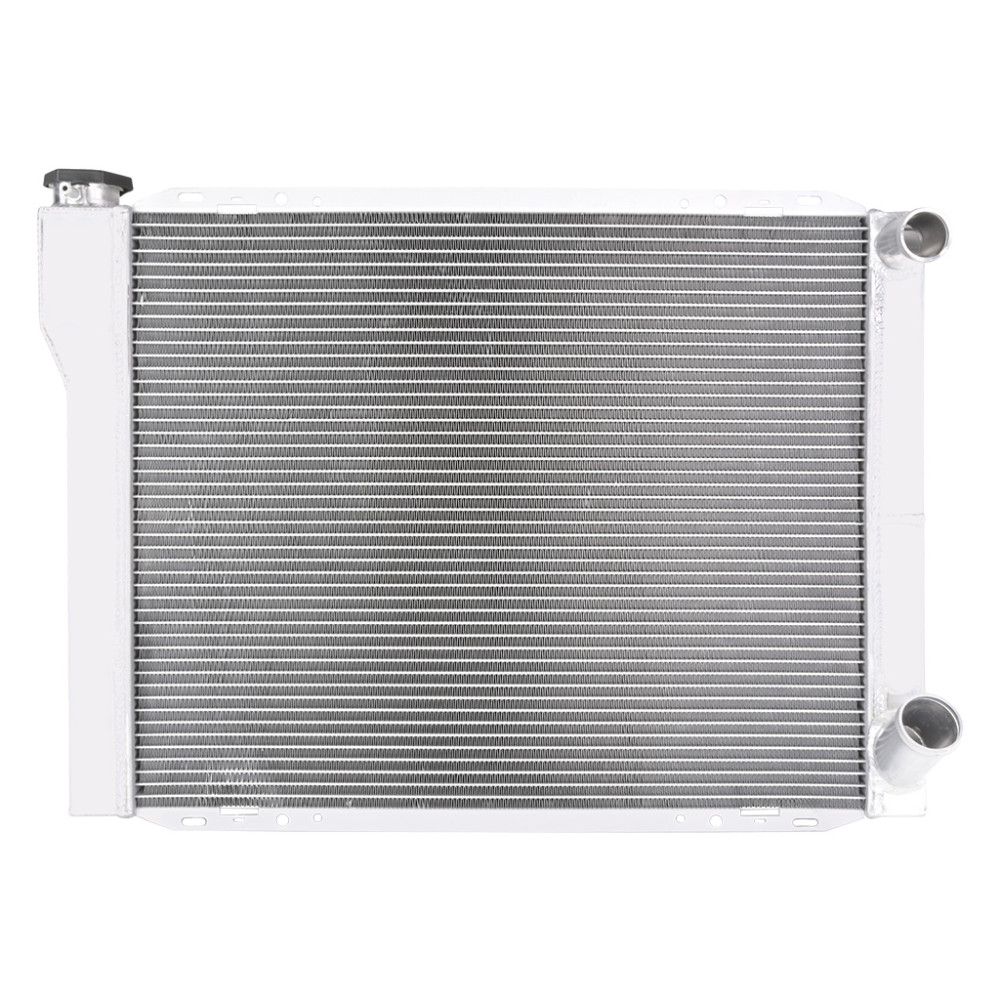

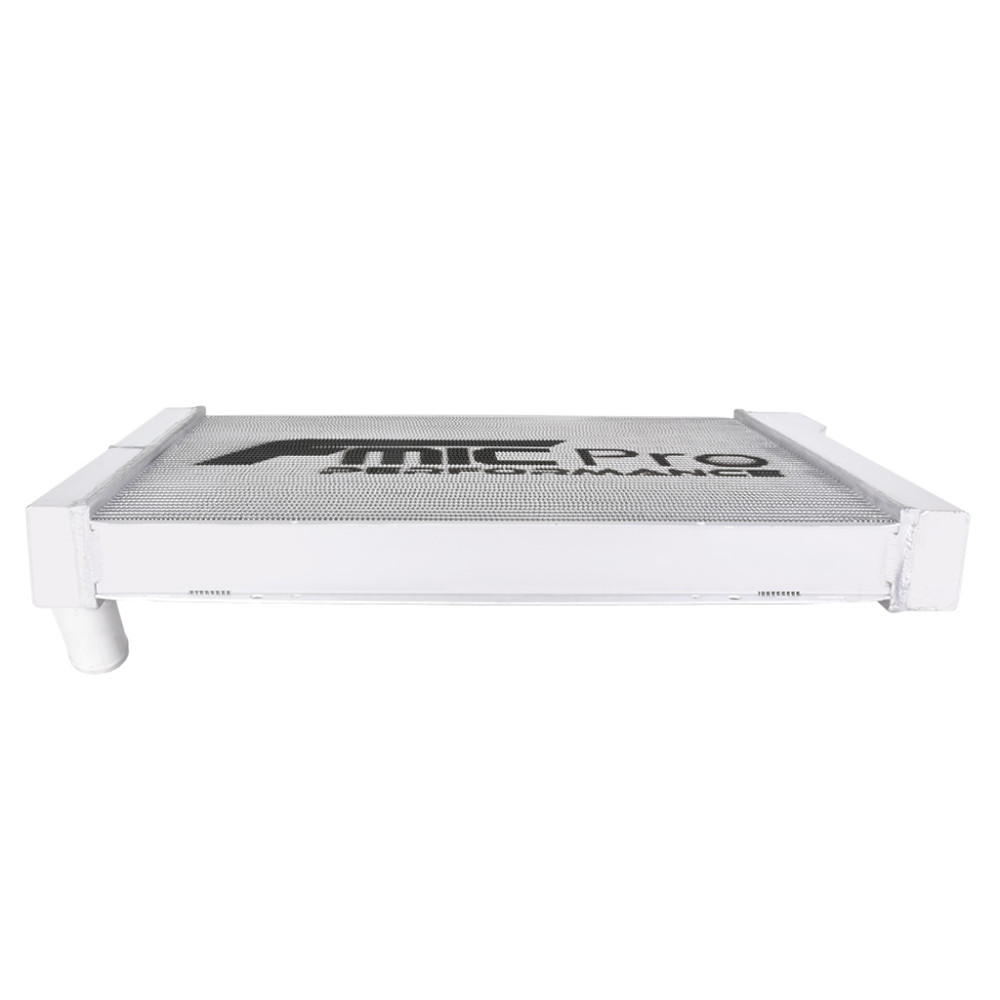

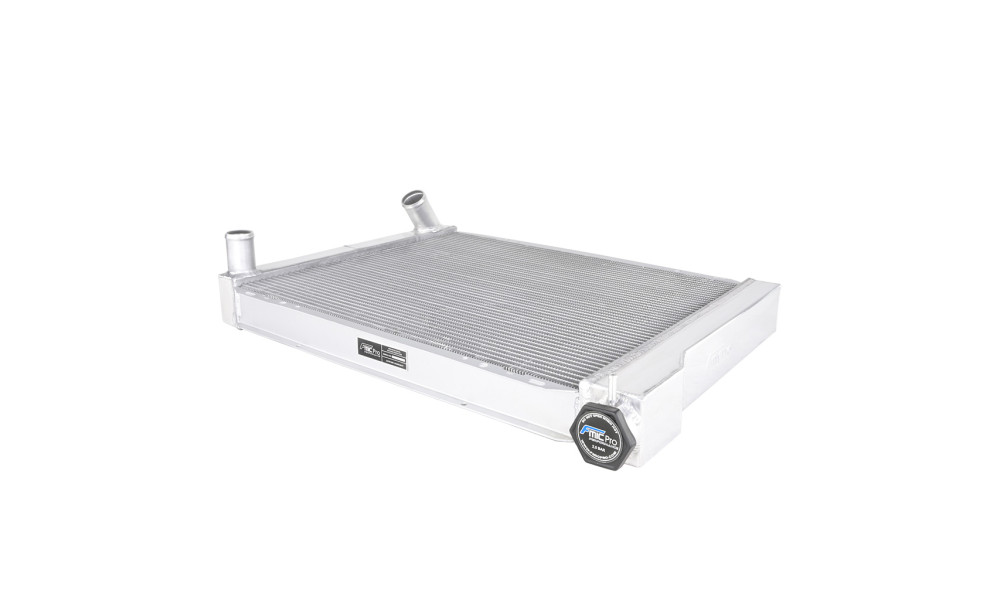

Universal Dual-Pass Water Radiator 686 mm x 508 mm x 76 mm

The universal aluminum Dual-Pass radiator is engineered for tuning applications, motorsport use, and engine swap projects where high thermal stability is crucial. The fully aluminum welded core and robust welded end tanks ensure excellent durability, high thermal conductivity, and resistance to heavy loads. This construction excels in high-power engines where OEM radiators fall short in providing adequate cooling. The Dual-Pass system forces the coolant to travel through the core twice, extending the flow path and increasing the heat exchange surface, offering 17–27 percent higher cooling efficiency compared to single-pass designs.

Technical Specifications

• Overall dimensions: 686 mm x 508 mm x 76 mm
• Core dimensions: 565 mm x 468 mm
• Core thickness: 76 mm
• Flow type: dual-pass
• Rows: 2
• Inlet diameter: 38 mm
• Outlet diameter: 45 mm
• Radiator cap: 2.0 bar
