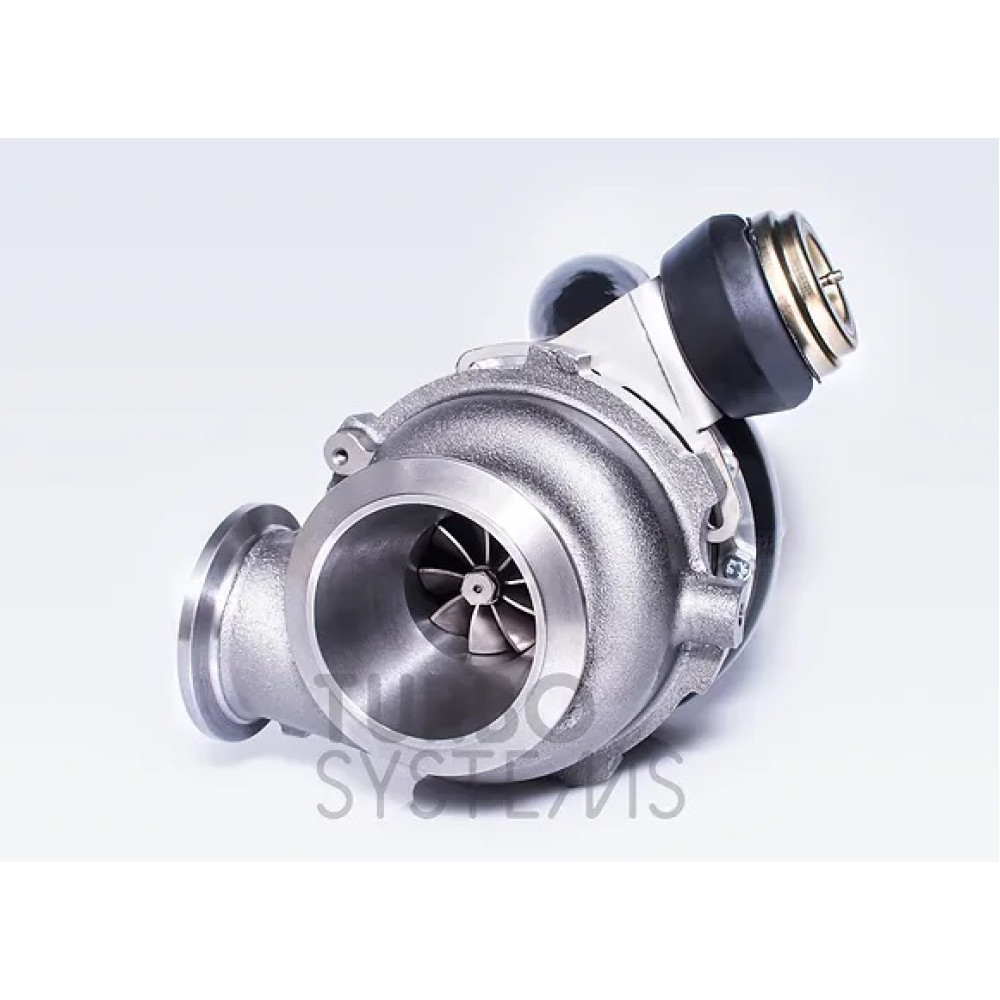

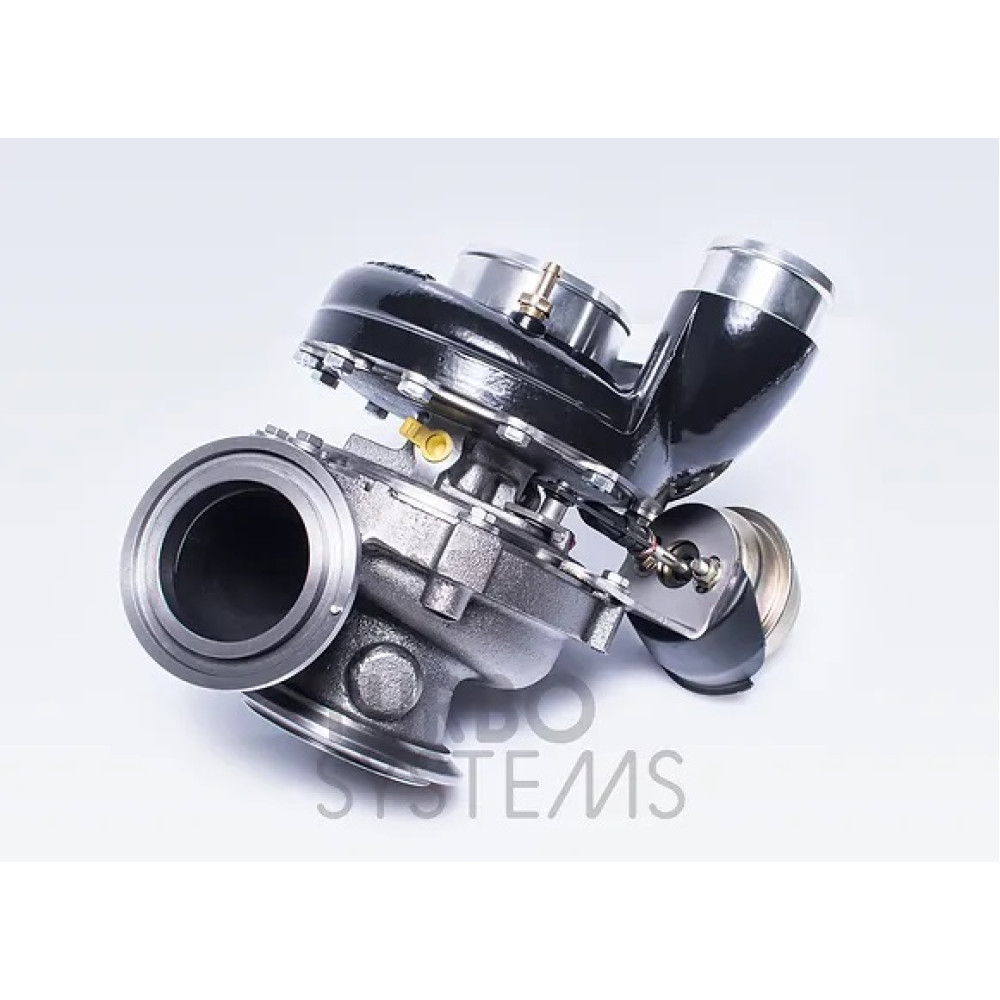

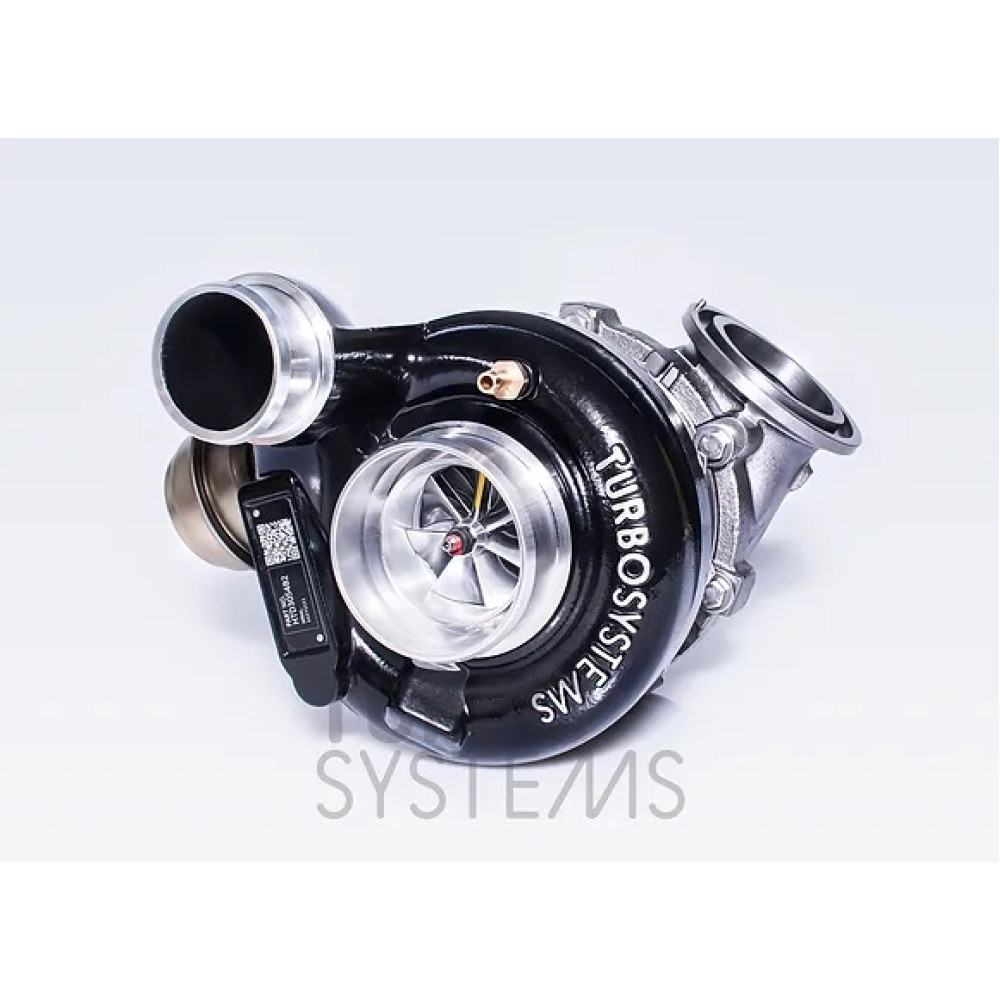

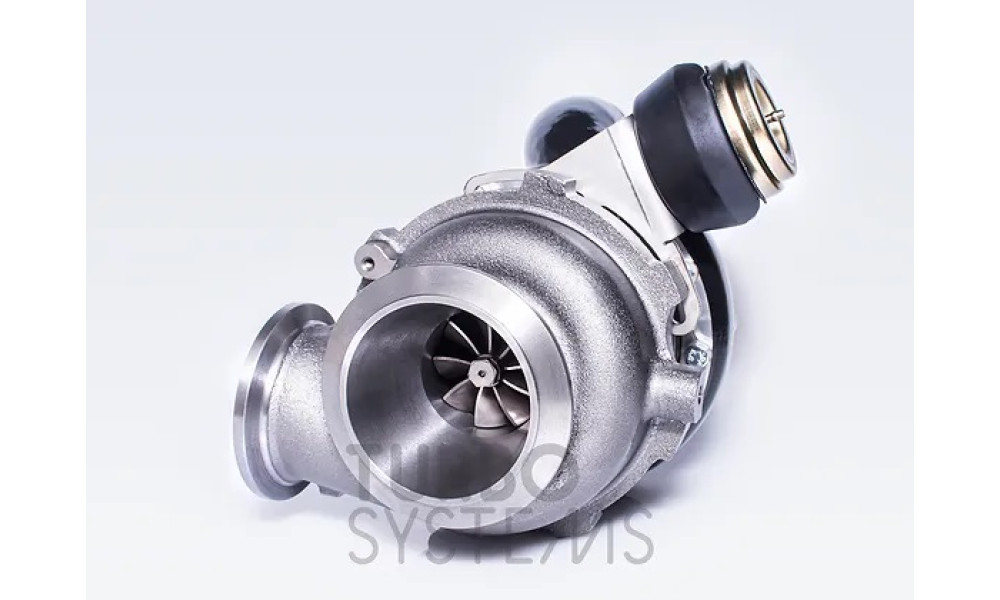

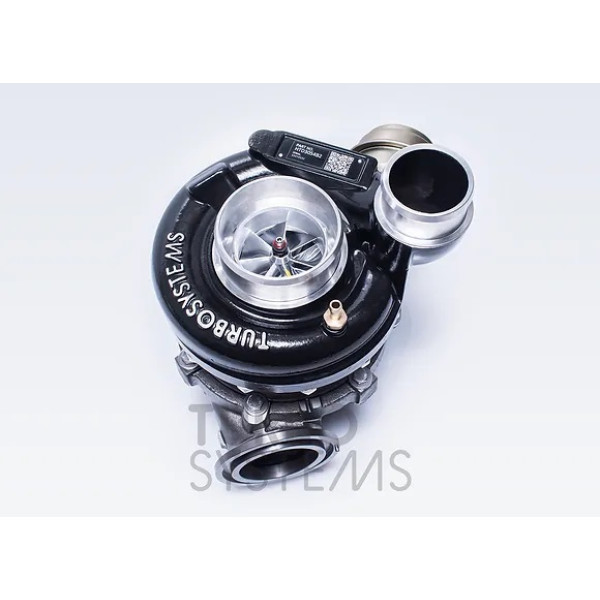

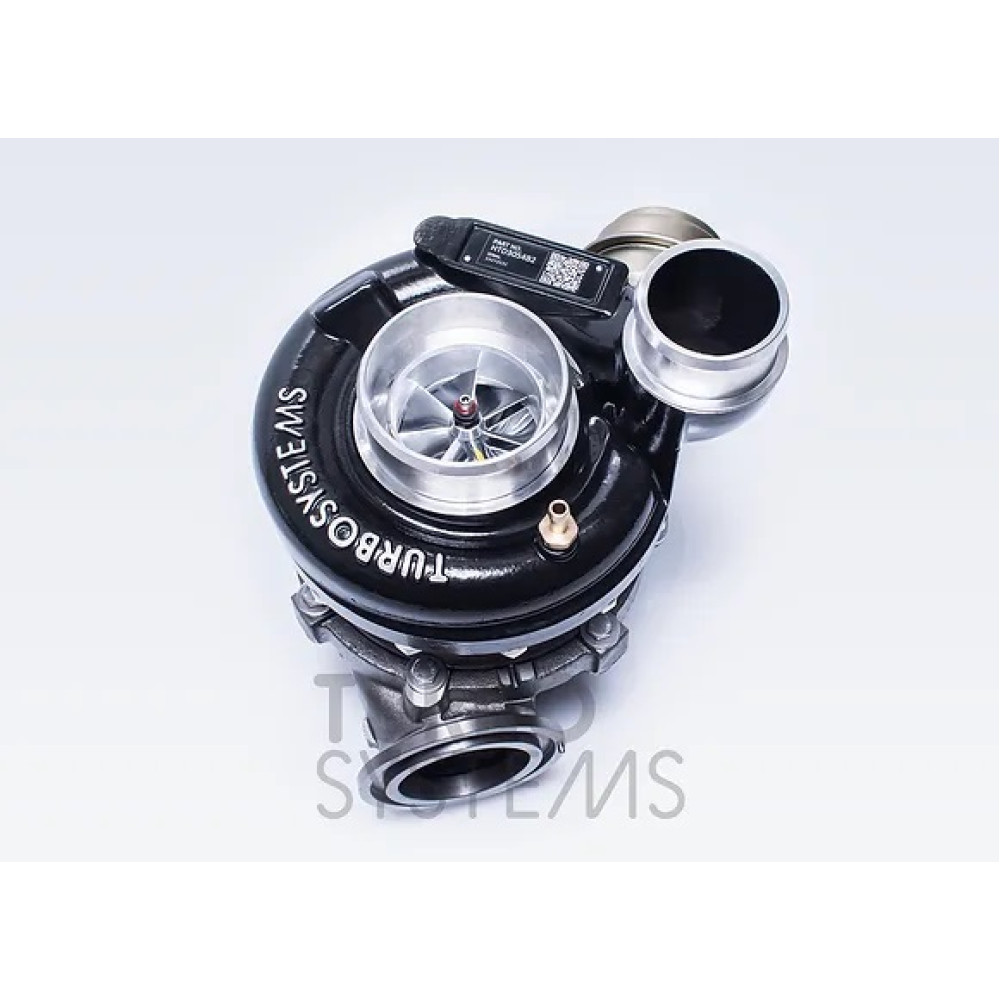

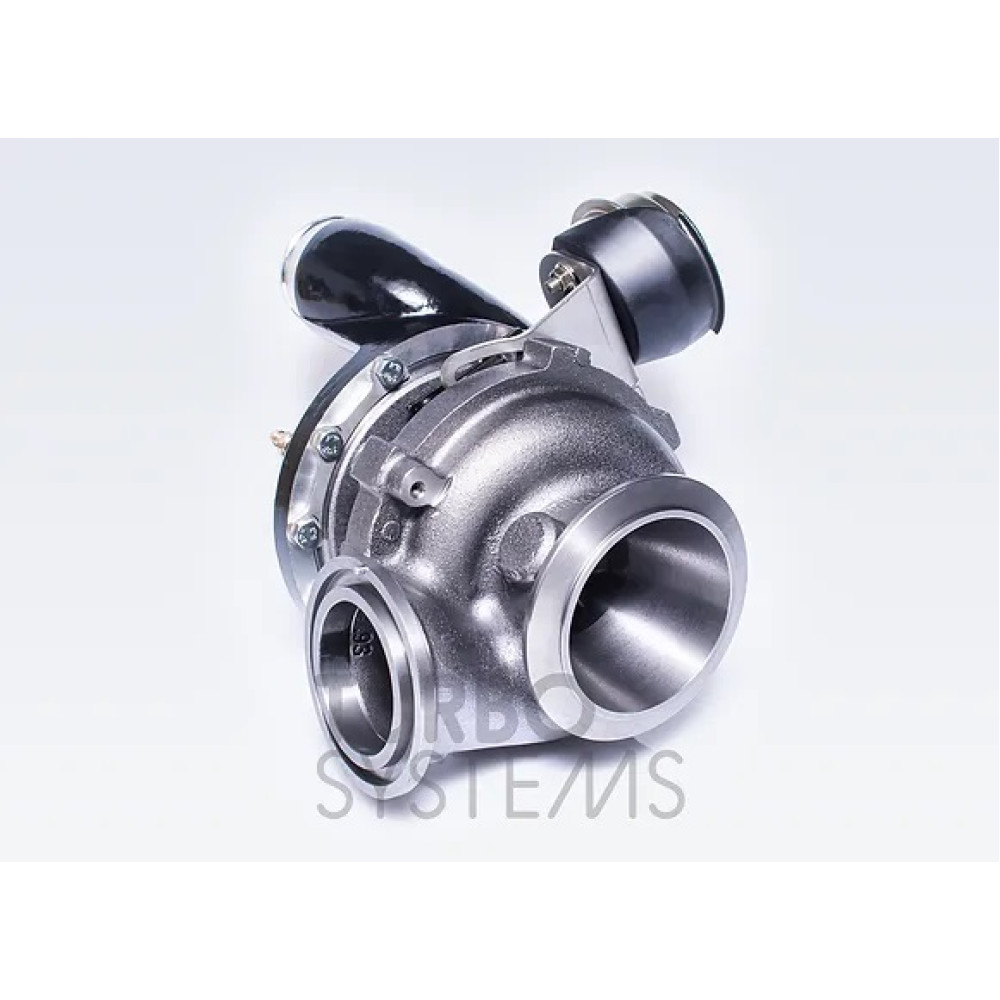

HTD3254B2 Turbocharger
Designed for enthusiasts seeking reliable power gains, the HTD3254B2 is built on a BMW diesel upgrade turbocharger base and engineered for universal adaptation. This unit features a robust billet 7+7 blade compressor wheel (54mm inducer, 77mm exducer), paired with a 76mm (3") air intake inlet and a 90° 51mm (2") air outlet for optimal airflow. The core utilizes a custom dual ceramic ball bearing system and the latest generation variable geometry technology for improved spool and durability. The turbine side is based on the BMW F10 3.0d turbocharger, equipped with a 9-blade turbine wheel (58mm inducer, 56mm exducer), BMW manifold V-band flange, and V-band exhaust connection. Vacuum control actuator included for straightforward installation and tuning. Power range: 400+ HP.
HTD3256B2 Turbocharger
The HTD3256B2 is engineered for performance builds demanding efficient, reliable boost. Built on a BMW diesel upgrade turbo base, it features a custom reinforced billet 7+7 blade compressor wheel (56mm inducer, 79mm exducer), a 76mm (2") air intake inlet, and a 90° 51mm (2") air outlet. The core is a custom dual ceramic ball bearing design with the latest generation variable geometry for quick response and longevity. The turbine housing is based on the BMW F10 3.0d model, fitted with a 9-blade turbine wheel (58mm inducer, 56mm exducer), BMW manifold V-band flange, and V-band exhaust connection. Includes vacuum control actuator for universal fitment. Power range: 400+ HP.
Vehicle Compatibility
| Brand | Model | Generation / Chassis | Engine |
|---|---|---|---|
| Universal | - | - | - |
Turbosystems
Universal Diesel Turbocharger TurboSystems HTD3256B2
Tags: Default Category|Engine and turbo|Turbo|Tuning turbo,
This product has universal fitment.
