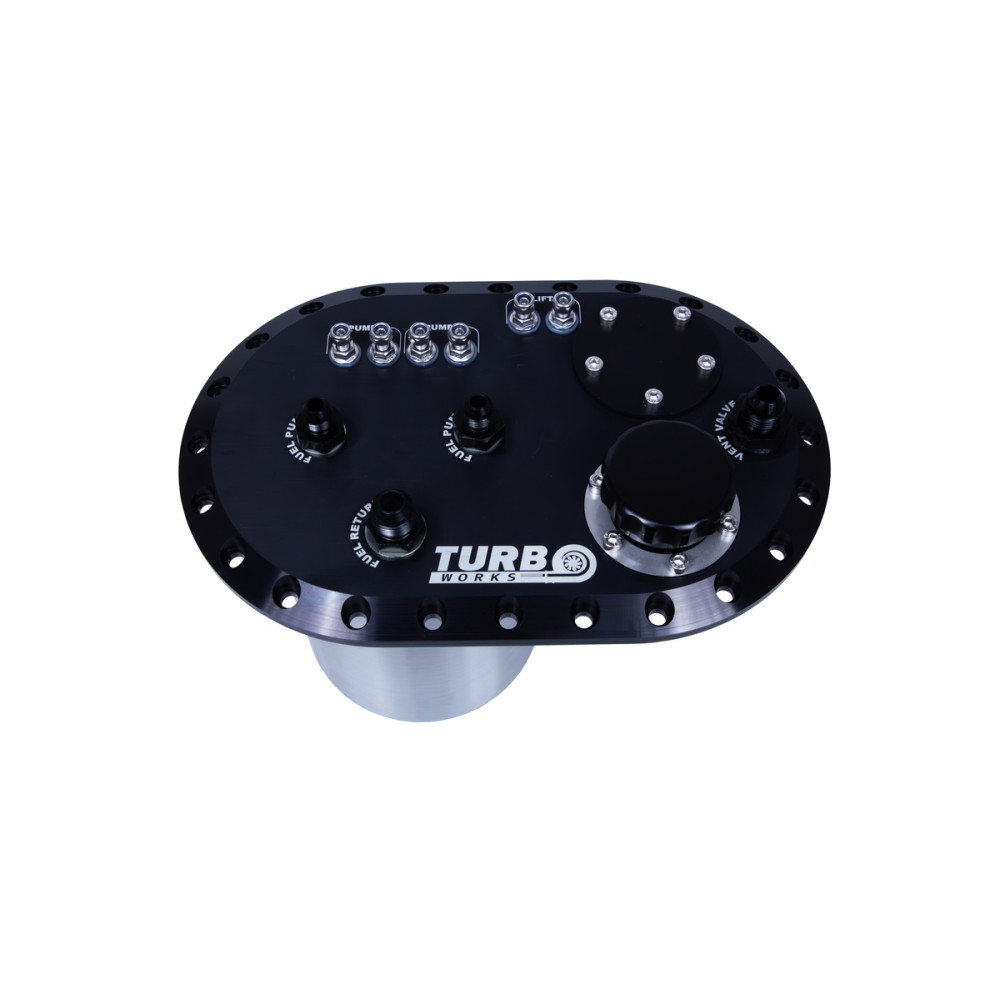

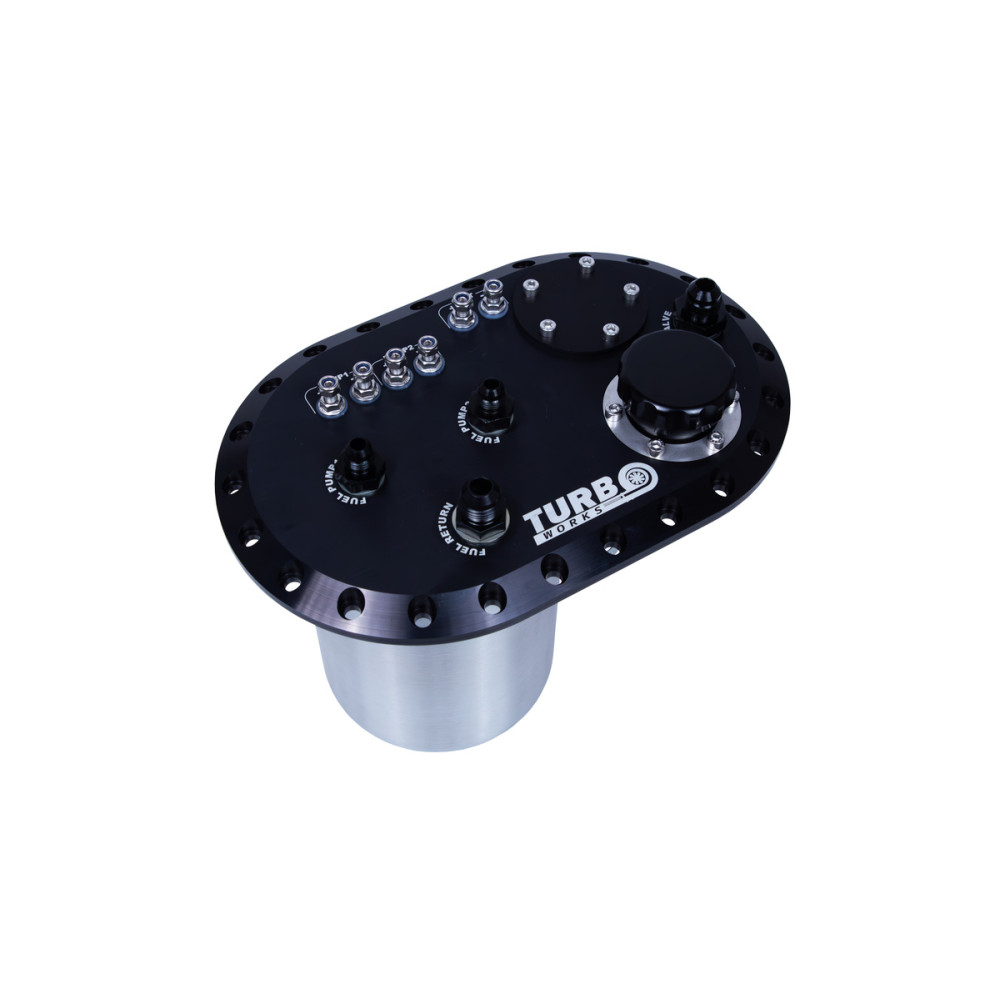

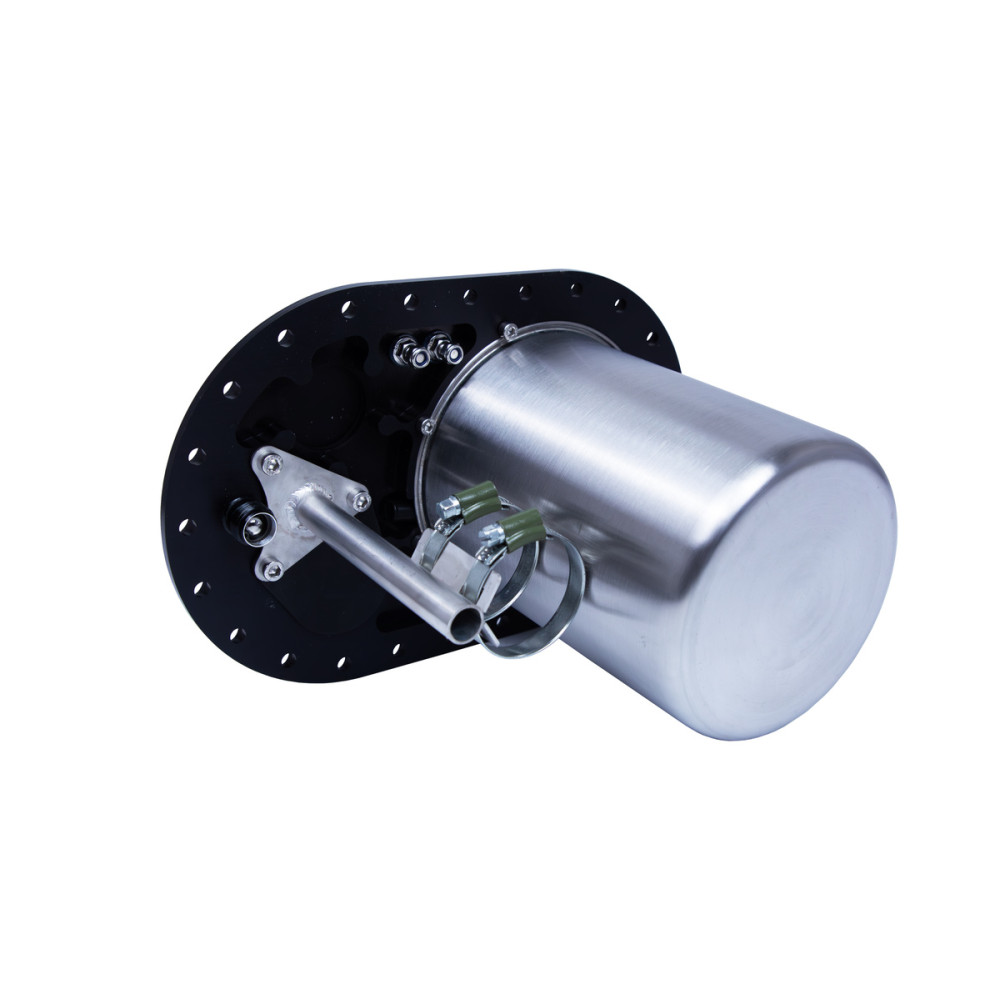

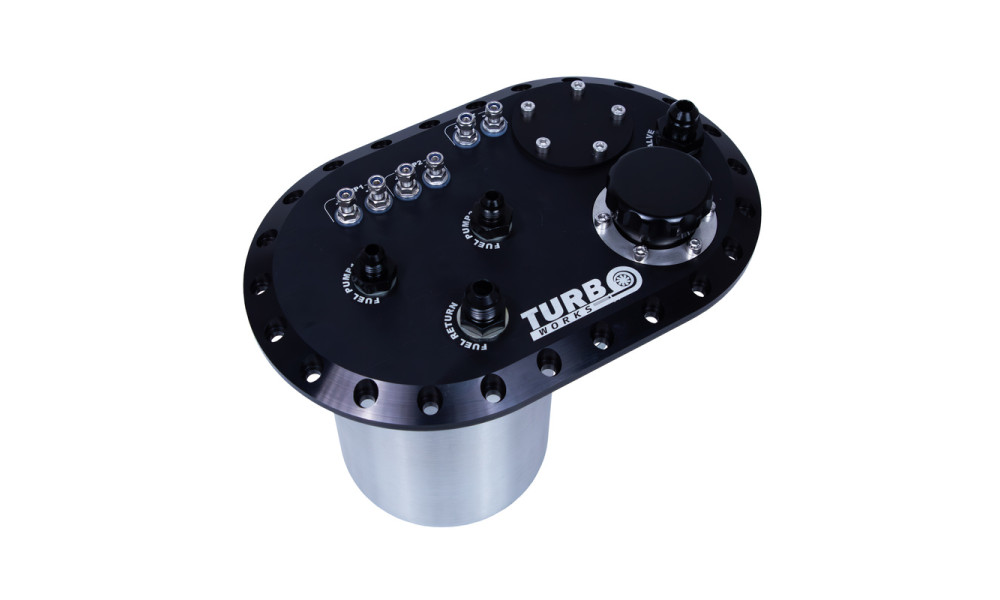

Version Short B ATL

Final version of the internal swirlpot, designed for maximum performance and full compatibility with FIA-approved fuel cells. Its design allows flexible configuration with fuel pumps mounted either inside or outside the tank. With a 2.75-liter capacity, it ensures stable fuel supply under the most demanding motorsport conditions. Manufactured from premium-grade materials, equipped with AN fittings made from hard anodized 7075-T6 aluminum for maximum durability.

Key features:

• Compatible with internal and external fuel pumps

• Swirlpot capacity: 2.75 L

• Suitable for all FIA homologated fuel cells, including the lowest FuelSafe 30L

• AN fittings made from anodized 7075-T6 aluminum

• Supports installation of high-capacity pumps with wide impeller housings

• Twin fuel pump outlets – allows use of 2x fuel filters

• Electrical passthrough on M6 posts – generous space for eyelet terminals

• Dedicated mount for fuel level sensor

• Fuel filler included in the kit

• Two lifter pump mount options available:

  • Short bracket – for fuel cell depth from 178 mm

  • Long bracket – for fuel cell depth from 210 mm
