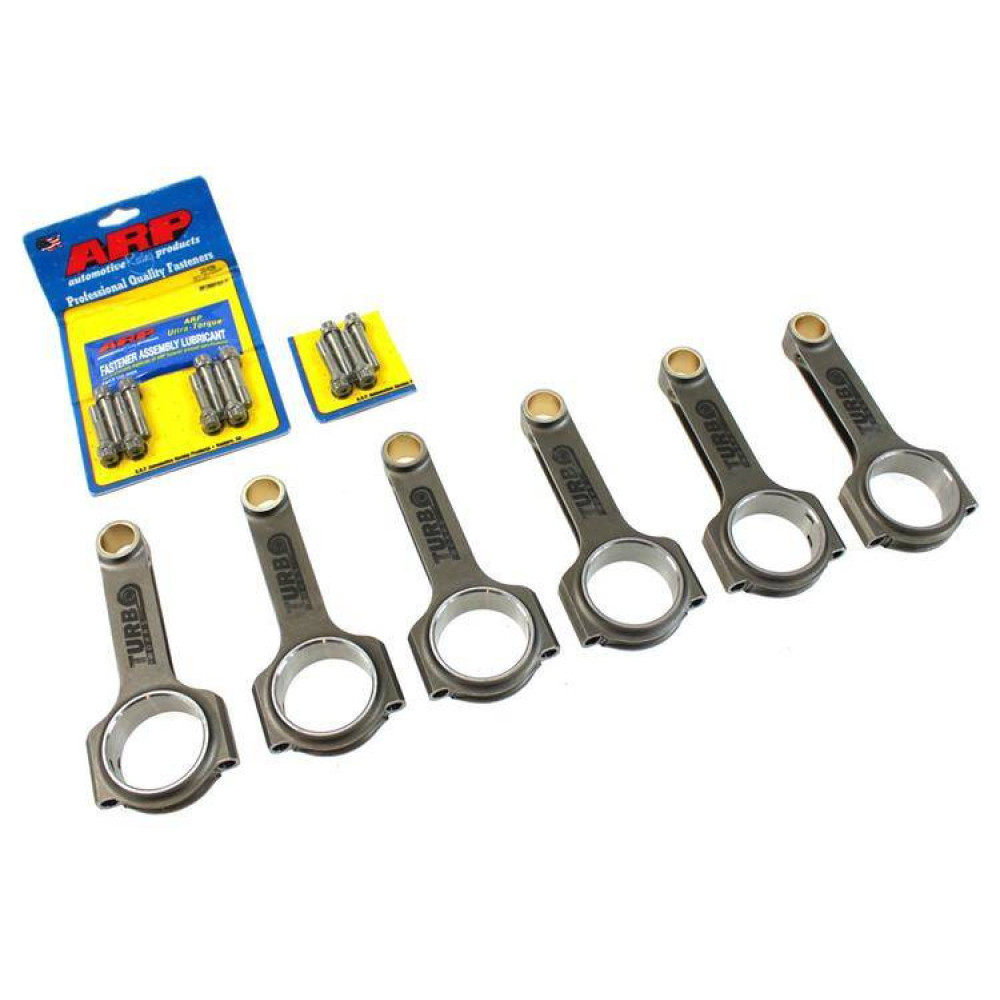

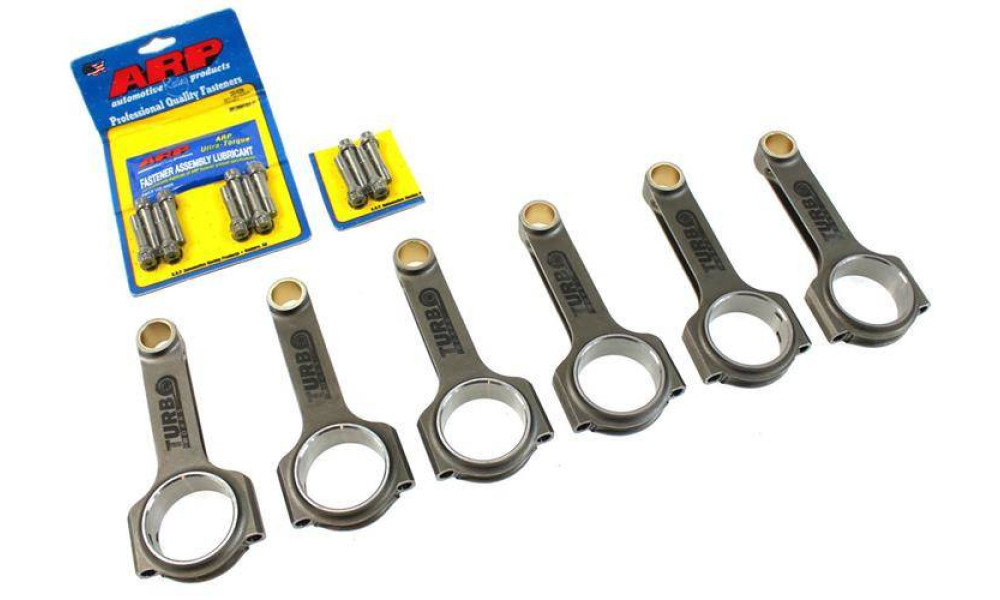

TurboWorks Forged H-Beam Connecting Rods for Toyota 2JZ-GTE

For serious Toyota 2JZ-GTE builders, these TurboWorks forged H-beam connecting rods offer a robust upgrade for high-power street, drift, or track builds. Designed for enthusiasts pushing the limits, these rods provide the strength required for big power without compromise.

Fitment

• Toyota 2JZ-GTE engine (as found in Toyota Supra, Toyota Aristo)

Material & Construction

• Forged AISI 4340 steel (En24)
• H-Beam design for high strength
• Hardness: HRC 35-38
• Forgings are degassed and X-rayed to eliminate material defects
• Heat treated, slid, and honed for strength and accuracy

Technical Specifications

• Center to Center Length: 142mm
• Big End Bore: 55mm
• Big End Width: 25.78mm
• Small End Bore: 22mm
• Small End Width: 25.78mm
• Supports power exceeding 200 HP per cylinder

What’s Included

• Set of forged H-beam connecting rods

Installation Notes

• Assembly screws and grease are not included—these must be purchased separately.
• Professional installation and proper torque procedures are highly recommended for best performance and reliability.

FAQ

• Do these rods come with bolts or installation hardware?
  No, bolts and assembly grease are not included. They can be purchased separately.
• Are these rods suitable for high horsepower builds?
  Yes, they are designed to handle power exceeding 200 HP per cylinder when used in a 2JZ-GTE engine.
• Can I use these rods in a non-turbo 2JZ engine?
  These rods are specifically designed for the 2JZ-GTE engine as found in the Supra and Aristo.
