Power Range: 500–750 HP

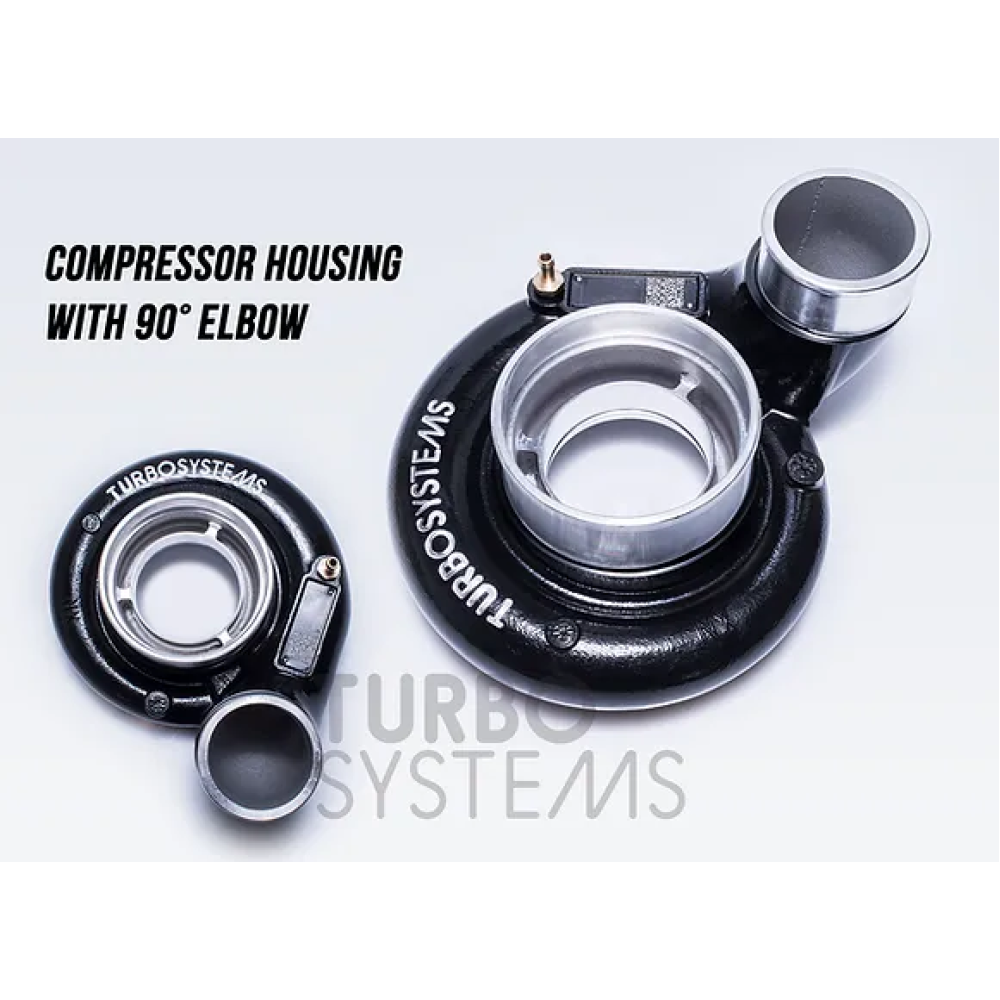

Compressor Side:

• Compressor Wheel: In-house made, reinforced 64/79mm, 10+0 blade design, machined from solid aluminum
• Intake: 101mm (4")
• Air Outlet: 63mm (2.5")

Core:

• Bearings: Dual ceramic ball bearings
• Cooling: Water cooling with 2 x M14x1.5 ports
• Lubrication: AN4 oil inlet with integrated oil restrictor

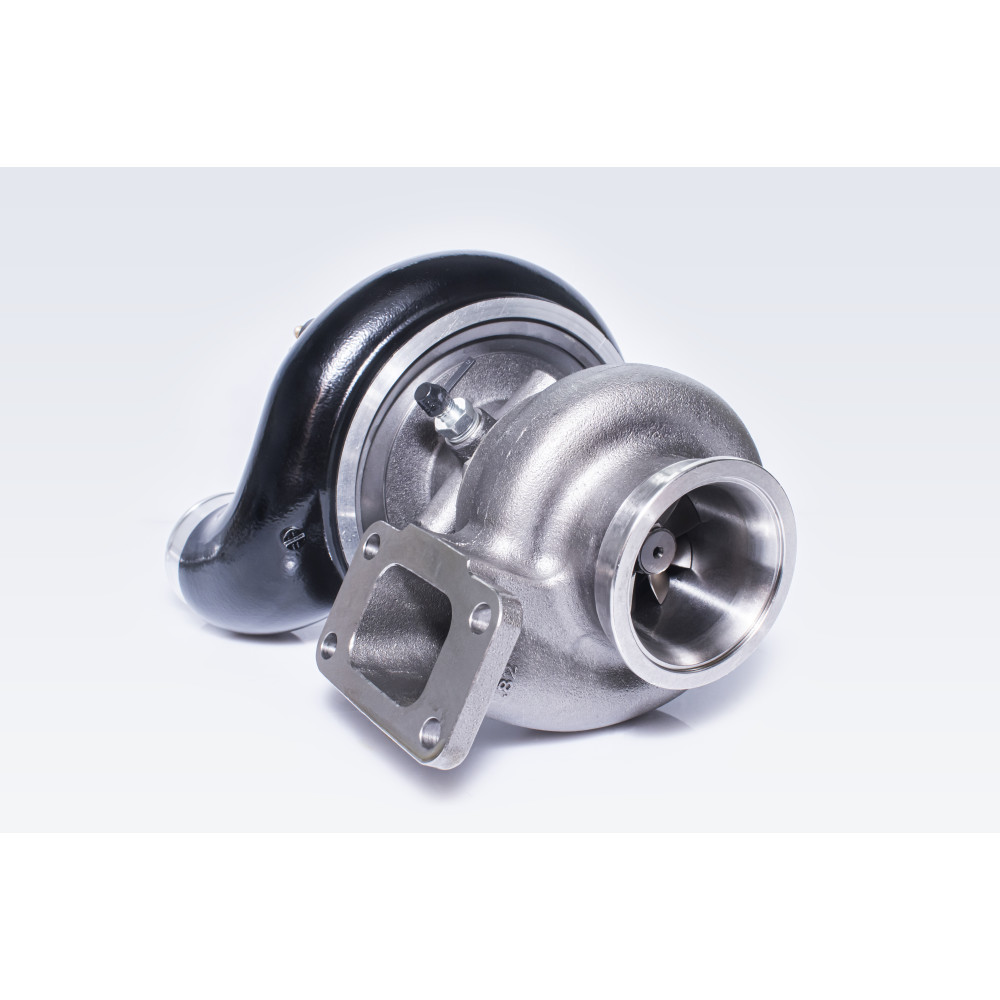

Turbine Side:

• Housing: Single scroll, 14cm² / AR: 0.82

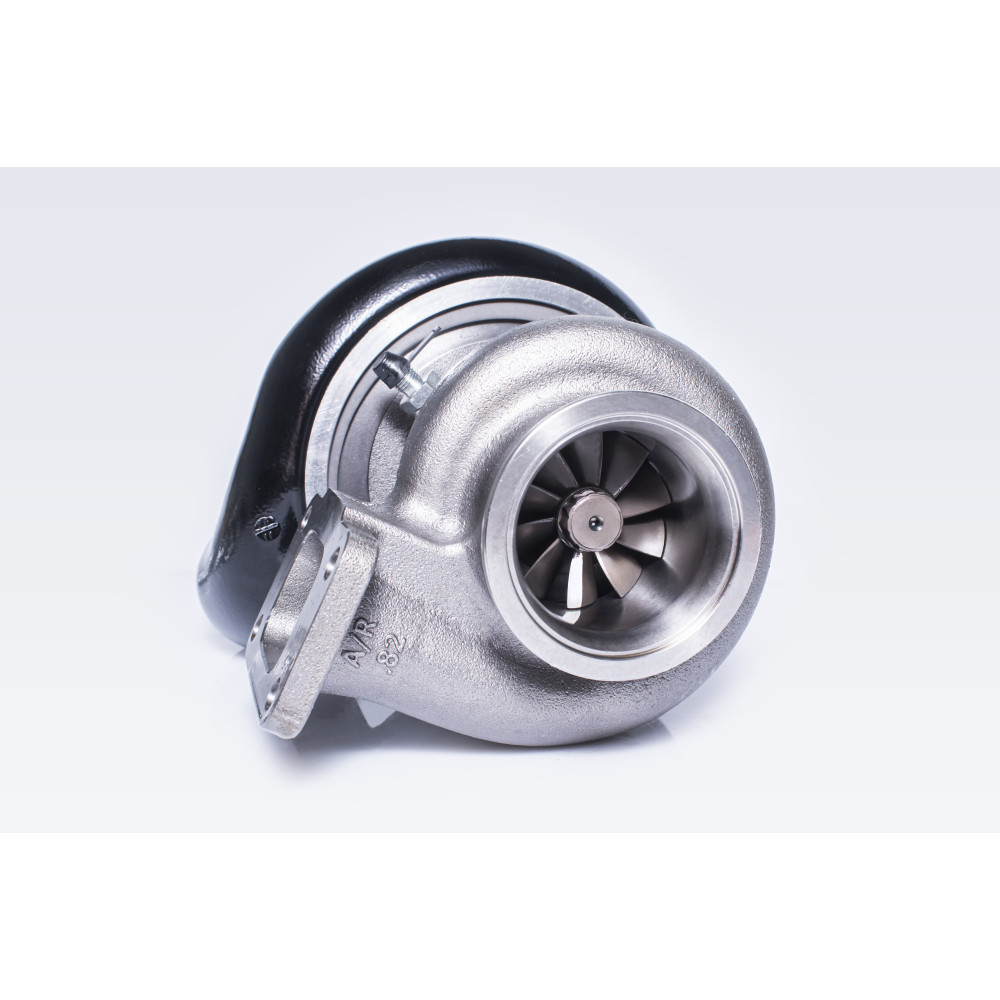

• Turbine Wheel: Custom design 76/64mm, 10 blades
• Flange: T3 single scroll
• Exhaust Connection: 3" V-band clamp

Included: V-band clamp and oil drain flange

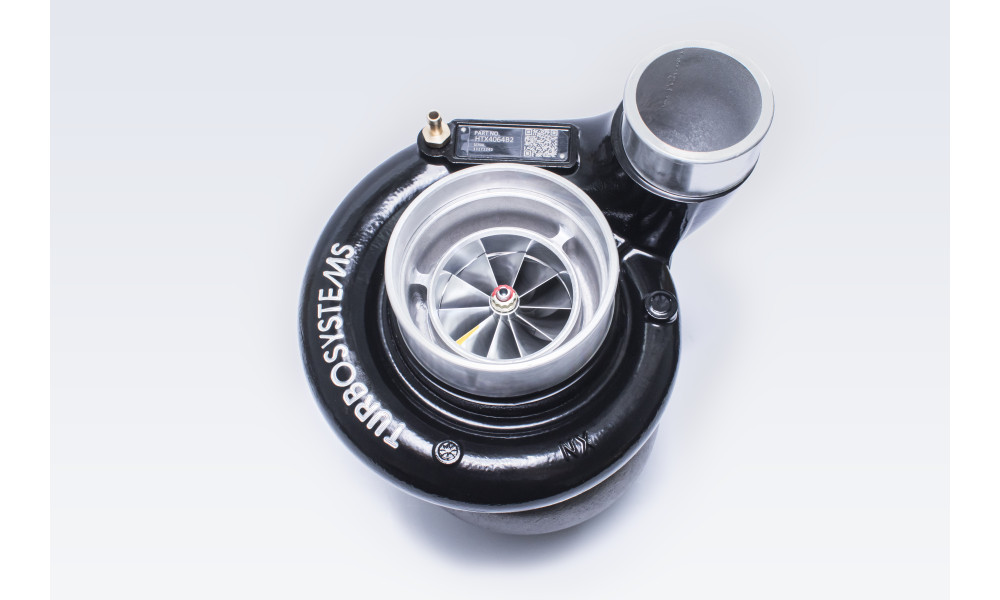

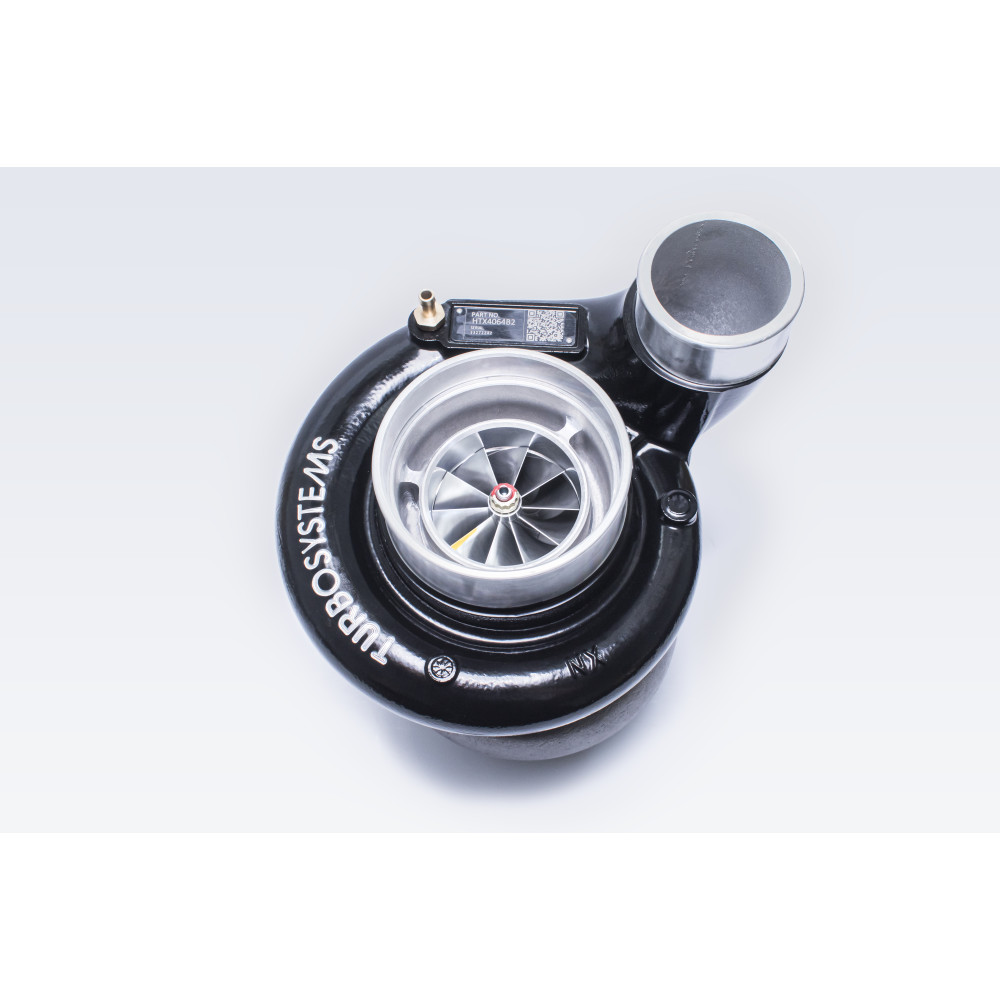

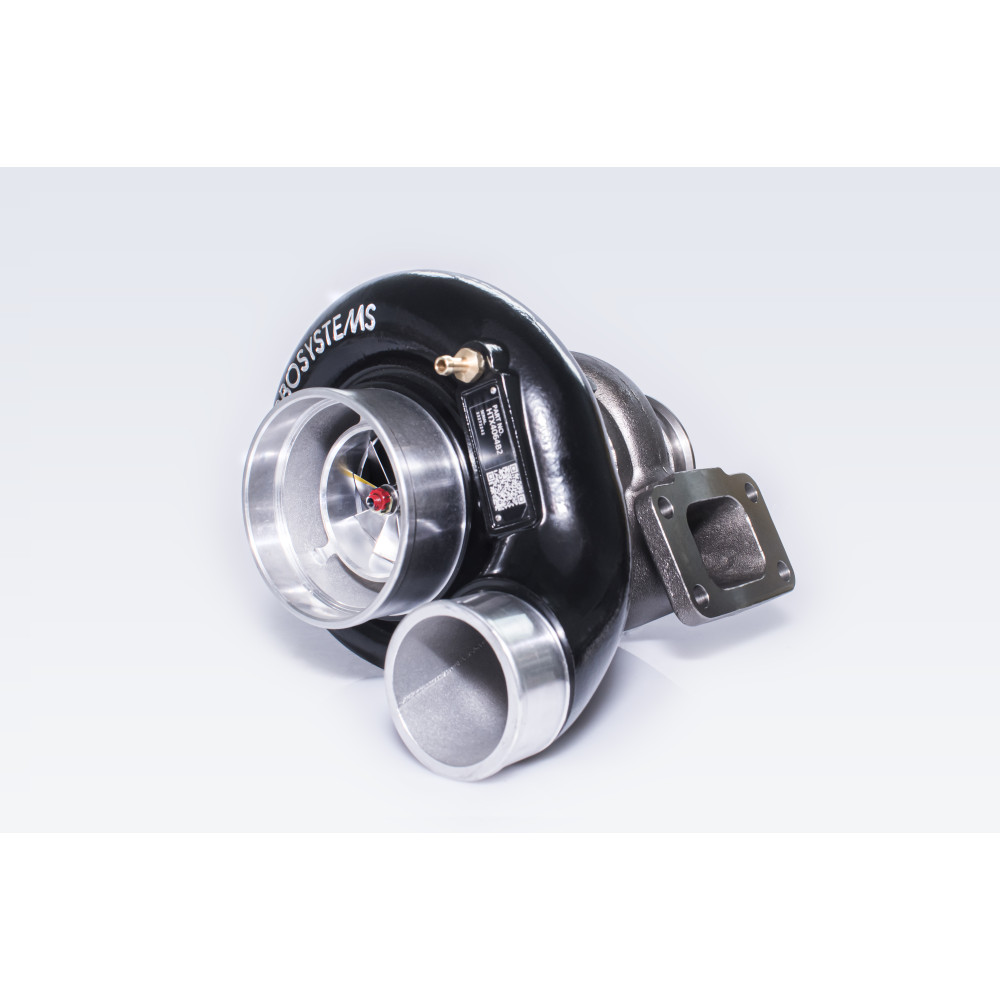

This turbocharger is engineered for enthusiasts seeking reliable 500–750 HP performance. Featuring a robust in-house machined aluminum compressor wheel and a custom turbine wheel, it delivers efficient airflow and durability. Dual ceramic ball bearings ensure fast spool and longevity, while water cooling and integrated oil restrictor provide optimal thermal and lubrication management. The T3 single scroll flange and 3" V-band exhaust connection offer versatile fitment for custom builds. Includes V-band clamp and oil drain flange for straightforward installation.
