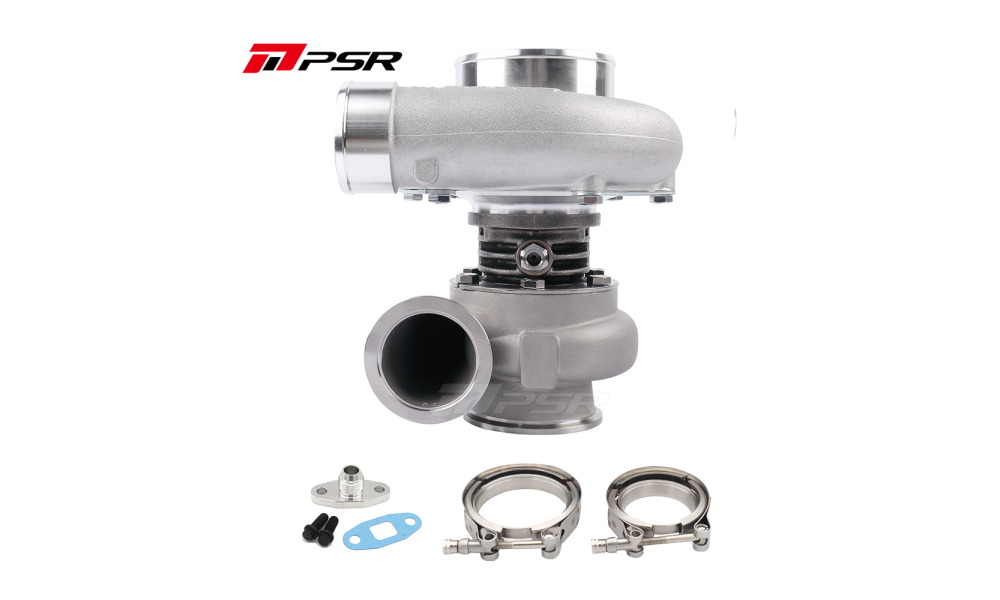

6466E Ball Bearing Turbo – Up to 900HP

The 6466E Ball Bearing Turbo is engineered for serious performance enthusiasts seeking robust power and exceptional response. Featuring a precision dual ball bearing system, this turbocharger delivers optimal spool and improved durability by minimizing shaft motion. Designed for builds targeting up to 900 horsepower, it’s ideal for high-output street and track applications.

• Ball Bearing System: Dual ball bearings for superior turbo response and longevity
• Compressor Wheel: Billet aluminum, 64.4mm inducer / 82.2mm exducer / 87.1mm overall, 7+7 blade design with Extended Tapered Tip Technology
• Turbine Wheel: Inconel 713c, 66.1mm inducer / 74.17mm exducer, 10 blade
• Max Engine Horsepower: 900 HP
• Compressor Cover: Standard, 4.0” inlet / 2.5” hose outlet
• Turbine Housing Options:
  • V-Band Inlet, V-Band Outlet 0.82 A/R Stainless Steel
  • T3 0.63 A/R (3″ V-band outlet)
  • T3 0.82 A/R (3″ V-band outlet)
  • T4 Open 0.96 A/R (3″ V-band outlet)
  • Dual V-band 0.96 A/R (3″ V-band inlet, 3″ V-band outlet)
  • Stainless Steel T4 Open 0.63 A/R (3″ V-band outlet)
  • Stainless Steel Dual V-band 0.82 A/R (2.5″ V-band inlet, 3″ V-band outlet)
• V-Band Flange Kit: Included for exhaust housing
• Oil Feed Port: 0.9mm internal, 1/8-27 NPSF fitting
• Oil Drain: T4 flange
• Oil Drain Fittings Included: 10AN_STD, 10AN_EXTENDED

This turbo is built for enthusiasts demanding fast spool, high durability, and the flexibility of multiple turbine housing options. Ideal for custom builds and high-horsepower projects.
