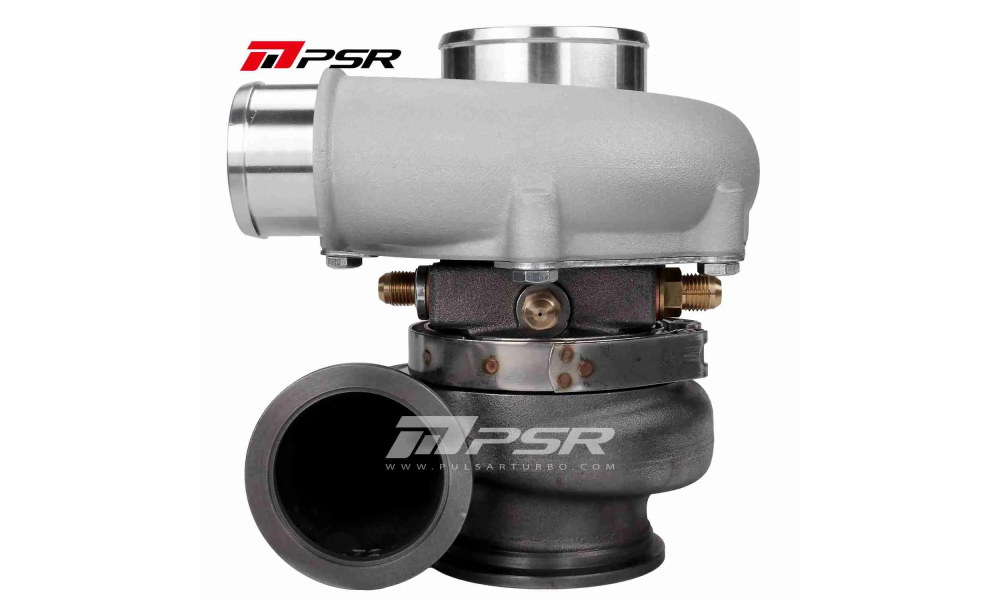

PSR 6262G Forward Rotation Dual Ball Bearing Turbocharger (900 HP Rated)

The PSR 6262G is a forward-rotation turbocharger rated for up to 900 HP. It uses a dual ceramic ball bearing center section to improve response and reduce shaft motion for better durability.

Key Features

• Dual ceramic ball bearing system for improved response and reduced shaft motion
• 9-blade G-Aero billet compressor wheel with extended tapered tip technology
• 9-blade G-Aero Inconel 713c turbine wheel
• Anti-surge ported-shroud compressor inlet with integrated speed sensor port

Housing & Rotation

• Compressor housing: T51R, 0.75 A/R, 2.5" outlet
• Turbine housing: Dual V-band, 1.01 A/R
• Rotation: Forward

Specifications

• Compressor wheel: 62×76 mm
• Turbine wheel: 68×62 mm
• Compressor inlet: 4" hose
• Compressor outlet: 2" hose or 2.5" hose
• Turbine inlet: T3 / T4 / V-band
• Turbine outlet: 3" V-band
• Water ports: 2 × M14 × 1.5
• Oil feed: 7/16-24 UNF with pre-installed -4AN restrictor
• Oil drain: Std T3

Available Turbine Housing Options

• T3 0.83 A/R
• T4 0.82 A/R
• Dual V-band 0.83 A/R
• Dual V-band 1.01 A/R
• T4 divided 0.85 A/R
• T3 1.01 A/R (Dual V-band 1.01 A/R + V-band to T3 adapter)
• T4 1.01 A/R (Dual V-band 1.01 A/R + V-band to T4 adapter)

Size & Weight

• Weight: 24 lb
• Dimensions: 11 × 11 × 13 in
