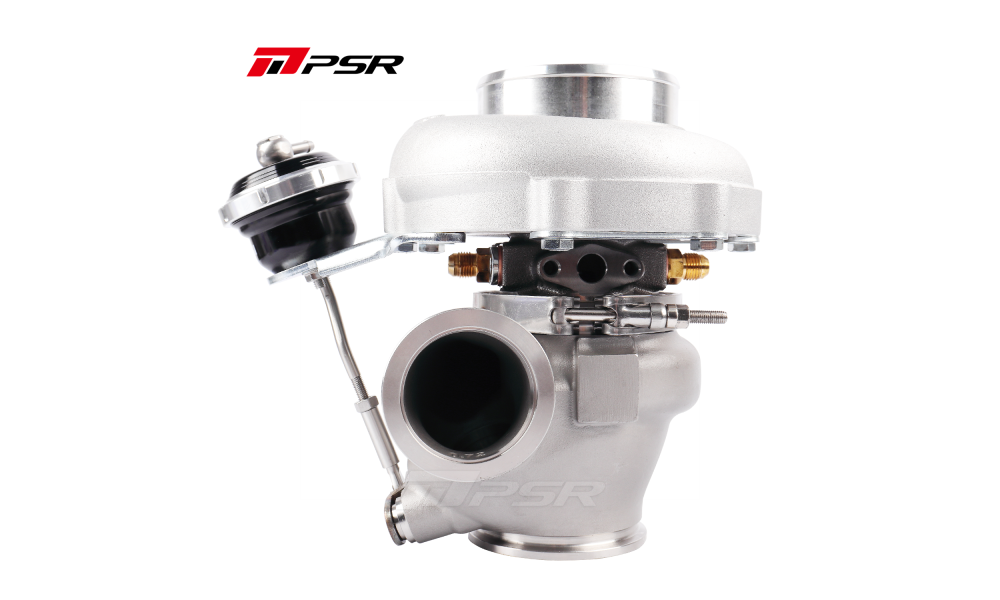

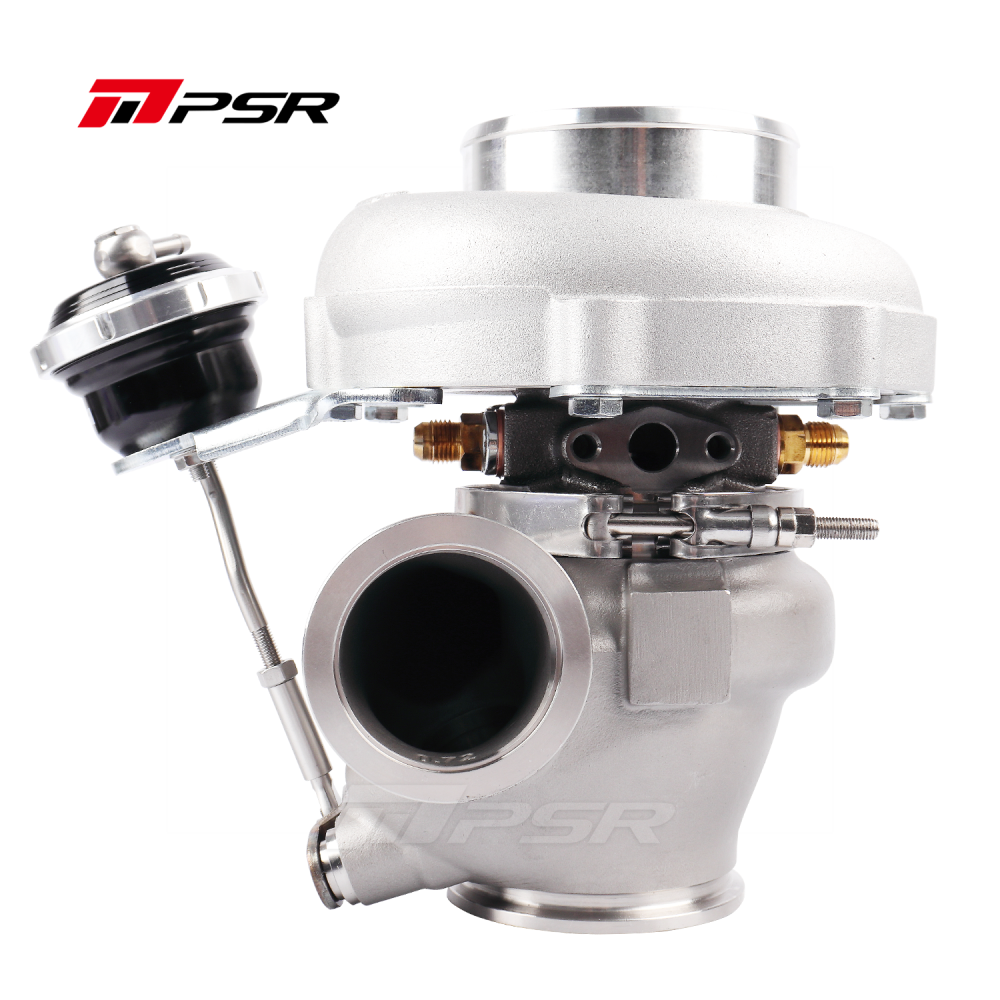

PSR Forward Rotation 5855G Dual Ball Bearing Turbocharger – HP Rating: 770

• Dual ceramic ball bearing system for optimal turbo response and improved durability by reducing shaft motion
• 9-blade G-Aero billet compressor wheel with extended tapered tip technology
• 9-blade G-Aero Inconel 713c turbine wheel
• Anti-surge ported-shroud compressor inlet with integrated speed sensor port
• Internally wastegated with billet actuator (working pressure: 12 psi)

Specifications:

• Rotation: Forward
• Compressor Housing: Standard
• Turbine Housing: .72 A/R stainless steel dual V-band, internally wastegated
• Compressor Wheel: 58mm inducer / 71mm exducer
• Turbine Wheel: 60mm exducer / 55mm inducer, slim nose and hub design
• Compressor Inlet: 4″ hose
• Compressor Outlet: 2″ hose
• Turbine Inlet: V-band
• Turbine Outlet: V-band
• Water Ports: 2 x M14 x 1.5
• Oil Inlet: 7/16-24 UNF with -4AN restrictor pre-installed
• Oil Outlet: Standard T3 oil drain flange

This turbocharger is designed for enthusiasts seeking fast spool, high durability, and precise boost control in demanding applications. The billet compressor and Inconel turbine wheels, combined with advanced ball bearing technology, deliver excellent response and reliability for builds targeting up to 770 horsepower.
