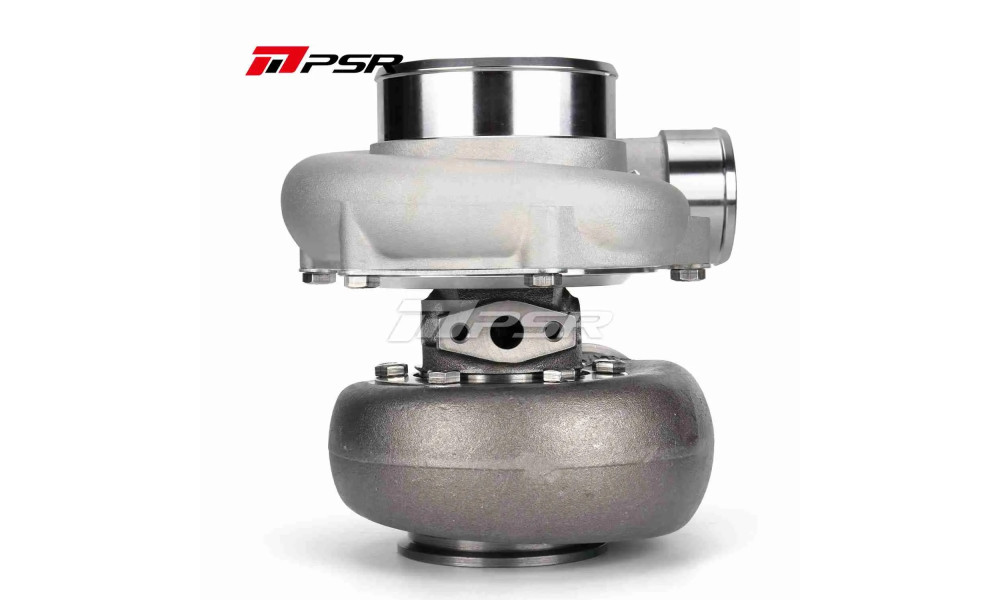

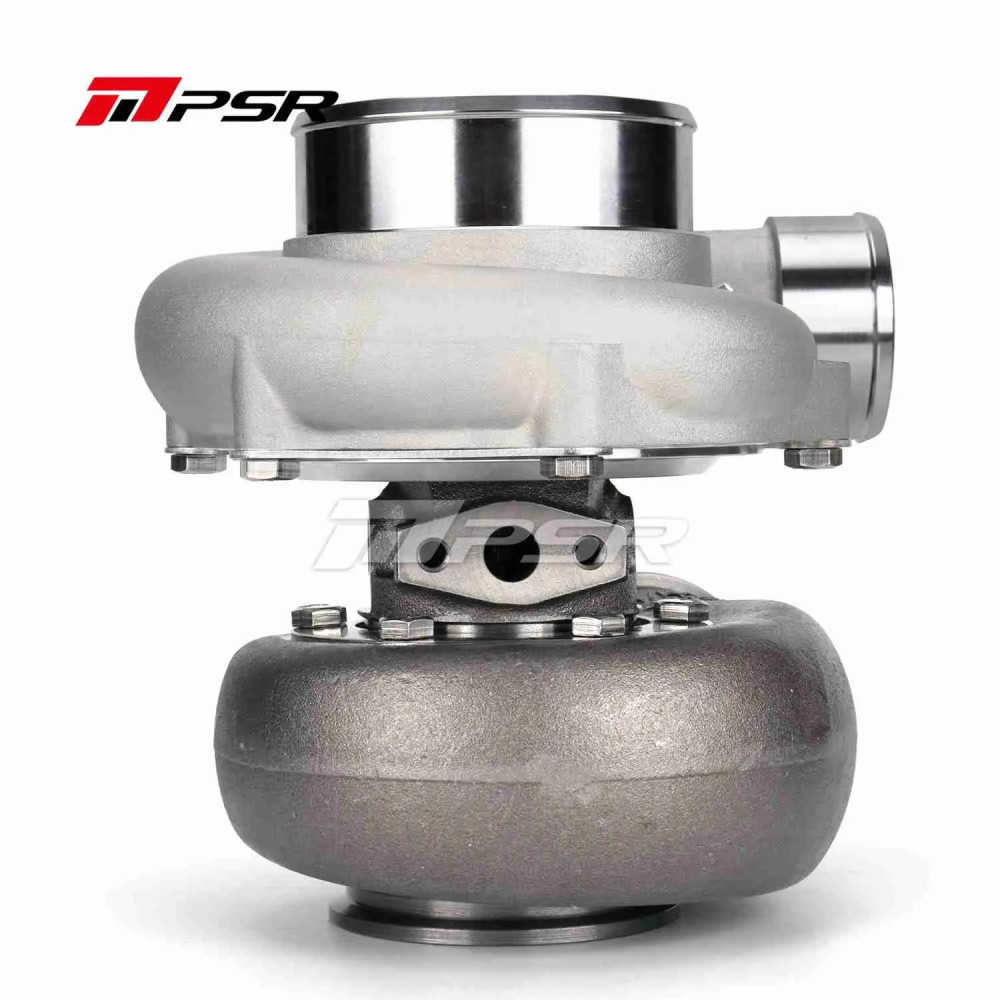

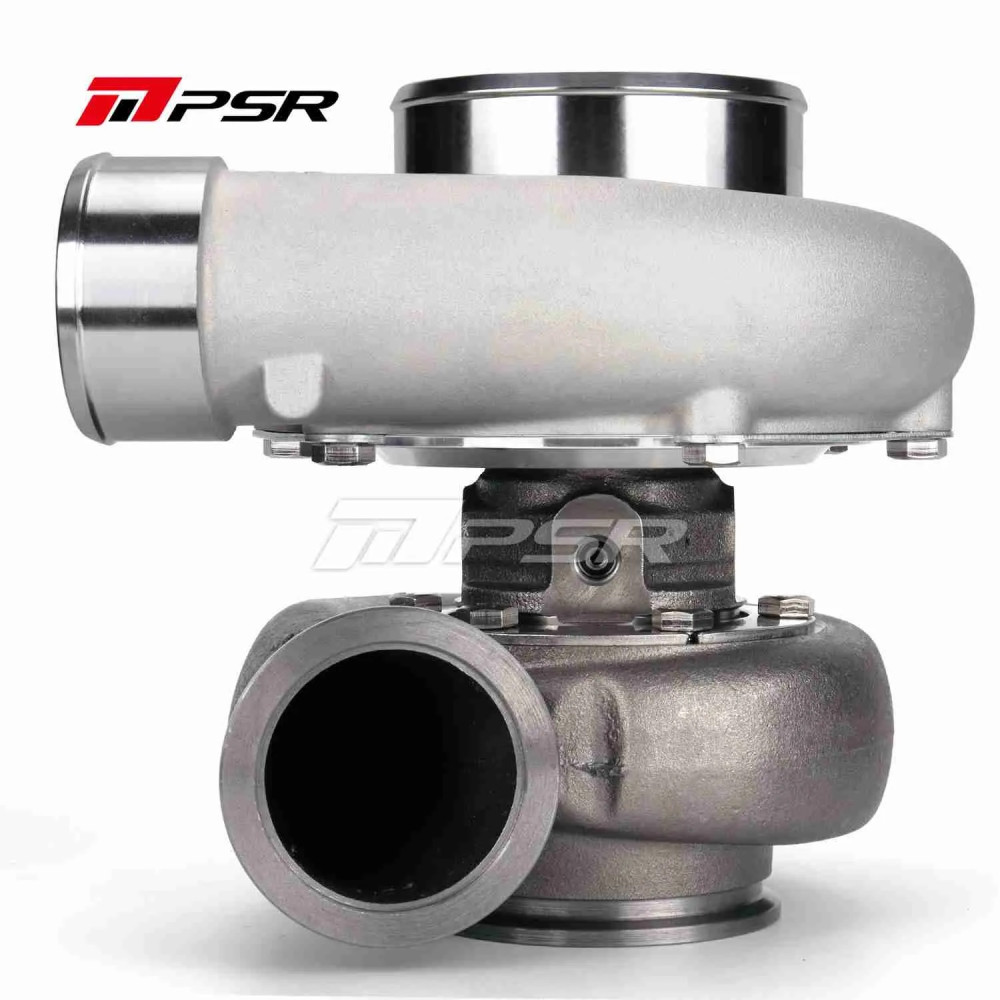

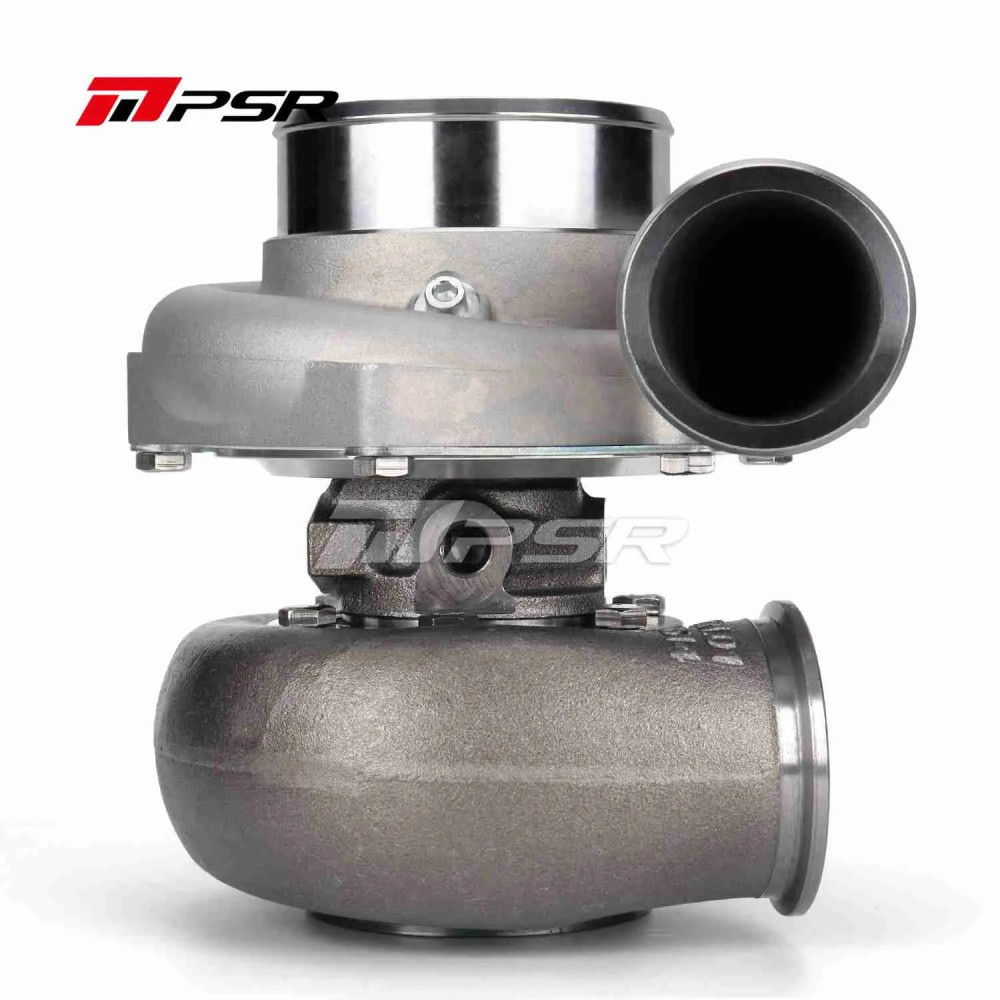

PSR3584 Gen3 Dual Ball Bearing Turbocharger

• Dual Ceramic Ball Bearing System

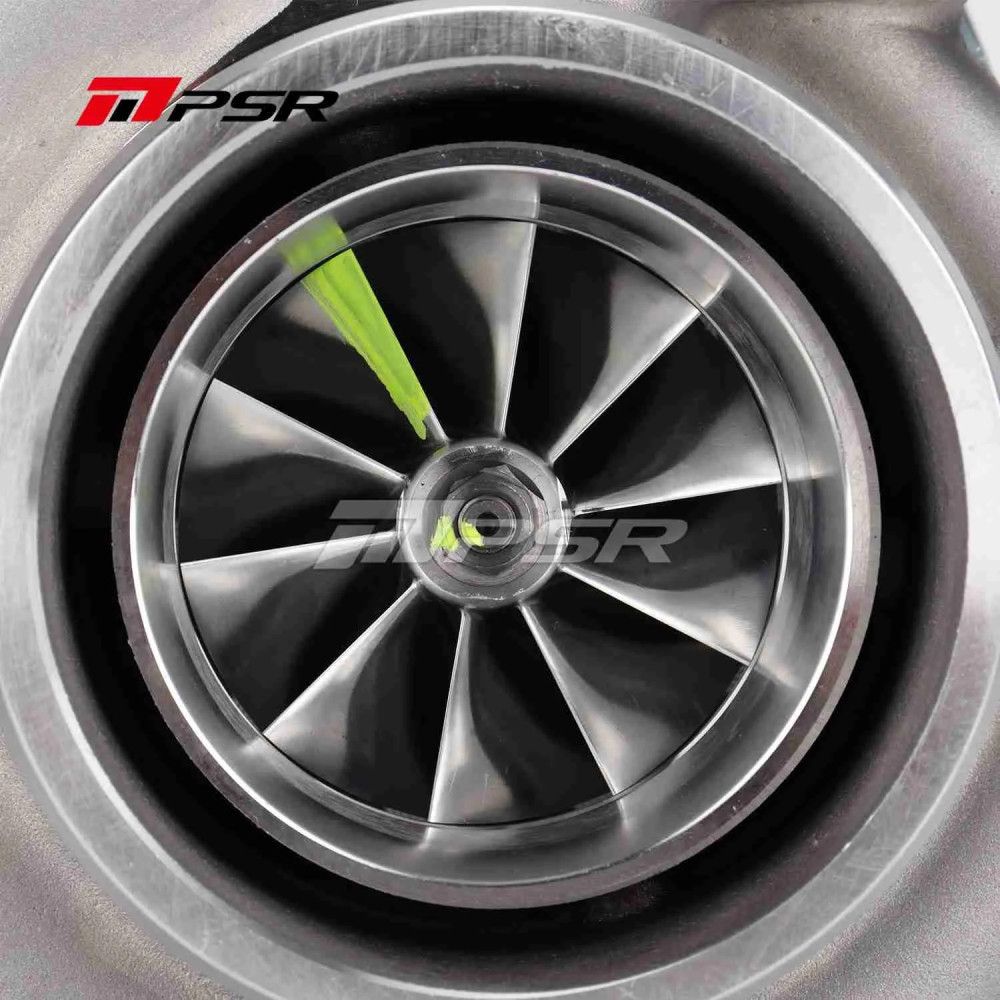

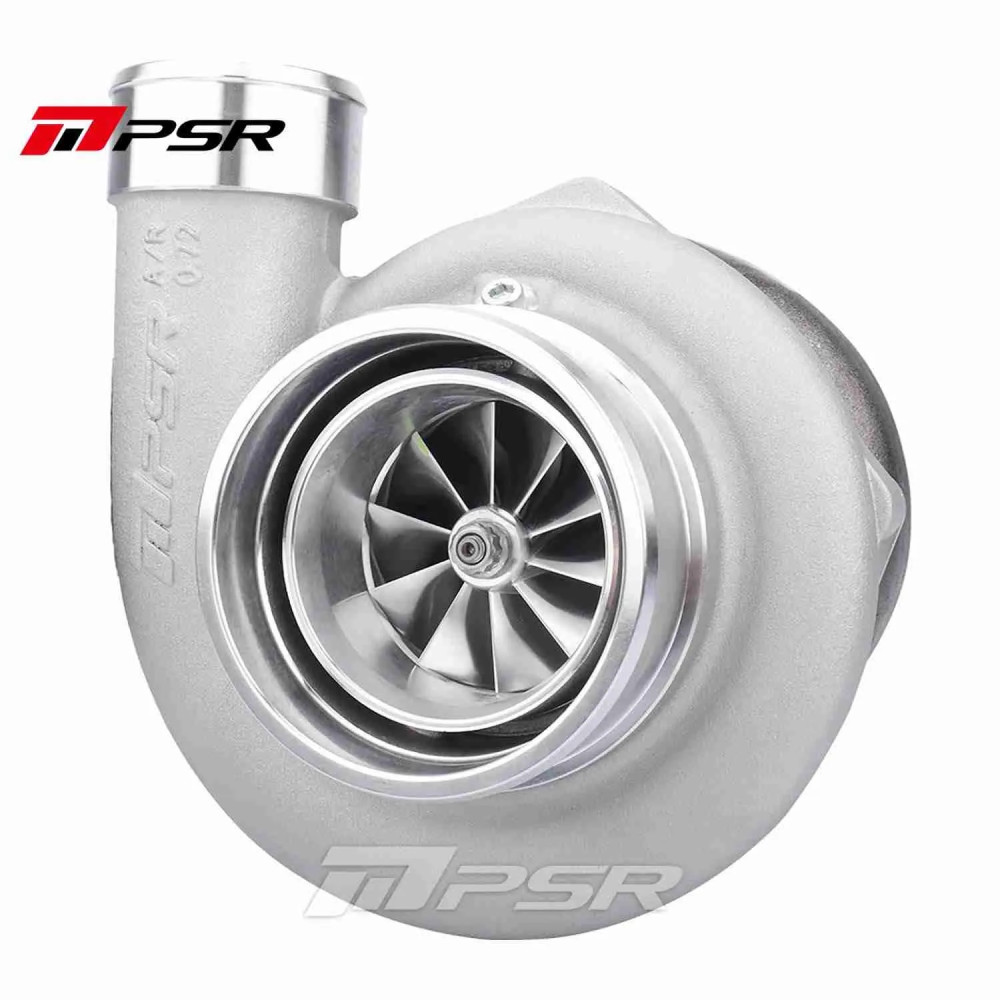

• 10 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology
• Inconel 713c 10 Blade Turbine Wheel designed for high horsepower applications

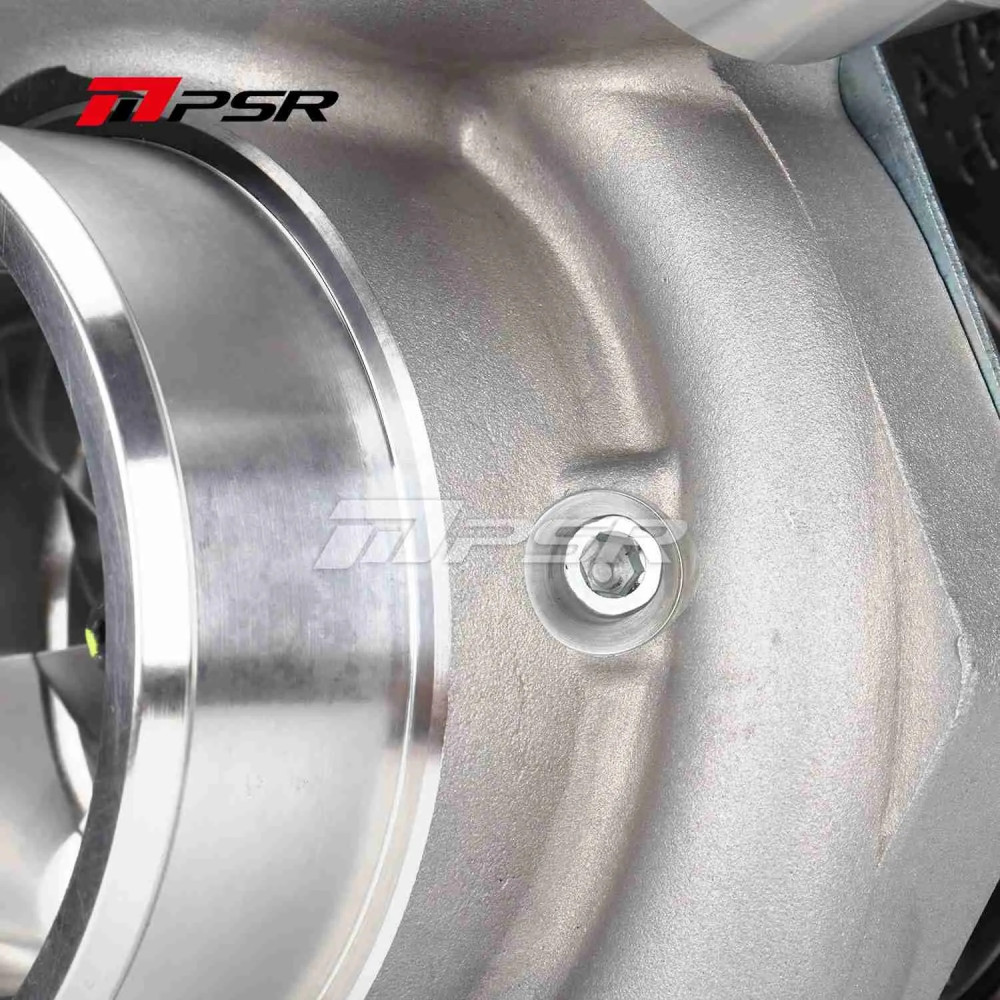

• Cover integrated with the speed sensor port
• Available turbine housing options: 0.83, 1.01 A/R dual v-band, T3 0.63, 0.82 V-Band outlet, T4 0.82 V-Band outlet
• Includes V-Band flange kit(s) for the exhaust housing
• Maximum air flow rate: ~90 lb/min, rated at 1000 FWHP
• Larger turbine wheel for enhanced flow

Specifications

• Compressor Wheel: 67 x 84 mm
• Larger Turbine Wheel: 74 x 66 mm
• Compressor Inlet: 4.0” Hose
• Compressor Outlet: 2.5” Hose
• Turbine Inlet: T3, T4, or 2.5″ V-Band
• Turbine Outlet: 3″ V-Band (3.55″ OD)
• Oil Feed: -4 AN connected to the oil restrictor
• Oil Drain: Standard T3 Flange
• Water In/Outlet: M14 x 1.5
• Water cooling is highly recommended for improved durability

The PSR3584 Gen3 Turbo features a larger turbine wheel for higher flow and has been tested to achieve nearly 50 additional horsepower.
