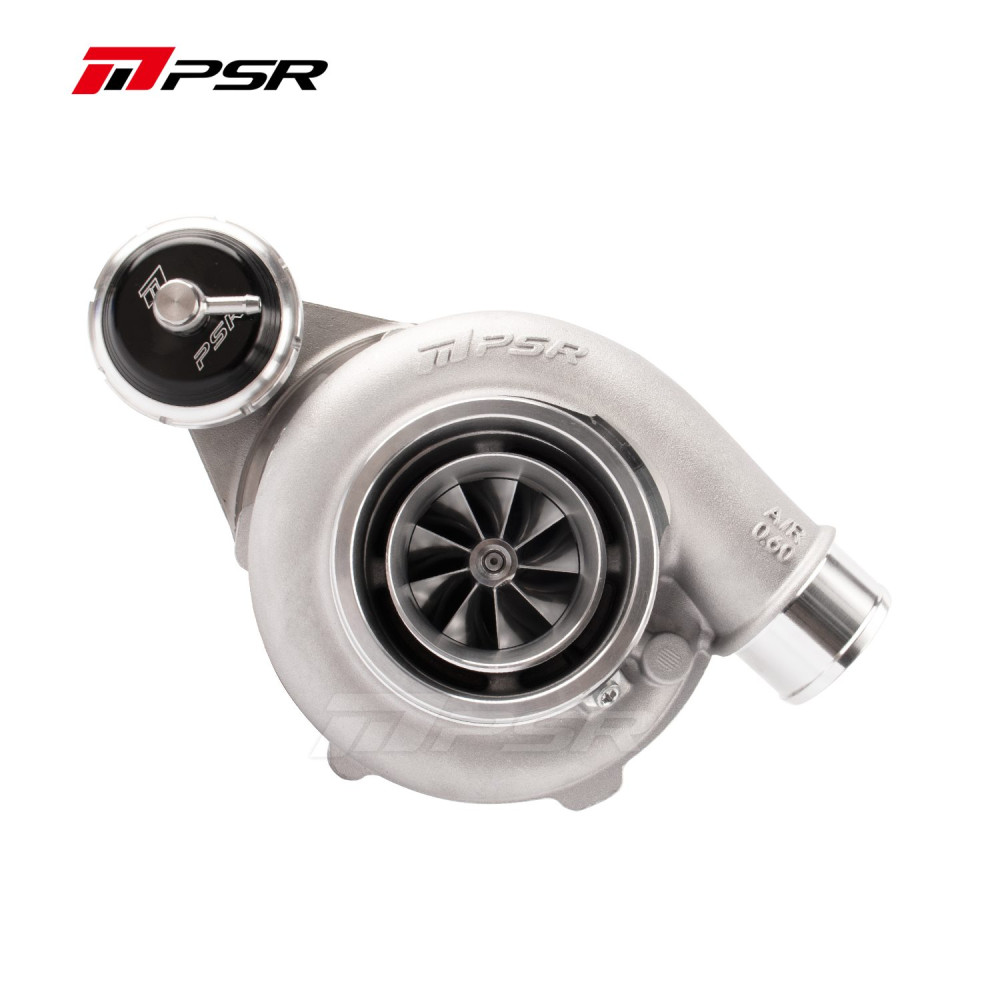

PSR3076 Gen2 Dual Ball Bearing Turbocharger

• Dual Ceramic Ball Bearing System for improved spool and durability
• 9-Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology
• Inconel 713c 10-Blade Turbine Wheel for high-temperature reliability
• Gen2 Compressor Cover with integrated speed sensor port
• Available Turbine Housings:
  • 0.83, 1.01 A/R dual v-band turbine housing
  • T3 0.63, 0.82 A/R with V-Band outlet
  • 0.82, 1.03 A/R dual v-band stainless steel turbine housing
• V-Band flange kit(s) for exhaust housing included
• Max airflow: ~65 lb/min, rated for approximately 750 flywheel horsepower

Compressor Housing: Standard

Turbine Housing: Dual V-Band 0.72 A/R with Internal Wastegate (IWG)

Actuator: PSR logoed billet actuator, 7.4 psi

• Compressor Wheel: 58mm inducer / 76mm exducer
• Turbine Wheel: 60mm exducer / 55mm inducer
• Compressor Inlet: 4″ hose connection
• Compressor Outlet: 2″ hose connection
• Turbine Inlet: T3, T4, or 2.5″ V-Band
• Turbine Outlet: 3″ V-Band (3.55″ OD)
• Oil Feed: -4 AN fitting with oil restrictor
• Oil Drain: Standard T3 flange
• Water Inlet/Outlet: M14 x 1.5

Water cooling is highly recommended for increased durability.
