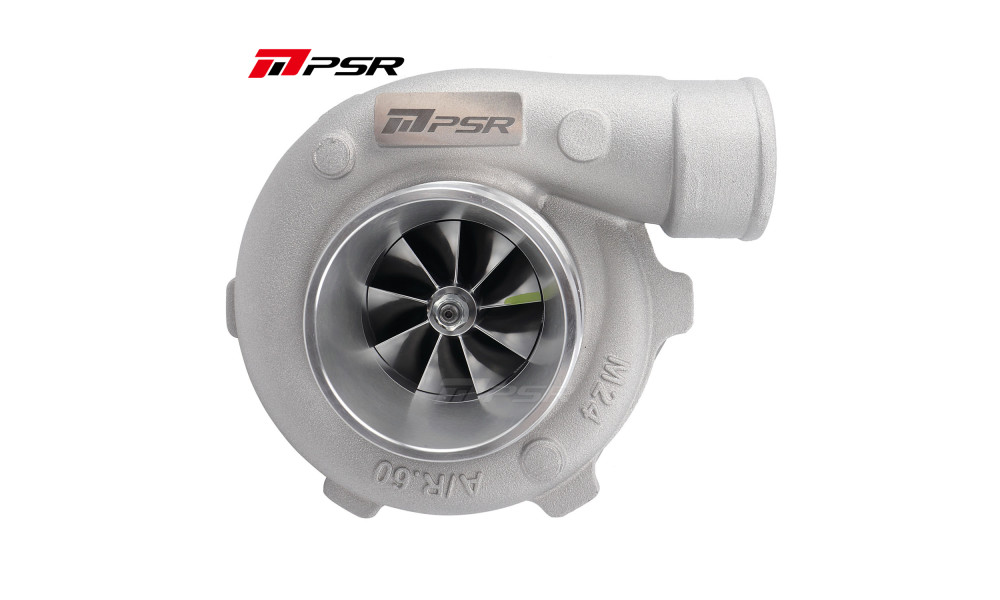

PSR3076 Gen2 Compact Dual Ball Bearing Turbocharger

• Dual ceramic ball bearing system for improved spool and durability
• 9-blade Gen2 billet compressor wheel with extended tapered tip technology for enhanced airflow
• Inconel 713c 10-blade turbine wheel for high temperature resistance
• Multiple turbine housing options available
• V-band flange kit(s) for the exhaust housing included
• Maximum airflow rate: approximately 65 lb/min, rated at 750 flywheel horsepower (FWHP)

Compressor Housing: Standard

Turbine Housing: Dual V-Band 0.72 A/R with internal wastegate (IWG)

Actuator: Billet 15psi, PSR logoed

• Compressor wheel: 58mm inducer / 76mm exducer
• Turbine wheel: 60mm exducer / 55mm inducer
• Compressor inlet: 3″ hose
• Compressor outlet: 2″ hose
• Turbine inlet: T3, T4, or 2.5” V-band
• Turbine outlet: 3” V-band (3.55″ OD)
• Oil feed: -4 AN, connects to oil restrictor
• Oil drain: Standard T3 flange
• Water in/outlet: M14x1.5

Water cooling is highly recommended for optimal durability.
