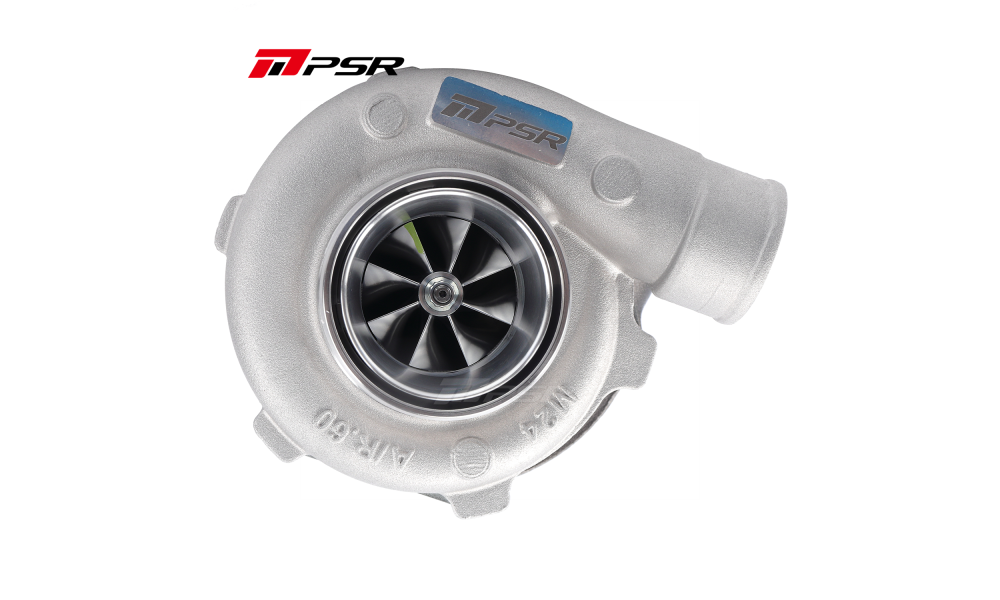

PSR3071 Gen2 Compact Dual Ball Bearing Turbocharger

• Compact compressor cover with a 3” inlet and 2” outlet
• Dual Ceramic Ball Bearing System for enhanced performance
• 8 Blade Gen2 Billet Compressor Wheel featuring Extended Tapered Tip Technology
• Inconel 713c 10 Blade Turbine Wheel for high-temperature resistance
• Multiple options available for turbine housing
• Includes V-Band Flange kit(s) for the exhaust housing
• Maximum Air Flow rate: ~60 lb/min, rated for 650 FWHP

Compressor Housing: Standard

Turbine Housing: Dual V-Band 0.72 A/R with Internal Wastegate (IWG)

Actuator: Billet 7.4 psi with PSR logo

• Compressor Wheel dimensions: 54*71mm
• Turbine Wheel dimensions: 60*55mm
• Compressor Inlet: 3″ Hose
• Compressor Outlet: 2″ Hose
• Turbine Inlet options: T3, T4, or 2.5″ V-Band
• Turbine Outlet: 3″ V-Band (3.55″ OD)
• Oil Feed: -4 AN connection to the Oil Restrictor
• Oil Drain: Standard T3 Flange
• Water In/Outlet: M14*1.5

Water cooling is highly recommended for improved durability.
