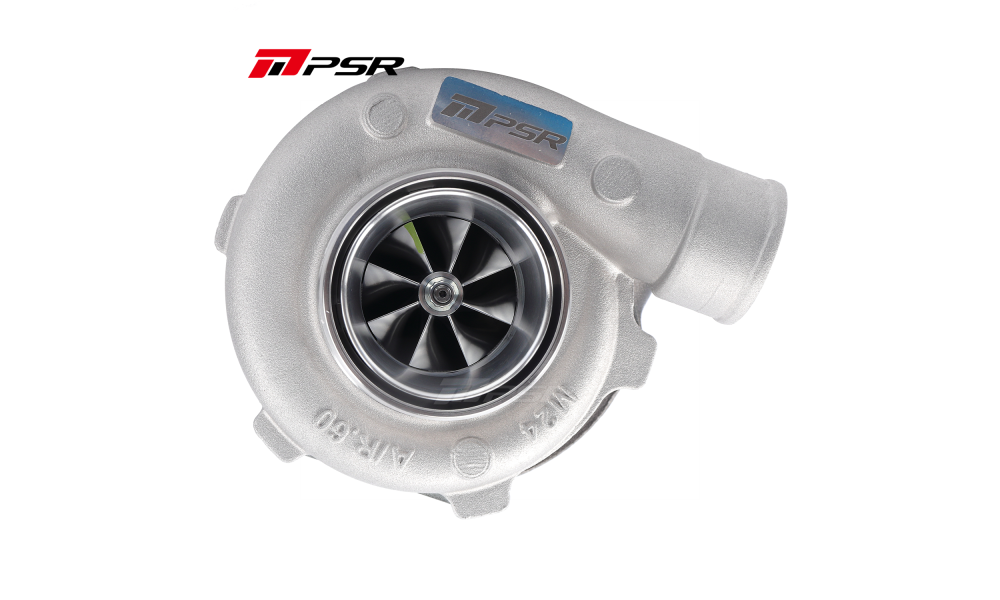

PSR3071 Gen2 Compact Dual Ball Bearing Turbocharger

• Compact compressor cover with 3” hose inlet and 2” hose outlet
• Dual ceramic ball bearing system for improved spool and durability
• 8-blade Gen2 billet compressor wheel featuring extended tapered tip technology (54mm inducer, 71mm exducer)
• Inconel 713c 10-blade turbine wheel (60mm exducer, 55mm inducer)
• Multiple turbine housing options available
• Includes V-band flange kit(s) for the exhaust housing
• Max airflow rate: approximately 60 lb/min, rated for up to 650 flywheel horsepower (FWHP)
• Compressor housing: Standard
• Turbine housing: Dual V-band 0.72 A/R with internal wastegate (IWG)
• Actuator: Billet 15psi with PSR logo
• Turbine inlet options: T3, T4, or 2.5″ V-band
• Turbine outlet: 3″ V-band (3.55″ OD)
• Oil feed: -4 AN connection to oil restrictor
• Oil drain: Standard T3 flange
• Water in/out: M14x1.5 fittings

For optimal durability, water cooling is highly recommended.
