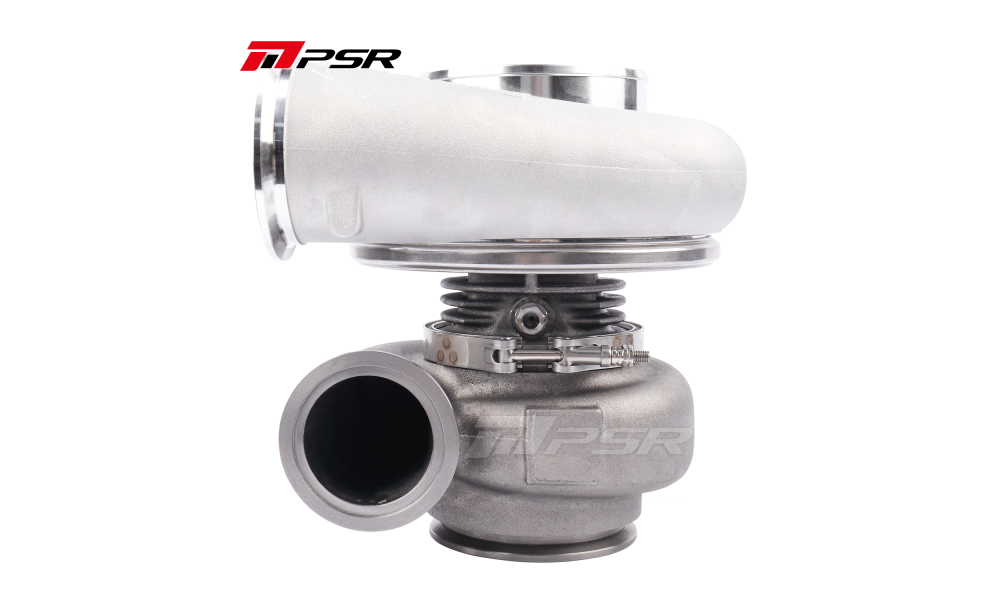

7685E Ball Bearing Turbo - Up to 1500HP

• Ball bearing system enhances turbo response and durability by minimizing shaft motion.
• Billet compressor wheel featuring extended tapered tip technology.
• Inconel 713c turbine wheel with 11 blades.
• Available turbine housing options: T4 divided and V-Band in/out.
• Includes V-band flange kit for the exhaust housing.
• Maximum engine horsepower: 1500.

Compressor Cover: Standard

Turbine Housing: Dual V-Band 1.28 A/R

• Billet compressor wheel dimensions: 76 x 102.4mm, 7+7 blades.
• Turbine wheel dimensions: 85 x 89.5mm, 11 blades.
• Bearing system: Dual ball bearing for optimal turbo response and durability.
• Compressor cover specifications: 5.0” hose inlet and 3″ V-band outlet.
• Turbine housing options: T4 divided 1.28 A/R (4″ V-band outlet); Dual V-Band 1.15 A/R (3″ V-band inlet, 4″ V-band outlet); Dual V-Band 1.28 A/R (3″ V-band inlet, 4″ V-band outlet).
• Internal oil feed port size: 0.9mm (no oil restrictor needed).
• Oil feed fitting: 1/8-27 NPSF.
• Oil drain: -12AN.
