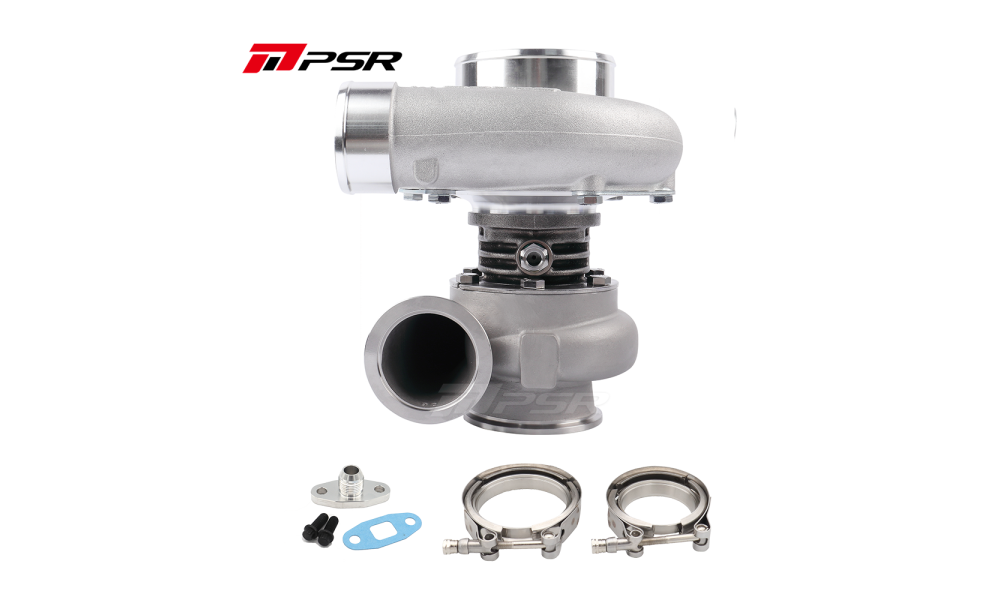

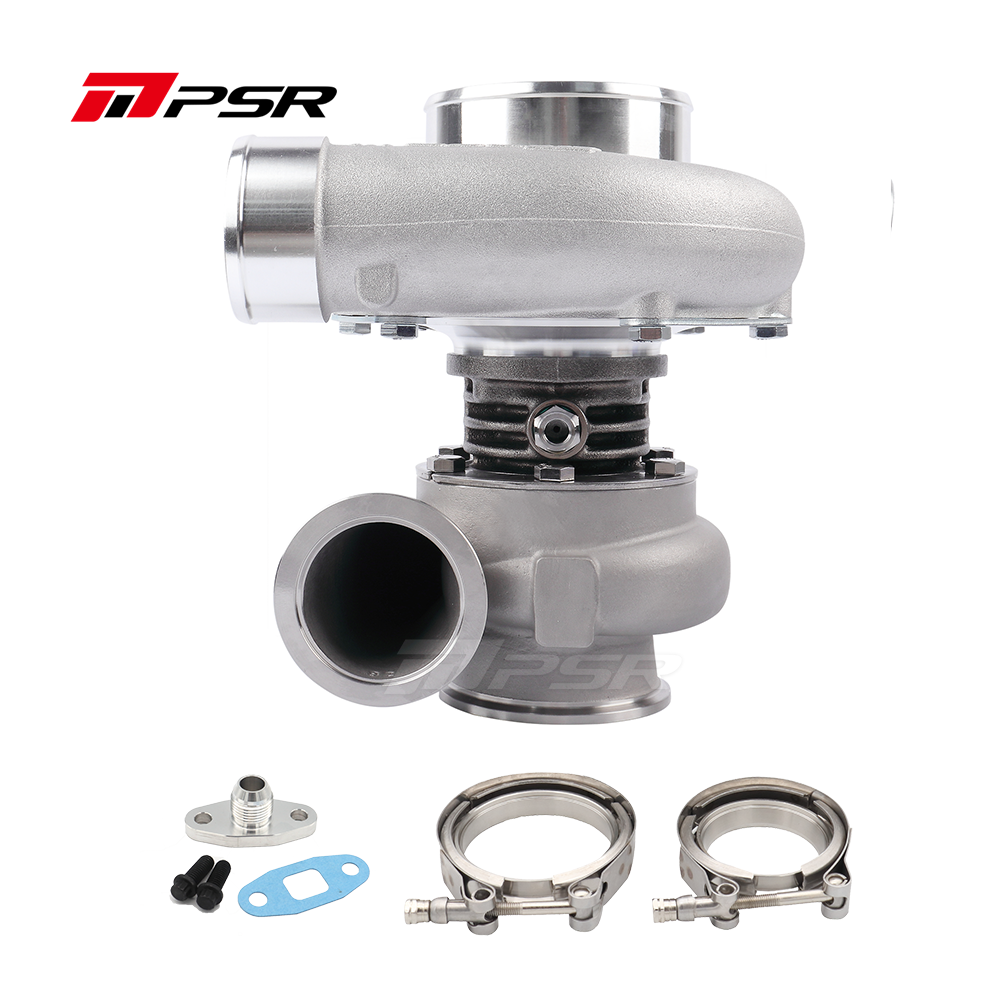

6262E Ball Bearing Supercore - Up to 705HP

• Ball bearing system enhances turbo response and durability by minimizing shaft motion.
• Billet Compressor Wheel features a slim nose and hub for reduced weight, faster spool-up, and extended tapered tip technology.
• Inconel 713c 10 Blade Turbine Wheel.
• Maximum Engine Horsepower: 705.

Compressor Cover: Standard

Turbine Housing: V-Band Inlet & Outlet 0.82 A/R Stainless Steel

• Billet Compressor Wheel: 62mm / 82.2mm, 7+7 Blade.
• Turbine Wheel: 71 / 62mm, 10 Blade.
• Bearing System: Dual Ball Bearing for optimal turbo response and enhanced durability.
• Compressor Cover Inlet/Outlet: 4.0” / 2.5” Hose.
• Turbine Housing Options: T3 0.63A/R (3″ V-band Outlet); Stainless Steel Dual V-band 0.82A/R (2.5″ V-band Inlet, 3″ V-band Outlet).
• Internal oil feed port: 0.9mm.
• Oil feed fitting: 1/8-27 NPSF.
• Oil drain: T4 flange.

Oil Drain Fitting Options:

• 10AN_STD
• 10AN_EXTENDED
