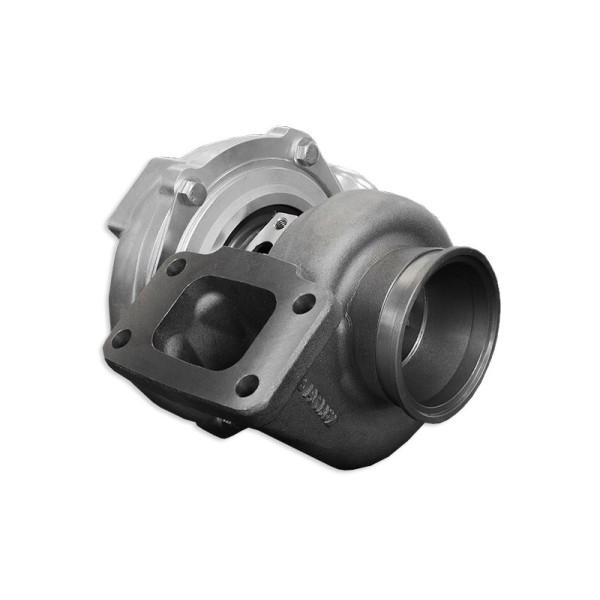

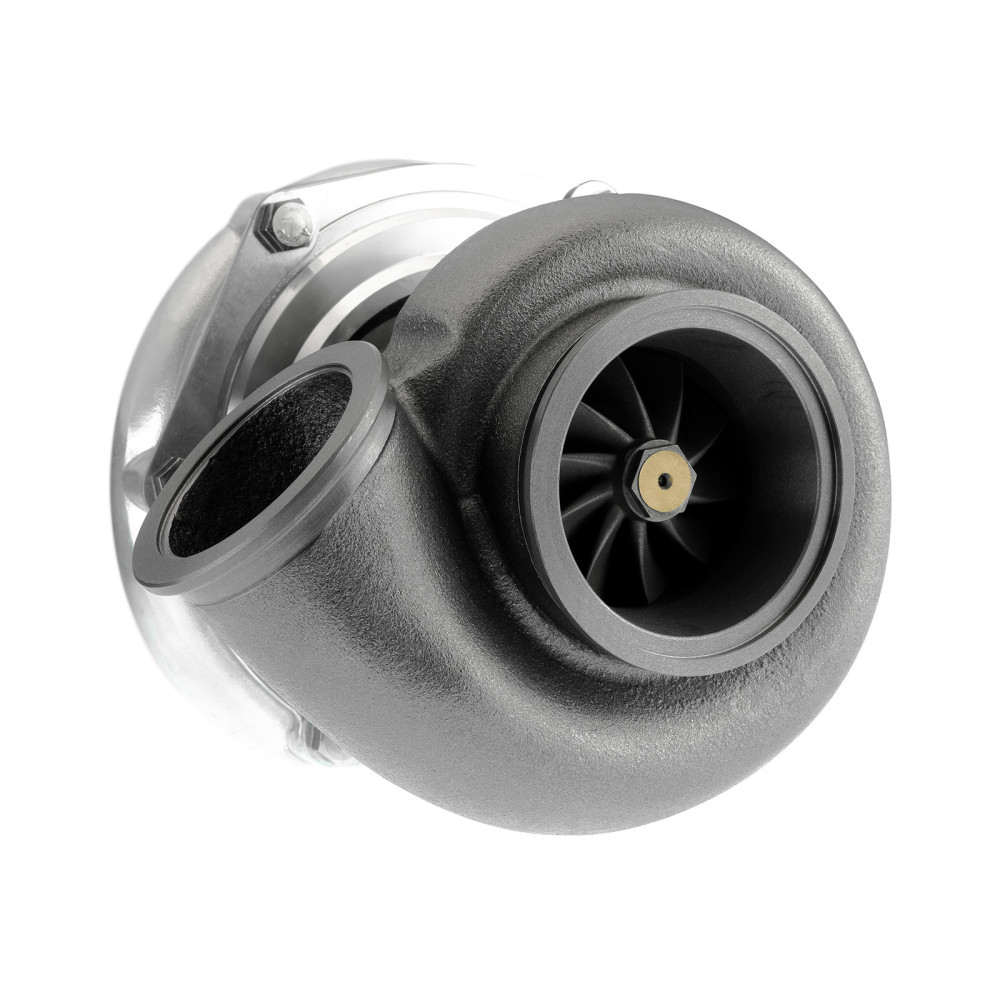

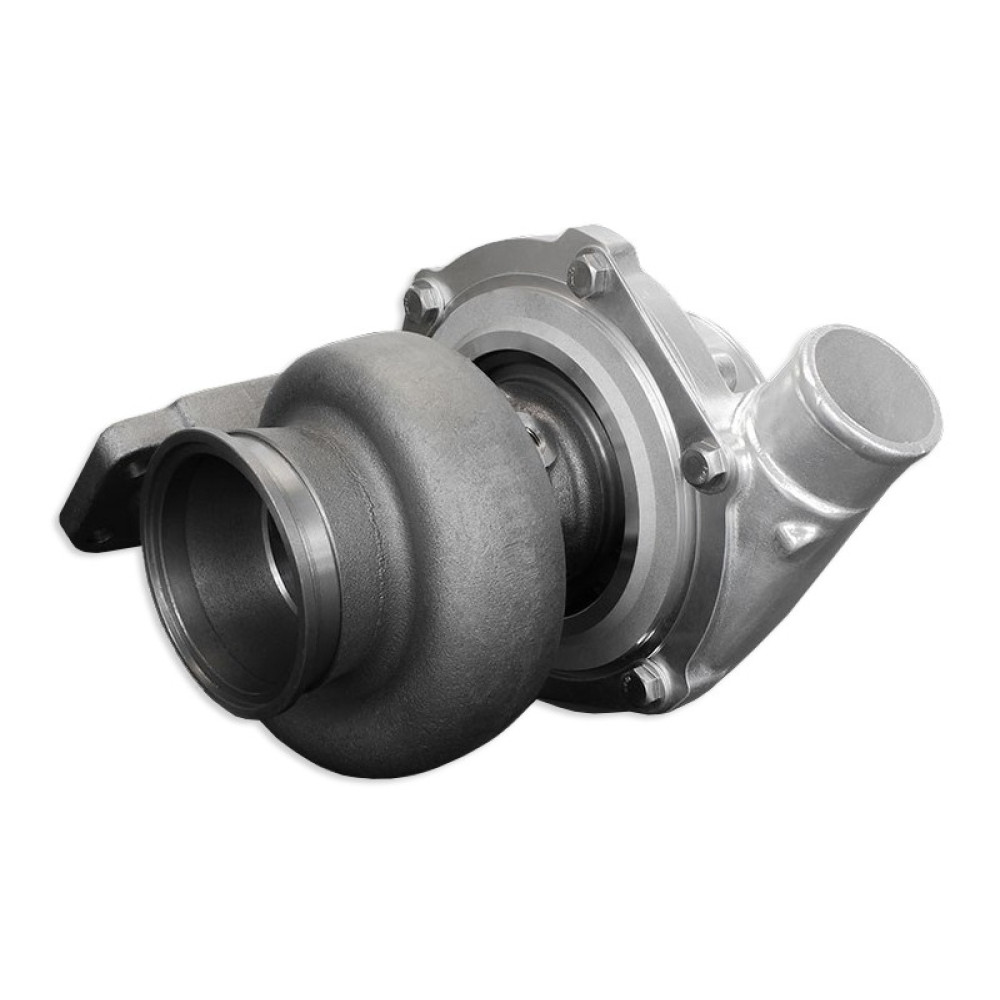

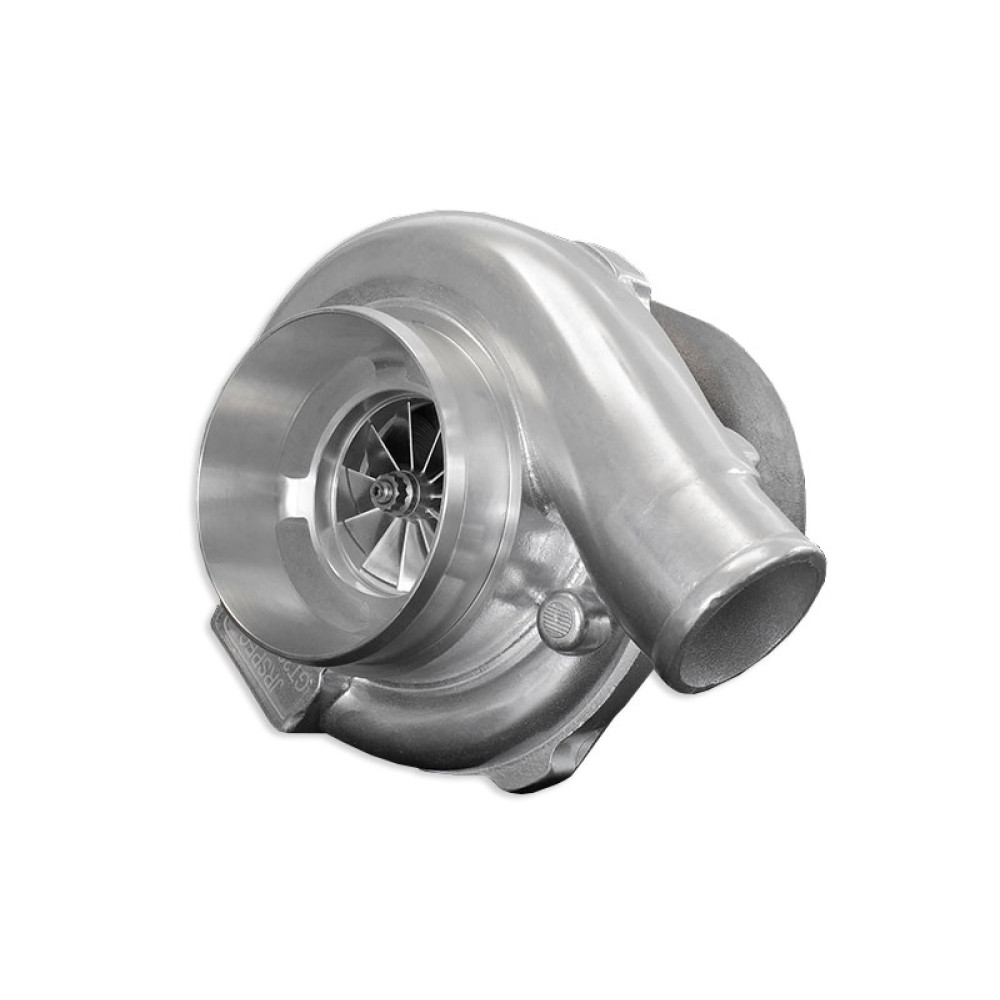

The JRspec GTX3071R+ JB (GTX3077R) turbocharger is engineered with high-quality NSK dual ball bearings, made in Japan, and features a 4mm enlarged forged CNC billet wheel. This design allows for significantly larger engine capacities while maintaining a spool similar to the standard version. Assembled in the EU with precision parts crafted from top-grade materials, it undergoes five stages of rotor balancing, reaching up to 250,000 rpm, ensuring reliable performance even under extreme conditions.

Tested in motorsport, this turbocharger is used in high-performance applications such as drag racing and drifting, delivering impressive horsepower. The dual ball bearings enhance the turbine spool, providing a more responsive engine with high torque at lower rpm, ideal for drift and street applications where engine flexibility is crucial.

Specifications:

• Power Capacity: Suitable up to 580 HP
• Engine Application: 1.8-3.0L
• Bearings: Dual ball bearings (NSK made in Japan)

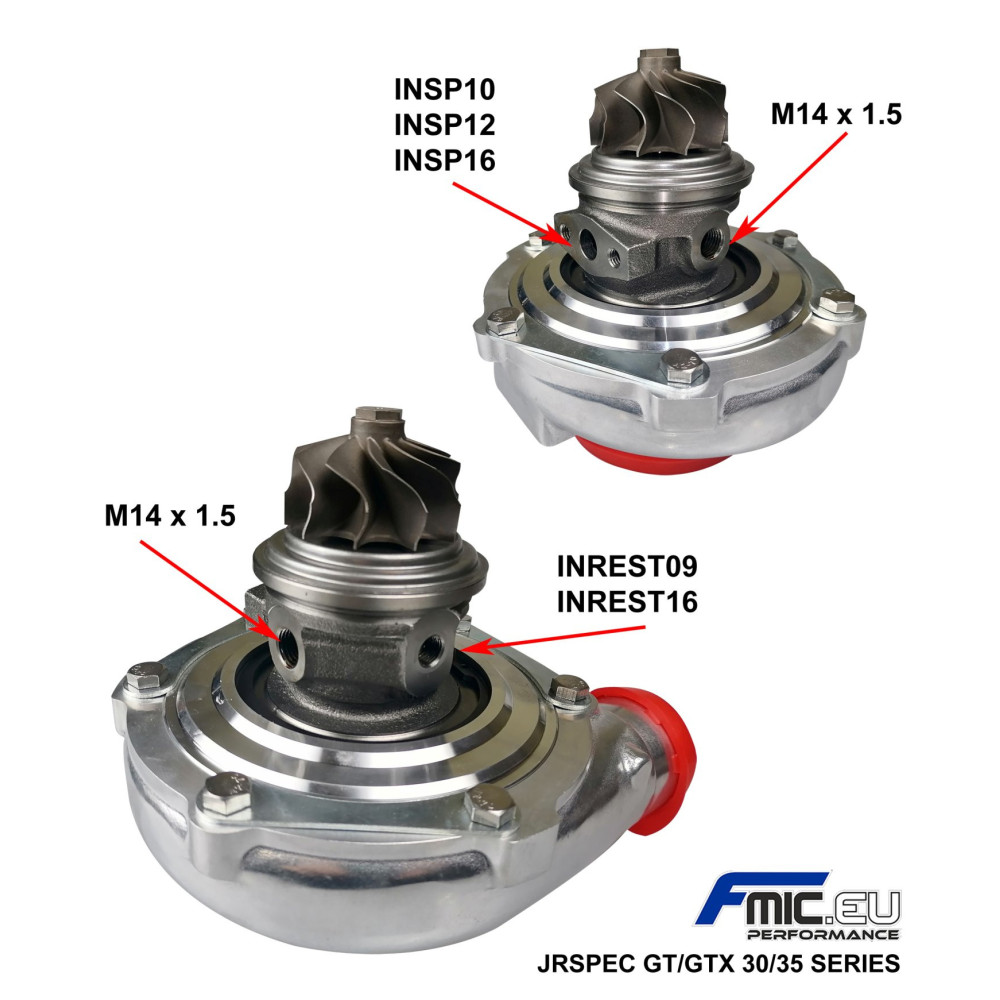

• Oil Restrictor: Recommended 0.9mm at 5B
• Suction Turbine Wheel: Inducer 52mm, Exducer 77mm
• Compressor Trim: 60mm
• Manifold Flange and AR: T3 1.06

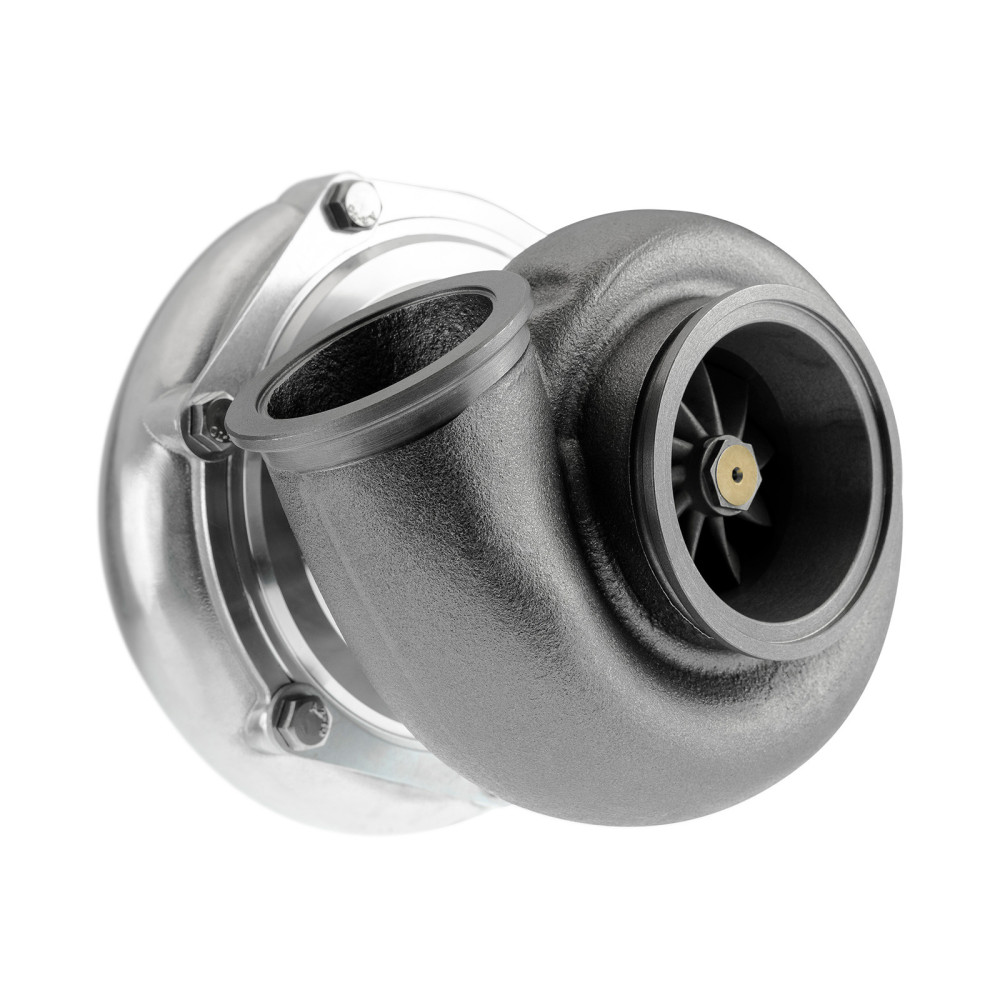

• Turbo Housing: Cast iron, 4-bolt
