High-performance fuel pump - designed with motorsport in mind.

Performance, reliability, and versatility are the key features of this pump. Made from the finest materials with a precision pumping element, it boosts the performance of your vehicle with a high-flow fuel pump that works on both naturally aspirated and supercharged engines. Its modern design and implemented technical solutions ensure maximum performance of the fuel system under extreme operating conditions.

High performance: The pump supports naturally aspirated and supercharged engines, providing 360 l/h at 2.5 bar, 320 l/h at 4.8 bar, and 250 l/h at 7.8 bar, making it ideal for tuning car applications.

Versatility: Adapted to work with fuels (E85/E90) and all types of petrol. Using 100% ethanol may shorten the life of the pump. It can be installed outside or in swirl pot tanks and is fitted with standard type 044 housing and -AN10 and 9/16"-18 fittings for easy installation and quick replacement on a wide range of vehicles.

Durability and reliability: Constructed from heat-resistant and load-resistant materials, this pump ensures long-lasting operation under extreme conditions. It is resistant to vibration and intense loads, making it a reliable choice in motorsport.

Use: Ideal for drifting, rallying, racing, and tuning, where reliability and fuel system performance are crucial. Its high flow rate and high load resistance help maintain stable vehicle performance in all conditions.

Technical specifications:

• Capacity: 360 LPH
• Pump length: 157mm
• Pump diameter: 60mm
• Input: AN10 ORB
• Output: 9/16‘’-18
• Check valve: 9/16‘’ -18 - AN8

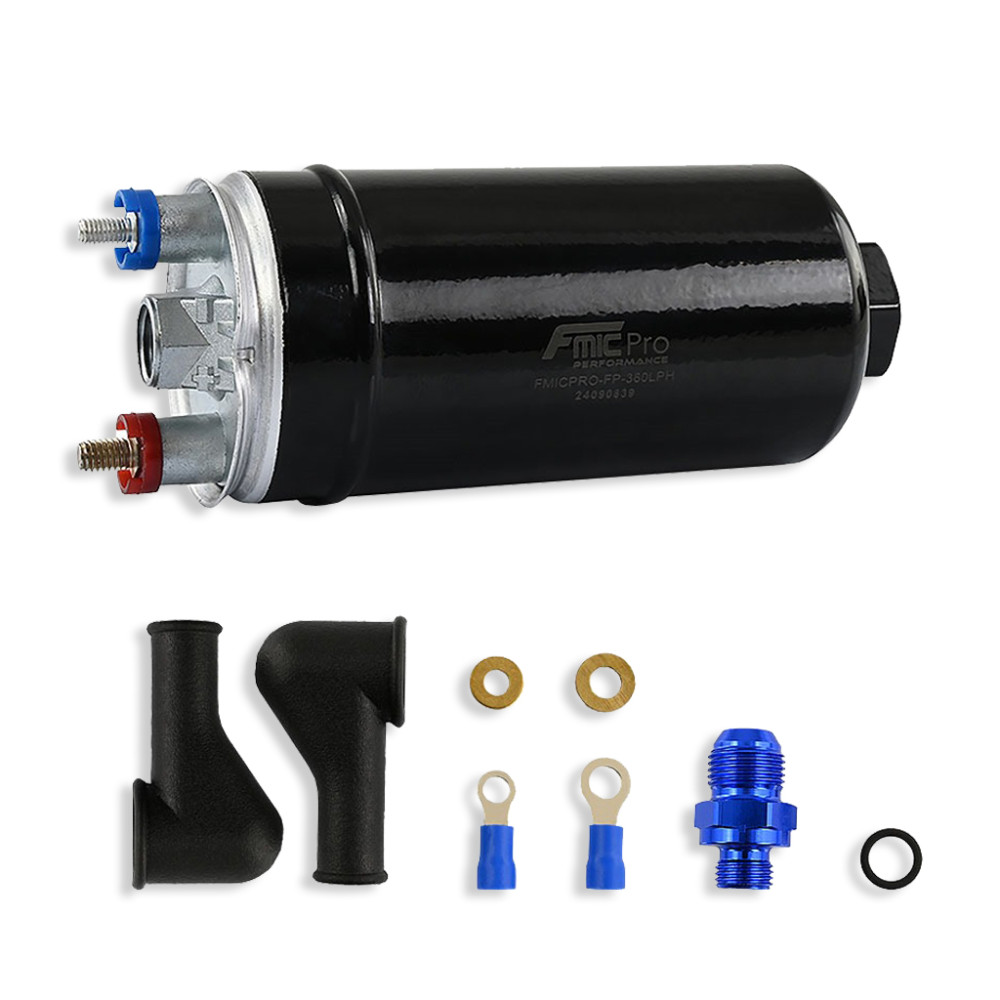

Included:

• Pump
• Return valve with AN8 thread
• Power connection covers

Power rating is given using petrol and assuming a base fuel pressure of 2.5 bar, 13.5v at the pump. Performance depends on the diameter of the fuel line and the voltage and current in the system.

The pump is characterised by noisier operation due to its high efficiency. A constant supply of fuel is required for its trouble-free operation, as it is cooled by it. Even short-term dry running of the pump can result in overheating and damage. Warranty: 12 months.
