High-performance fuel pump - designed with motorsport in mind.

Performance, reliability, and versatility are the key features of this pump. Made from the finest materials with a precision pumping element, it boosts the performance of your vehicle with a high-flow fuel pump that works on both naturally aspirated and supercharged engines. Its modern design and implemented technical solutions ensure maximum performance of the fuel system under extreme operating conditions.

High performance: The pump supports naturally aspirated and supercharged engines, providing 255 l/h at 2.7 bar, 210 l/h at 4.8 bar, and 155 l/h at 10 bar, making it ideal for tuning car applications.

Versatile: Internal pump for installation in tank baskets or swirl pots. Fitted with a compact housing measuring 115mm in length and 38mm in diameter. Features a 10mm inlet with an attached pre-filter and an 8.5mm outlet for easy installation, making it a versatile solution for a wide range of vehicles.

DURABLE AND RELIABLE: Constructed from heat-resistant and heavy-duty materials for long-lasting operation in extreme conditions. The pump is resistant to vibration and intense loads, making it a reliable choice in motorsport.

Use: Ideal for drifting, rallying, racing, and tuning, where reliability and fuel system performance are crucial. Thanks to its high flow rate and high load resistance, the pump helps maintain stable vehicle performance in all conditions.

Technical specifications:

• Capacity: 255 LPH
• Pump length: 115mm
• Pump diameter: 38mm
• Input: 10mm
• Output: 8.5mm

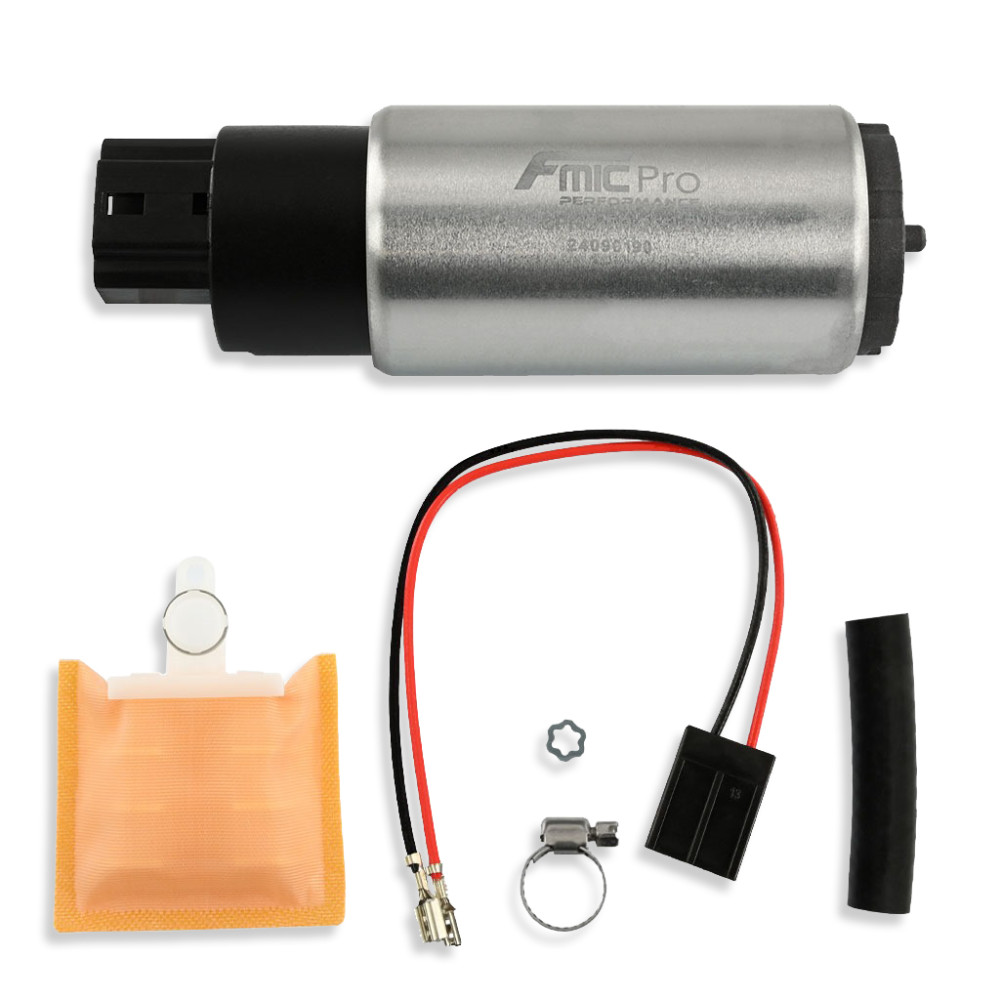

Included:

• Pump
• Pre-filter
• Plug with wires
• Fuel hose with clamps

Power rating is given using petrol and assuming a base fuel pressure of 2.5 bar, 13.5v at the pump. Performance depends on the diameter of the fuel line and the voltage and current in the system.

The pump is characterised by noisier operation due to its high efficiency. A constant supply of fuel is required for its trouble-free operation, as it is cooled by it. Even short-term dry running of the pump can result in overheating and damage. Warranty 12 months.
