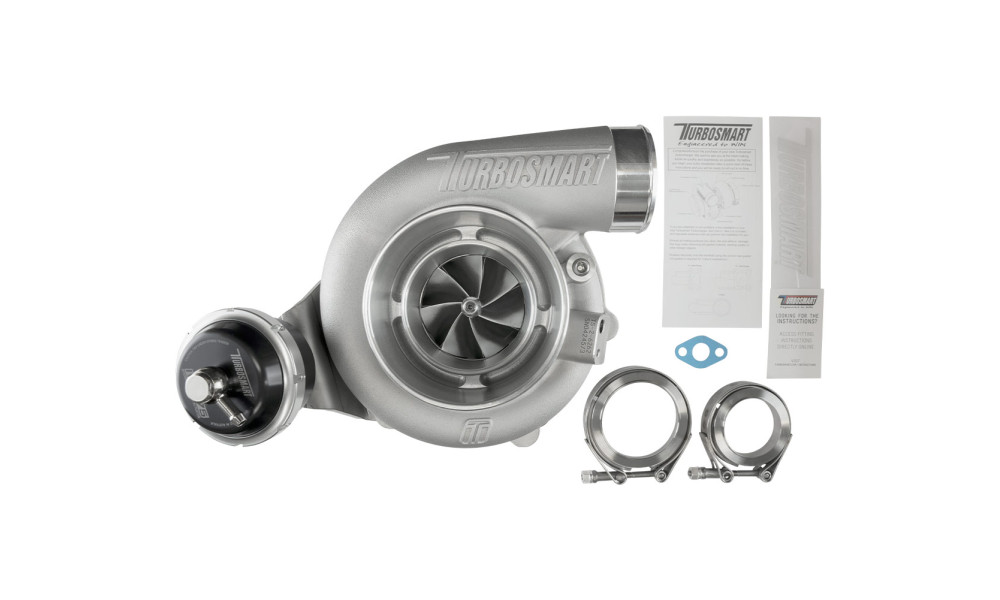

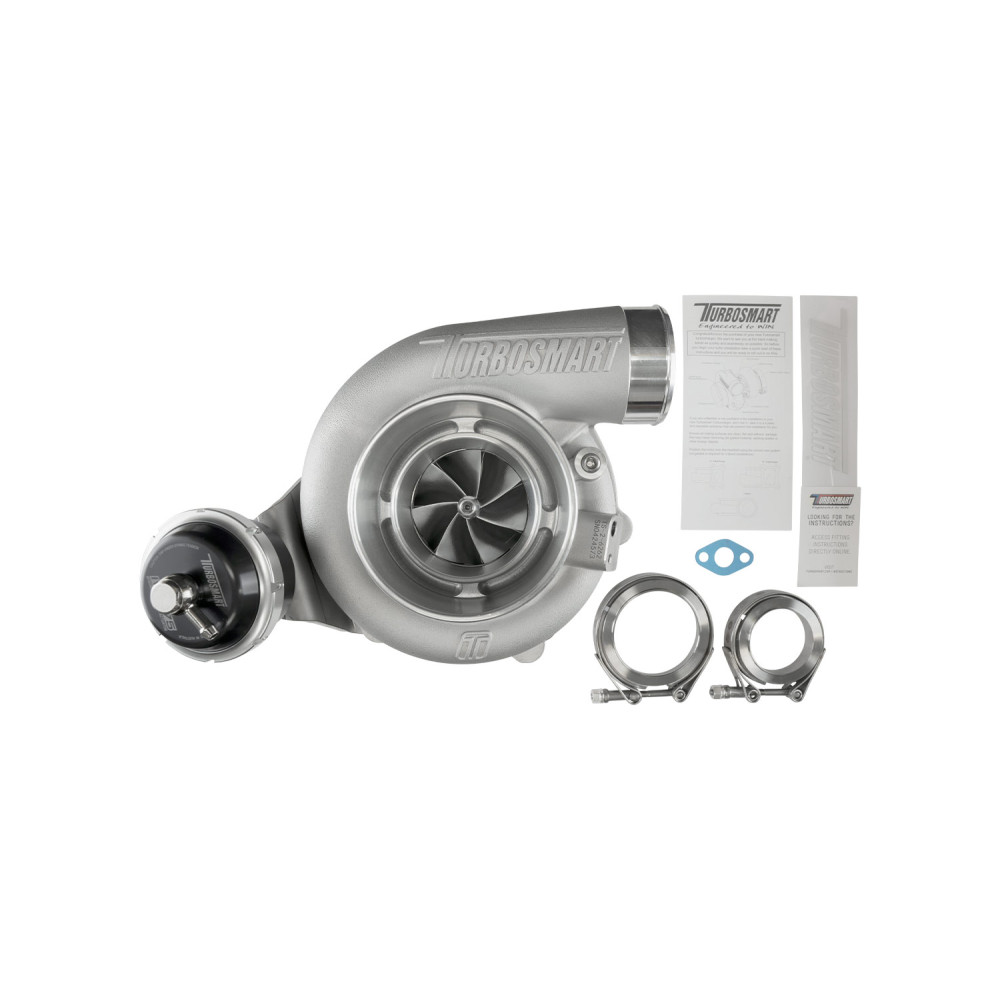

Experience next-level turbocharging with the Turbosmart TS-2 series. Designed for motorsport and performance enthusiasts, the TS-2 turbocharger is engineered for smaller, lighter, and faster response using advanced materials and manufacturing techniques. Every unit comes complete with installation essentials, including weld flanges, V-band clamps, gaskets, oil feed and drain fittings, as well as water feed and return fittings.

The TS-2 features water and oil cooling, lightweight 310s stainless steel investment cast turbine housings, and a proprietary bearing and main shaft assembly for unmatched transient response. The ultra-low rotating mass, aggressive compressor aerodynamics, and unique turbine wheel design deliver high performance at lower shaft speeds while maintaining flow and power at high loads.

• Unparalleled transient response
• 7+7 2618 Aluminium splitter wheels for aggressive aerodynamics
• Lightweight 310s stainless steel turbine housings
• Aluminium compressor covers
• CFD-driven housing design for optimal A/R and flow
• 713C Inconel turbine wheel for high exhaust gas temperatures
• VSR speed balanced
• Proprietary dual ceramic bearing system
• Integrated iron backplate on center housing

Specifications

• Compressor Inlet: 4″ / 101.6mm
• Compressor Inducer: 62mm
• Turbine Inlet: V-Band (2.25″)
• Turbine Exducer: 62mm
• Turbine A/R: 0.82
• Turbine Outlet: V-Band (3.00″)
• Weight: 6.06kg / 13.3lbs
• Horsepower Rating: 760-880HP

If you’re seeking a turbocharger that delivers quick spool, high flow, and robust construction for demanding applications, the Turbosmart TS-2 series is designed to meet your needs with quality, reliability, and performance.
