Radium Engineering has integrated a triple pump strainer in various fuel hangers since 2015, including models such as MK4 Supra, FD3S RX-7, Civic Type-R, Early Nissan, R32 GT-R, and 08-17 GM. This strainer is also utilized in universal products like FCST-X, MPFST, and MPFST-R. The standard triple pump base that accompanies these products is compatible with several fuel pump brands, including Bosch, Unisia JECS, Ti Automotive, and Walbro.

13-1187 PUMP COMPATIBILITY

• Protec 11928
• Fuelab 49614
• Deatchwerks DW810

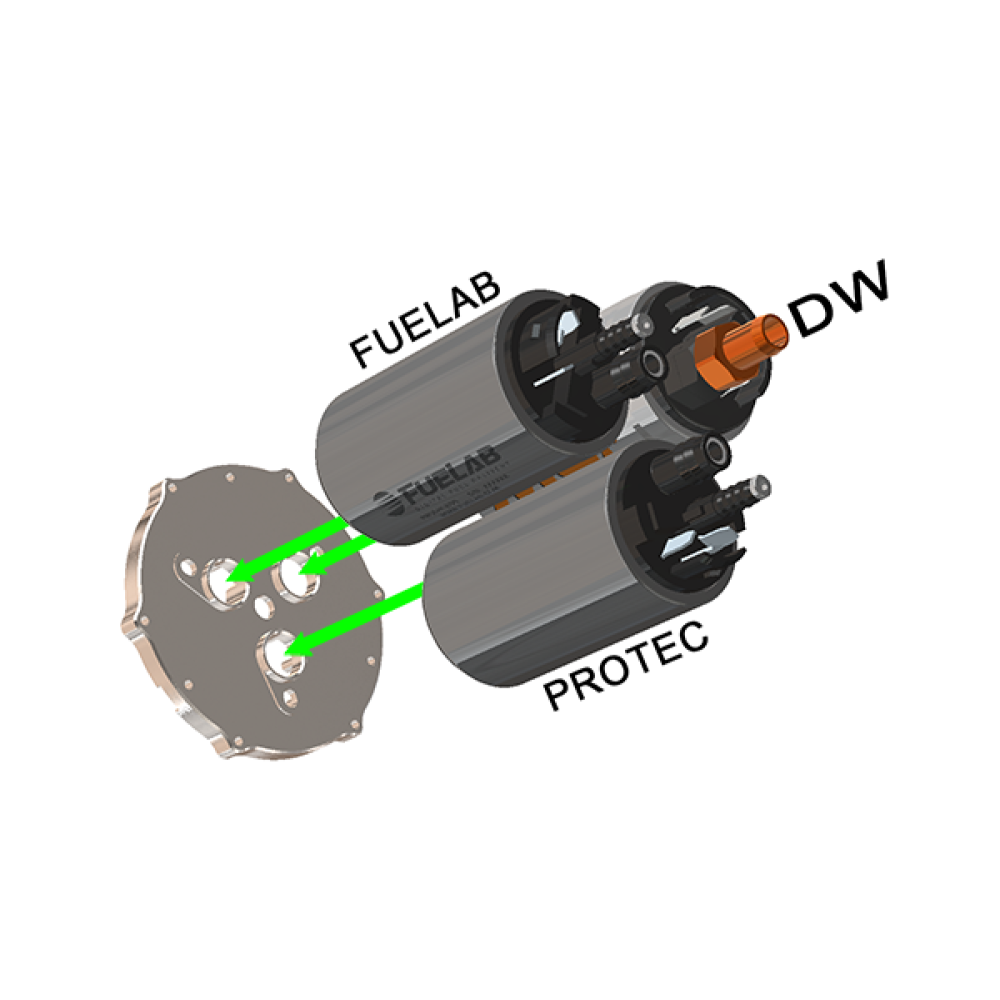

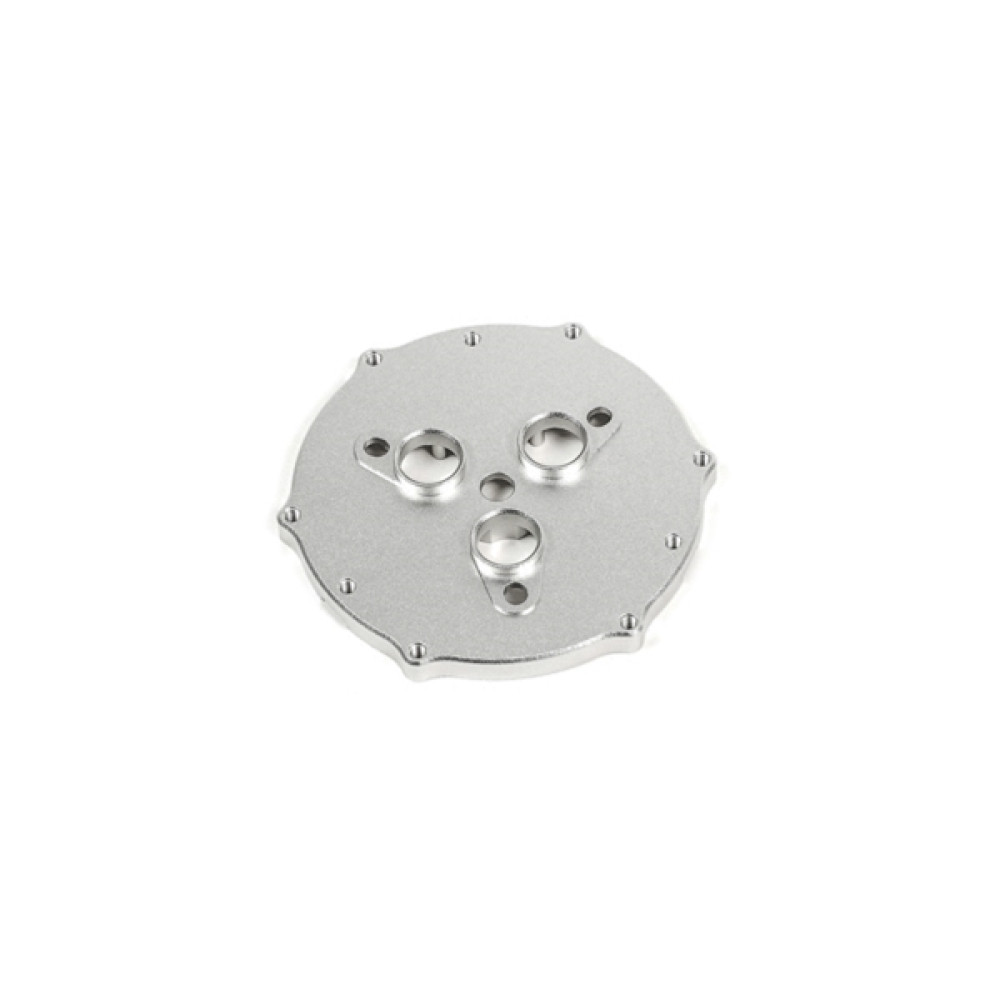

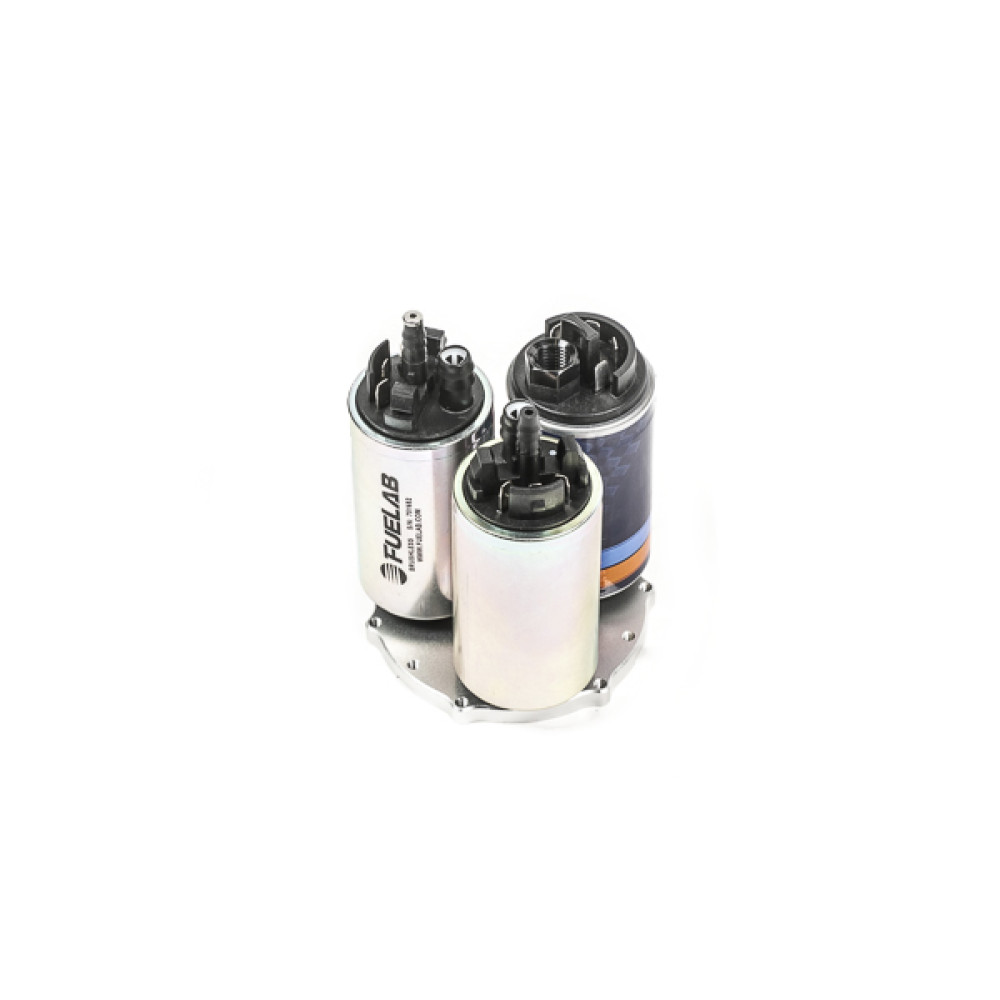

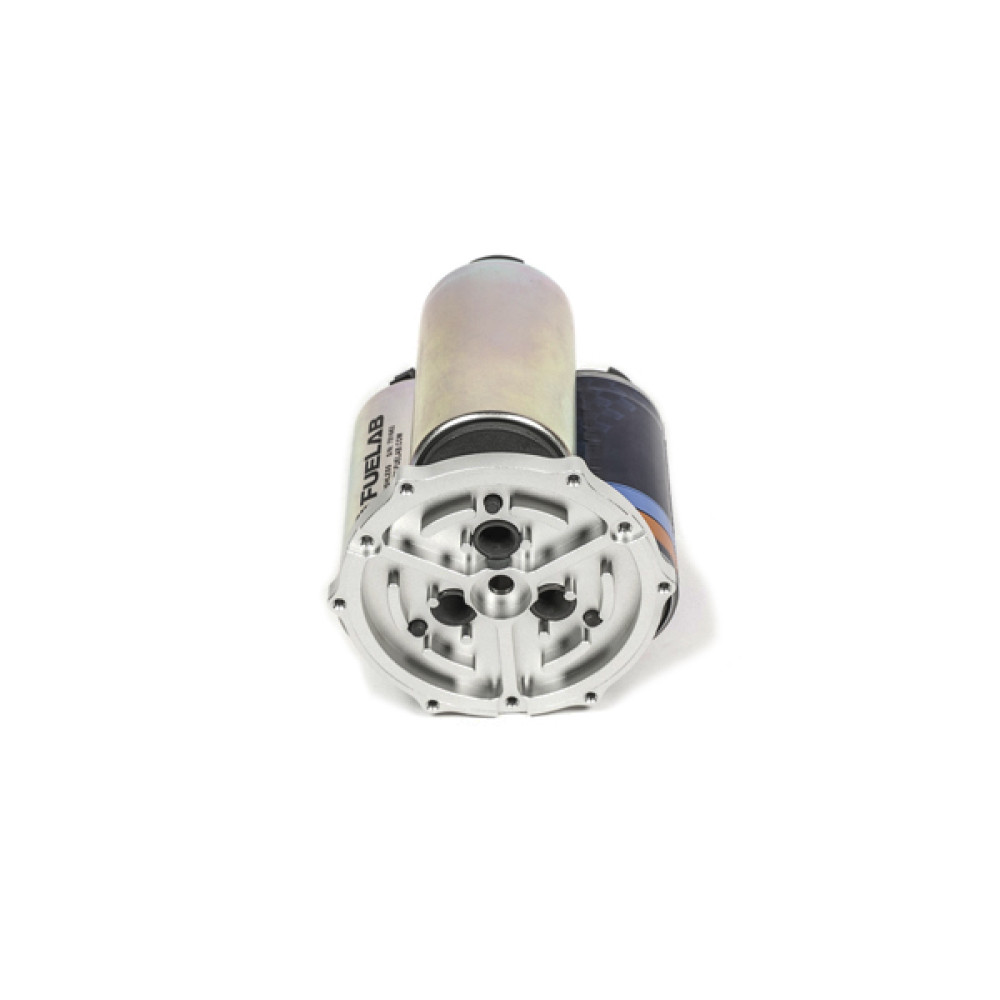

The 13-1187 triple pump base allows for the use of high-flow aftermarket brushless fuel pumps, specifically the 3-wire Protec/Fuelab pump and the 4-wire Deatschwerks DW810 pump. Due to the slightly larger 12mm die-casted inlet (OD) on these pumps, the standard Radium triple pump base was not suitable for mounting and filtration. The press-fit is now compatible with the Radium 13-1187 Triple Pump Base for 12mm Inlet Brushless Pumps.

CONSTRUCTION

• Aluminum, 6061 T6
• Clear Anodized Type-II

NOTES:

1. This part is ONLY compatible with triple-pump Radium Engineering products.
2. This part does NOT include the lower mounted stainless steel strainer, which must be reused from the existing triple pump base.

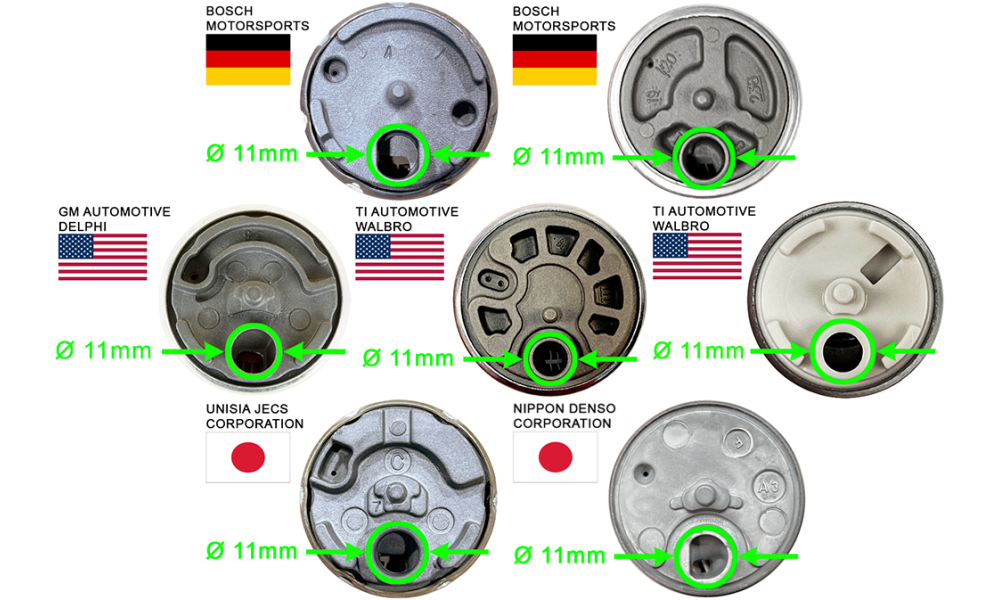

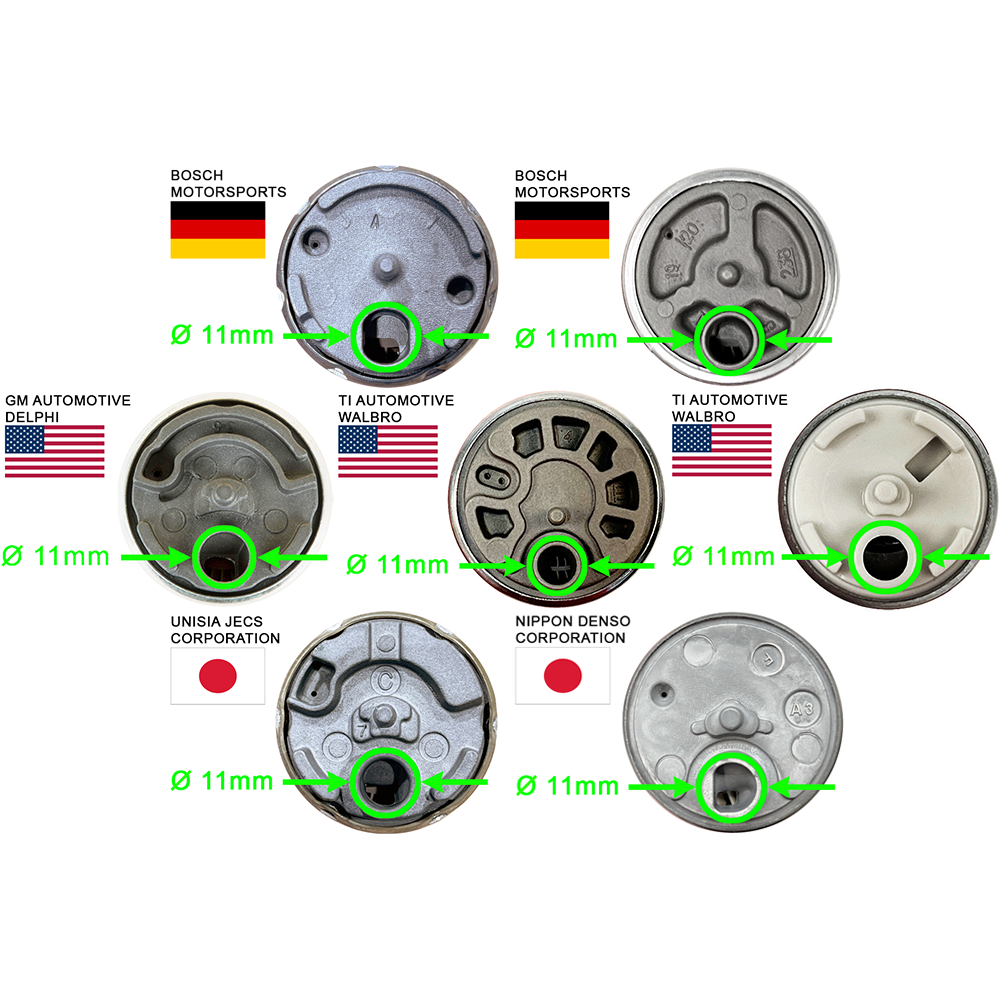

3. The compatible pumps have the same inlet ID as Bosch, Denso, Ti Automotive, and Walbro fuel pumps, but a different OD.
4. The Deatschwerks DW440 (not the DW810) brushless pump is of genuine OEM quality made by Bosch Motorsports and is compatible with the original Radium Engineering "11mm inlet" fuel pump strainer. Do NOT purchase this 13-1187 triple pump base for the DW440 brushless pump.
5. To avoid purchasing extra parts, select a Radium product compatible with Walbro F900002XX pumps, as these pumps have the same outlet diameter and share the same clamps and tubing.

Instruction PDF
