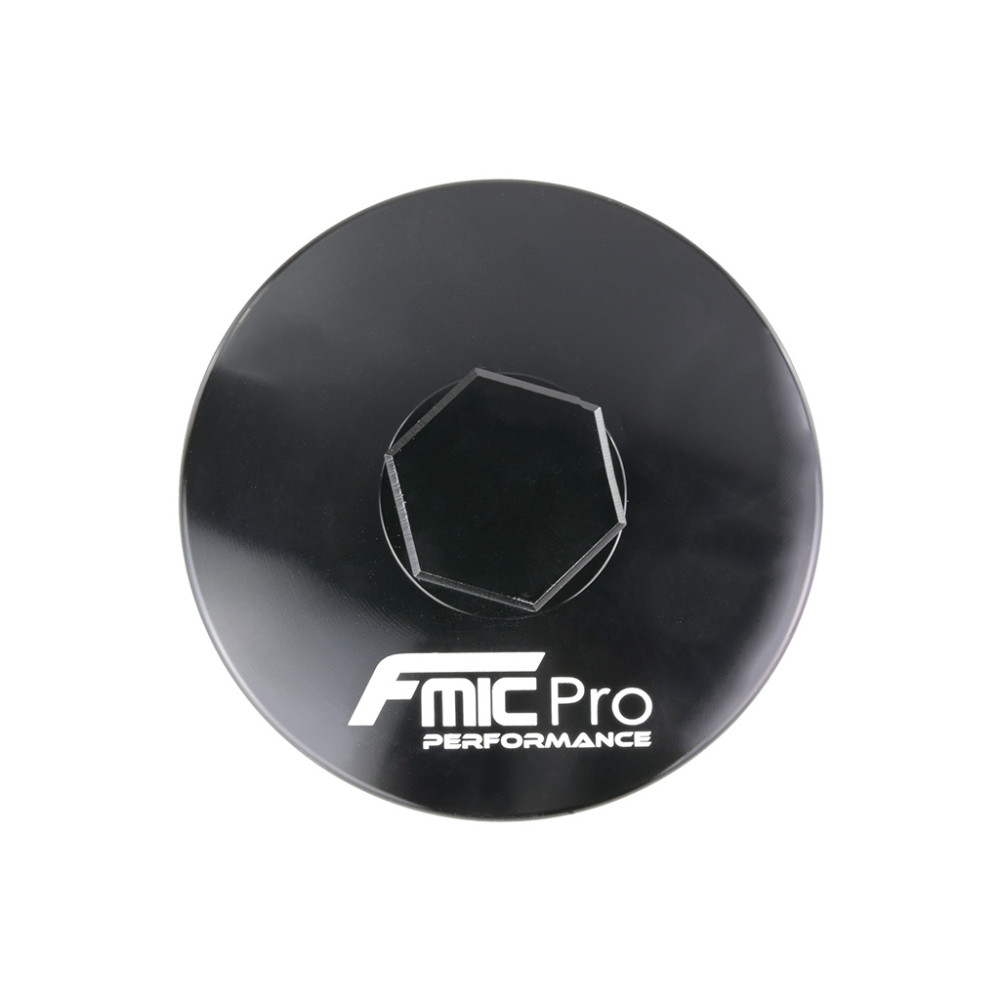

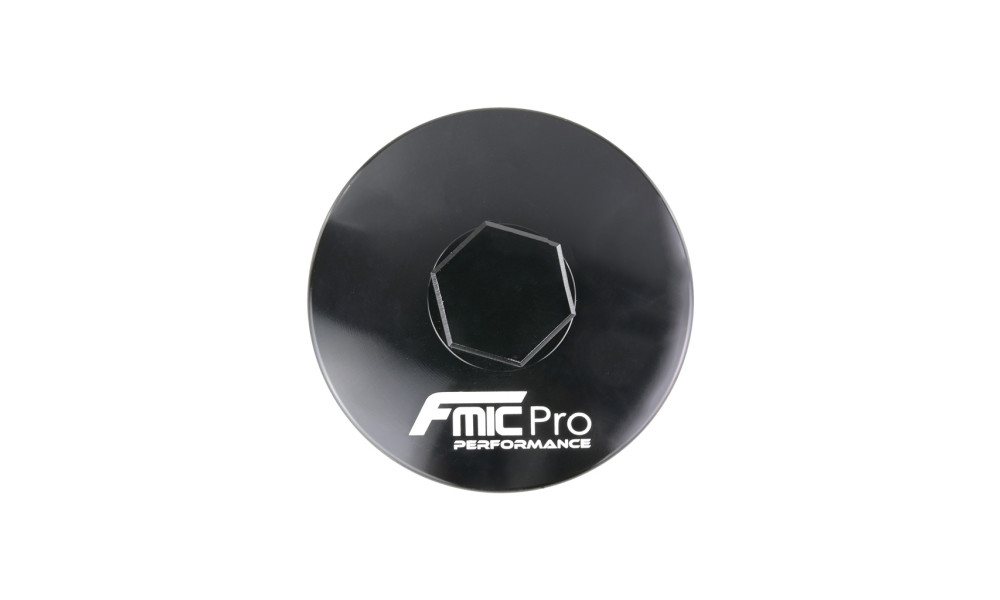

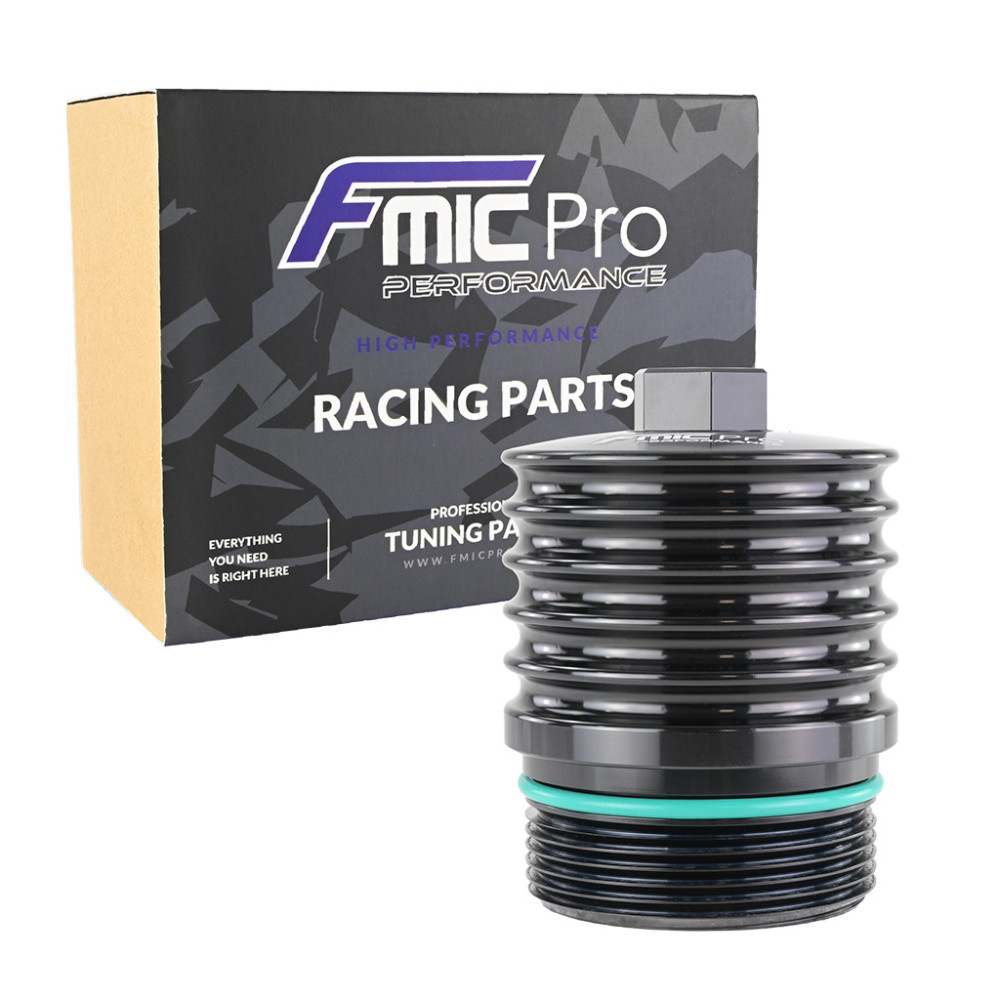

Transmission Oil Filter Housing for Volkswagen Audi Seat DQ250 6 Speed EA113 EA888

The aluminum oil filter housing for the 6-speed DSG DQ250 gearbox (02E transmission) is a reinforced upgrade for VAG vehicles with 2.0T engines (EA113 / EA888). It directly replaces the OEM plastic housing, which can crack and lose sealing over time. With deep cooling fins and aluminum’s superior thermal conductivity, the housing supports passive cooling of the gearbox oil, improving thermal stability.

Product Features:

• High-strength CNC-machined aluminum
• OEM-dimension design, including the hex mounting nut
• Cooling fins for better heat dissipation and reduced DSG oil temperature
• Black anodized finish for corrosion and oxidation protection
• Compatible with the OE DSG oil filter insert and sealing ring

Technical Data:

• Replacement part: 02E305045
• Thread diameter: 72 mm
• Inner diameter: 65 mm
• Height: 109 mm

Application:

• Gearbox: DSG 6 DQ250 (02E) – VAG
• Engines: 2.0T EA113 (FSI/TFSI), 2.0T EA888 (TSI/TFSI)

Example Fitment:

• Audi A3 / S3 8P, Audi TT / TTS 8J
• VW Golf V / VI / VII GTI, Scirocco, Passat B6 (3C)
• VAG models with DQ250 + 2.0T (EA113/EA888)
