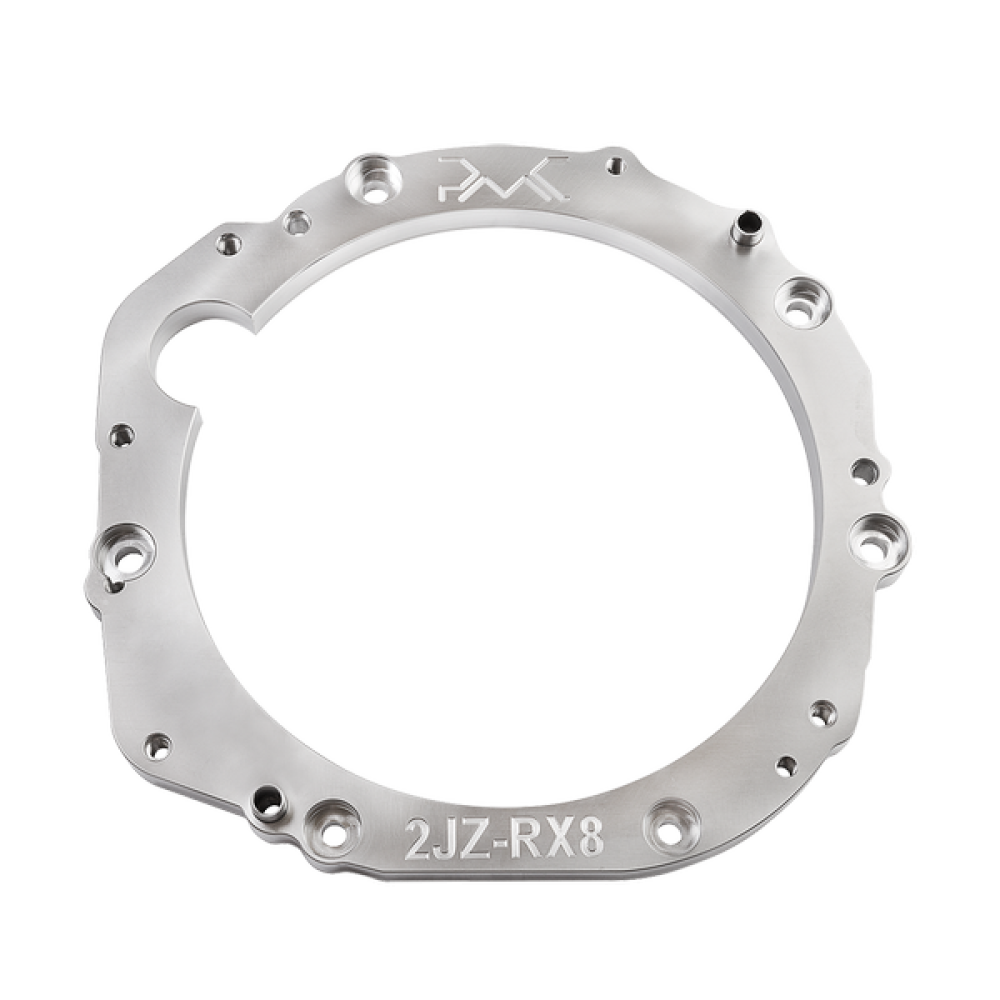

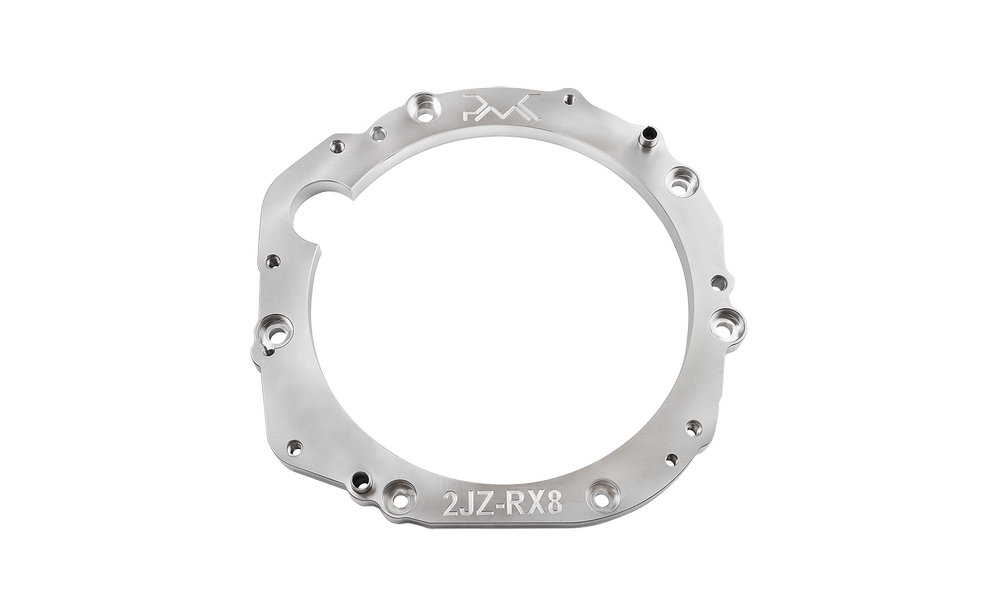

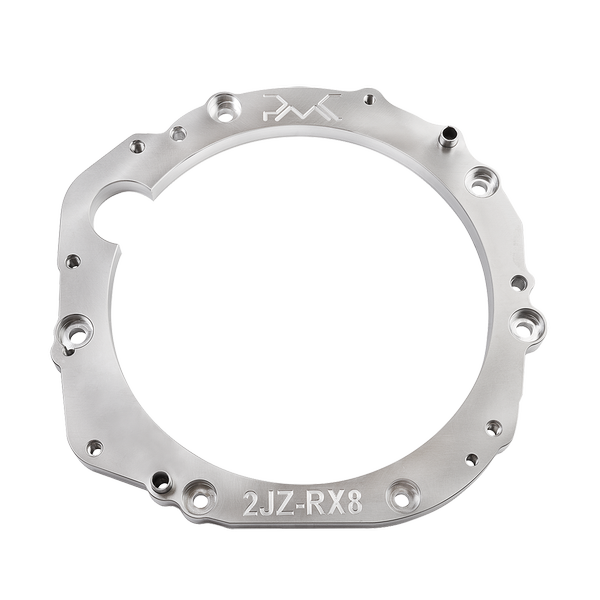

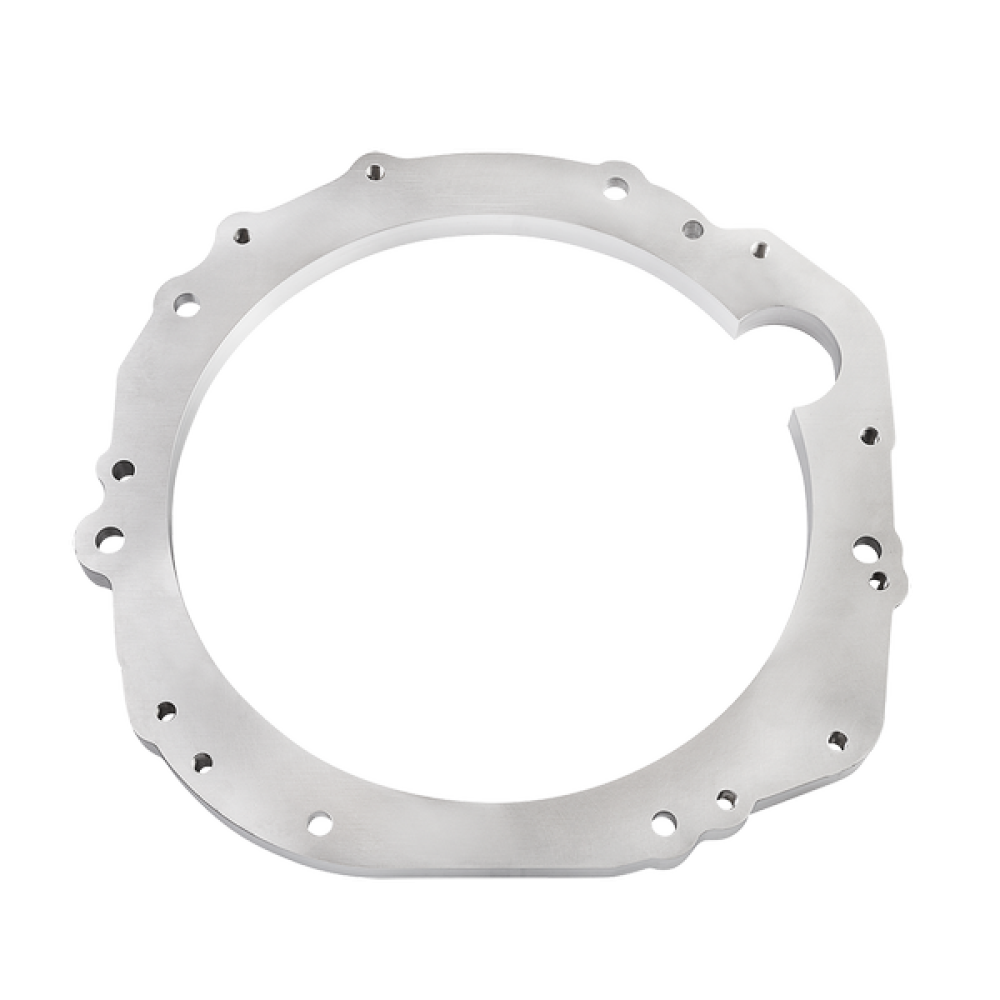

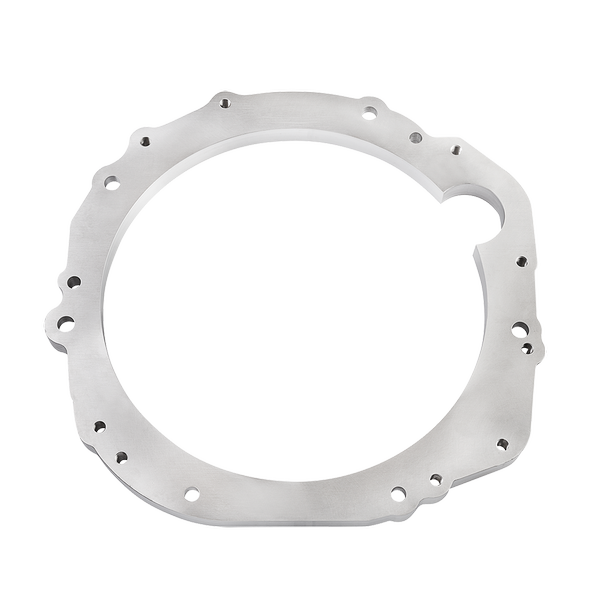

PMC Motorsport aluminium adapter (flange / orifice) Toyota JZ 1JZ 2JZ - Mazda RX8 RX-8 SWAP

Aluminium adapter to connect (swap / conversion ) the Toyota JZ 1JZ 2JZ engine with the manual transmission from the Mazda RX-8

In the design process we use a measuring arm and a high-quality 3D scanner
Thanks to the use of a measuring arm during the design process and the use of high-precision CNC machines - the adapter ensures perfect concentricity of the engine and transmission

State-of-the-art CNC machinery and qualified staff.
Certified materials
We only use certified materials from reliable suppliers in the production process. Aluminium alloy AW-2017A is characterised by its high strength properties - high tensile and fatigue strength. AW-2017A aluminium semi-finished products are used for the production of aircraft structural components, for machine building parts, for the construction of military equipment, components for the automotive industry.

Suitable engines:
Toyota 1JZ (non VVT-i / VVT-i version)
Toyota 1JZ-FSE
Toyota 1JZ-GE
Toyota 1JZ-GTE
Toyota 2JZ (non VVT-i / VVT-i version)
Toyota 2JZ-FSE
Toyota 2JZ-GE
Toyota 2JZ-GTE
Matching gearboxes:
Mazda RX-8 6-speed
Y6Y0-17-01XA
Y610-17-01XG,
Y610-17-01XJ,
Y610-17-01XM,
Y610-17-01XR,
Y610-17-01XS,
Y610-17-01XU,
Y611-17-01XG
Mazda RX-8 5-speed
