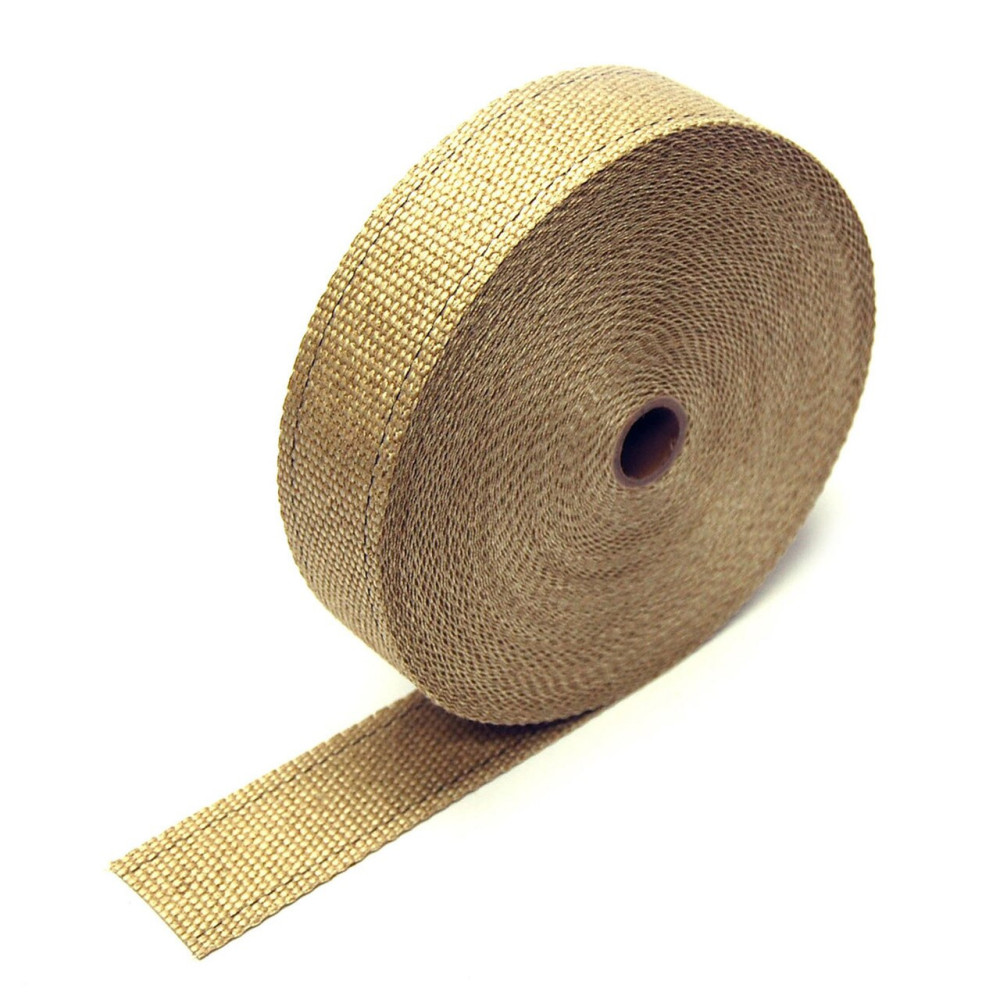

Tan Glass Fiber Exhaust Wrap 5cm x 30m (2" x 100ft) DEI 010103

Part Number: USA-DEI-10103

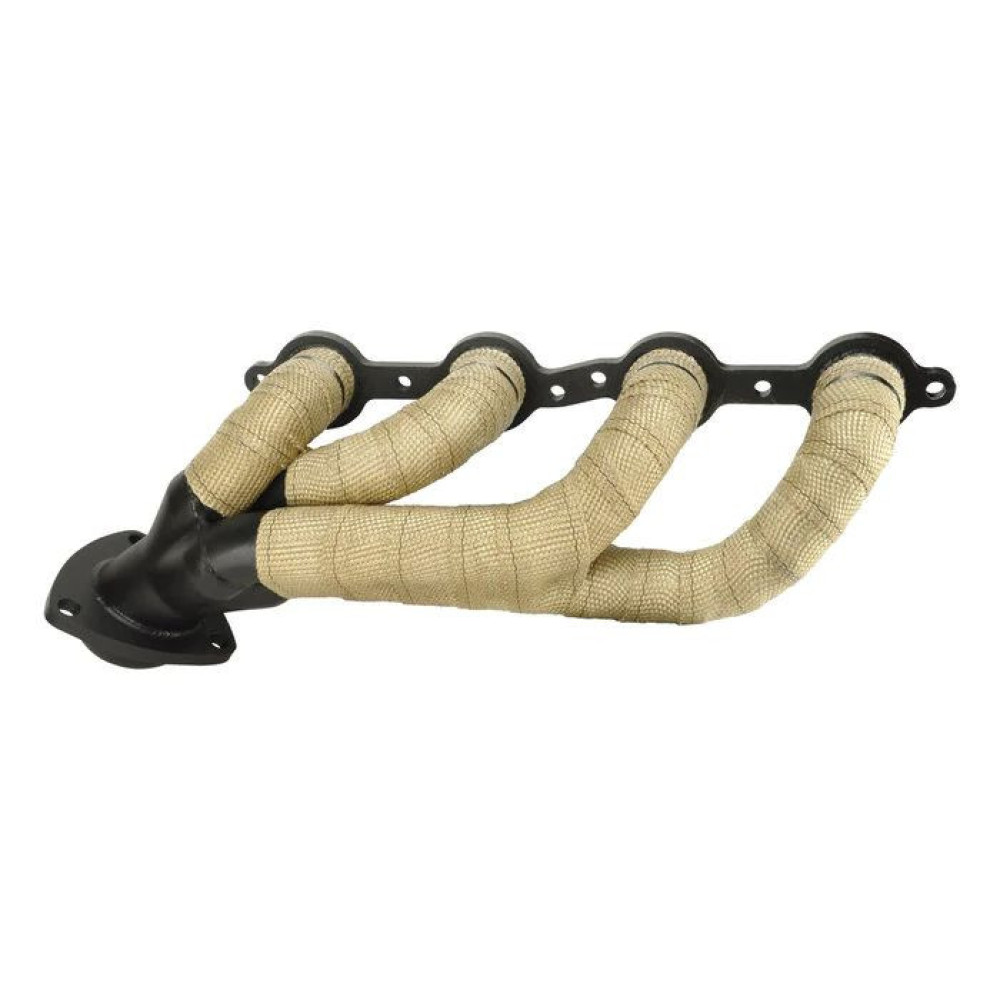

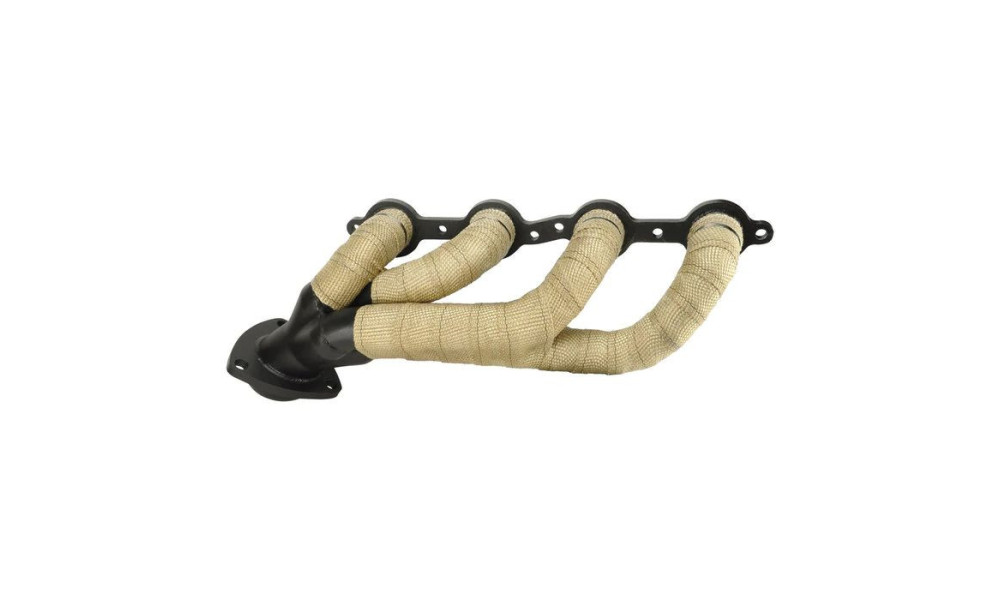

Wrapping headers and downpipes is a proven method to reduce unwanted underhood heat, resulting in a cooler air charge and improved engine performance. Retaining higher exhaust gas temperatures within the system decreases exhaust density and increases exhaust flow.

• Reduces underhood temperatures by up to 50%
• Decreases exhaust density and increases exhaust flow
• Improves horsepower
• Withstands 1200°F direct and 2000°F radiant heat
• Features installation guide lines for precise application
• Enhanced durability and heat retention

For optimal installation, use Design Engineering Stainless Steel Locking Ties. Application of Design Engineering HT Silicone Coating spray is highly recommended to penetrate, seal, protect, and prolong the lifespan of the wrap.

Technical Specifications

• Width: 5cm (2")
• Length: 30m (100ft)
• Direct Heat Resistance: 1200°F
• Radiant Heat Resistance: 2000°F

Notes & Cautions

• Do not wrap catalytic converters, as overheating can reduce their lifespan. Use a dedicated shield if heat protection is required.
• After heat cycling, the wrap should not be moved or removed, as fibers lose flexibility. This does not affect thermal properties. Avoid use on flex-pipes or flex-joints.
• Not recommended for titanium exhaust systems, as excessive heat retention can cause brittleness and premature cracking. For titanium, use flexible heat shields instead.
