Swirl Flap Delete Kit for Volkswagen AUDI 2.0 TFSI EA113

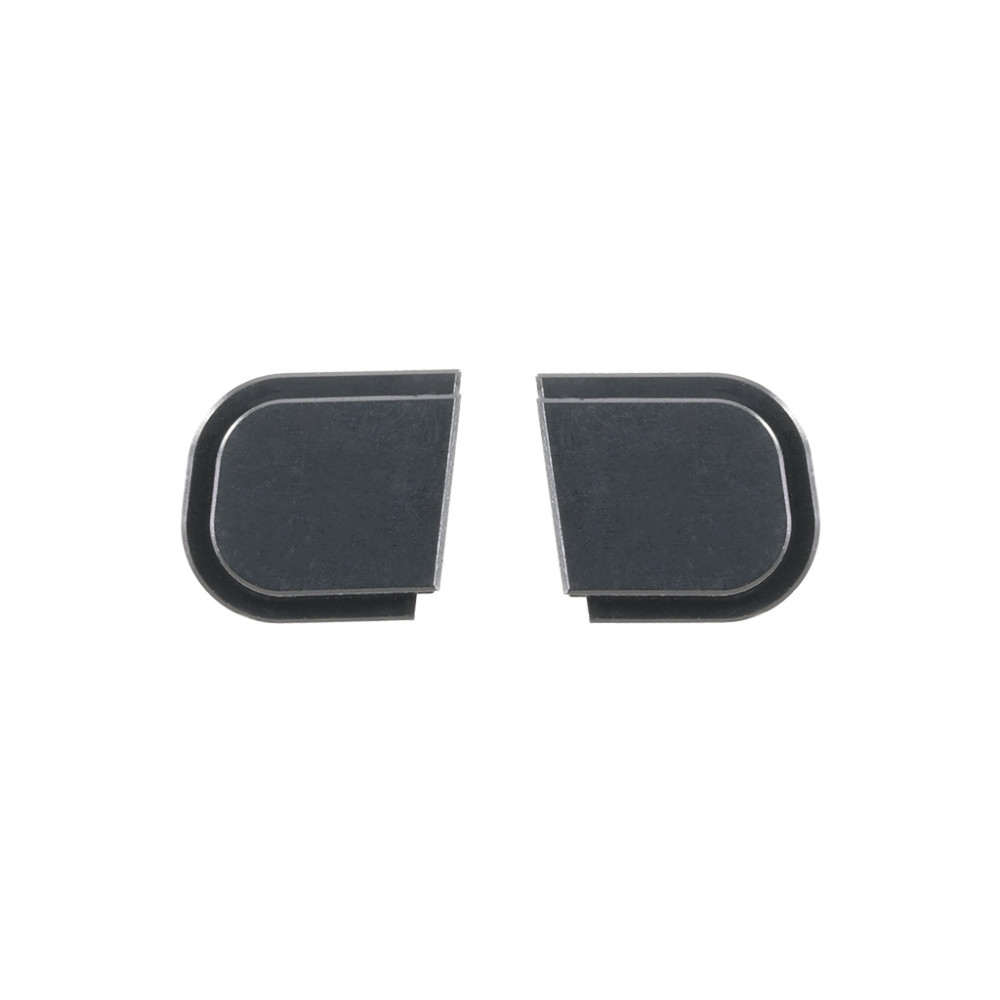

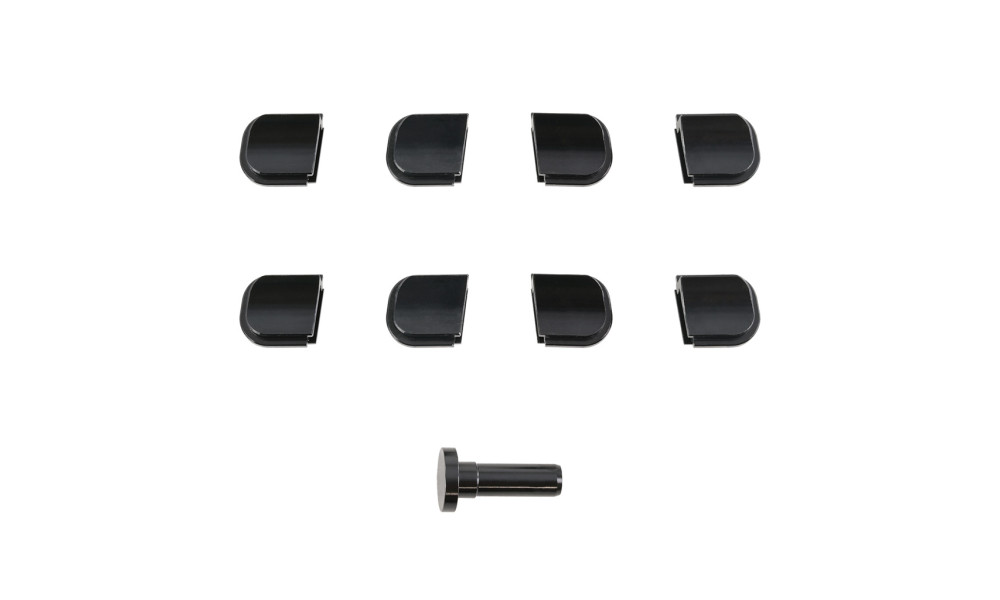

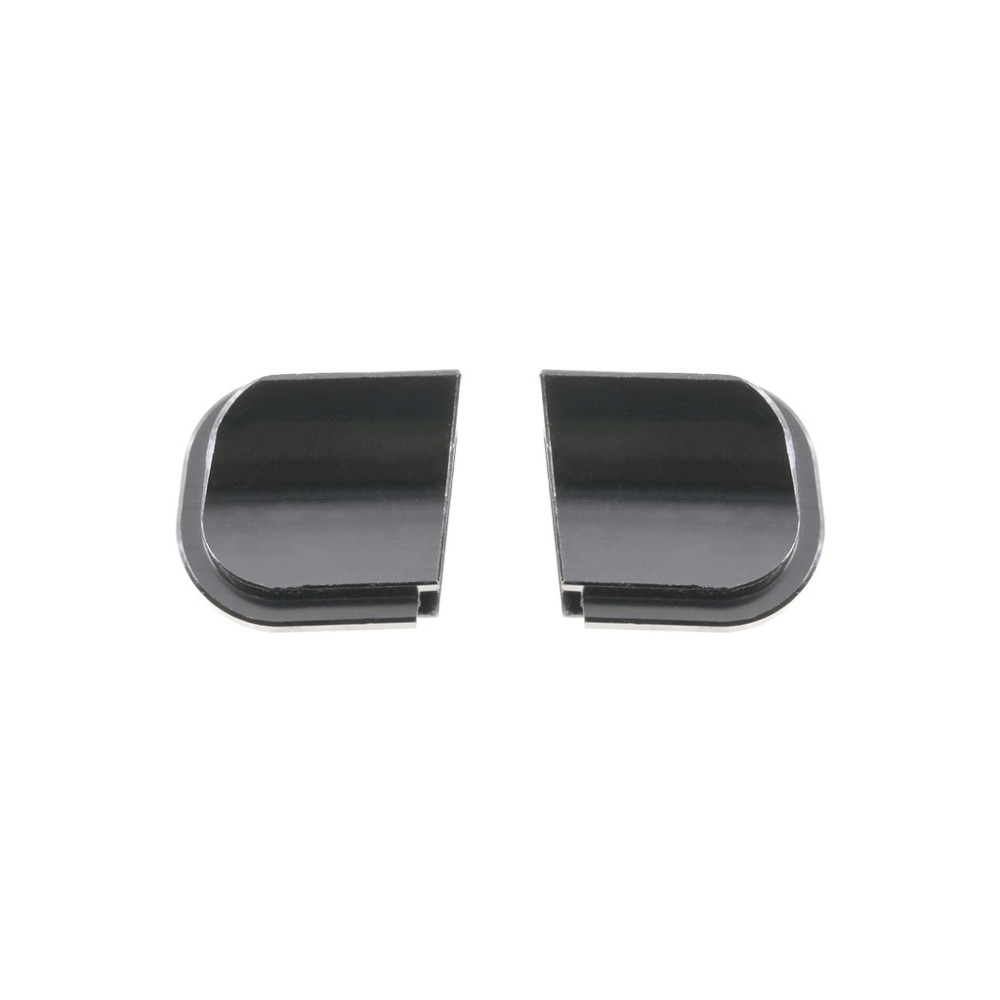

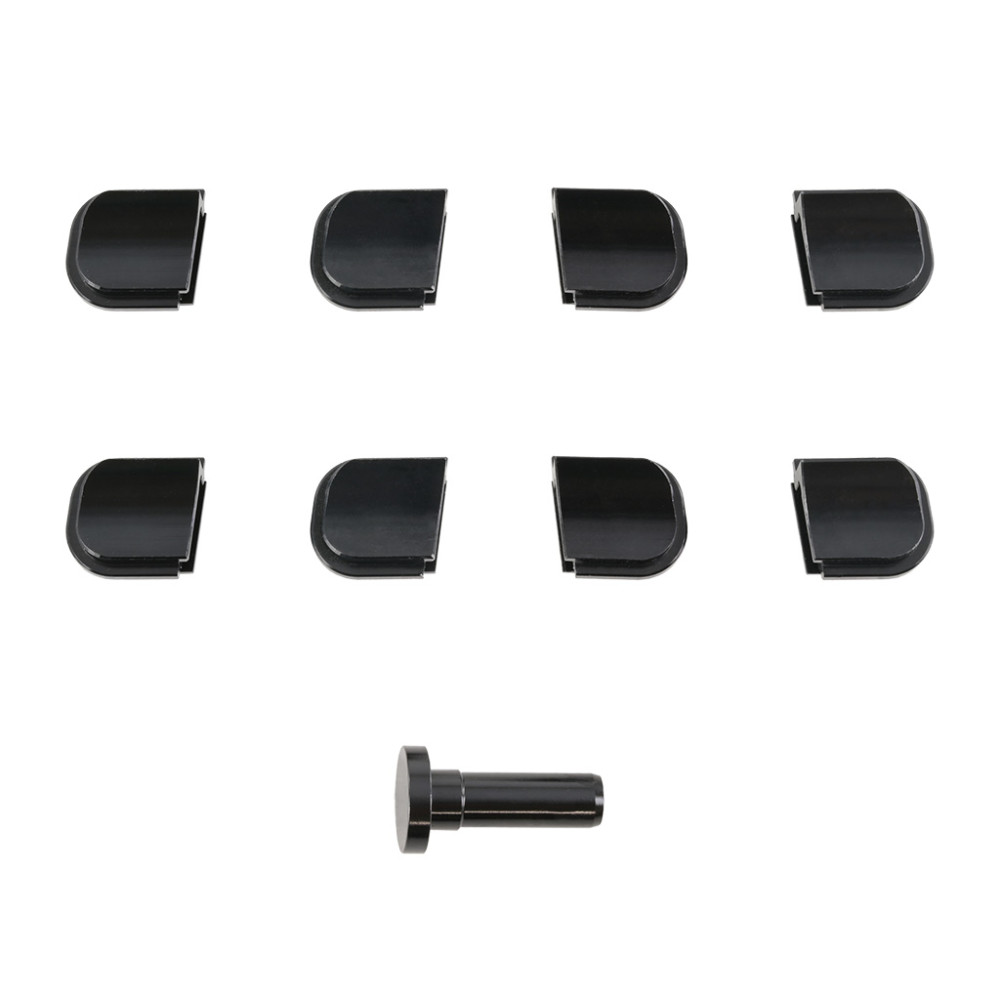

This kit facilitates the removal of swirl flaps and the shaft from the intake manifold, utilizing dedicated blanking inserts to fill the voids left behind in the manifold runners.

While factory swirl flaps are intended to enhance engine performance under specific conditions, they can become significant airflow restrictions in modified vehicles. Even when fully open, the flaps introduce additional resistance and turbulence, adversely impacting performance following power upgrades.

It is recommended to adjust the ECU software post-installation to prevent potential cold-start running issues.

Product features:
- Removal of swirl flaps and shaft from the intake manifold
- Eliminates airflow restriction
- Fills empty spaces in the runners after flap removal
- No thermal expansion discrepancies between the manifold and blanks
- Automated production ensures high dimensional repeatability and precise fitment

Kit fits:
EA113 2.0 TFSI engines equipped with intake manifold 06F133201P

125 kW / 168 HP — BPJ
Audi A6 C6 (4F) — 2005–2011
Volkswagen Tiguan I (5N) — 2007–2011 (market/version dependent)

136 kW / 182 HP — BWA
SEAT Leon II (1P) — 2005–2012

147 kW / 197 HP — AXX / BWA / BWE / BPY
Audi A4 B7 (8E/8H) — 2004–2008
Audi A3 8P — 2004–2013
Audi TT 8J — 2006–2014 (various 2.0T versions depending on market)
Volkswagen Passat B6 (3C) — 2005–2010
Volkswagen Golf V GTI (1K) — 2004–2009
Volkswagen Jetta V GLI (1K) — 2005–2010 (market dependent)
SEAT Leon FR II (1P) — 2005–2012
SEAT Altea (5P) — 2004–2015
SEAT Toledo III (5P) — 2004–2009
SEAT Exeo (3R) — 2008–2013
Škoda Octavia II vRS (1Z) — 2005–2013

162 kW / 217 HP — BUL
Audi A4 B7 DTM Edition (8E) — 2006–2007

162 kW / 217 HP — CDL
Volkswagen Polo R WRC (6R) — 2013–2014

169 kW / 227 HP — BYD
Volkswagen Golf V GTI Edition 30 (1K) — 2006–
