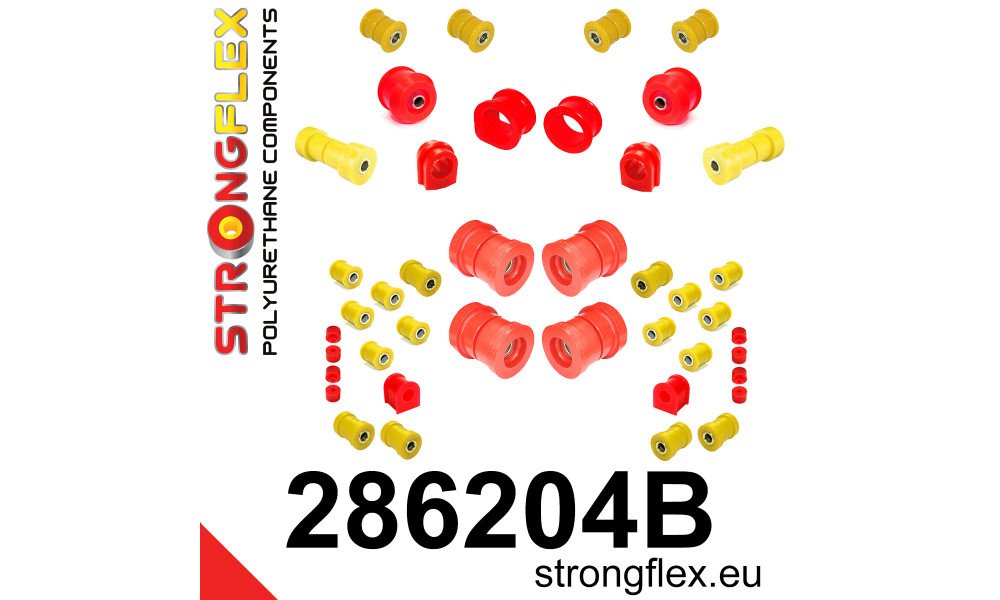

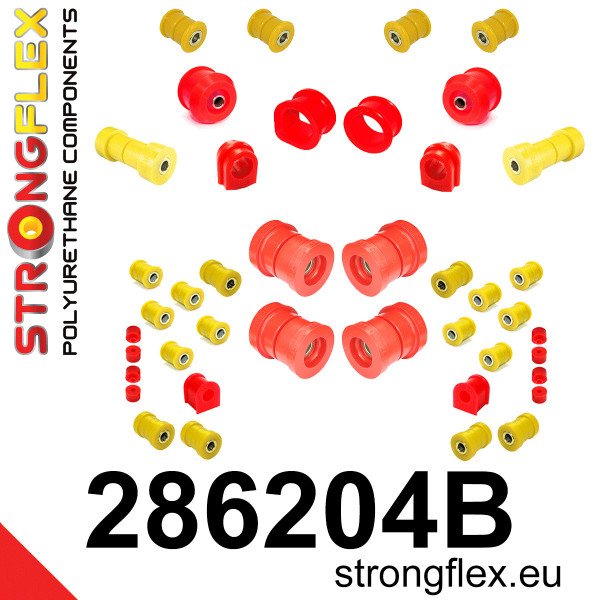

Reference: 286204B

Product Name: Full Suspension Bush Kit for R33 R34 AWD

Compatibility:

• Nissan Laurel VII (1993-1997) C34 AWD
• Nissan Laurel VIII (1997-2002) C35 AWD
• Nissan Skyline IX (1993-1998) R33 AWD
• Nissan Skyline X (1997-2002) R34 AWD
• Nissan Stagea I (1996-2001) C34 AWD

Included Components:

• 2x 281400B: Front Anti-Roll Bar Bush
  or
• 2x 281401B: Front Anti-Roll Bar Bush GT-R

• 4x 281622A: Front Upper Wishbone Bush SPORT
• 2x 281913A: Front Hub Bush SPORT

• 1x 286219B: Steering Rack Mount Bush
  or
• 1x 286234B: Steering Rack Mount Bush

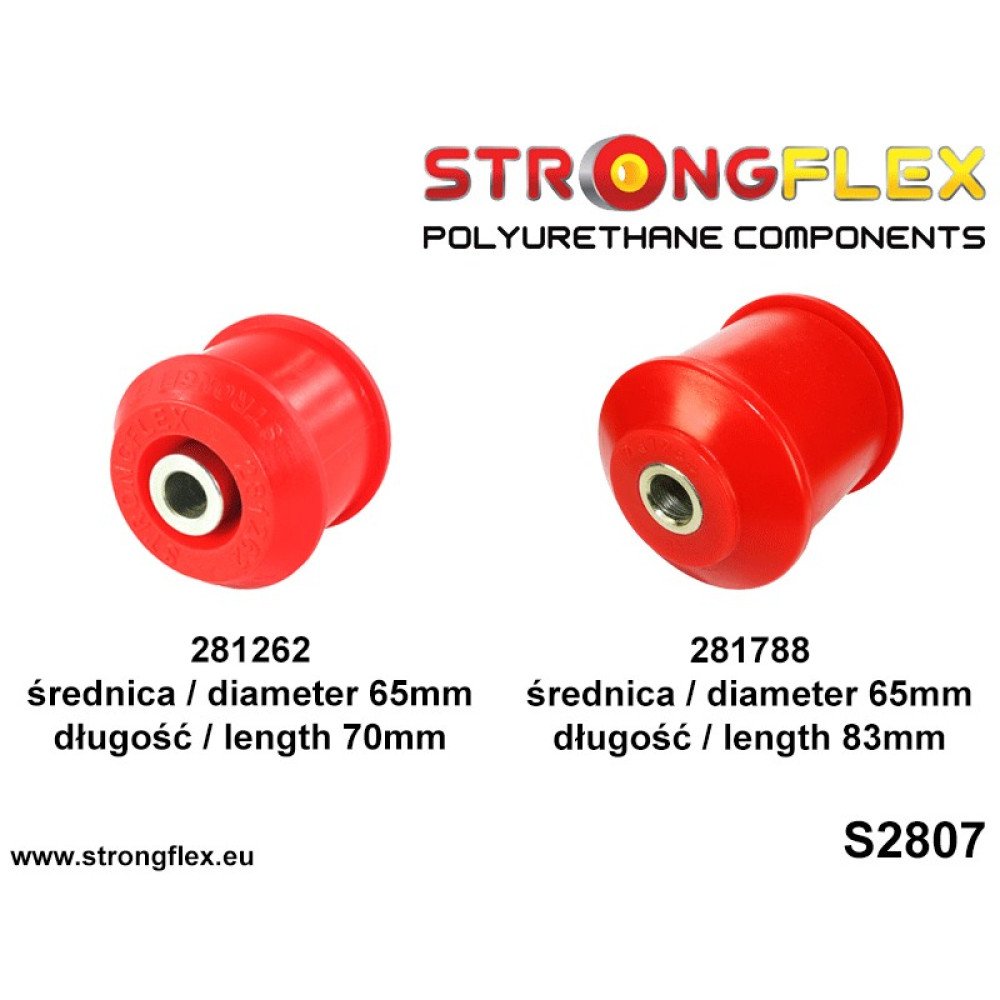

• 2x 281262B: Front Lower Radius Arm to Chassis Bush
  or
• 2x 281788B: Front Lower Radius Arm to Chassis Bush GT-R

• 2x 281399A: Rear Roe Link Inner Bush SPORT
• 10x 281218A: Rear Arm Bush SPORT
• 4x 281398A: Rear Trailing Arm Bushes SPORT
• 2x 281268B: Rear Anti-Roll Bar Bush
• 4x 281269B: Rear Anti-Roll Bar Link Bush
• 4x 281271B: Rear Beam Mounting Bush AWD
• 2x 281849B: Rear Diff Mount - Front Bush
• 2x 281850B: Rear Diff Mount - Rear Bush

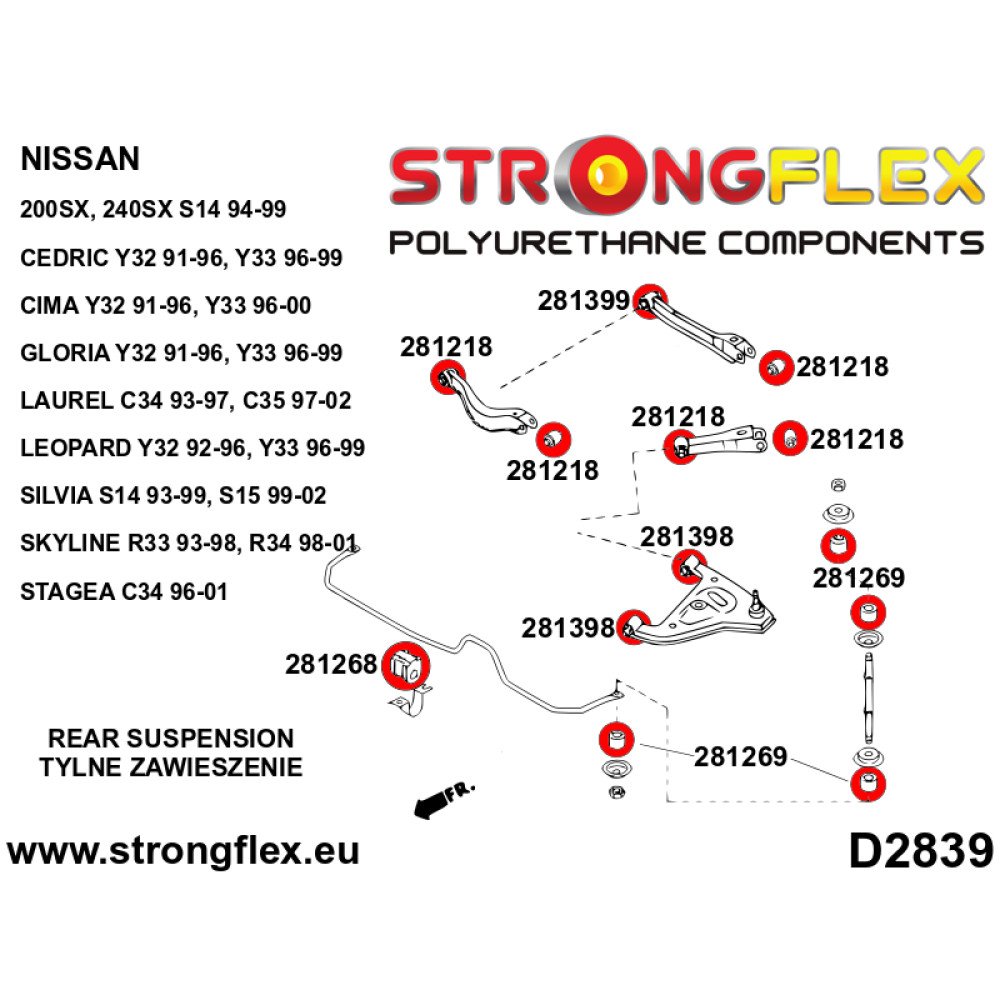

Diagrams:

• D2803

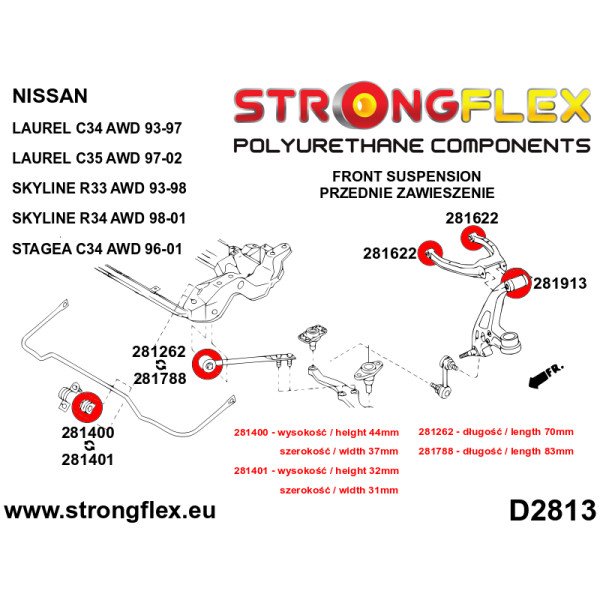

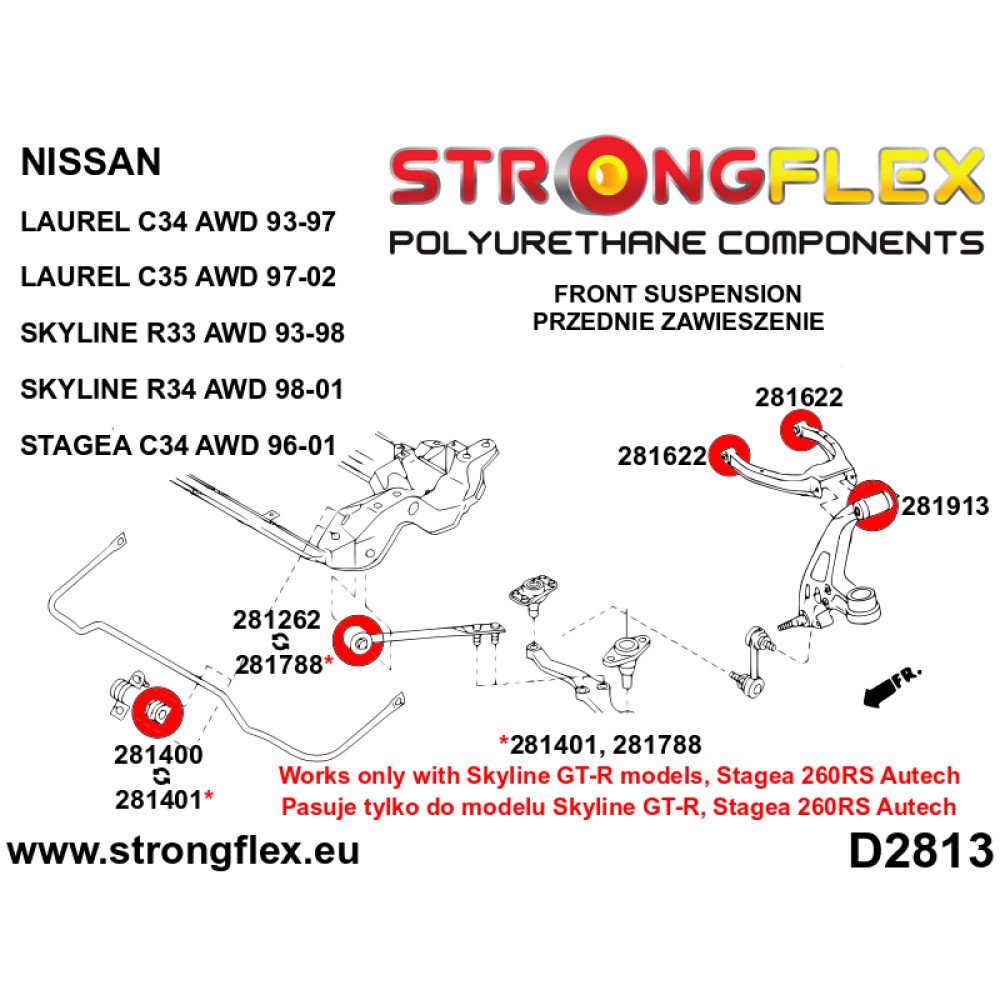

• D2813
• D2832
• D2837

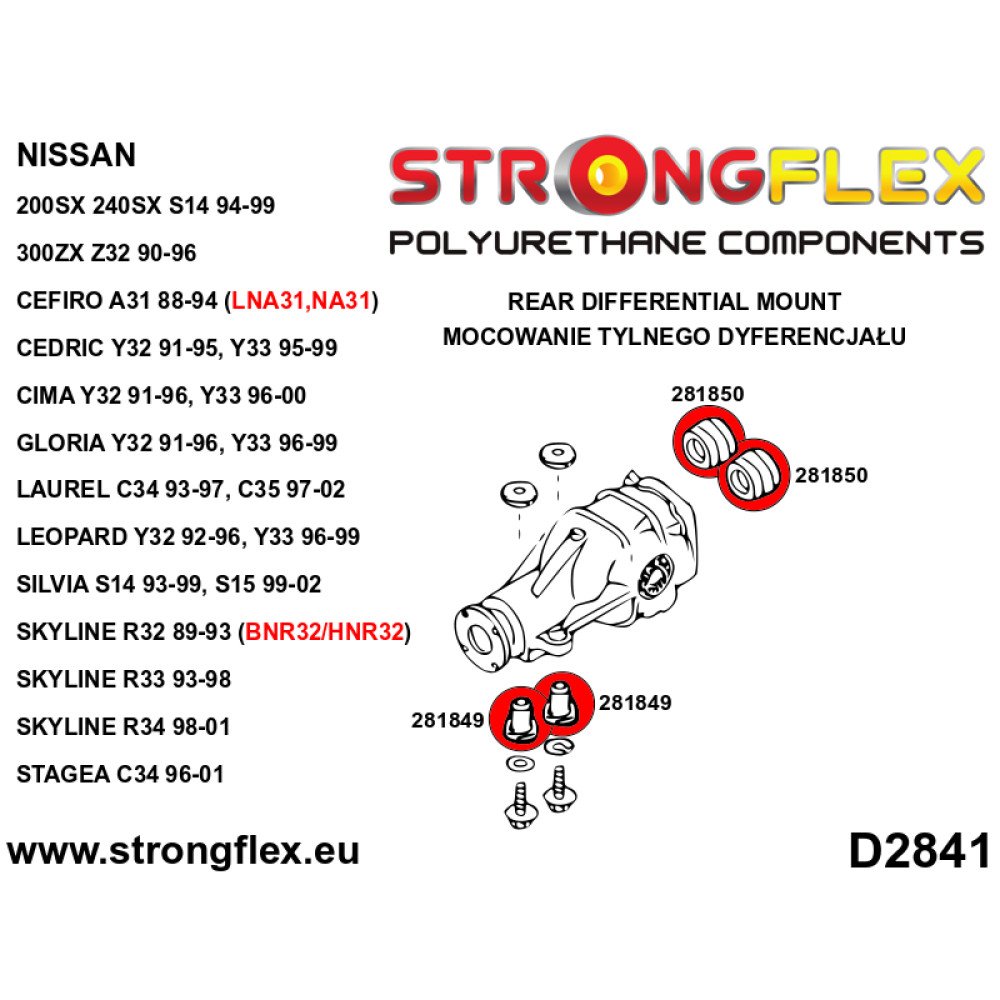

• D2841

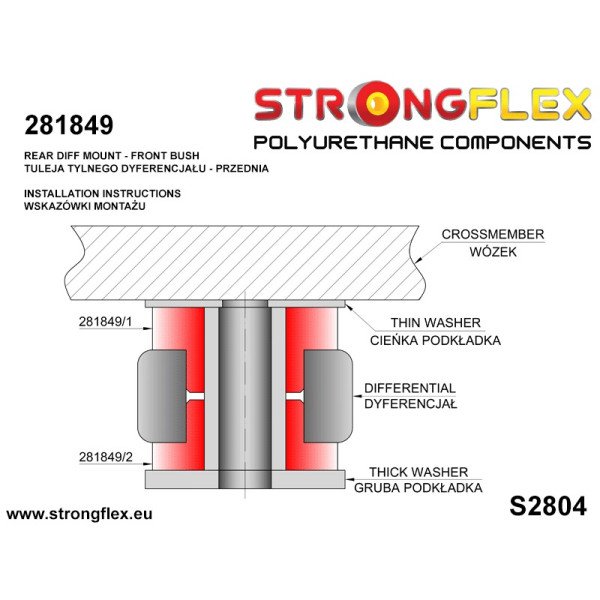

• S2804
• S2805

Important Notes

• For Skyline R34 GTR models, choose kit 286219. For R34 25GT4 and other models, opt for kit 286234.

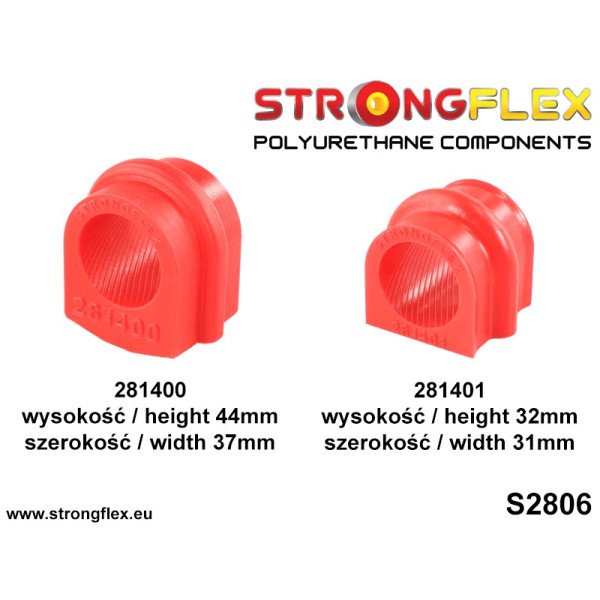

• Different stabilizer bushes are available based on the version: 281400 (70mm) and 281401 (83mm). Refer to photo S2806.

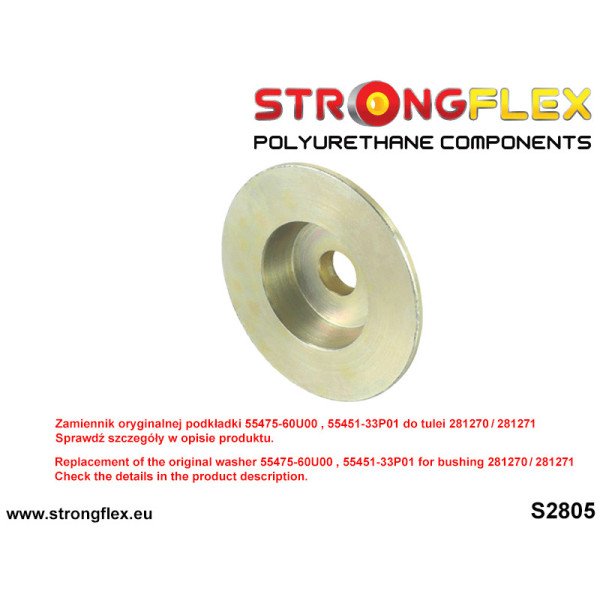

• Due to modifications for motorsport and drifting, original rear bogie pads (OEM 55475-60U00, 55451-33P01) may be absent. Replacement washers compatible with our sleeve can be purchased. Specify the quantity needed in the "Cart sleeve washer" field (0pcs/2pcs/4pcs).

Required/Car: 1

Pieces per Product: 1

Pieces per Kit: 42/43

Hardness: 80Sha

Material: POLYURETHANE (PUR/PU)

Each product comes with complimentary grease!
