Reference: 216246A

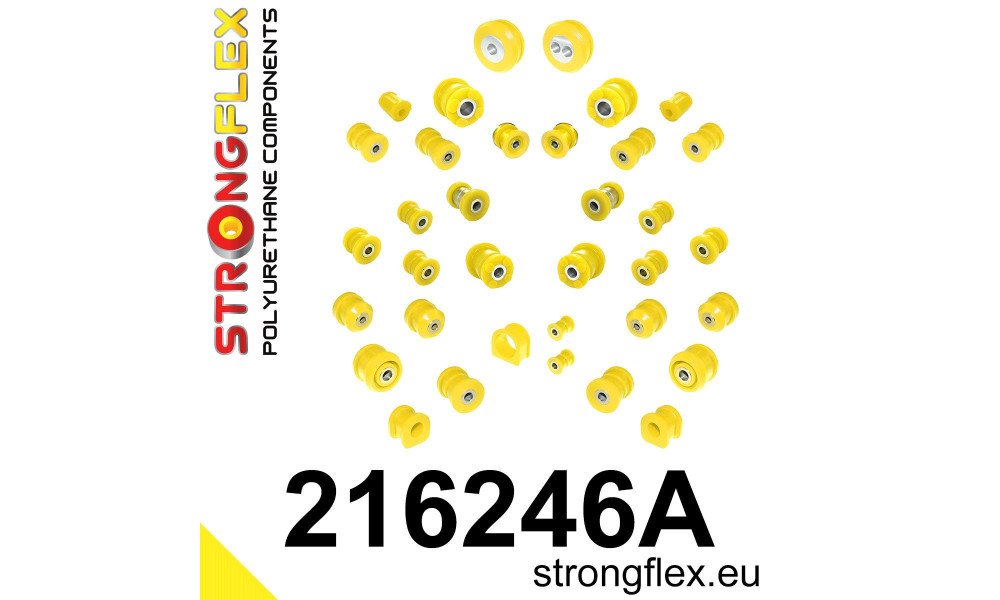

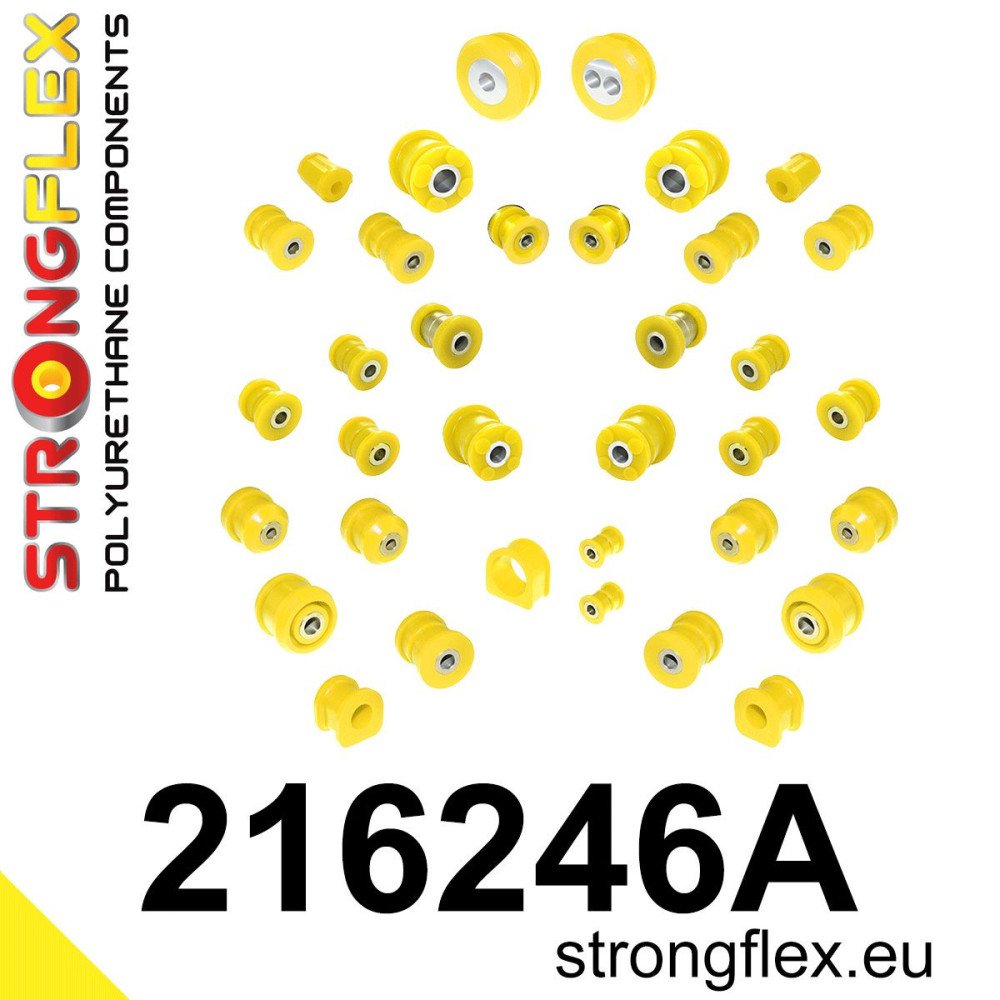

Product Name: Full Suspension Bush Kit SPORT

Compatibility:

• Lexus GS II (1997-2005) S160
• Lexus SC II (2001-2010) Z40
• Toyota Aristo II (1997-2005) S160
• Toyota Soarer IV (2001-2005) Z40

Kit Contents:

• 2x 211911A: Front Anti-Roll Bar Bush SPORT
• 4x 211912A: Front Upper Arm Bush SPORT
• 2x 211913A: Front Lower Arm Bush SPORT
• 2x 211914A: Front Lower Radius Arm to Chassis Bush 65mm SPORT
  or
• 2x 211921A: Front Lower Radius Arm to Chassis Bush 60mm SPORT
• 2x 211834A: Rear Toe Adjuster Inner Bush SPORT
• 2x 211835A: Rear Trailing Arm Front Bush SPORT
• 2x 211836A: Rear Trailing Arm Rear Bush SPORT
• 2x 211837A: Rear Track Control Arm Inner Bush SPORT
• 2x 211915A: Rear Upper Arm - Front Bush SPORT
• 2x 211916A: Rear Upper Arm – Rear Bush 35mm SPORT
  or
• 2x 212059A: Rear Upper Arm – Rear Bush 29mm SPORT
• 2x 211838A: Rear Anti-Roll Bar Bush SPORT
• 2x 211839A: Rear Beam - Front Bush SPORT
• 2x 211840A: Rear Beam - Rear Bush SPORT
• 2x 211794A: Rear Diff Mount - Front Bush SPORT
• 1x 211917A: Rear Differential – Rear Bush SPORT
• 1x 211918A: Rear Differential – Rear Bush SPORT
• 1x 211919A: Steering Clamp Bush SPORT
• 2x 211920A: Steering Rack Mount Bush SPORT

Diagrams:

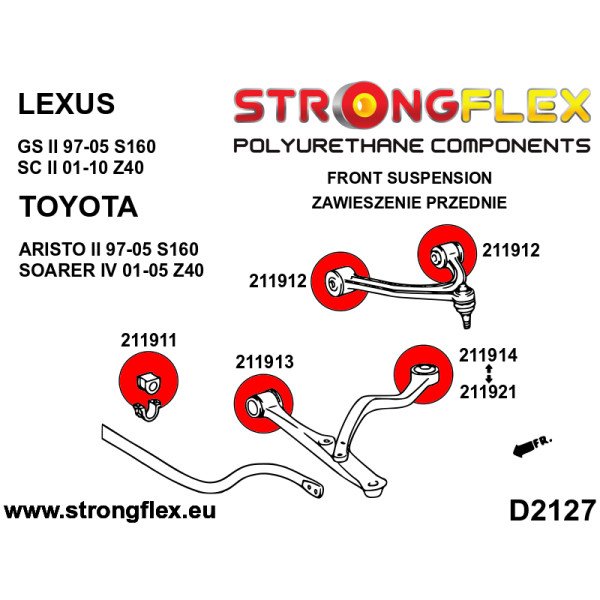

• D2127

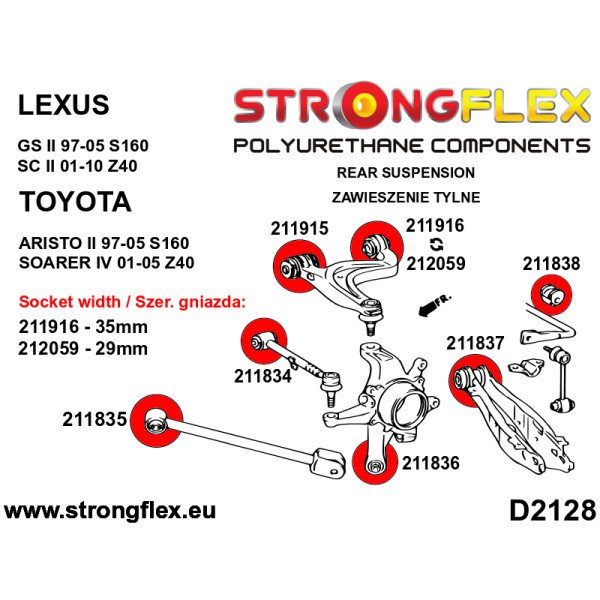

• D2128
• D2129

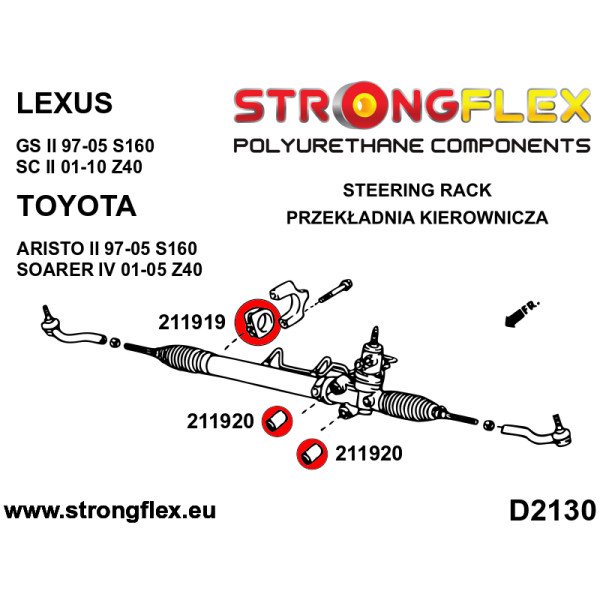

• D2130

Important Notes

• Front Wishbone Bush - Rear:
  211914 - Outer Diameter 65mm
  211921 - Outer Diameter 60mm
• Rear Wishbone Bushing Types:
  211916 - Width 35mm
  212059 - Width 29mm

Required per Vehicle: 1

Pieces per Product: 1

Total Pieces per Kit: 35

Hardness Rating: 90Sha

Material Composition: POLYURETHANE (PUR/PU)

Each kit includes a complimentary grease pack for optimal performance!
