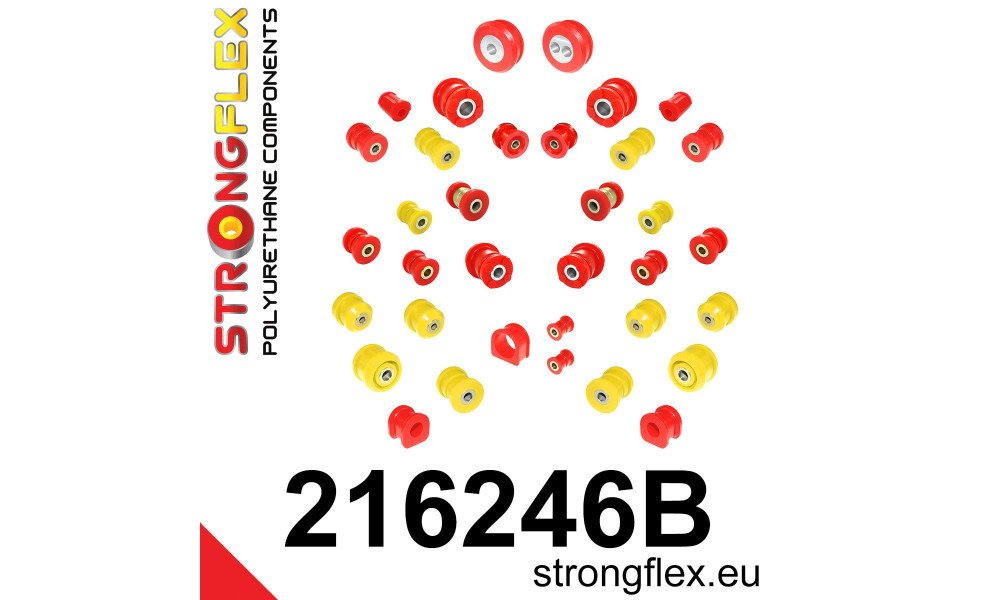

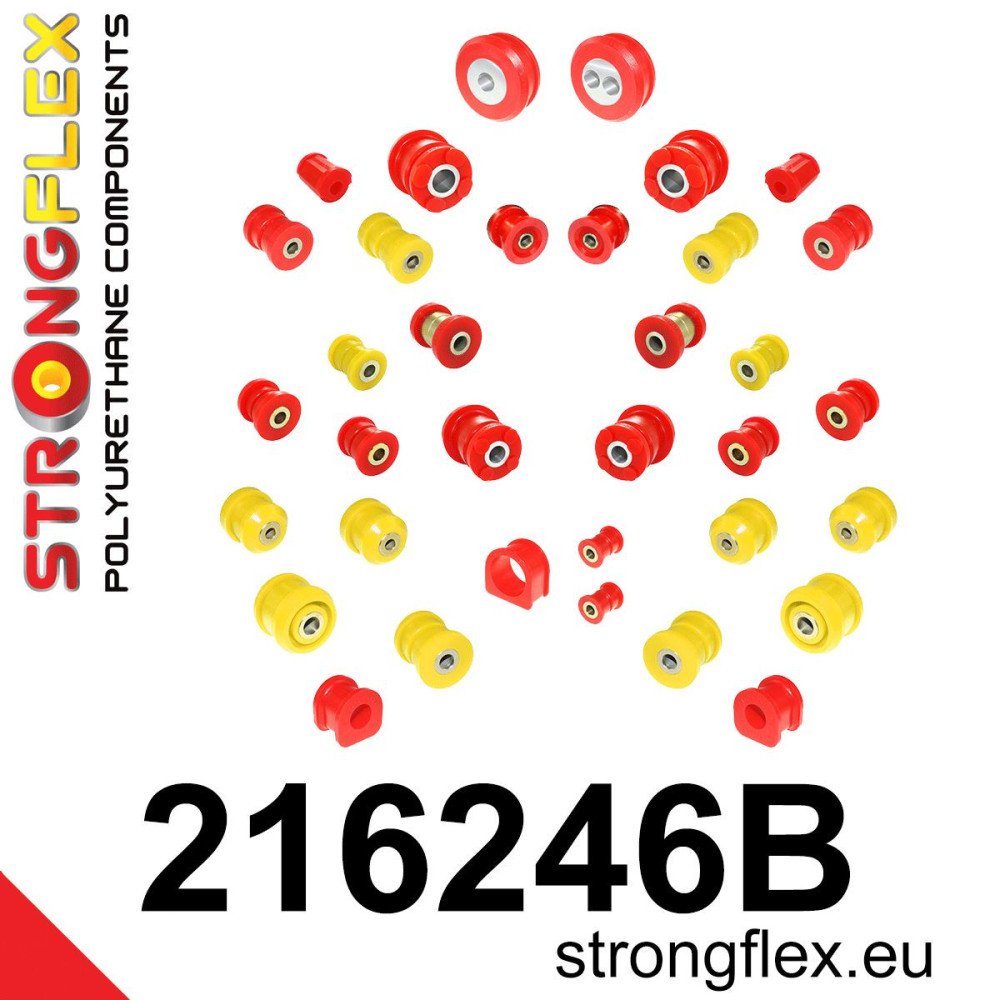

Reference: 216246B

Product Name: Full Suspension Bush Kit

Compatibility:

• Lexus GS II (1997-2005) S160
• Lexus SC II (2001-2010) Z40
• Toyota Aristo II (1997-2005) S160
• Toyota Soarer IV (2001-2005) Z40

Kit Components:

• 2x 211911B: Front anti-roll bar bush
• 4x 211912A: Front upper arm bush (SPORT)
• 2x 211913A: Front lower arm bush (SPORT)
• 2x 211914A: Front lower radius arm to chassis bush (65mm, SPORT)
  or
• 2x 211921A: Front lower radius arm to chassis bush (60mm, SPORT)
• 2x 211834A: Rear toe adjuster inner bush (SPORT)
• 2x 211835B: Rear trailing arm front bush
• 2x 211836B: Rear trailing arm rear bush
• 2x 211837B: Rear track control arm inner bush
• 2x 211915A: Rear upper arm front bush (SPORT)
• 2x 211916A: Rear upper arm rear bush (35mm, SPORT)
  or
• 2x 212059A: Rear upper arm rear bush (30mm, SPORT)
• 2x 211838B: Rear anti-roll bar bush
• 2x 211839B: Rear beam front bush
• 2x 211840B: Rear beam rear bush
• 2x 211794B: Rear differential mount front bush
• 1x 211917B: Rear differential rear bush
• 1x 211918B: Rear differential rear bush
• 1x 211919B: Steering clamp bush
• 2x 211920B: Steering rack mount bush

Diagrams:

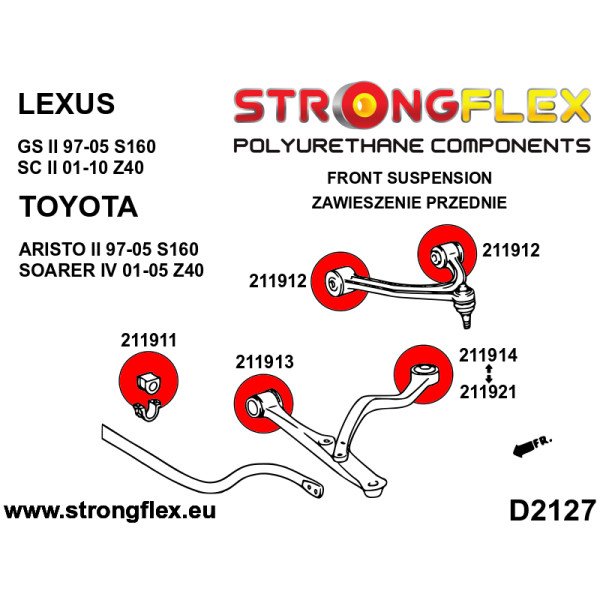

• D2127
• D2128

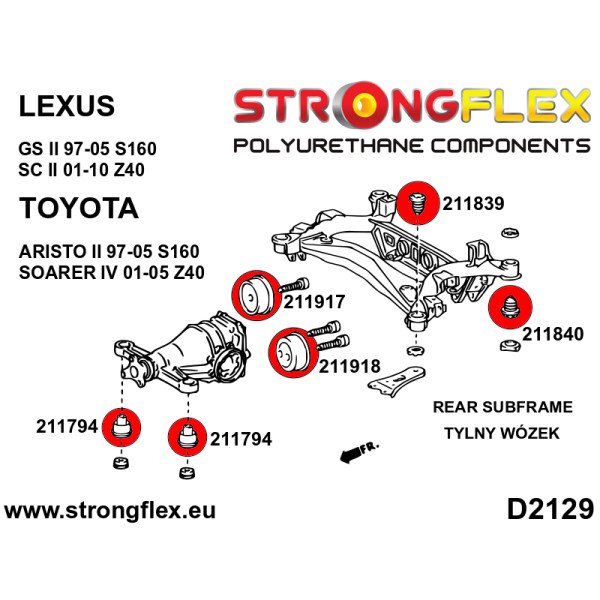

• D2129

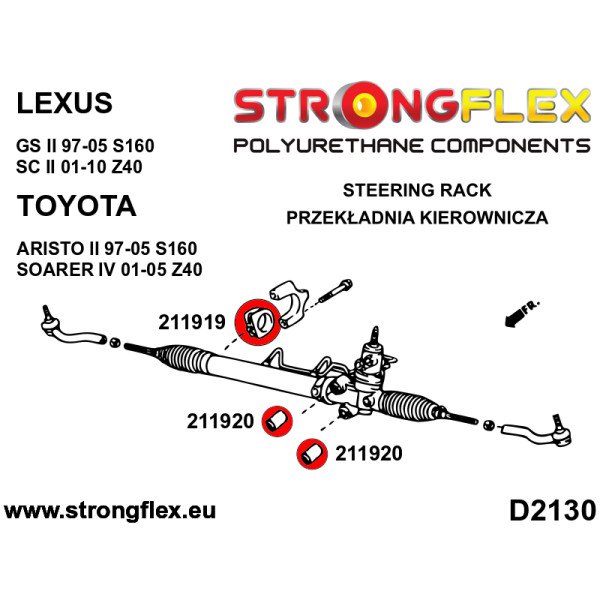

• D2130

Important Notes

• Front wishbone bush - rear:
  211914 - outer diameter 65mm
  211921 - outer diameter 60mm
• Rear wishbone bushing type:
  211916 - width 35mm
  212059 - width 30mm

Quantity Required per Vehicle: 1

Pieces per Product: 1

Total Pieces per Kit: 35

Material Hardness: 80 Shore A

Material Composition: Polyurethane (PUR/PU)

Each kit includes a complimentary grease pack for optimal performance!
