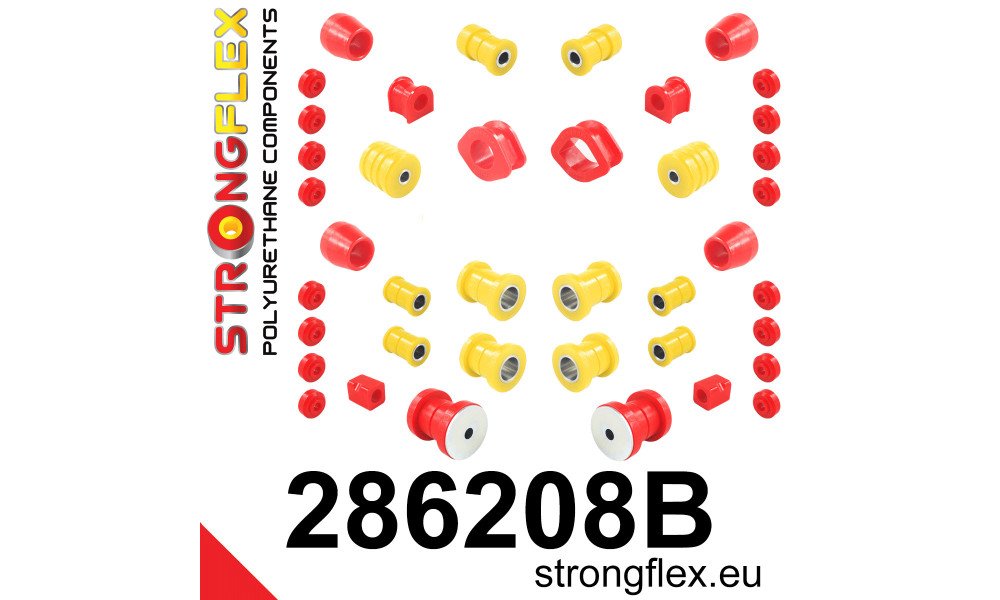

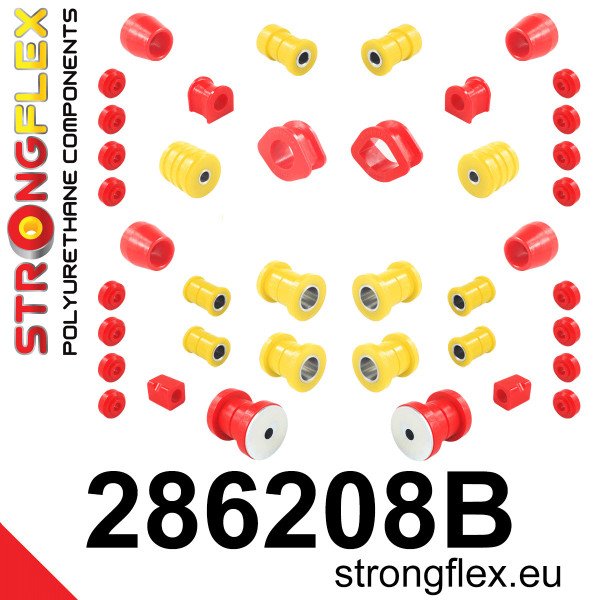

Reference: 286208B

Product Name: Full Suspension Bush Kit

Compatibility:

• Datsun 240/260/280Z (1970-1978)
• Nissan Fairlady Z (1970-1978) S30

Included Components:

• 2x 280000B: Front anti-roll bar bush
• 16x 280001B: Front & rear anti-roll bar link bush
• 2x 280002A: Front wishbone bush (SPORT)
• 2x 280003A: Front tie bar to chassis bush (SPORT)

• 1x 280004B: Steering rack bush (30mm)
  or
• 1x 280006B: Steering rack bush (36mm)

• 1x 280005B: Steering rack bush (30mm)
  or
• 1x 280007B: Steering rack bush (36mm)

• 2x 280008A: Rear wishbone bush - inner front (SPORT)
• 2x 280009A: Rear wishbone bush - inner rear (SPORT)
• 4x 280010A: Rear wishbone bush – outer (SPORT)
• 2x 280011B: Rear anti-roll bar bush
• 2x 280012B: Rear differential mount bush
• 4x 280014B: Shock absorber bumper

Diagrams:

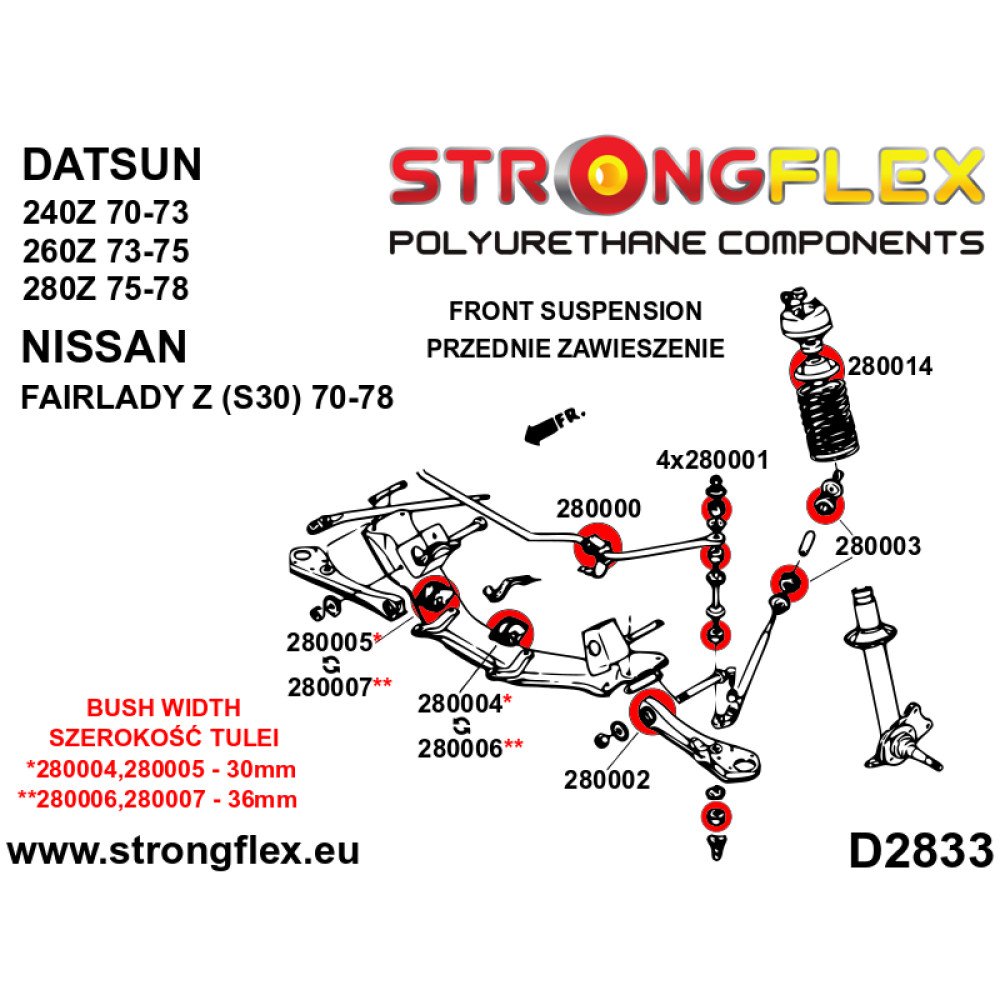

• D2833

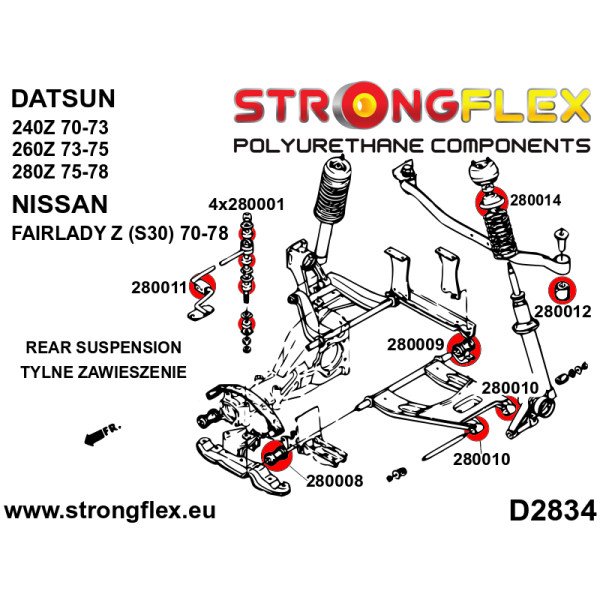

• D2834

Important Notes

• For steering gear bushings:

  Choose 280004, 280005 (30mm) if your vehicle is equipped with 30mm wide steering gear bushings.

  Opt for 280006, 280007 (36mm) if your model features 36mm wide steering gear bushings.


• Additional offerings include:

  Gearbox mount bushing: 280013B
  and
  Steering column flexible joint: 280015A



Required per Vehicle: 1

Units per Product: 1

Total Units per Kit: 40

Material Hardness: 80 Shore A

Material Composition: Polyurethane (PUR/PU)

Each kit comes with complimentary grease for optimal performance!
