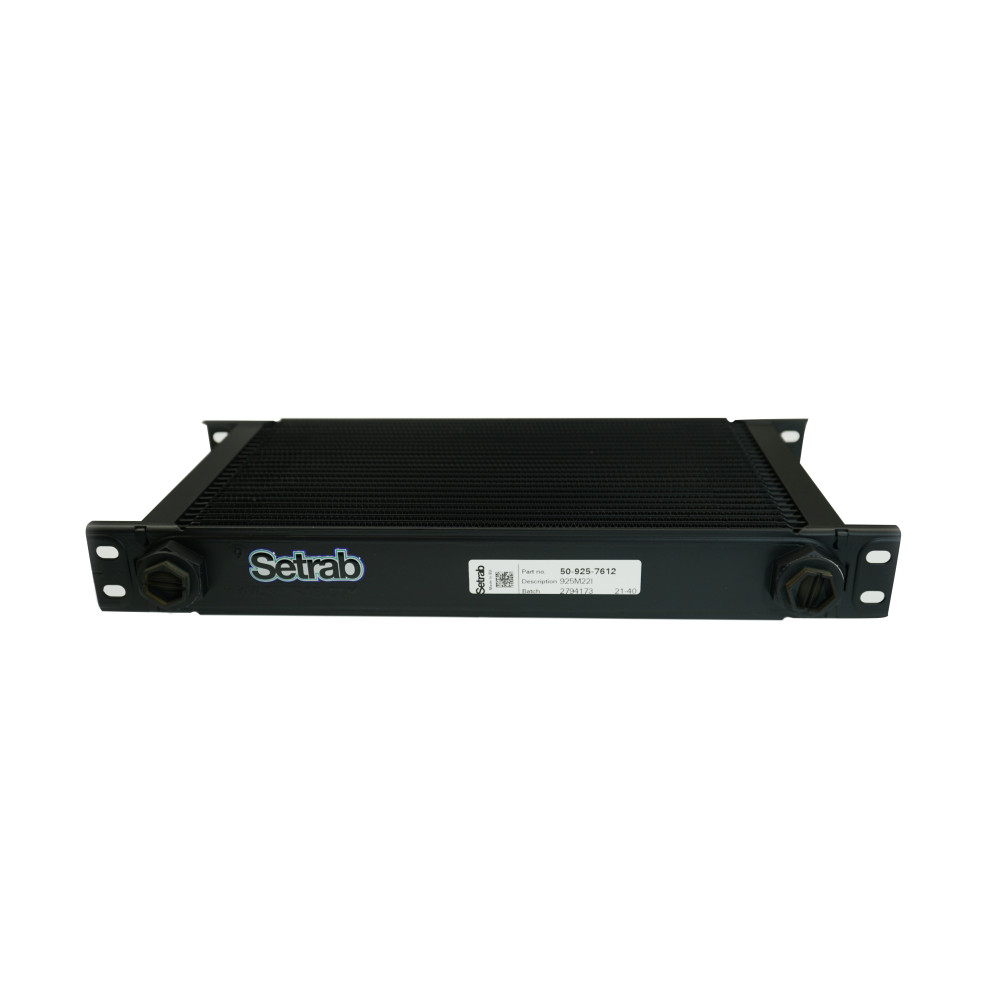

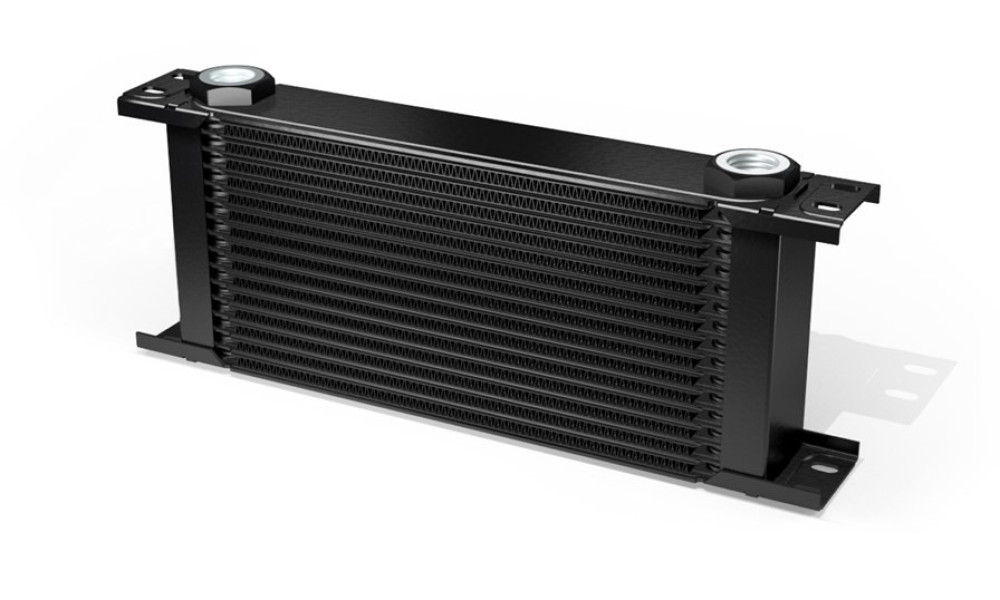

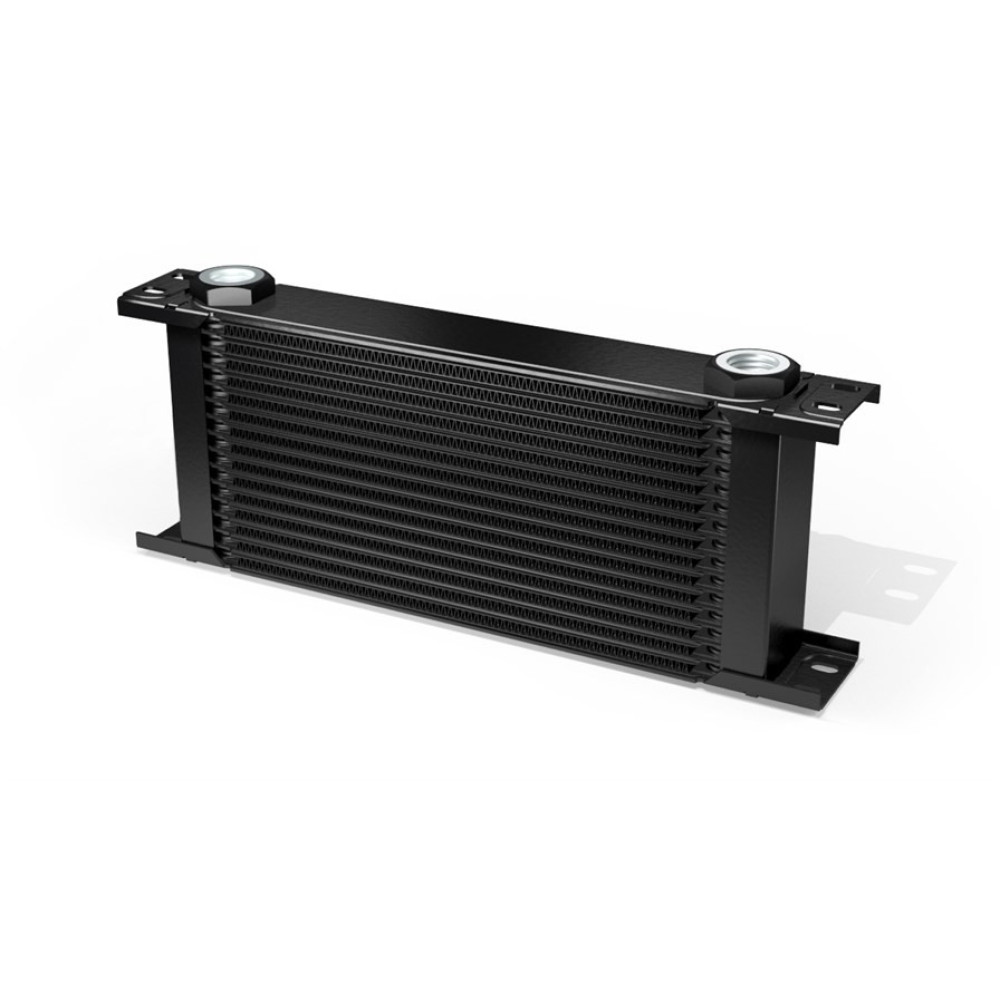

Setrab Proline Oil Cooler 25-Row (310mm)
The Setrab Proline 25-row oil cooler is engineered for high-performance applications, providing efficient oil temperature control in demanding motorsport and street environments. Built from durable aluminium, this cooler is designed to handle rigorous conditions while maintaining optimal operating temperatures for your engine or transmission.
Technical Specifications
- Rows: 25
- Core Length: 310mm
- Working Pressure: 0–10 bar(g) dynamic
- Maximum Pressure: 12 bar(g)
- Burst Pressure: 37 bar(g)
- Pressure Test: 10 bar(g)
- Leak Test: 4 bar(g)
- Working Temperature Range: -40°C to 150°C
- Inner Cleanliness: ISO 4406 16/14
- General Dimensional Tolerances: ISO 2768-v
- Material: Aluminium
- Maximum Connection Tightening Torque: 40 Nm
This oil cooler is ideal for enthusiasts seeking reliable and consistent oil cooling performance for track or spirited street use. Please verify fitment and installation requirements for your specific application.
Vehicle Compatibility
| Brand | Model | Generation / Chassis | Engine |
|---|---|---|---|
| Universal | - | - | - |
SETRAB

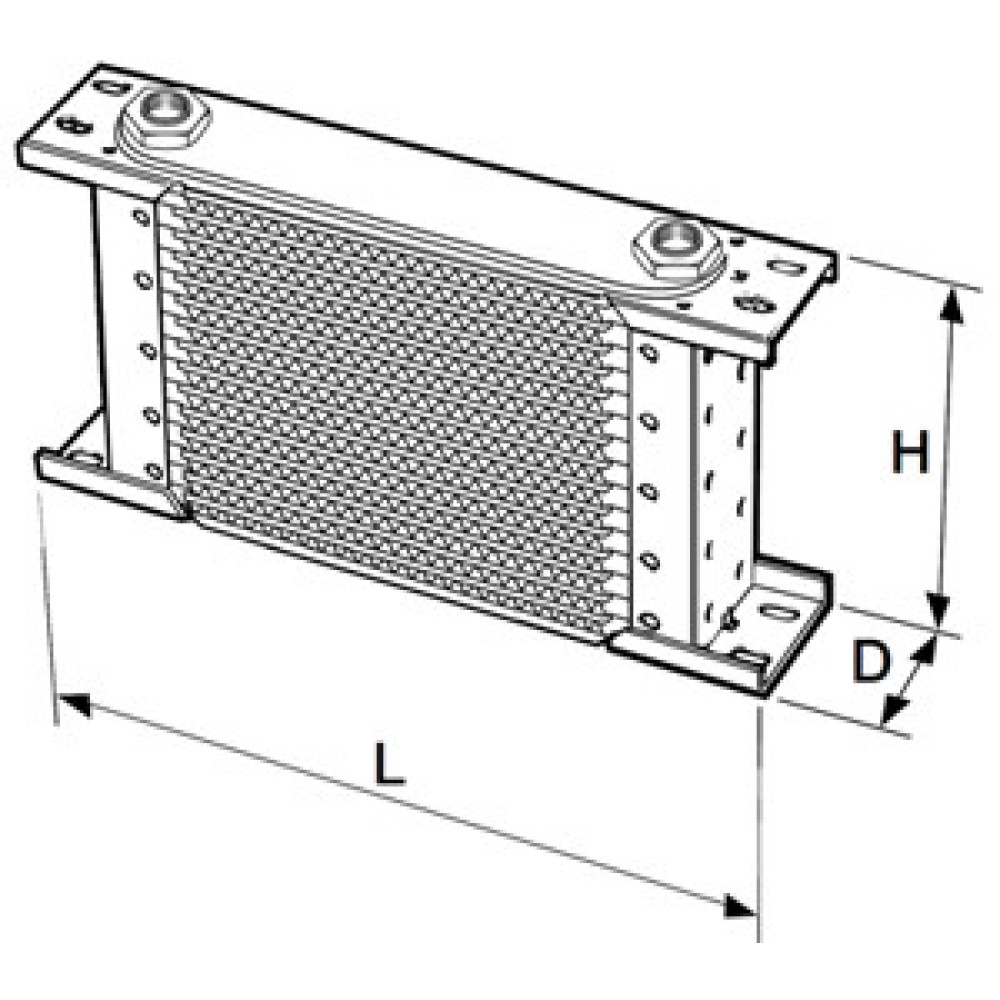

Setrab Proline oil cooler 25-row 405 x 194 mm (310mm)
Tags: Default Category|Cooling system|Oil coolers|Universal||Default Category|Cooling system|Oil coolers,
This product has universal fitment.
