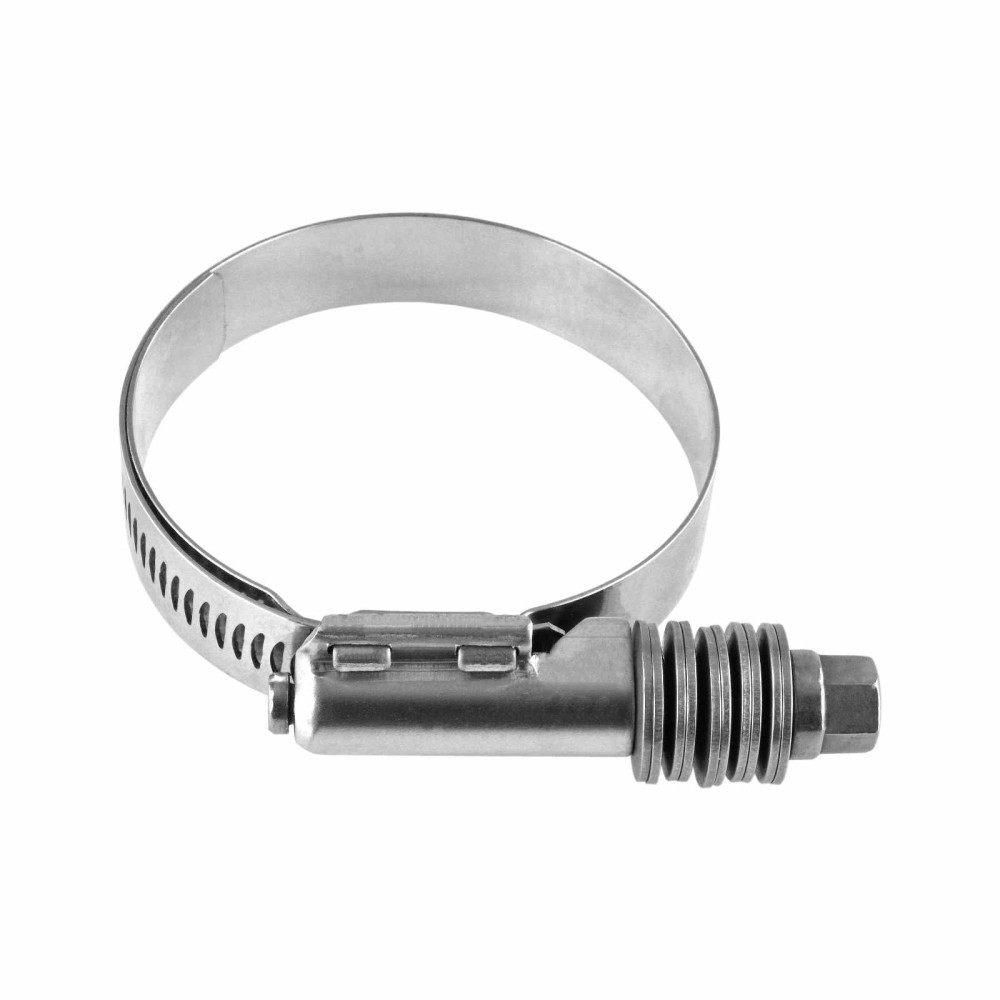

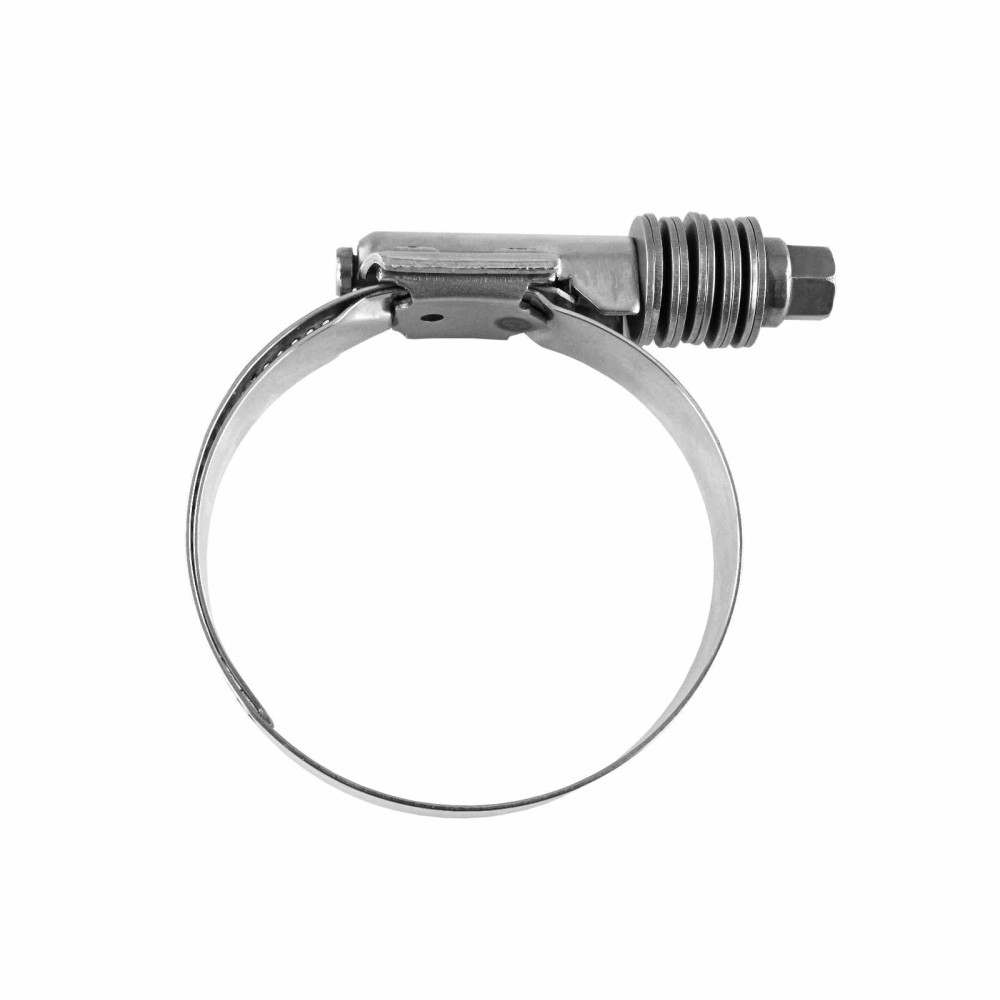

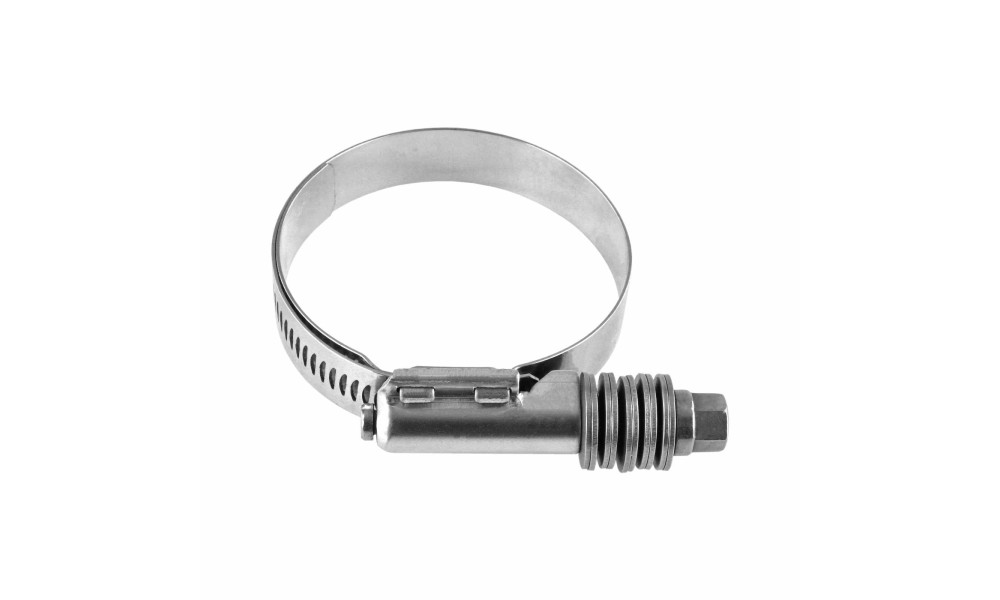

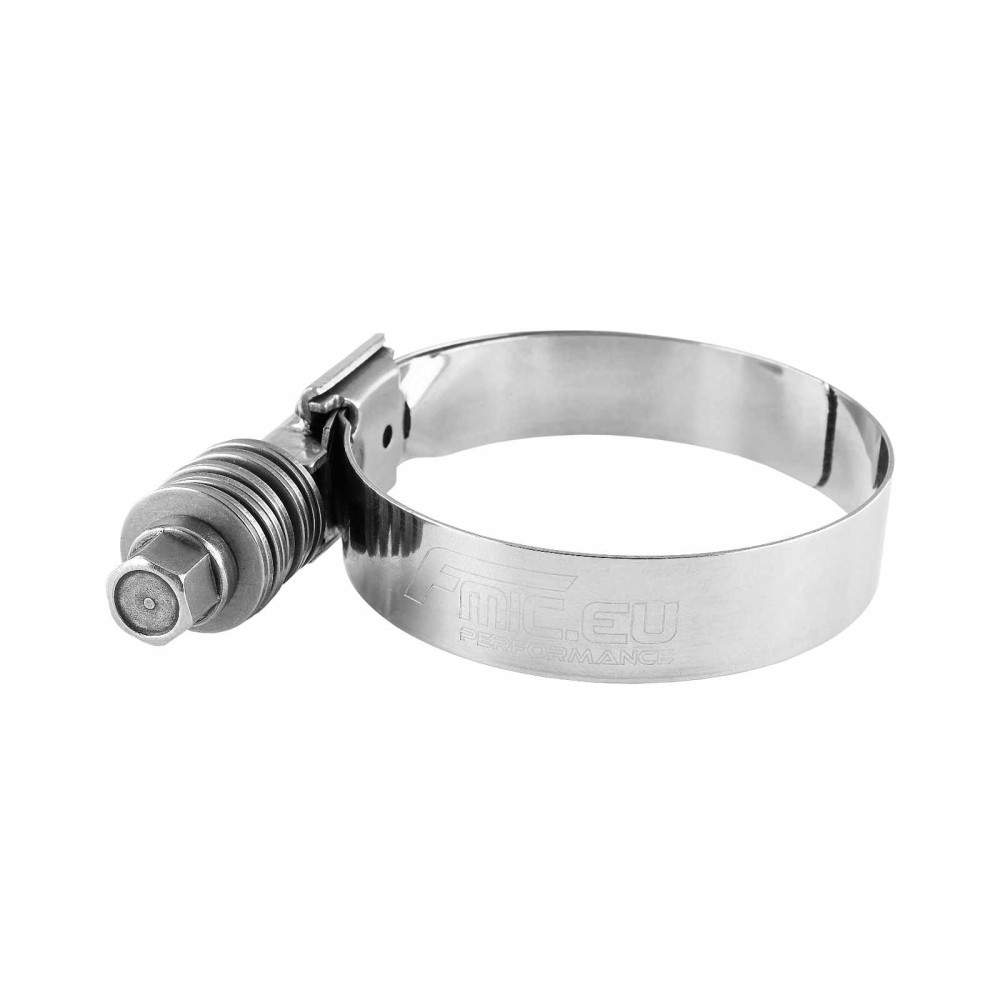

The Constant Tension self-locking clamp is designed to dynamically compensate for vibrations and material expansion, effectively preventing screw loosening. Its large width minimizes the risk of cable damage, ensuring even pressure distribution and allowing a tightening torque of up to 20Nm (recommended tightening torque is 15Nm). The inclusion of conical compensating washers ensures consistent pressure throughout the clamp's service life.

• Precision thread
• Clip thickness: 0.8mm, width: 16mm
• Clamp strap made of stainless steel
• High hardness bolt with a 10mm spanner head
• Screw fixing made of 1.5mm sheet metal
• Includes 10 conical expansion washers
• Screw fixing installed in the embossing for additional weld protection
• High resistance to harsh conditions
• Suitable for a wide temperature range
