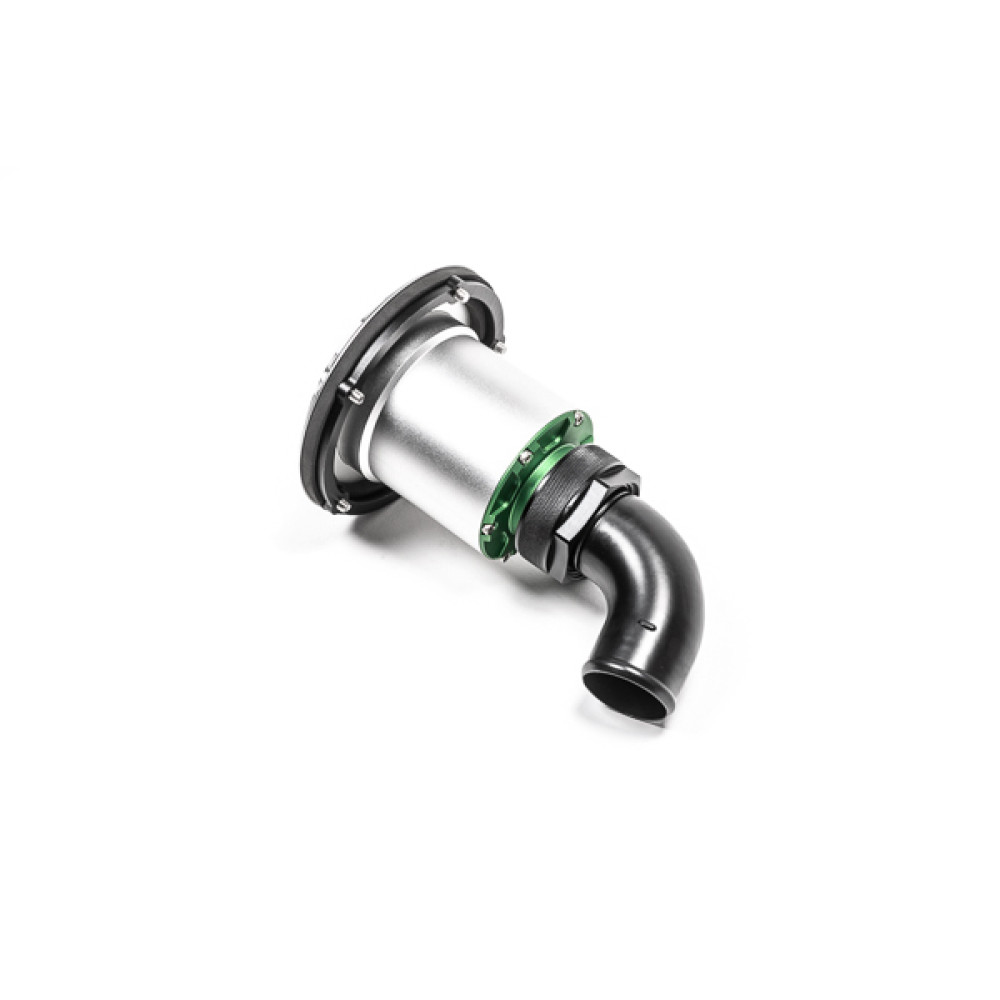

20-1105-V Remote Mount, Vented Standard Filler, 1.5in Elbow

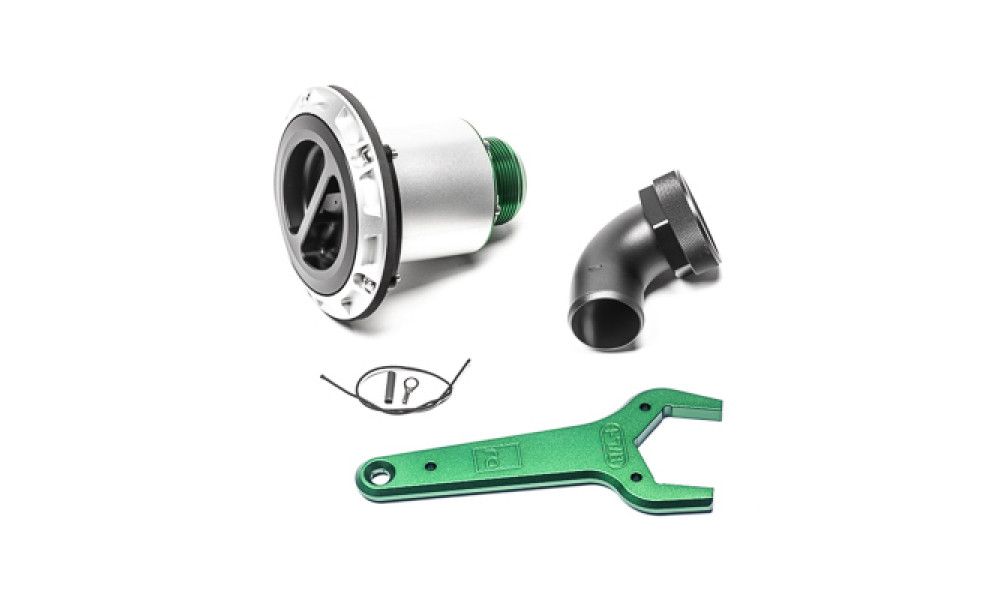

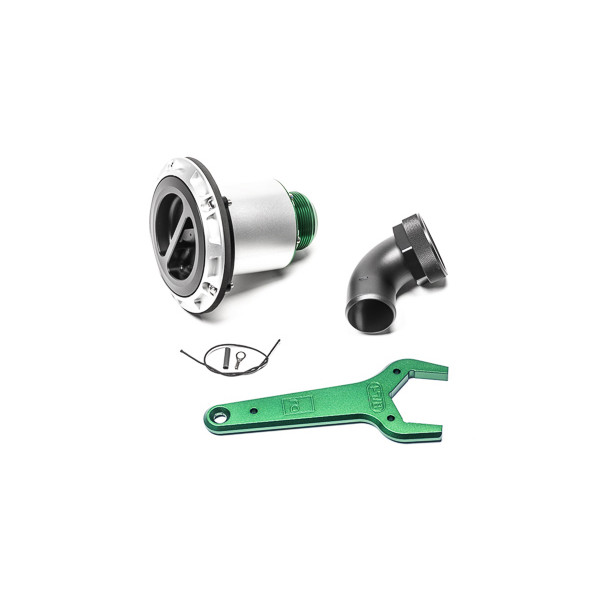

This remote mount fuel filler is designed for installation on external surfaces such as fenders. It requires a 77mm (3.03") hole for proper fitting. The package includes a gasket, stainless steel hardware, an aluminum housing, an aluminum nut ring, and a tether. Additionally, it comes with an aluminum 1-7/8" wrench and a 75-degree 24AN elbow with a 1.5in barb.

The vented fuel cap features roll-over protection to ensure safety in the event of vehicle inversion. All components, materials, and seals are compatible with various fuel types, including unleaded and leaded gasoline, diesel, AV gas, methanol, ethanol, E15, E85, and more.

Specifications:

• Filler Hose Requirement: 1.5"
• Flange Outer Diameter: 4.75"
• Bolt Circle Diameter: 4.25" PCD
• Hose End Connection: 24AN
• Hose End Angle: 75 degree

Notes:

1. Does not include accessories to connect to the fuel tank.
2. Can be upgraded later to a dry break using Radium 20-0549-V.
