Racing Engine Oil Cooler for BMW M5 M6 850i 4.4L S63 2012-2020

The dedicated engine oil cooler is designed to enhance performance through improved heat exchange capabilities.

It features a core with 24% more volume compared to the OEM part and 40% greater fin surface area, resulting in significantly more effective heat transfer during intensive driving. A larger oil capacity helps to slow down the rise in oil temperature, ensuring reliable engine operation even after an ECU remap.

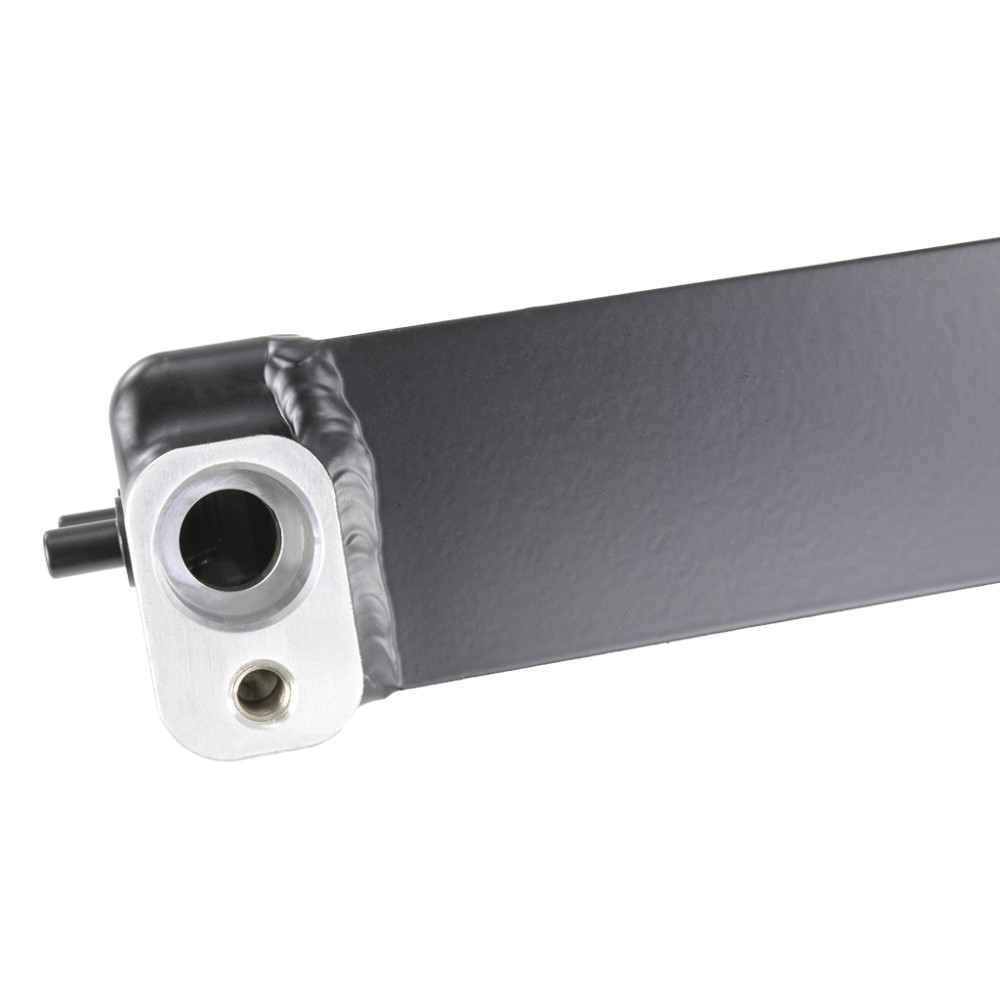

Each unit is equipped with precisely matched CNC-machined end tanks, ensuring repeatability and accurate mounting points and connections. The cooler is designed to fit in place of the stock unit and comes with a unique serial number.

Overall dimensions:
Height: 162 mm
Length: 612 mm
Thickness: 60 mm

Core dimensions:
Height: 148 mm
Length: 550 mm
Thickness: 55 mm

Tank wall thickness: 4 mm
Material: 6061 aluminum

Compatible with BMW engines: S63 4.4L V8

Fitment:
BMW M5 2012–2020
BMW M6 2012–2020
BMW M850i 2019–2020
