20-1697-01 QUICK FILL DUMP CAN, 1.5IN DRY BREAK, PRV

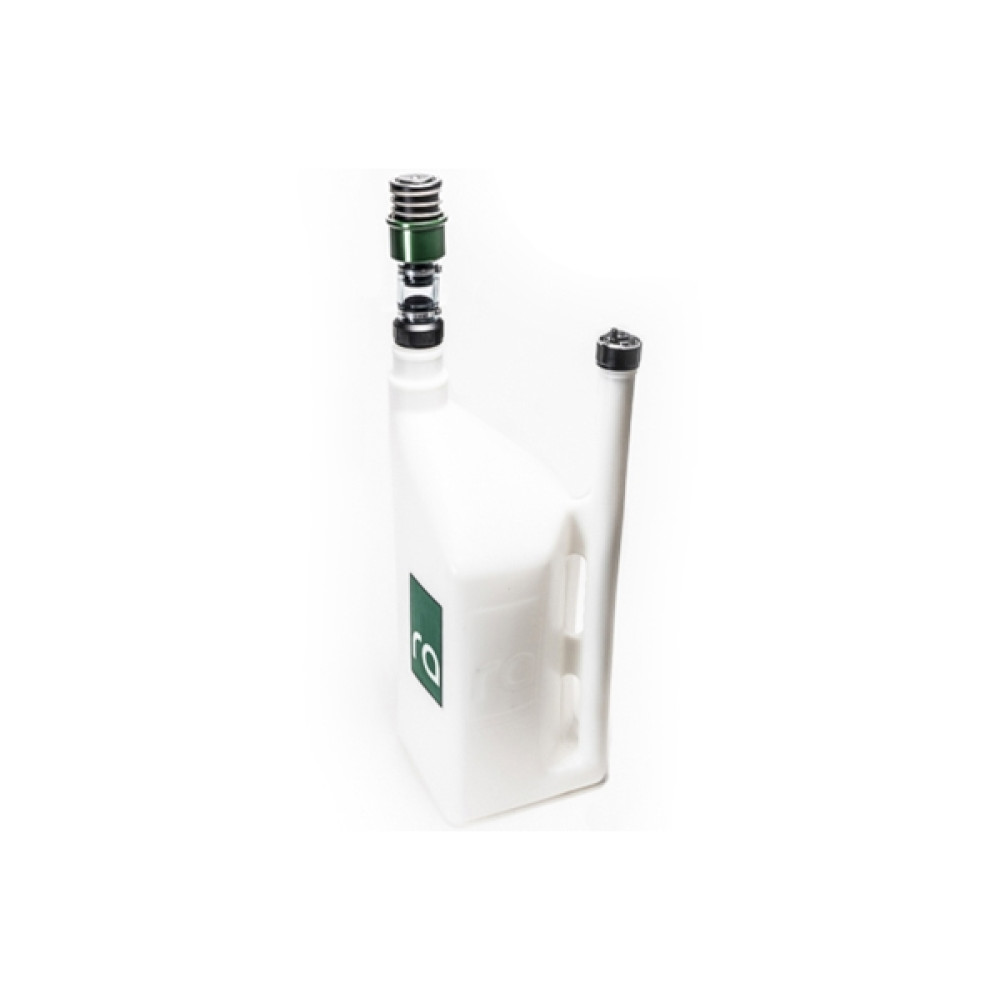

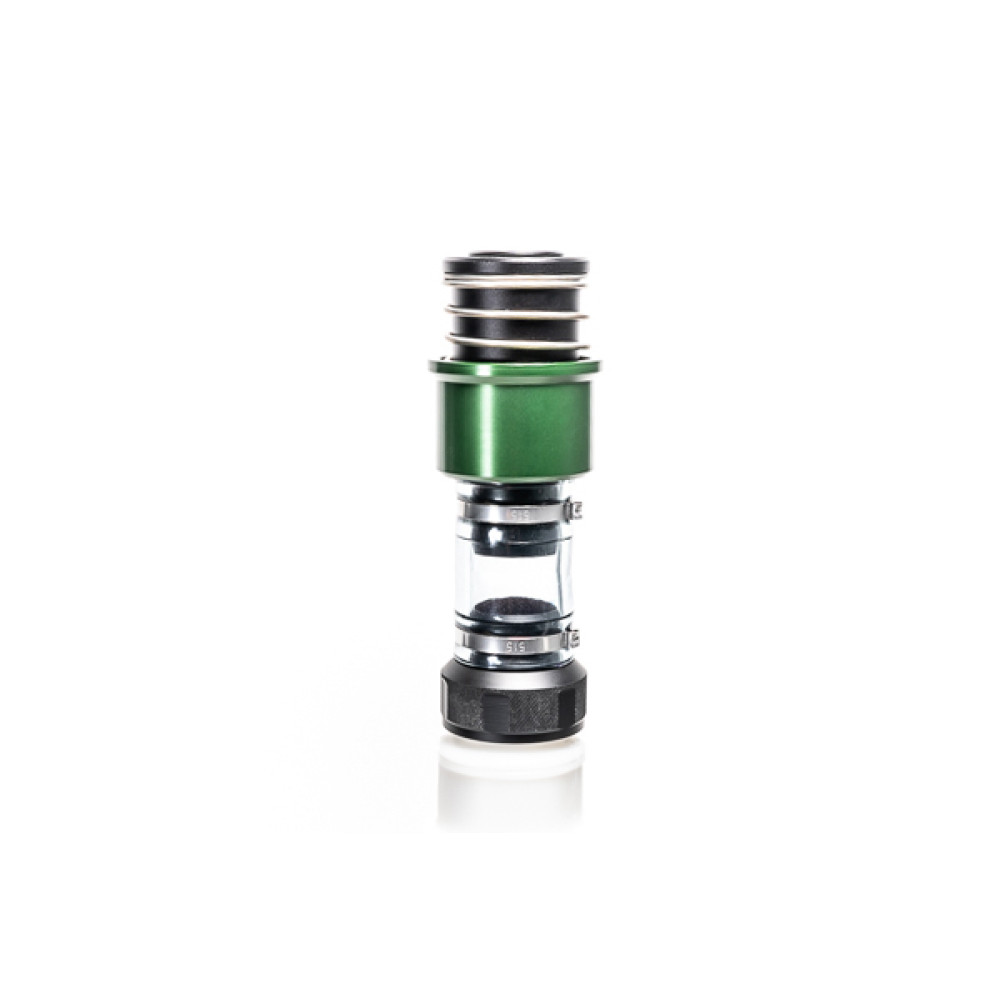

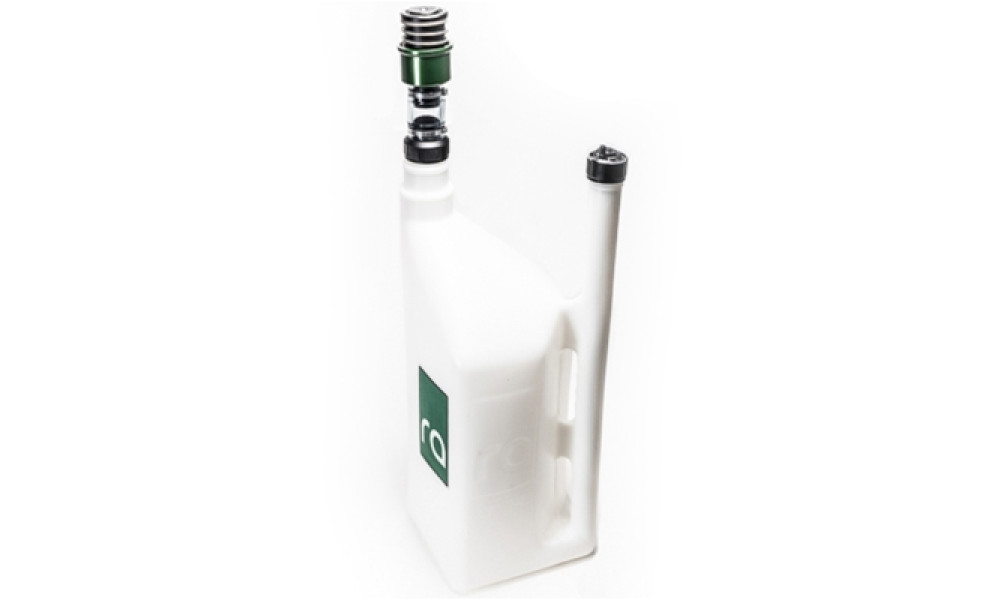

This dump can assembly includes a dry break probe compatible with 1.5" dry break receptacles. The short tube is clear for fuel fill monitoring.

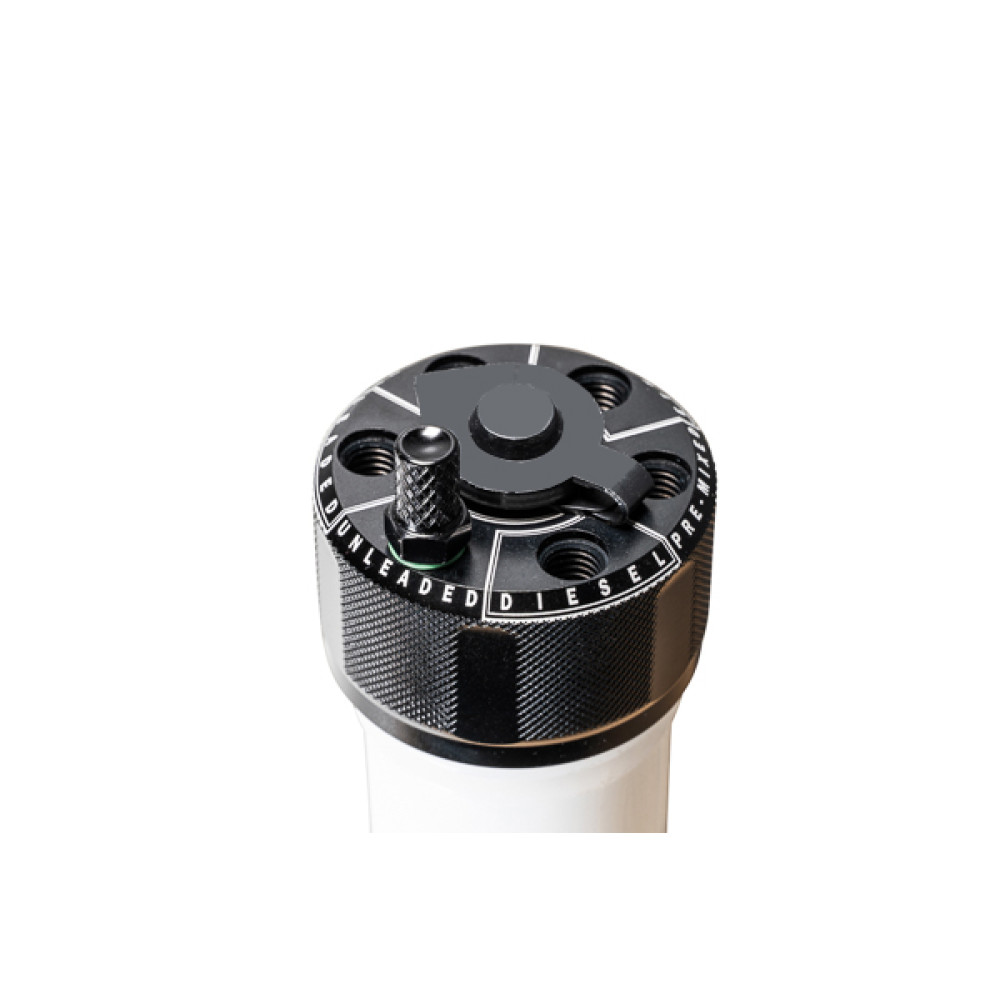

It features knurled aluminum pour and vent caps, allowing for a quick and efficient filling process. The vent cap includes 6 different fuel type indicators: UNLEADED, LEADED, METHANOL, ETHANOL, PRE-MIXED, and DIESEL. The small knob can be screwed into the appropriate threaded hole to mark the fuel type inside. For slow controlled filling, the plastic flip cap can be unlatched. For slightly quicker filling, the entire vent cap can be unscrewed (not recommended). Use with caution.

NOTES:

1. The plastic pour spout can be cut to suit 2.5" and 3" dry breaks.
2. For maximum flow efficiency, the fuel tank (or fuel cell) should have a large vent.

FLOW RATES

• Dump Can (dry break) = 19.02gpm (vent cap ON/flip cap open)
• Dump Can (dry break) = 25.75gpm (vent cap OFF)
• GENERIC BRAND X Fuel Jug = 1.86gpm (flip cap open)
