Pyrotect PyroCell Elite Fuel Cell + Nuke Performance CFC Unit

Lightweight FIA / FT3-approved fuel cell for motorsport use, built around a double-coated urethane fabric bladder with internal foam baffling and supplied with the Nuke Performance Competition Fuel Cell (CFC) Unit.

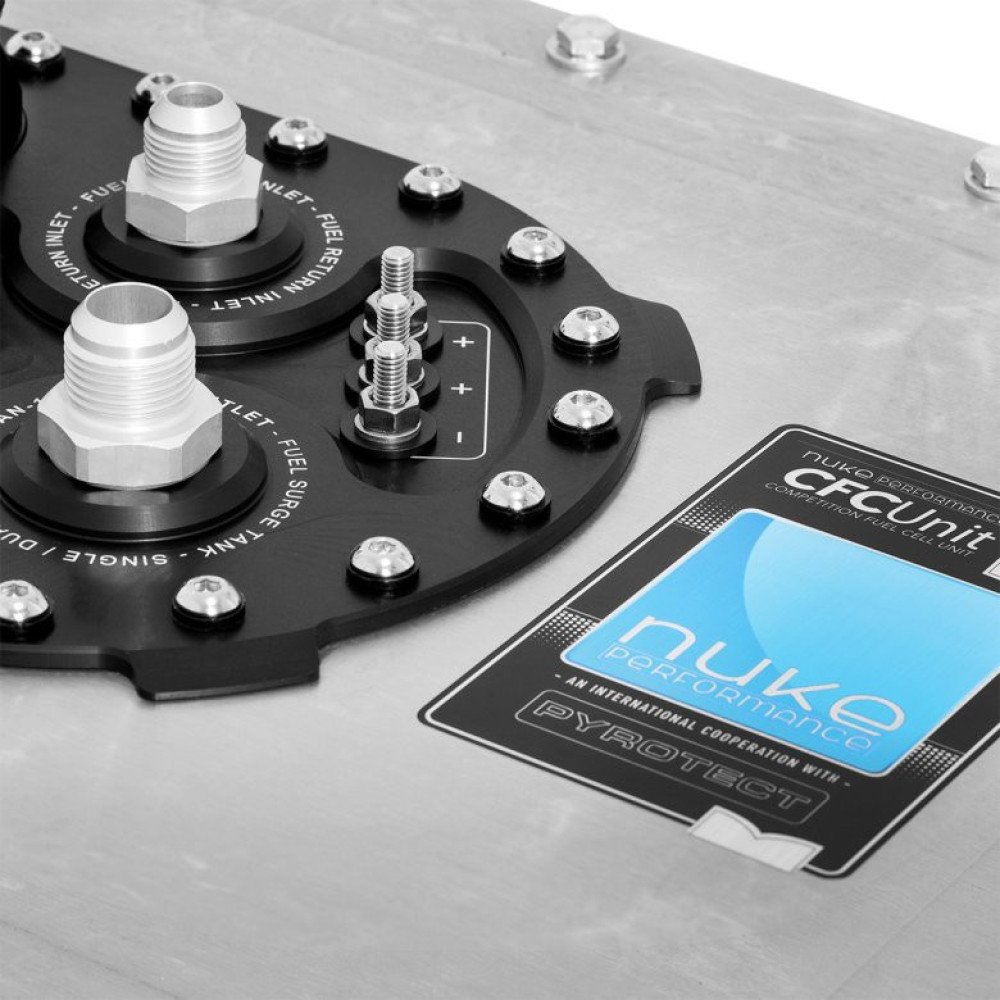

The included CFC Unit replaces the standard fill plate and adds an internal 2 liter (0.53 gallon) surge tank and an in-tank fuel pump hanger to simplify a high-performance, fuel-injected setup while reducing external plumbing.

Key Features

• Extremely lightweight fuel cell
• FIA approved for motorsport use
• 100% E85 approved
• Urethane fabric bladder for motorsport use (double coated)
• Internal foam baffling
• Available in several sizes
• Integrated 2 liter surge tank functionality
• Fits single or dual high-pressure fuel pumps
• Low-profile filler cap with integrated roll-over valve
• AN-10 outlet / AN-8 return (fittings included)

Fuel Compatibility

Safe for gasoline and alcoholic fuels including ethanol (E85) and methanol. When used with alcoholic fuels, do not leave for long-term storage without rinsing with non-alcoholic fuel first.

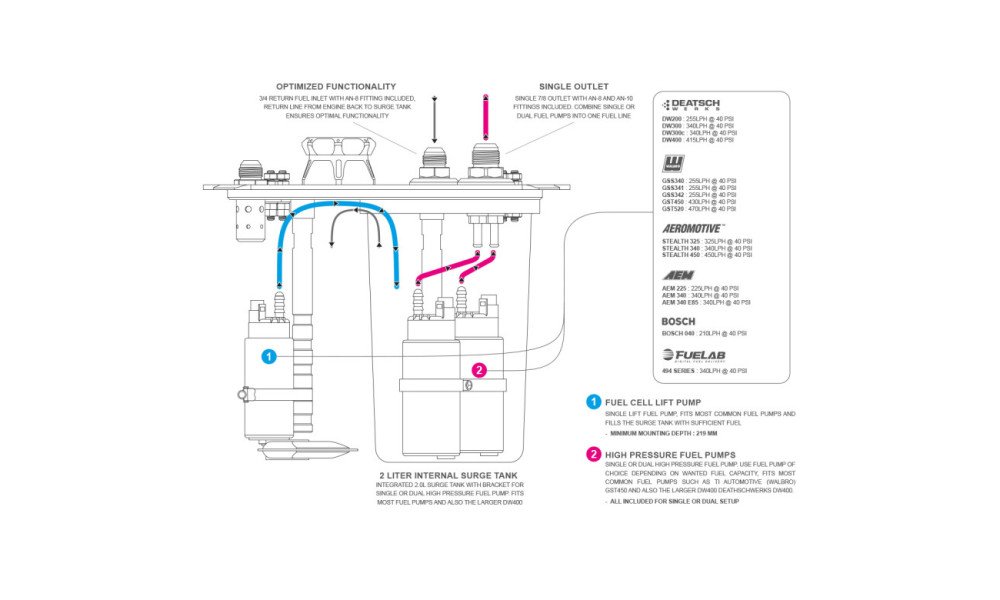

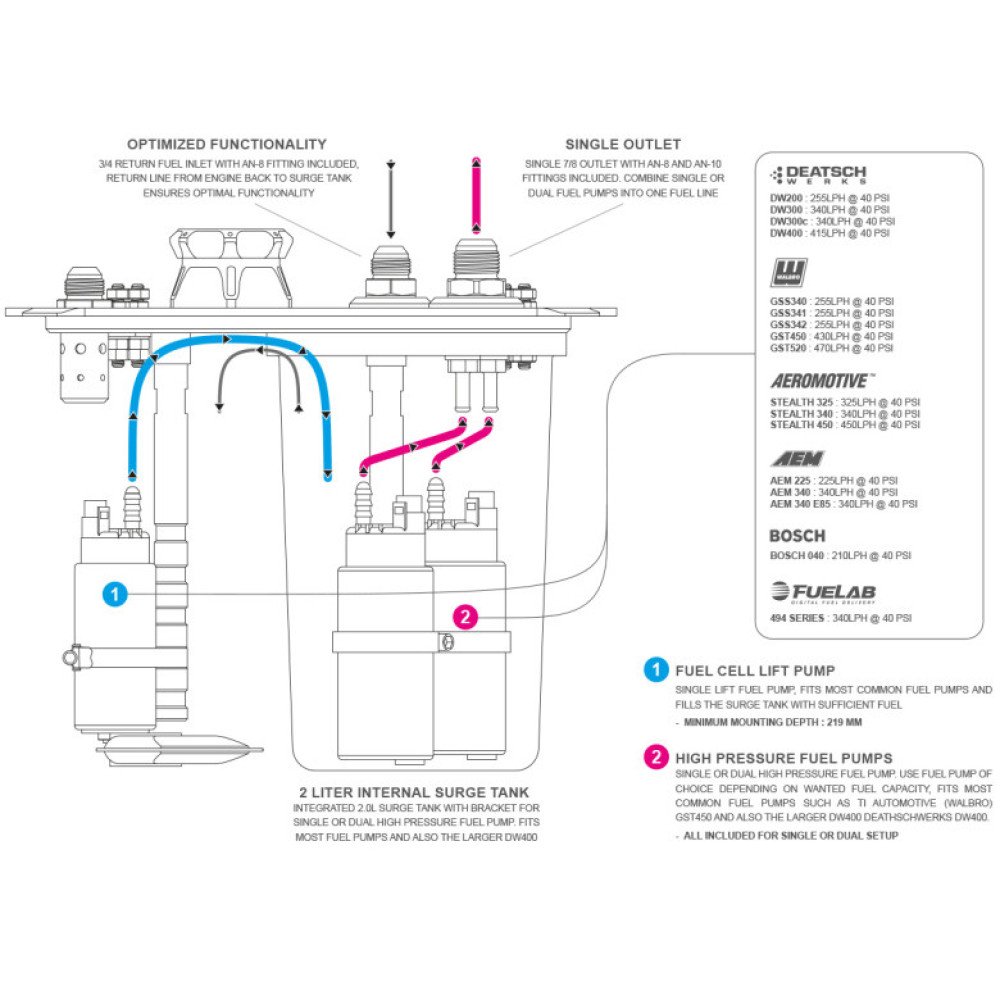

CFC Unit: Surge Tank + Fuel Pump Hanger

The CFC Unit integrates a drop-in surge tank and fuel pump mounting inside the bladder to help prevent fuel starvation under demanding driving conditions. One pickup pump mounts in the bladder, and one or two high-pressure pumps mount in the surge tank using billet brackets and an adjustable aluminum mount.

Designed to support fuel demands in the 200–2000 hp range (as stated by the manufacturer) when configured with appropriate pumps.

Fuel Pump Fitment (as stated)

Fits single or dual high-pressure pumps from Deatschwerks, AEM, Ti Automotive, Walbro, Bosch, Fuelab, Aeromotive, and more. Supports common 39 mm pumps and larger models including Deatschwerks DW400, Walbro GST400/450/520, Bosch BR540, and Aeromotive Stealth 450.

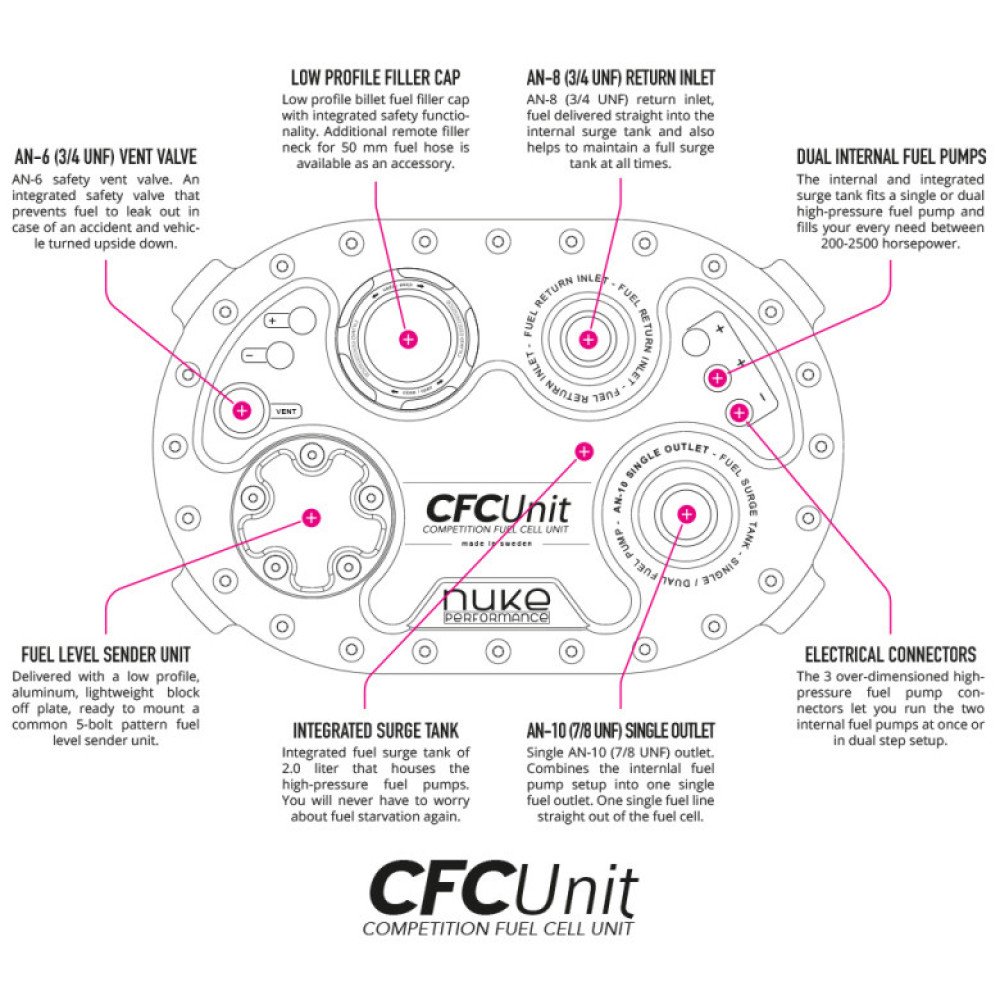

Included Fittings & Options

The CFC Unit is supplied with outlet, return, and rollover-protected vent fittings. Vent fittings are AN-6 and can be swapped for AN-6 to AN-10 when needed. Additional AN-6 to AN-12 fittings are available separately (sold as accessories).

Outlet Fittings

• AN-10 (7/8 UNF) to AN-8 male — Part # 700-01-116
• AN-10 (7/8 UNF) to AN-10 male — Part # 700-01-116
• AN-10 (7/8 UNF) to AN-12 male — Part # 700-01-116

Return & Vent Fittings

• AN-8 (3/4 UNF) to AN-6 male — Part # 700-01-101
• AN-8 (3/4 UNF) to AN-8 male — Part # 700-01-102
• AN-8 (3/4 UNF) to AN-10 male — Part # 700-01-103

Construction

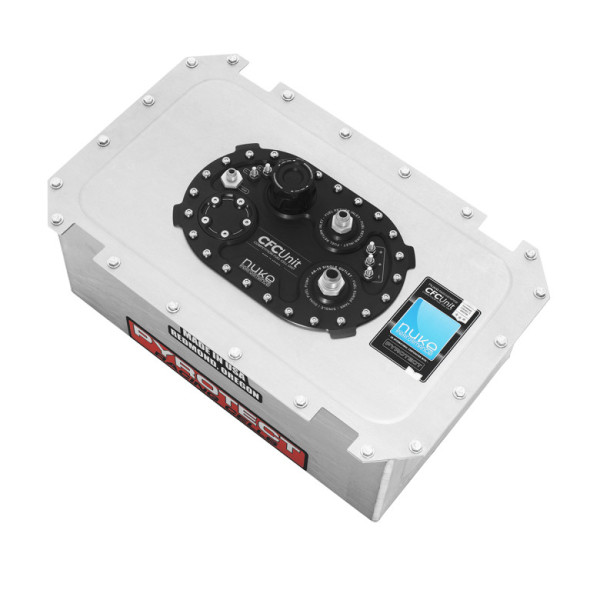

Pyrotect Elite fuel cells are American made and use a durable urethane bladder inside a lightweight FIA-approved aluminum container. Internal foam baffling is modified from the fabrication line to accommodate the CFC Unit.

Design & Manufacturing

The Nuke Performance CFC Unit is developed, designed, and manufactured in Sweden.

Built to Order

Manufactured to order to help ensure current FIA approval and avoid long-stored bladders. Approximate delivery time is 3 weeks after order is placed.

Kit Includes

• 1 × Pyrotect Elite fuel bladder (size selected when ordering)
• 1 × Pyrotect FIA-approved lightweight aluminum container
• 1 × Nuke Performance Competition Fuel Cell Unit
• 1 × AN-10 (7/8 UNF) to AN-10 male outlet fitting
• 1 × AN-8 (3/4 UNF) to AN-8 male return fitting
• 1 × AN-8 (3/4 UNF) to AN-6 male vent safety valve

Specifications (by Fuel Cell Size)

8 Gallon Fuel Cell

• Part # 150-06-08
• Length: 527 mm (20.75")
• Depth: 308 mm (12.12")
• Height: 219 mm (8.62")
• Weight: N/A (including CFC Unit)
• Fuel capacity: 30.28 liter (8 gallons)
• Fuel level sender: 150-FLS-08 (203 mm / 8")

10 Gallon Fuel Cell

• Part # 150-06-10
• Length: 620 mm (25.62")
• Depth: 257 mm (10.12")
• Height: 257 mm (10.12")
• Weight: N/A (including CFC Unit)
• Fuel capacity: 37.85 liter (10 gallons)
• Fuel level sender: 150-FLS-09 (228 mm / 9")

12 Gallon Fuel Cell

• Part # 150-06-12
• Length: 502 mm (19.76")
• Depth: 437 mm (17.20")
• Height: 234 mm (9.21")
• Weight: N/A (including CFC Unit)
• Fuel capacity: 45.42 liter (12 gallons)
• Fuel level sender: 150-FLS-09 (228 mm / 9")

15 Gallon Fuel Cell

• Part # 150-06-15
• Length: 622 mm (24.5")
• Depth: 450 mm (17.75")
• Height: 241 mm (9.5")
