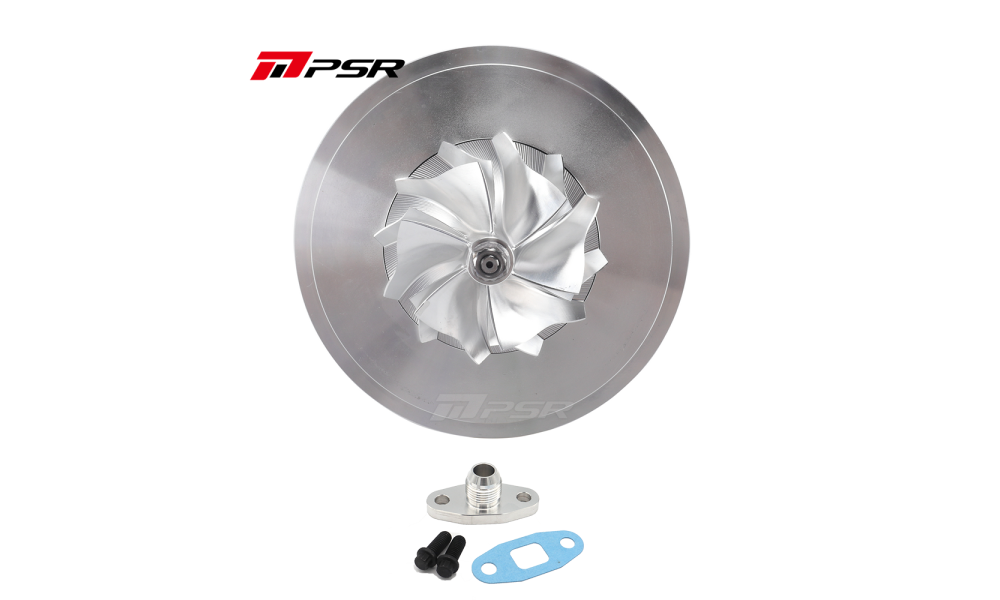

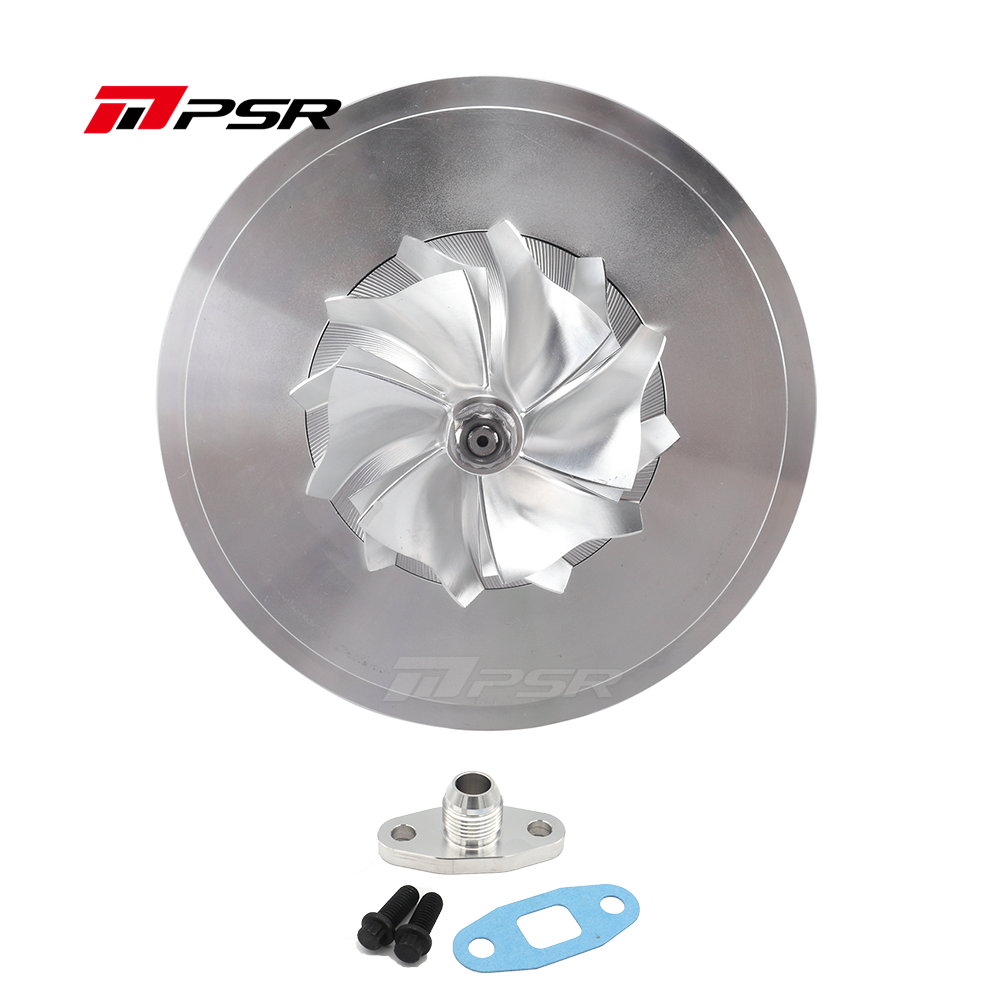

6766E Ball Bearing Turbo - Up to 935HP

• Ball bearing system enhances turbo response and durability by minimizing shaft motion.
• Billet Compressor Wheel featuring Extended Tapered Tip Technology.
• Inconel 713c 10 Blade Turbine Wheel.
• Includes V-Band Flange kit for the exhaust housing.
• Maximum Engine Horsepower: 935.

Compressor Cover: Without Compressor Housing

Turbine Housing: Without Turbine Housing

• Billet Compressor Wheel sizes: 67mm / 82mm / 88mm, 6+6 Blade configuration.
• Turbine Wheel sizes: 66.1mm / 74.17mm, 10 Blade configuration.
• Bearing System: Dual Ball Bearing for optimal turbo response and durability.
• Compressor Cover Inlet/Outlet: 4.0” / 2.5” Hose.
• Turbine Housing options: T3 0.63A/R (3" V-band Outlet); T3 0.82A/R (3" V-band Outlet); T4 Open 0.96A/R (3" V-band Outlet); Dual V-band 0.96A/R (3" V-band Inlet, 3" V-band Outlet); Stainless Steel T4 Open 0.63A/R (3" V-band Outlet); Stainless Steel Dual V-band 0.82A/R (2.5" V-band Inlet, 3" V-band Outlet).
• Internal oil feed port: 0.9mm.
• Oil feed fitting: 1/8-27 NPSF.
• Oil drain: T4 flange.

Oil Drain Fitting Options:

• 10AN_STD
• 10AN_EXTENDED

Important! Only compatible with PSR compressor cover.
